Product Overview
Description
Product Overview

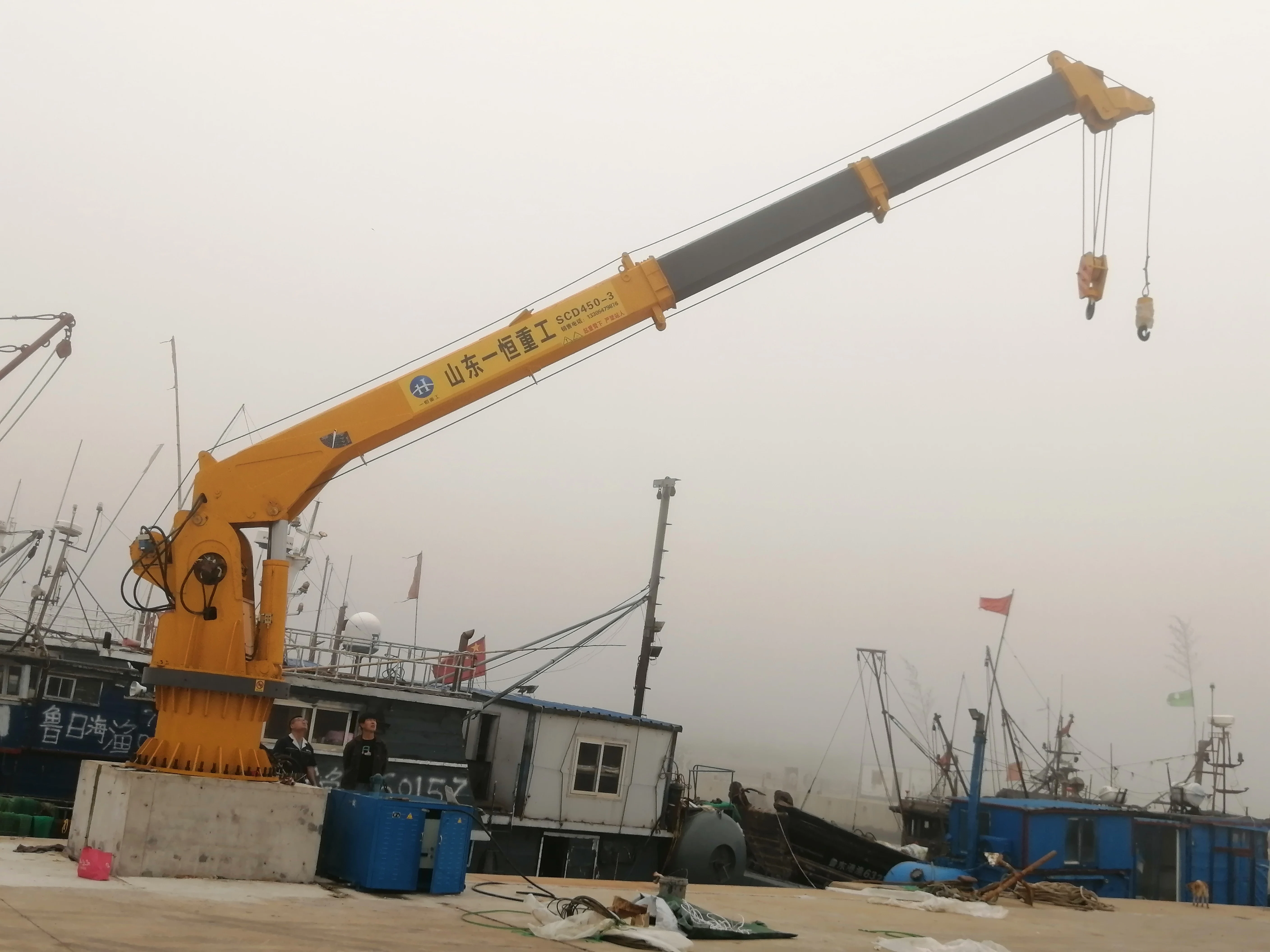

ship deck crane
The hydraulic telescopic boom adopts horizontal bar cable synchronous expansion technology, with high efficiency, small
installation space and large operation range.
Hydraulic slewing adopts 360-degree omni-directional slewing, no dead angle for hoisting
The hydraulic luffing adopts a large elevation angle of 90-165 degrees, which occupies a small space and increases the support stability and work area.
The extremely high-strength plate increases the strength and rigidity of the structural parts, and greatly improves the weight utilization factor of the crane.
The professional hoisting winch R&D team ensures that the winch reaches the rated lifting weight and speed.
Can be customized and configured as required.
installation space and large operation range.
Hydraulic slewing adopts 360-degree omni-directional slewing, no dead angle for hoisting
The hydraulic luffing adopts a large elevation angle of 90-165 degrees, which occupies a small space and increases the support stability and work area.
The extremely high-strength plate increases the strength and rigidity of the structural parts, and greatly improves the weight utilization factor of the crane.
The professional hoisting winch R&D team ensures that the winch reaches the rated lifting weight and speed.
Can be customized and configured as required.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
CHEAP COST
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE

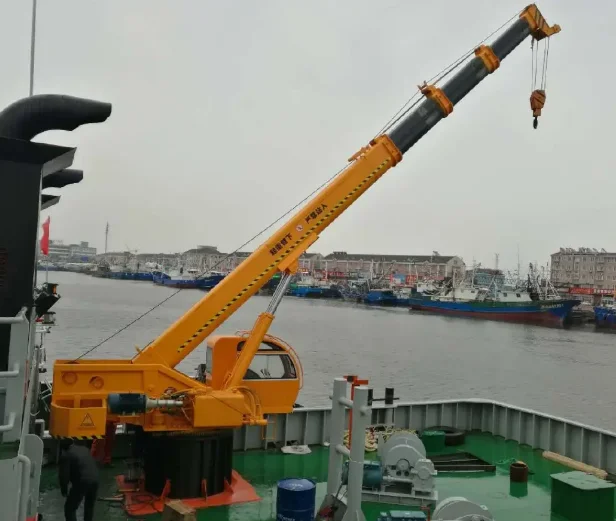

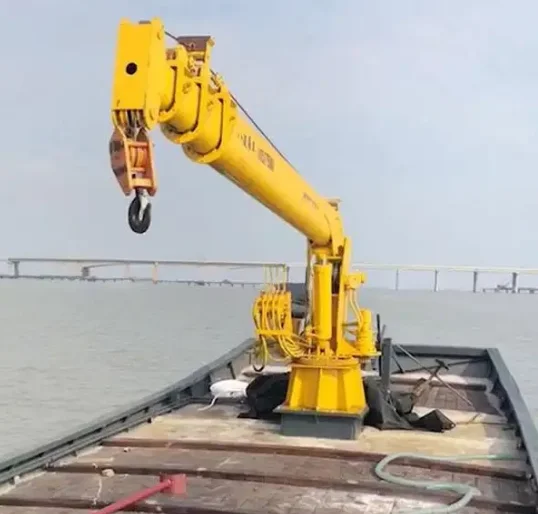

deck crane

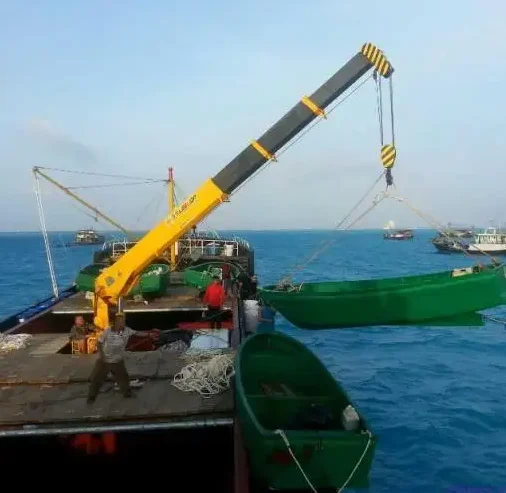

fishing boat crane

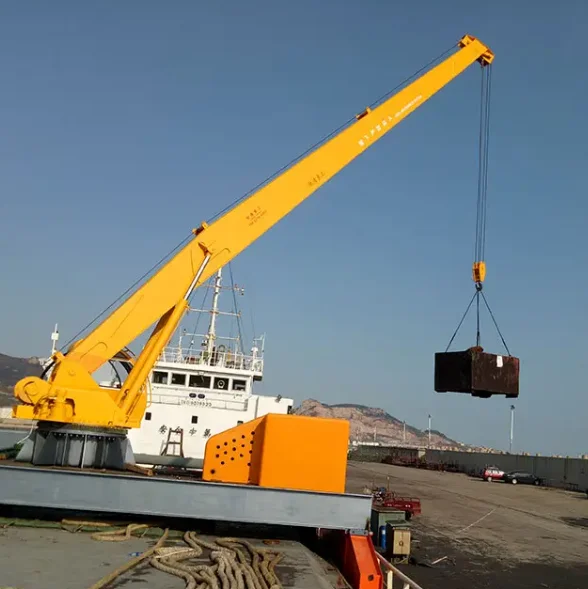

ship crane
PRODUCT SPECIFICATIONS
Item | UNIT | SQ2S1Q | SQ3.2S1Q | SQ5S2Q | SQ6.3S2Q | SQ8S3Q | SQ10S3Q | SQ12S3Q | SQ16S4Q | |||||||
Max lifting Capacity | KG | 2100 | 3200 | 5000 | 6300 | 8000 | 10000 | 12000 | 1600 | |||||||
Max lifting Moment | T.M | 4.2 | 6.8 | 12.5 | 15.7 | 20 | 25 | 30 | 43.2 | |||||||
Recommend Power | KW | 9 | 14 | 18 | 20 | 27 | 30 | 30 | 41 | |||||||
Oil Flow of Hydraulic System | L/min | 20 | 25 | 32 | 40 | 55 | 63 | 63 | 80 | |||||||
Pressure of Hydraulic System | MPA | 16 | 20 | 20 | 20 | 27 | 26 | 26 | 28 | |||||||
Oil Tank Capacity | L | 25 | 30 | 90 | 90 | 160 | 160 | 160 | 260 | |||||||
Crane Weight | KG | 875 | 1105 | 2120 | 2160 | 3315 | 3765 | 4316 | 6455 | |||||||
Installation Space | MM | 850 | 850 | 900 | 900 | 1200 | 1150 | 1300 | 1400 | |||||||
Rotation Angle | 。 | 360 | ||||||||||||||
PRODUCT CONFIGURATION
BOOM

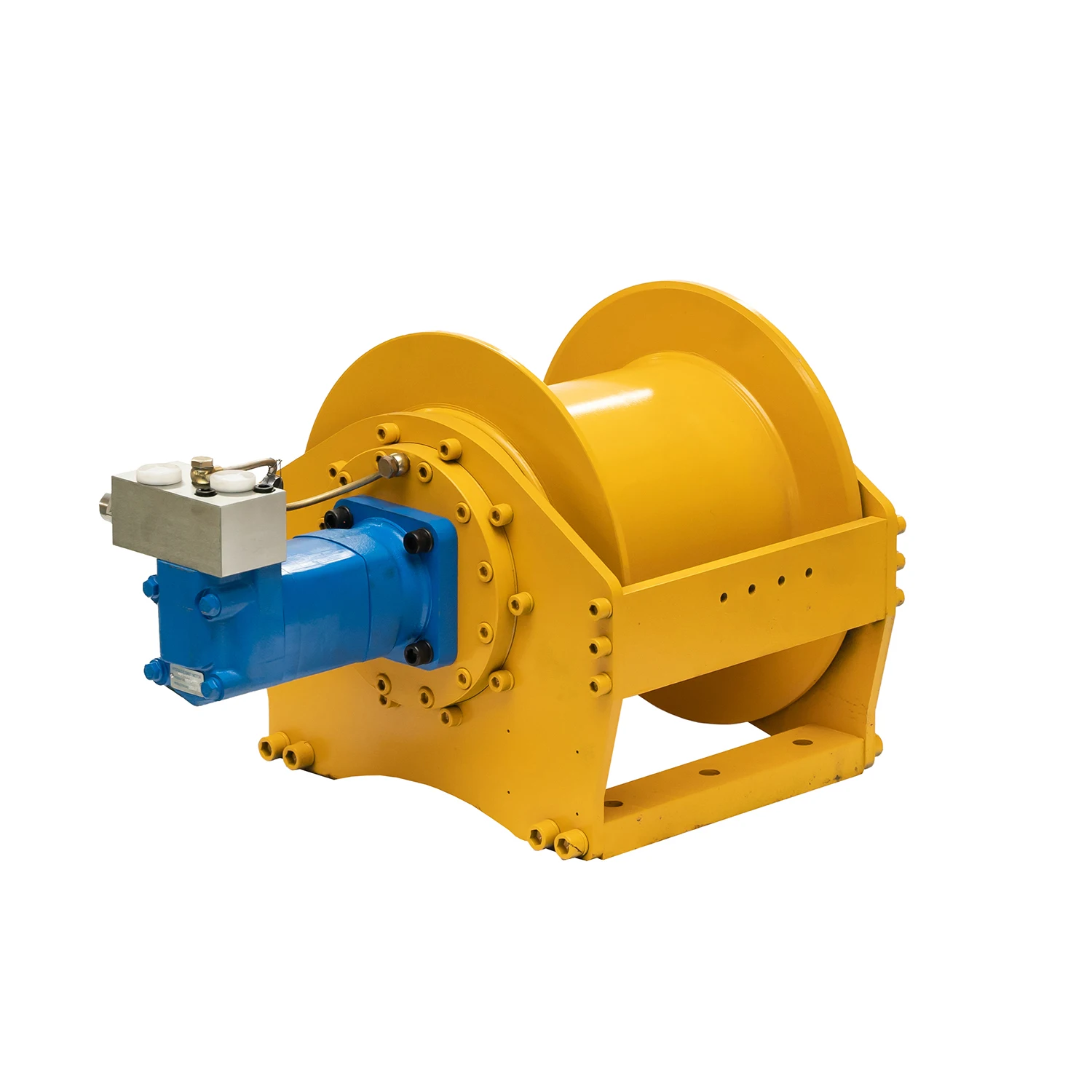

WINCH
STAND
SALES AND SERVICE NETWORK
Successful Project
USED ON RAILWAY
USED ON FORKLIFT
USED ON TRUCK
SIMILAR PRODUCTS
FAQ
1Are you original manufacture?
Yes,we YUANSHENG are an official manufacture in construction machinery in China.
2.What's your trade terms?
EXW, FOB, CFR, CIF
3.What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
4.What about the delivery time?
10-30 days after receving the deposit.
5.What's your warranty?
One year.
6.Do you accept to customize the products?
Yes, all products can be customized. Such as logo, color, size, other extra configuration etc.
Yes,we YUANSHENG are an official manufacture in construction machinery in China.
2.What's your trade terms?
EXW, FOB, CFR, CIF
3.What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
4.What about the delivery time?
10-30 days after receving the deposit.
5.What's your warranty?
One year.
6.Do you accept to customize the products?
Yes, all products can be customized. Such as logo, color, size, other extra configuration etc.
7 Do you provide truck or only provide crane
Normally , we only provide crane, if customer need truck crane, we also can provide truck for you.
