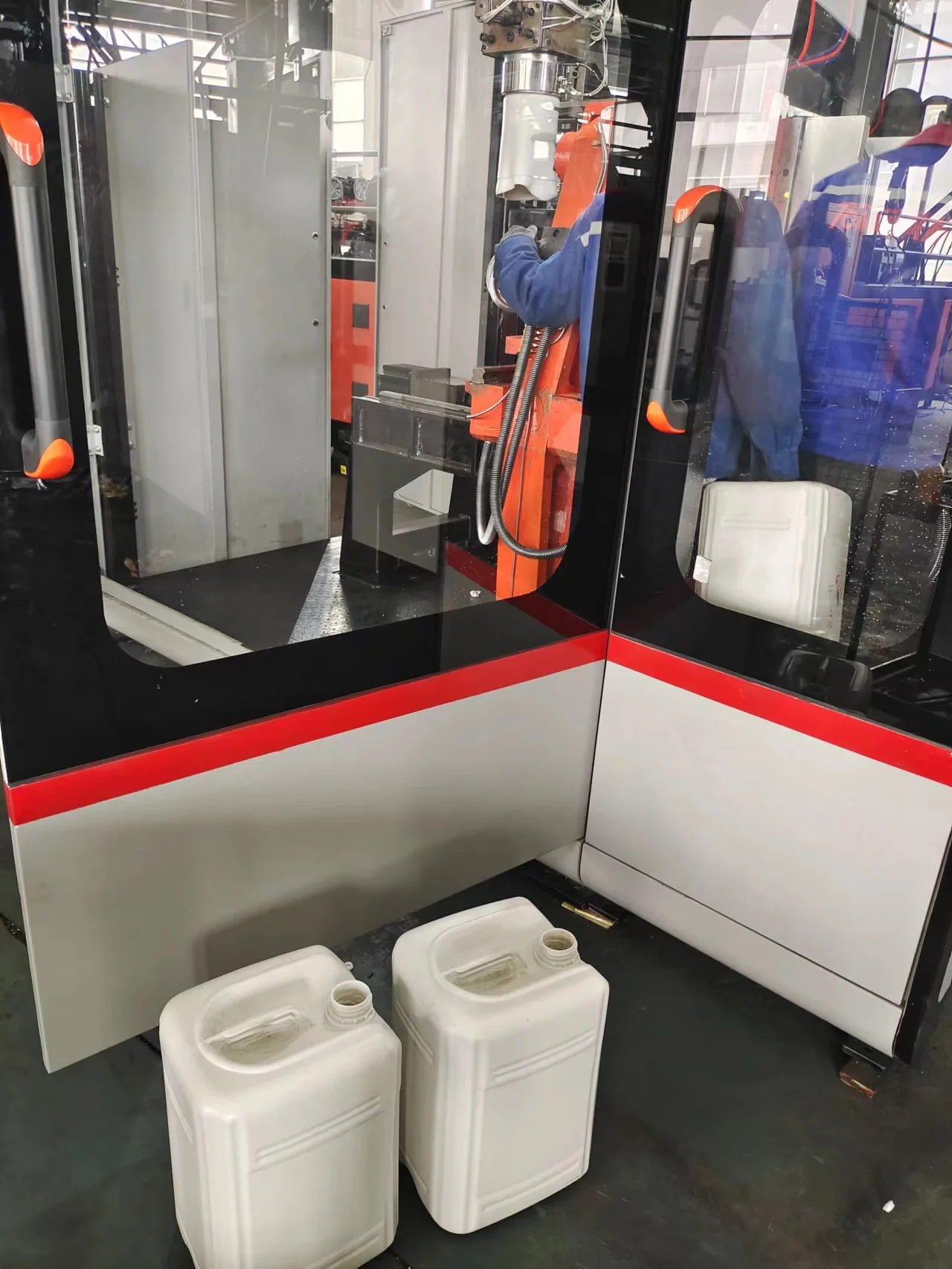

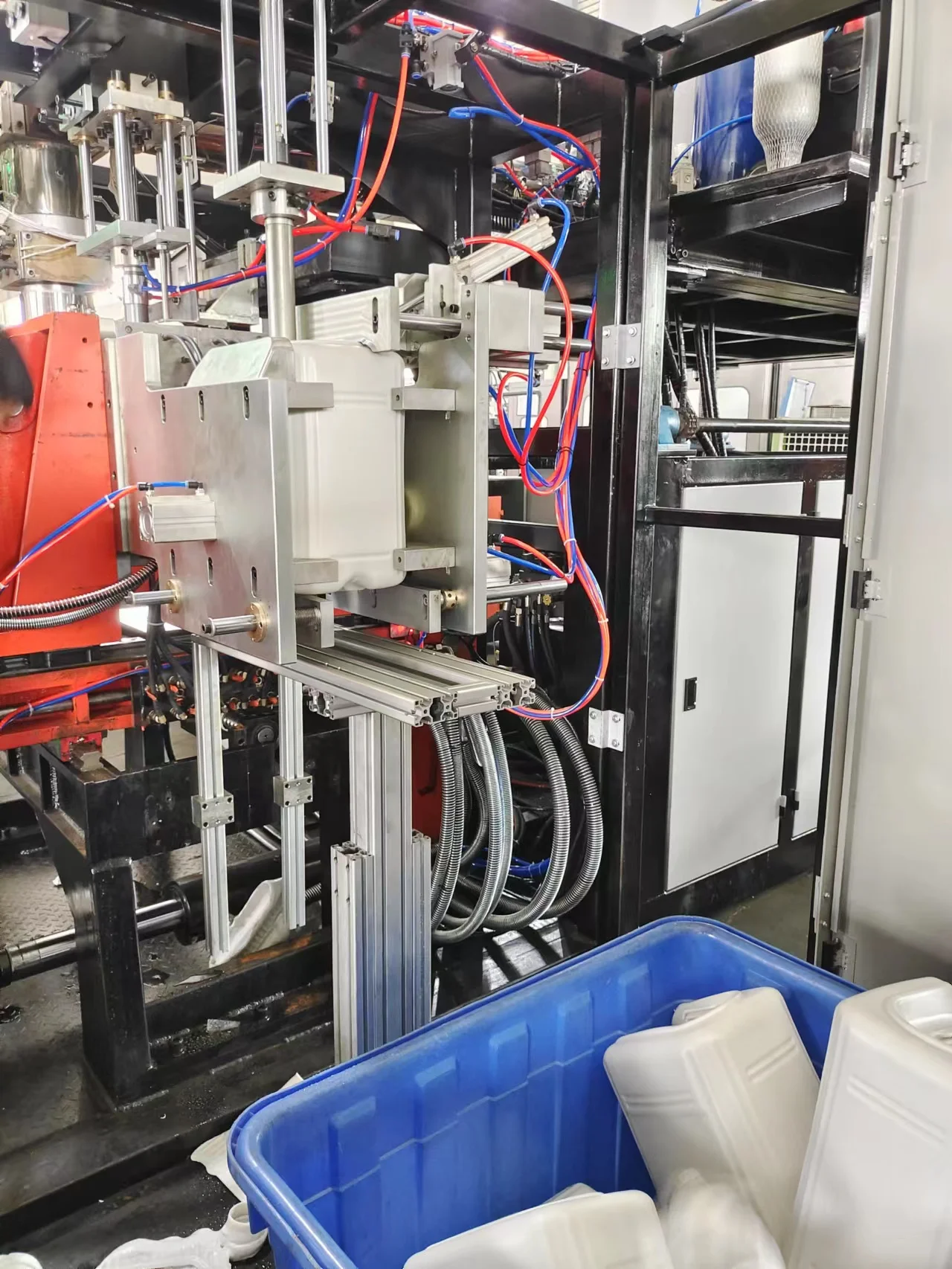

Tonva TVHS 20L Stackable Jerrcan Extrusion Blow Moulding Machine
- Category: >>>
- Supplier: Zhejiang Tonva Plastics Machine Co. Ltd.
Share on (1600504129167):
Product Overview
Description

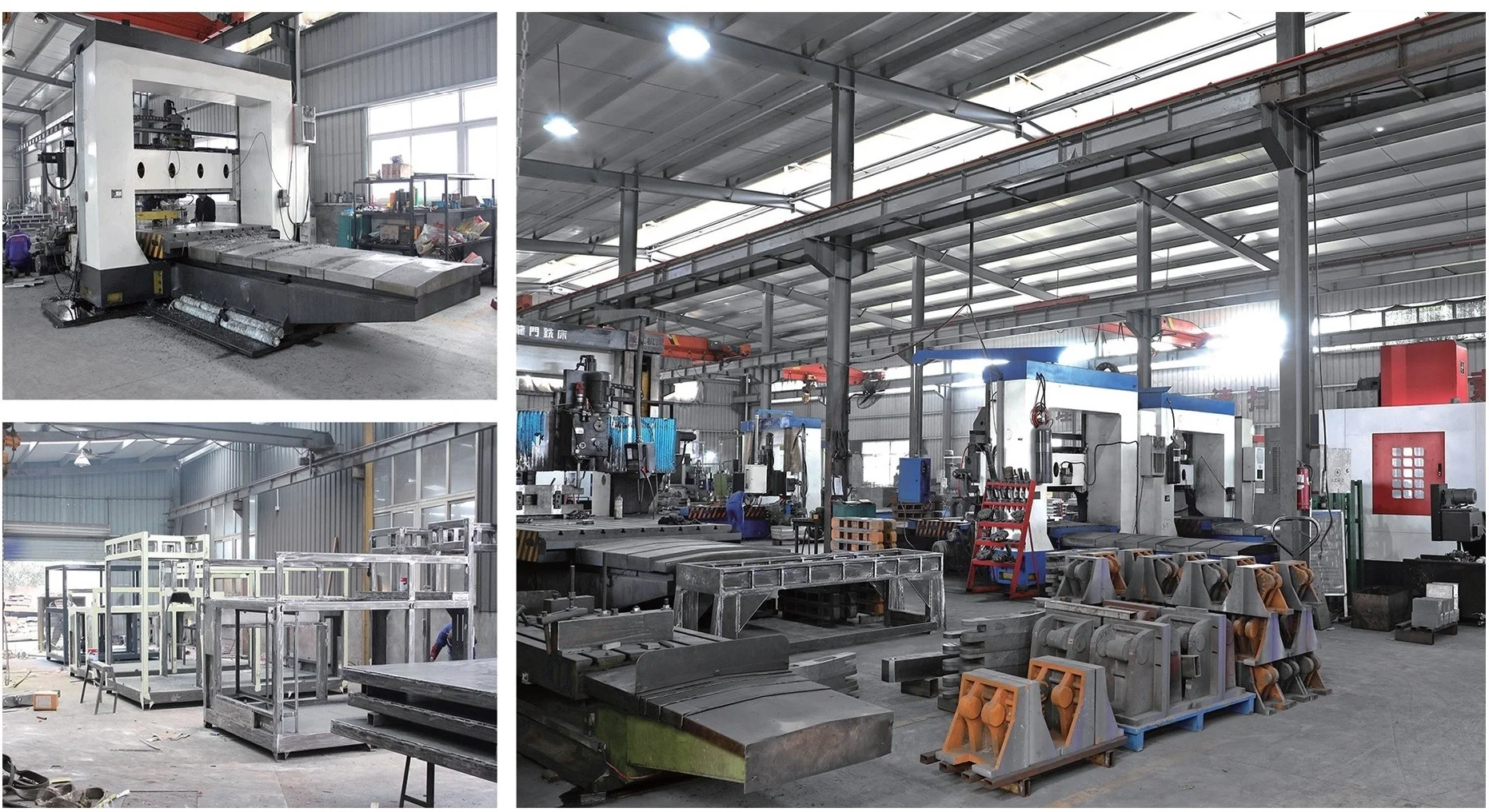

Our Company

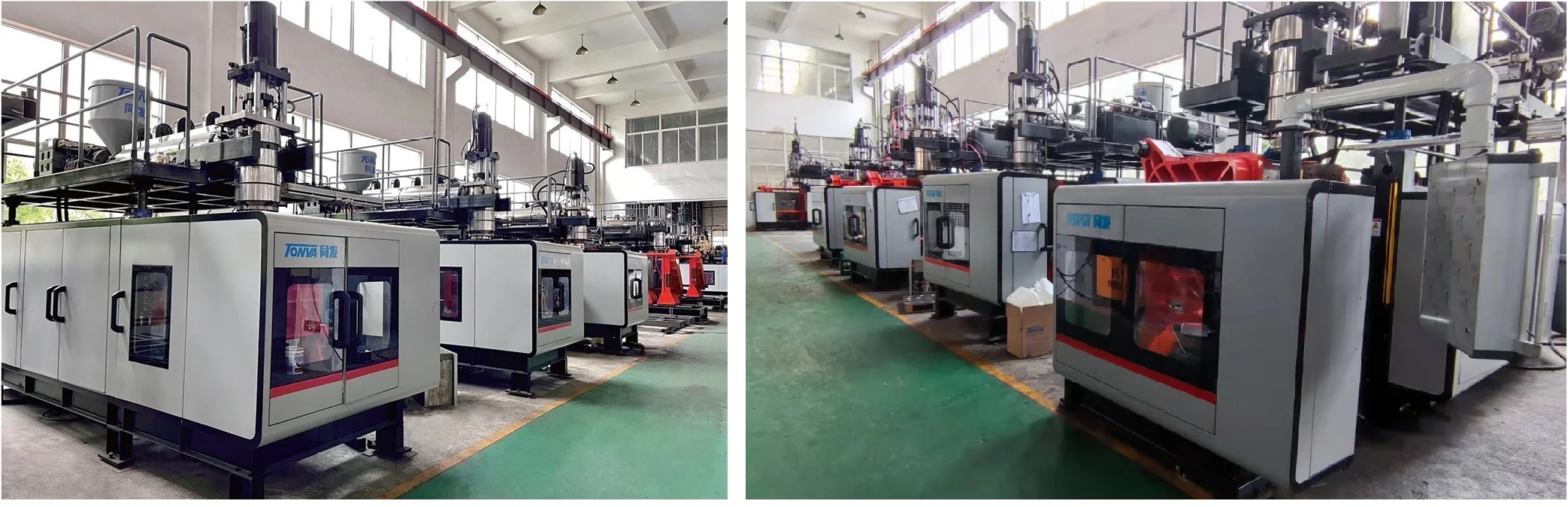

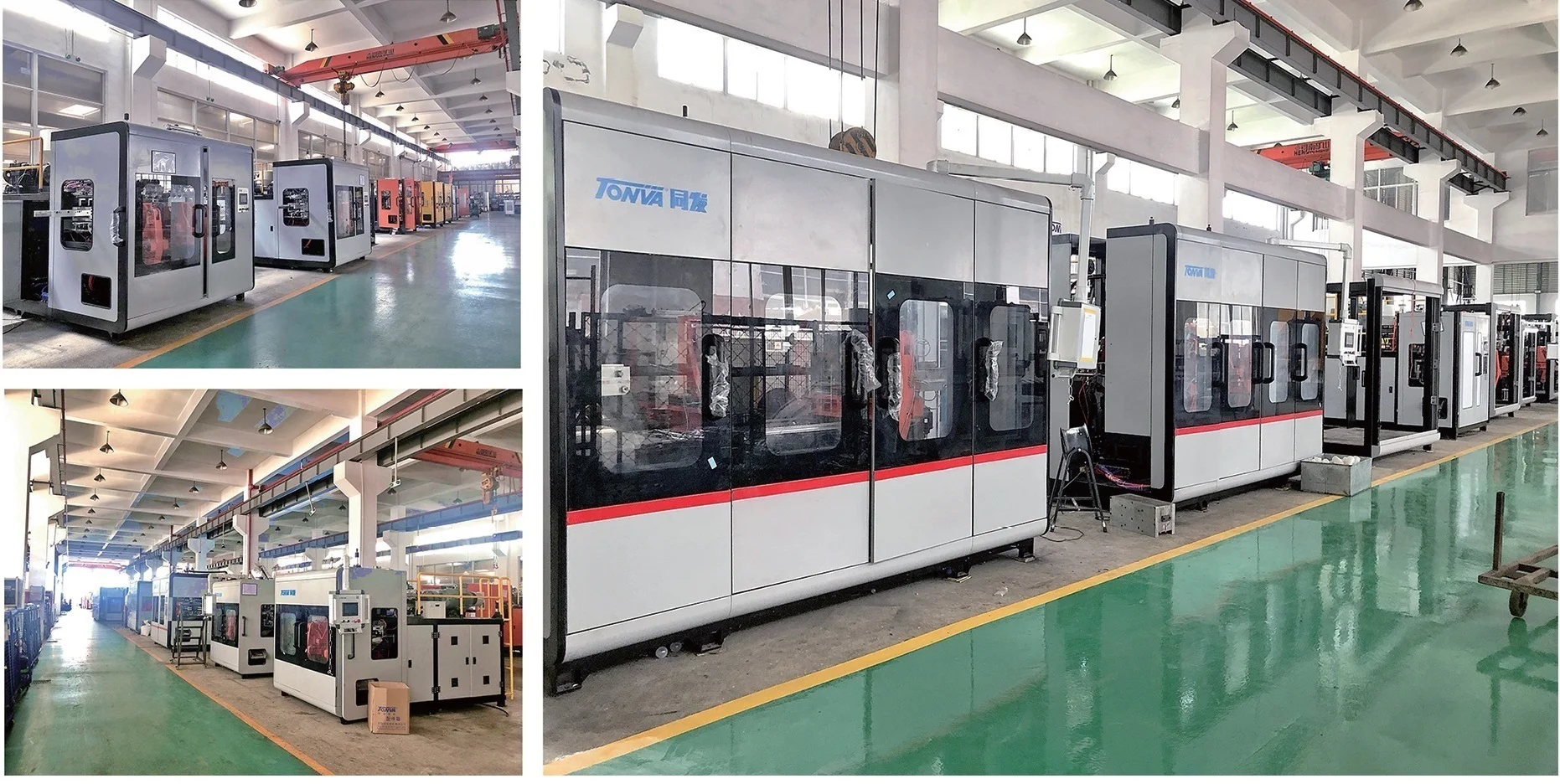

Our Machine
Basic Specification | ||
Dimension | 5.0*5.9*2.35m | |
Total Weight | 17T | |
Dimension Of Screw | 100mm | |
Screw Motor | 55kw | |
Working Station | Double Station | |
Clamping Force | 180kn | |
Total Power | 80KW | |
Power Supply | Customized | |

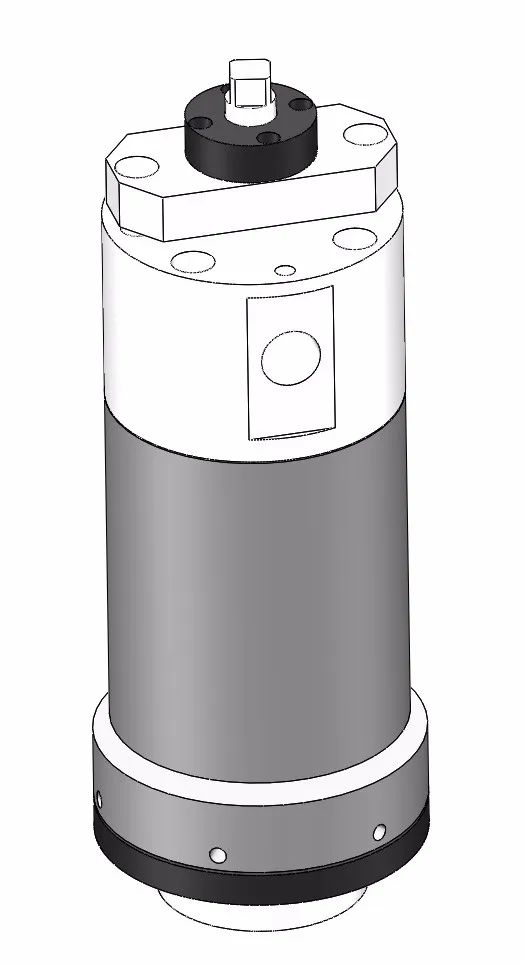

Die-head
The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness, strong corrosion resistance and long operating life after nitrogen treatment.It is manufactured by high precision CNC center, resulting highest quality and best performance of this part.

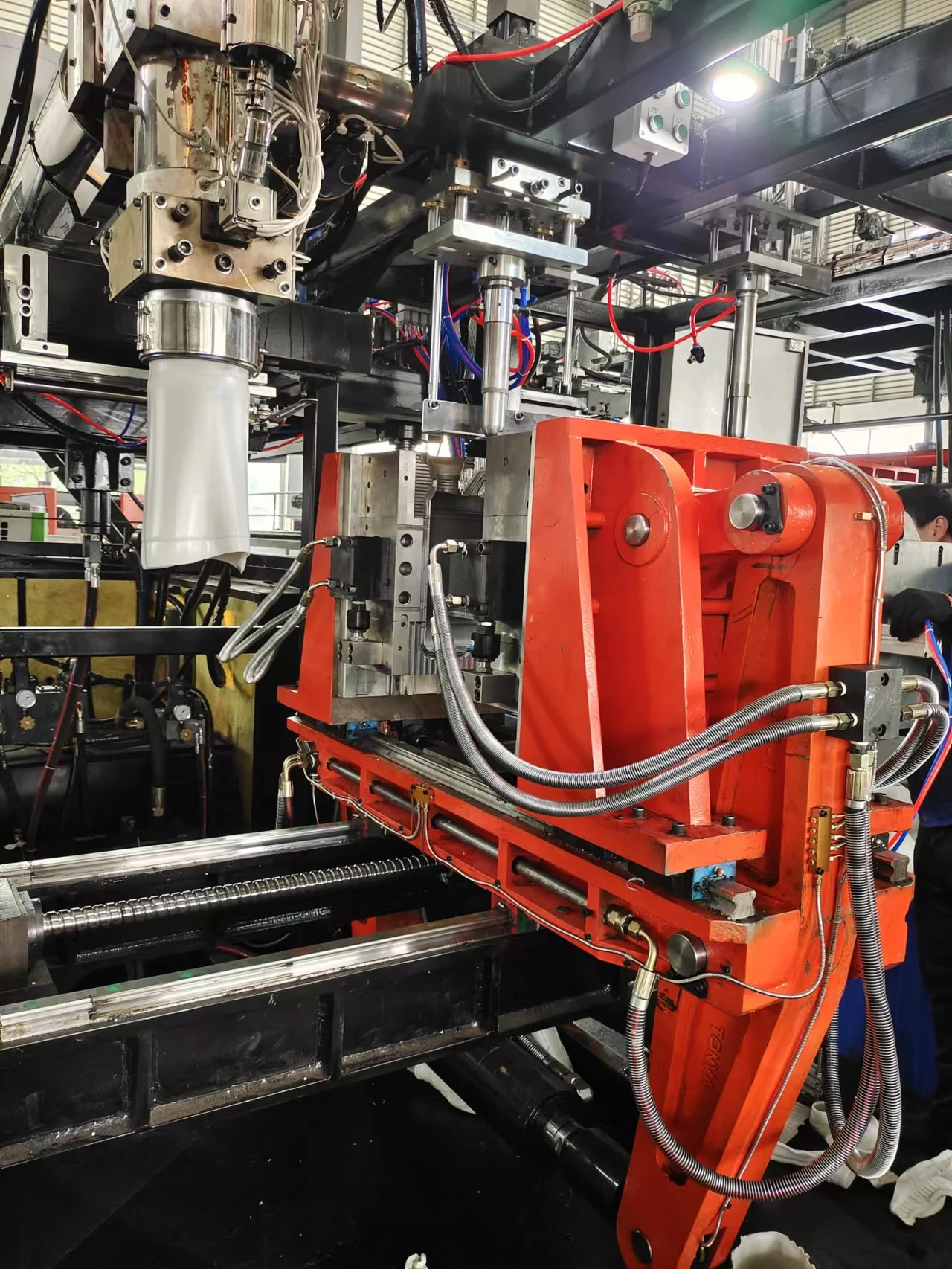

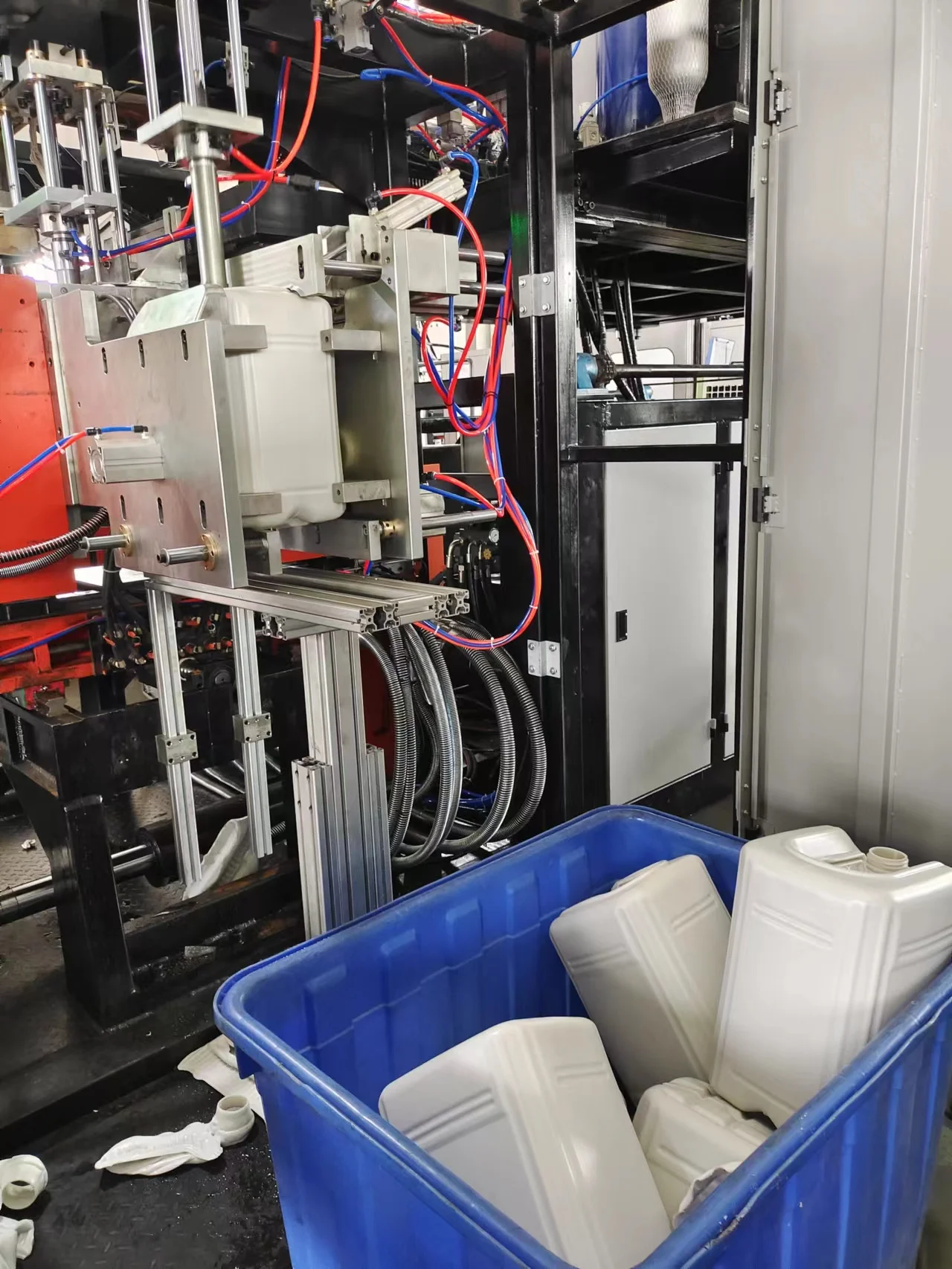

Clamping System
All clamp and carriage movements are on liner guid rail and slide bearings, ensuring steady and accurate action, less resistance and fast speed.The clamping unit adopts clamp-style with two platens and the platen size is designed to suit for variety of bottles in a wide range.
Hydraulic System
Clamping forced by hydraulic cylinders with proportional valves at the bottom. This special structure ensures the rigid feature of the platen and also keeps equal force distribution of platens, without deformation.

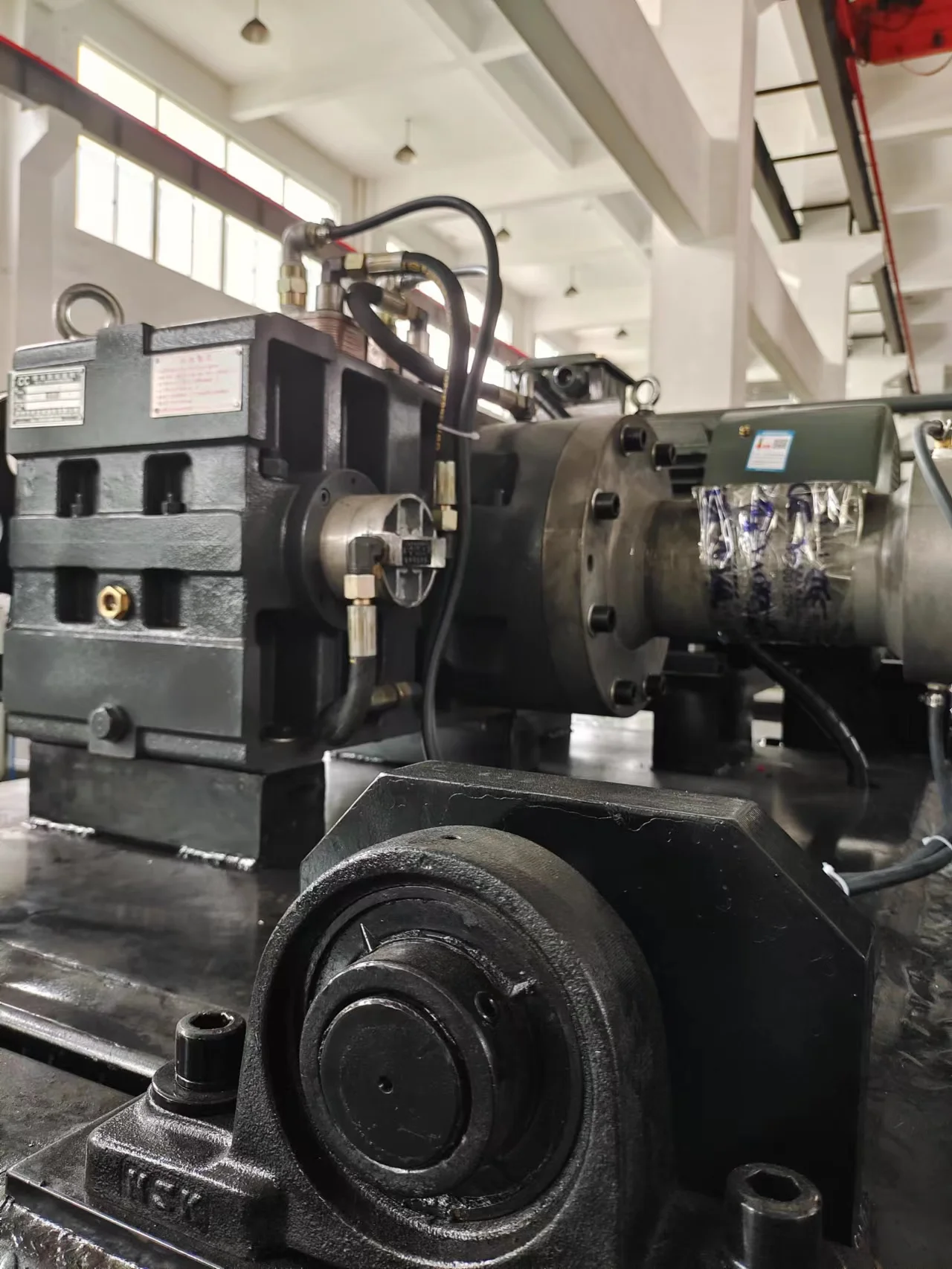

Drive System
Adopting the inverter controlling and alloy hard gear surface decelerator driving,Saving power, lower noise, balanced and stable screw rotation.Ensure accuracy during extrusion process and longevity of equipment.

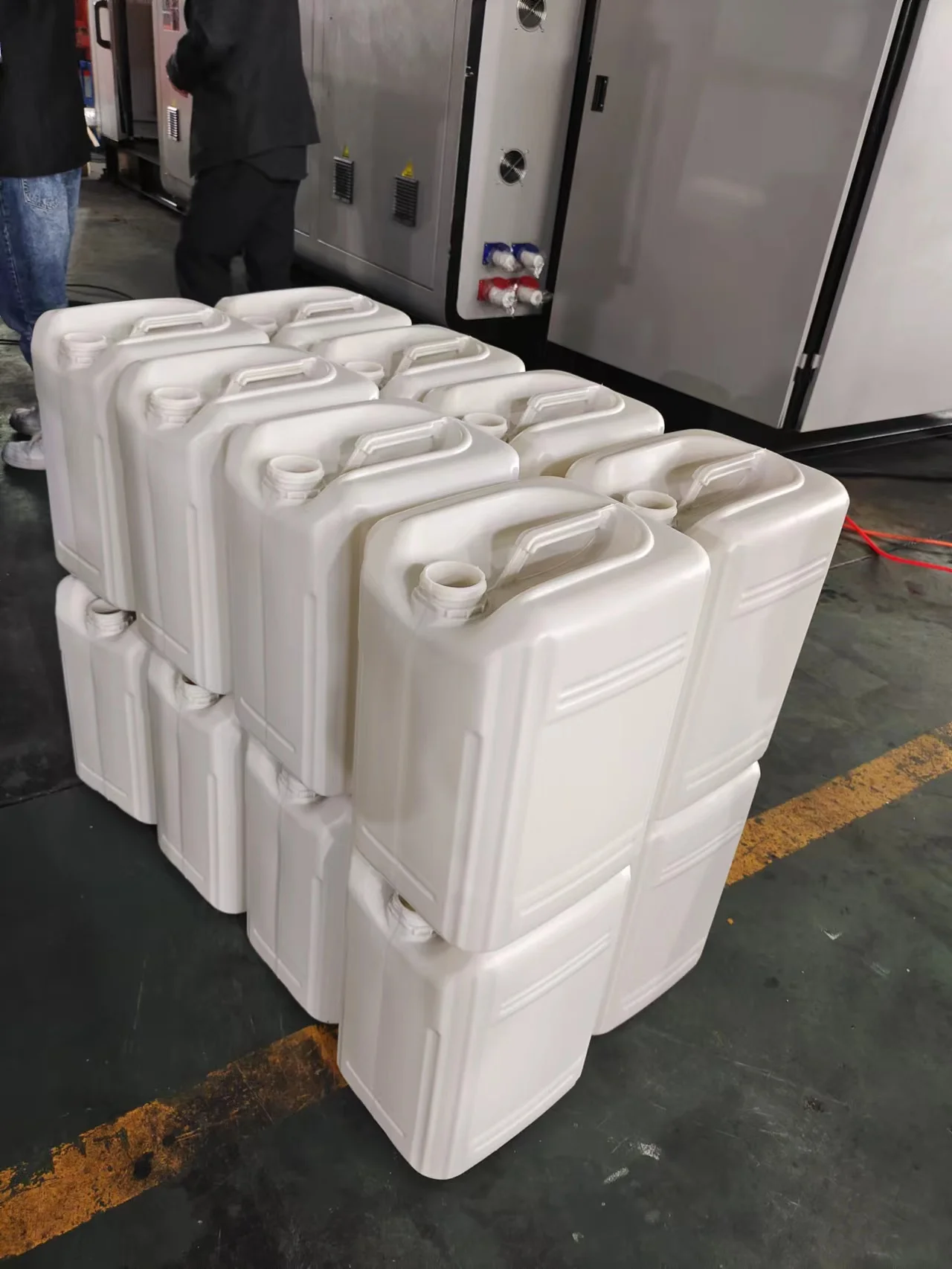

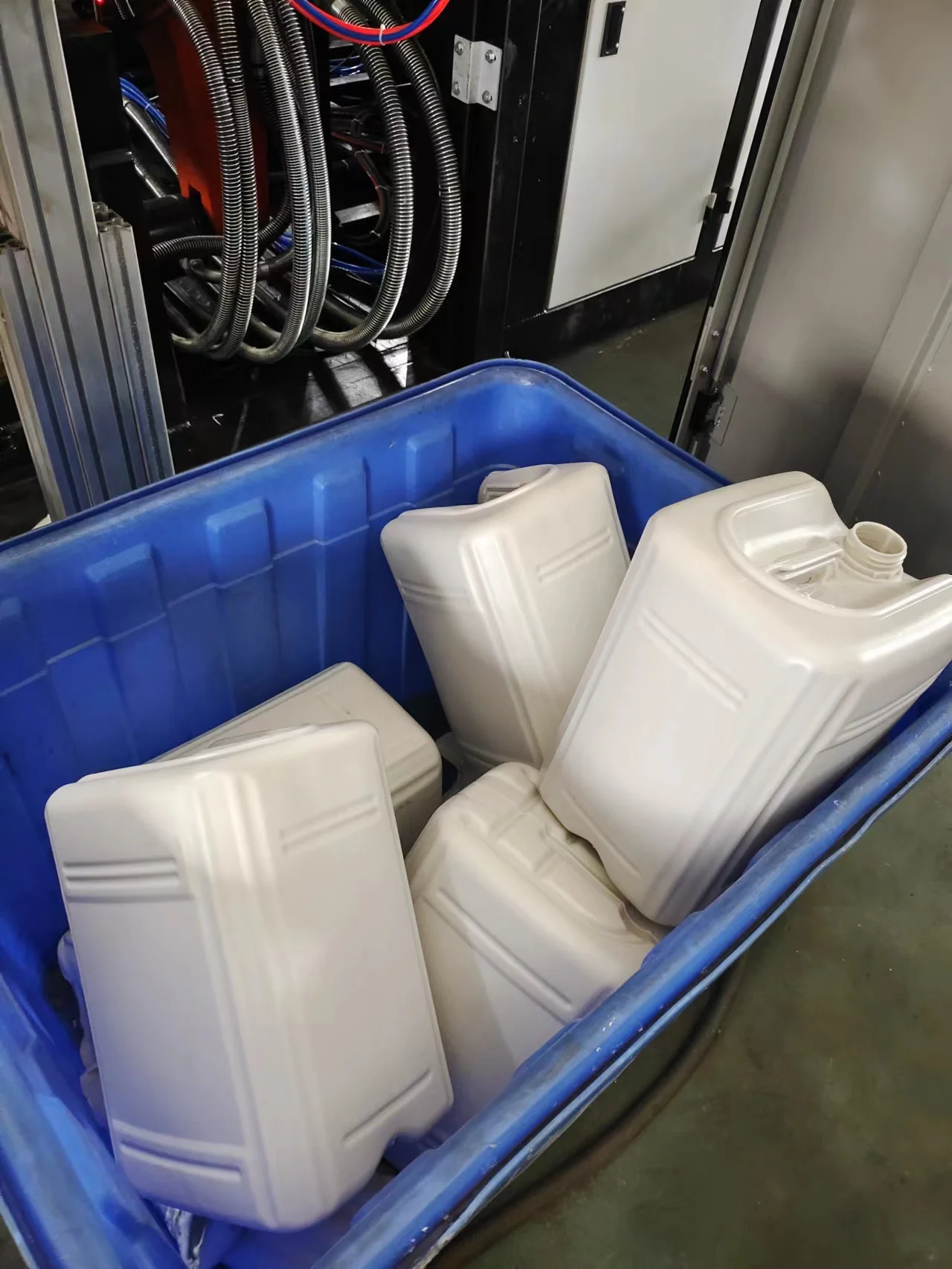

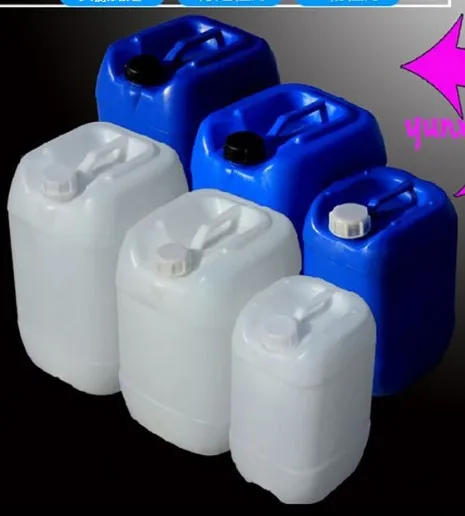

Aplication
Our Service
Our Certifications
Delievery&Transport
Delievery Date
Within 60 working days after receiving the deposit and samples/drawing confirmed by buyer and TONVA.
Packaging
Plastic film or Wooden case.
Payment
30% TT deposit, balance before shipment.
Port Of Loading
Ningbo,China.
