6 8T/H Semi automatic Sand Cement Glue Mixing Ready Mixer Dry Mortar Powder Mixer Machines
- Category: >>>
- Supplier: Zhengzhou Mg Industrial Co. Ltd.
Share on (1600504237483):
Product Overview
Description
Product Overview

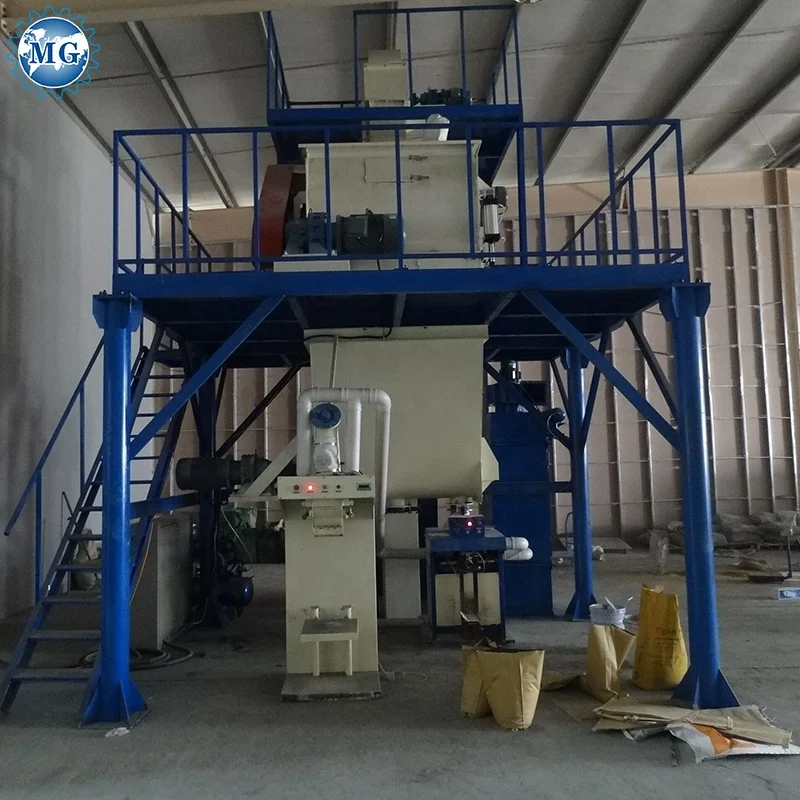

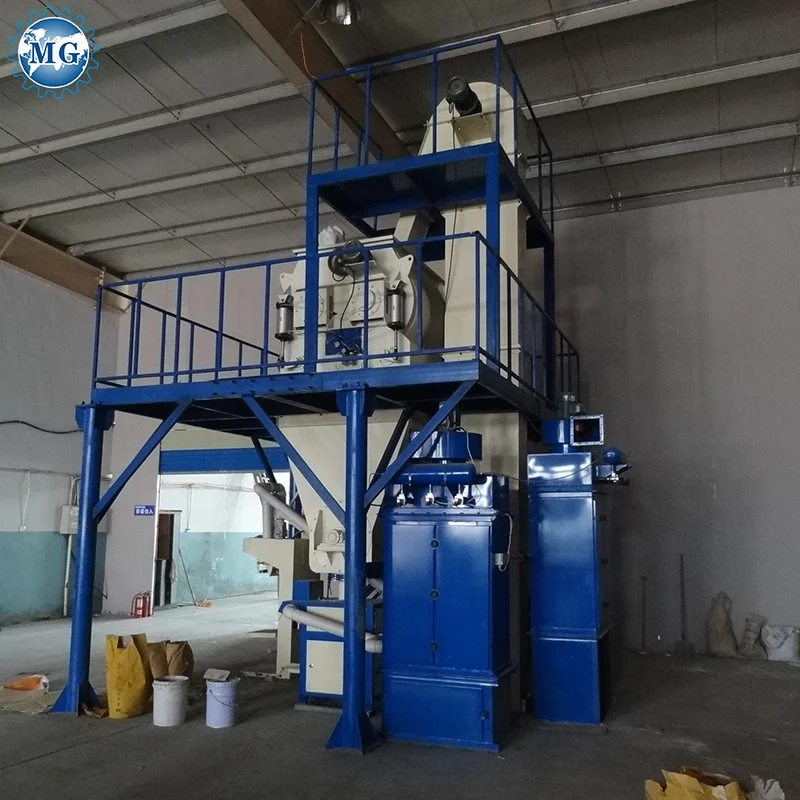

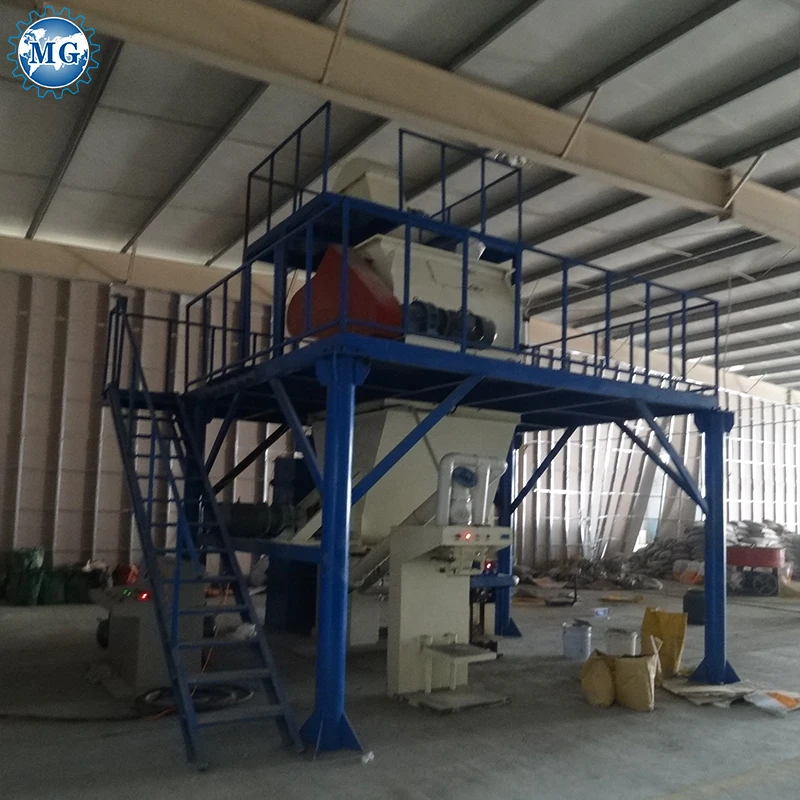

Energy Saving Semi-automatic Dry Mortar Mixing Plant
MGDM-3.1 semi-automatic dry mortar mixing equipment also called energy-saving dry mortar mixing line, dry mortar mixing machine. Which can feed various materials into the bin, under the automatic control system, this production line can realize automation in collecting, feeding, filling and packing. It is the ideal selection for set up a dry mortar factory with reasonable price and quick refund.
This plant area occupation is around 25-35 ㎡, equipment height: 6m, worker required: 3–4 person, production capacity: 6-8T/H It is the ideal selection for medium enterprises who want set a dry mortar factory at a reasonable price with a quick profits. and it is the basic design for upgrade into full automatic Dry Mortar Mixing Production Line.
First, the raw material feeding from the bottom of the feeding hopper according to mixture ratio.
Second, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging through the action of control system,.
Besides, the equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area but with good efficiency, it is an ideal one for small and medium-sized company.
Model | Out Put | Occupied Area | Equipment Height | Manpower | Batching and Packaging |
Simple Type | 3-4t/h | 20 ㎡ | 3-4m | 2-3 Person | Manual Batching Automatic Packaging |
Semi-automatic Type | 6-8t/h | 50-60㎡ | 6-8m | 3-4 Person | Manual Batching Automatic Packaging |
Full Automatic Type | 8-30t/h | 60-100㎡ | 8-13m | 3-4 Person | Automatic Batching Automatic Packaging |
Product Configuration

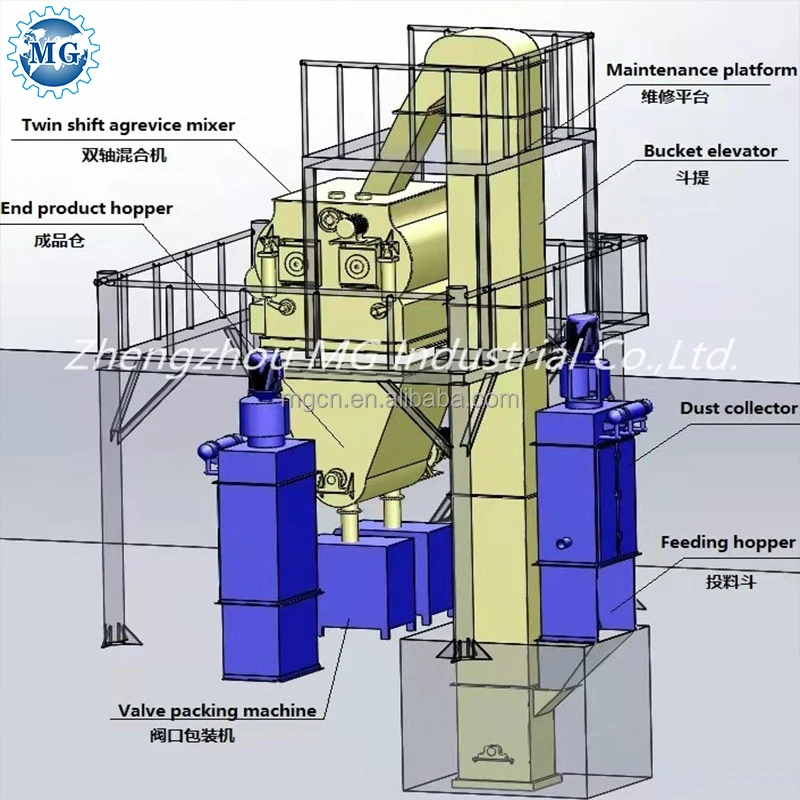

The Semi-automatic Dry Mortar Mixing Plant includes a bucket elevator for the mixer, twin shaft mixer, finish product hopper, packing machine, impulse dust collector, air compressor, platform and steel structure, control cabinet, air circuit system.
Twin Shaft Mixer
2m³ with fly cutter
Finish Product Hopper
2m³ with second mixing
Valve Port Packing Machine
15-50 kg/bag adjustable
packing speed: 6s/bag
Impulse dust collector
12 cloths bags
Air Compressor
0.9 m³

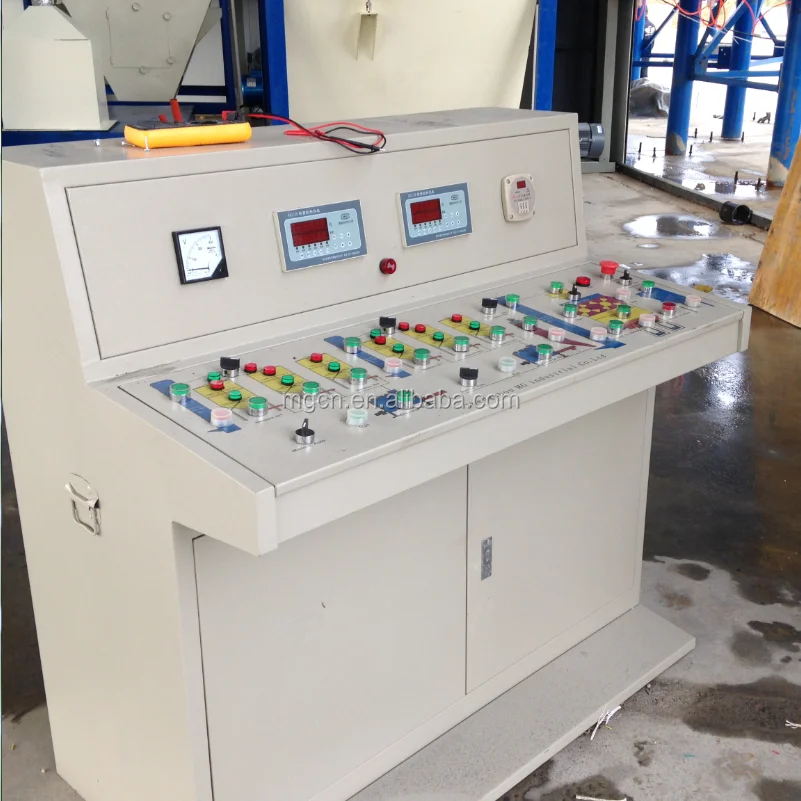

Control Cabinet
Full set
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
The dry mortar production line can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
Packaging & Delivery
Our Company
Zhengzhou MG Industrial Co,. Ltd, the leader in pre-mixed dry mortar mixing plant, providing you with new and refurbished building solutions over 80 countries around the world.
Zhengzhou MG was founded in 2000, located in the beautiful city of Zhengzhou, which is an integrated high-tech enterprise of R&D, production, sale and construction in dry mortar mixing equipment. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association. As an National top rank building Mechanical Enterprise, we're certified by ISO9001 quality management system, and we honored to be the executive director of Henan Building Energy Conservation
Committee.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer Plant, powder blending machine, concrete mixer, and others.
Successful Project
Project in Italy
Project in Russia
Project in Serbia
Project in Malaysia
Project in Egypt
Project in UAE
