Highway railway 50 ton double beam bridge launching bridge crane bridge erection launcher

Product Overview

Description

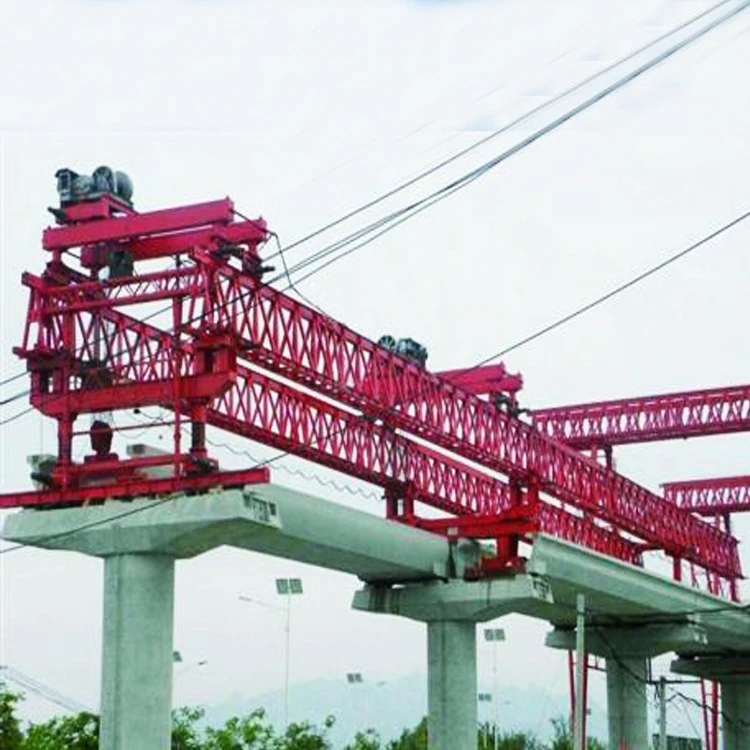

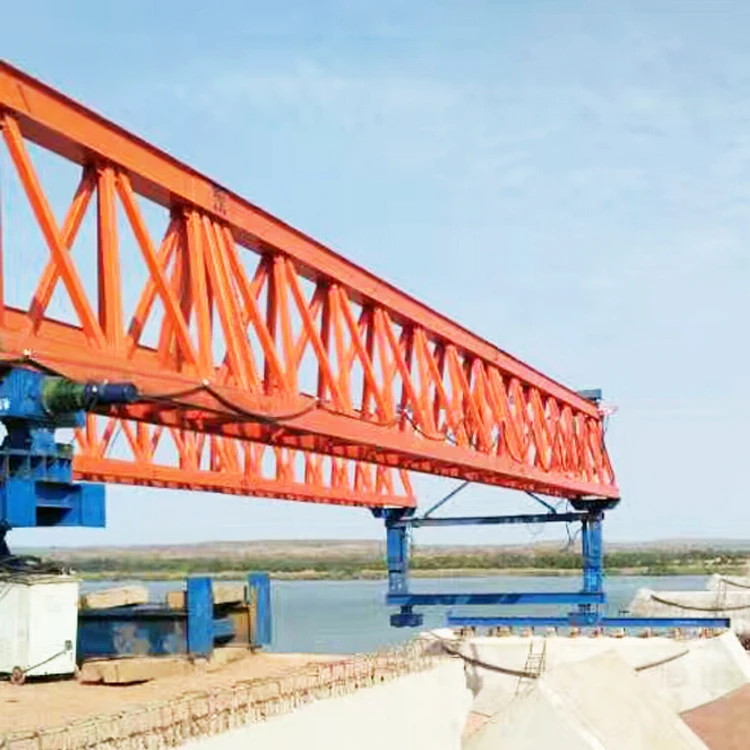

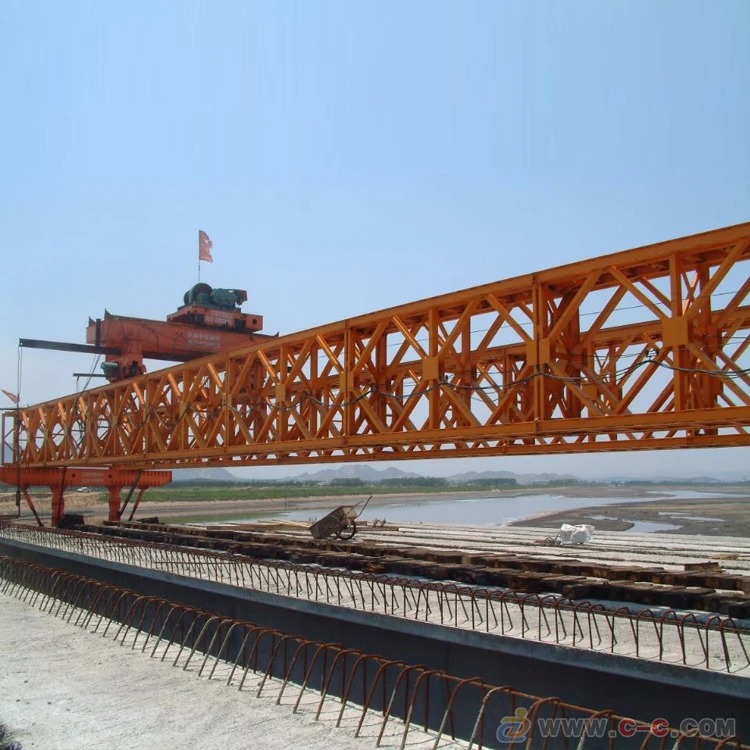

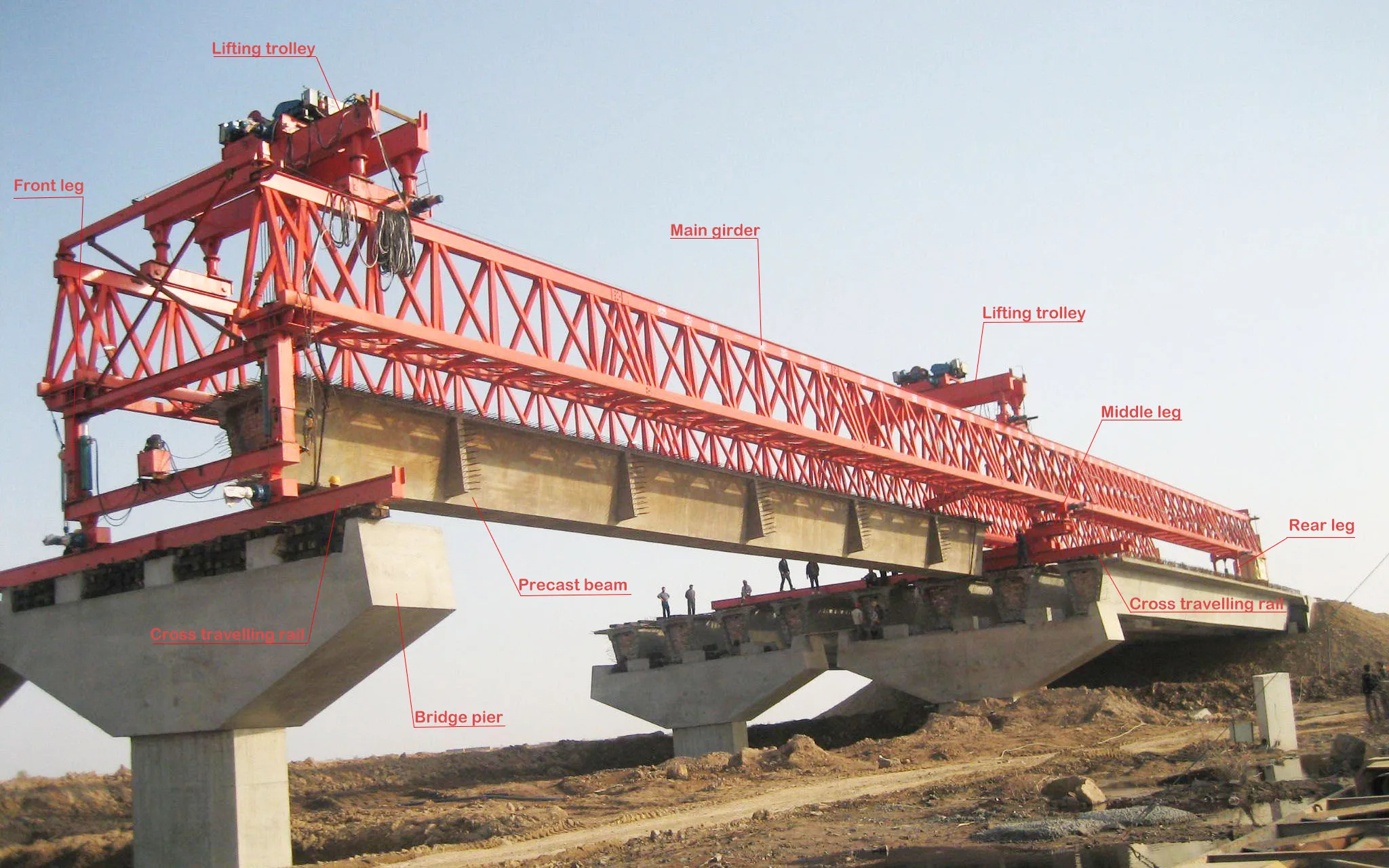

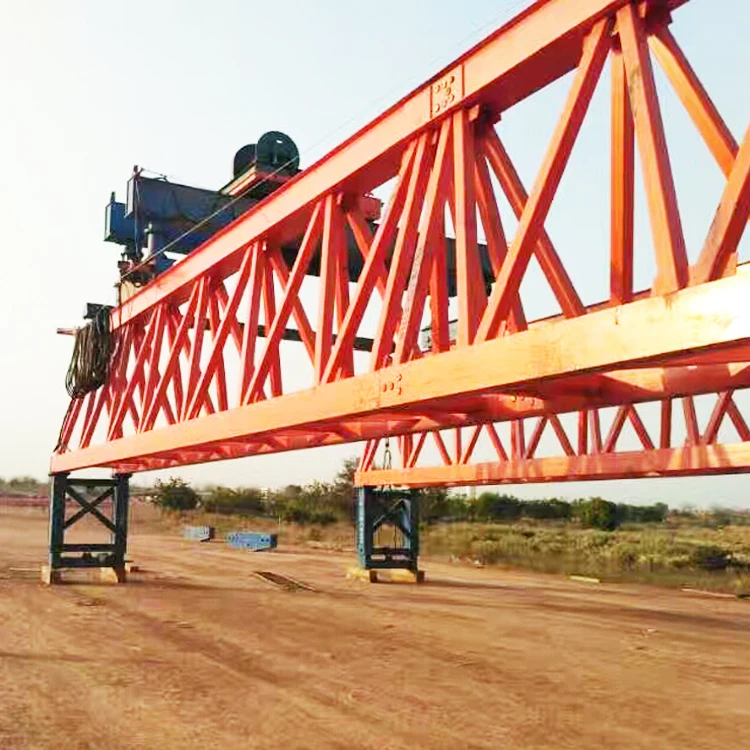

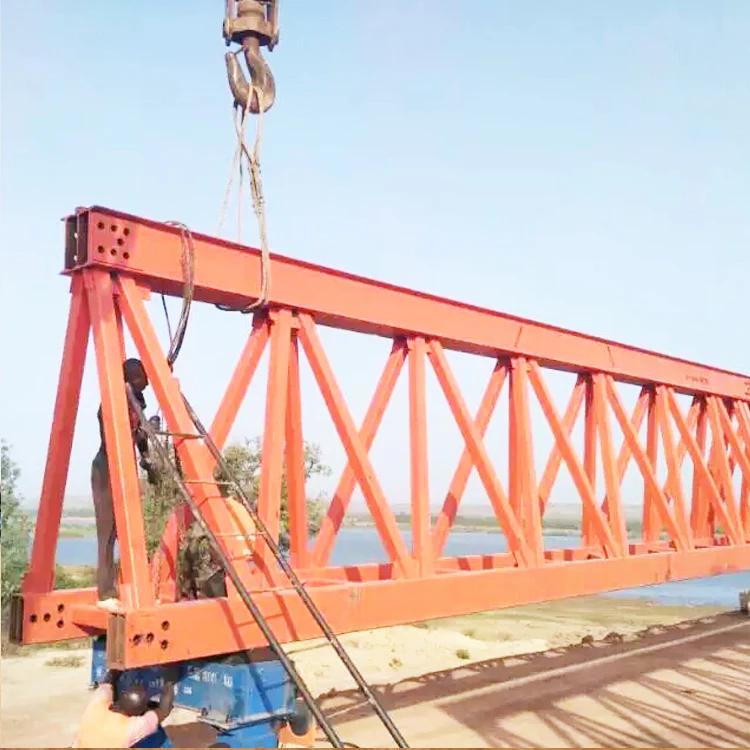

Truss type double girder concrete beam launcher crane is a special machine for puting procast concrete beam

on the bridge pier, it is also one of the most important machine used in the road construction.



Beam launcher belongs to overhead crane, but is different from the ordinary overhead crane, its work condition is very bad, the worker must have the very high operating skill and safety awareness.



This machine can be not only used in highway bridge, but also rail way bridge.



Capacity(t)	Lifting height(m)	Span(m)
		25	30	40	50
60	10	$98,250	customized	customized	customized
80	10	$113,740	$113,740	customized	customized
120	10	$133,550.	$133,550	customized	customized
140	10	$184,520	$184,520	$184,520	customized
160	10	$208,470	$208,470	$208,470	customized
180	10	$208,470	$208,470	$208,470	customized
200	10	$230,640	$230,640	$230,640	$230,640



 Note:  1. Work duty: A3

            2. Control way: Pendant

            3. Price only for your reference.

            4. Monitor system - optional



Span(m)/capacity(t)	25/60	30/80	30/120	40/140	40/180	50/200
Lifting speed(m/min)	0.95	0.9	0.65	0.56	0.5	0.45
CT speed(m/min)	3.3
LT speed(m/min)	3.3
CT speed(m/min)	3.3
LT speed(m/min)	3.3
Bridge curved radius(m)	≥200	≥250	≥250	≥350	≥350	≥500
Angle of skewing bridge	≤45°
Max. cross slope	≤3%
Max. longitudinal slope	≤3%
Work duty	A3
Power supply	3AC    220~480V     50/60Hz

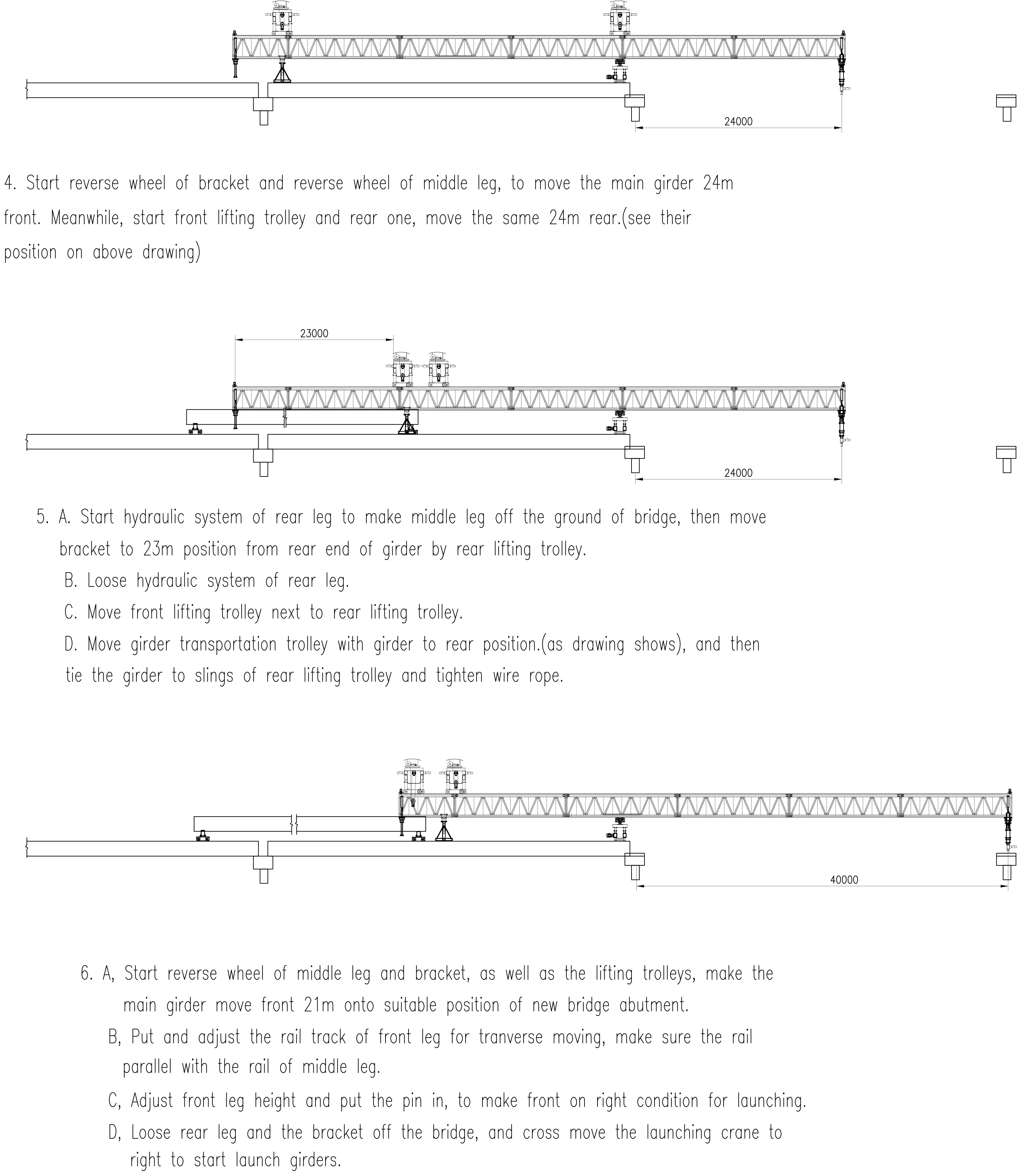

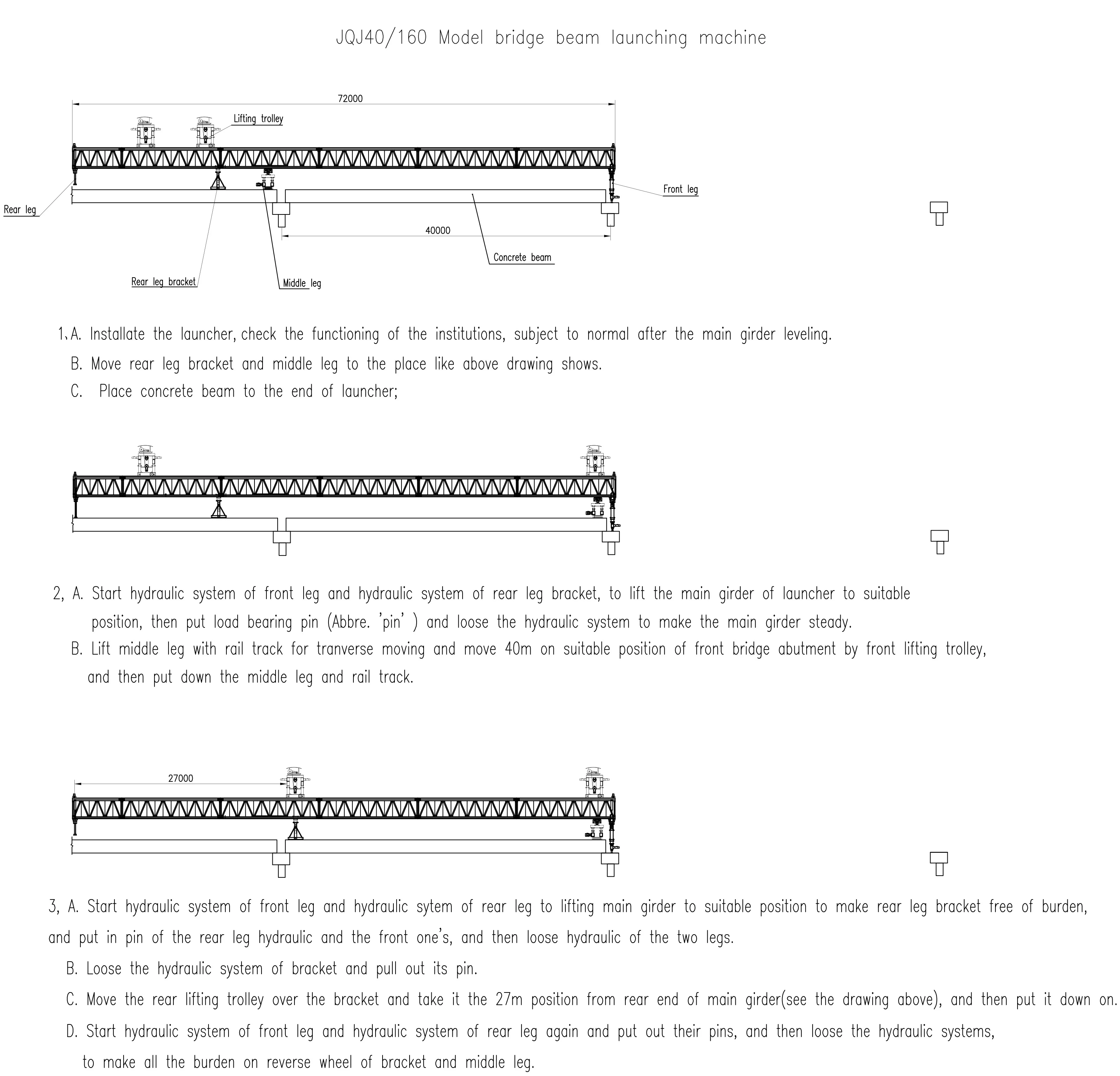

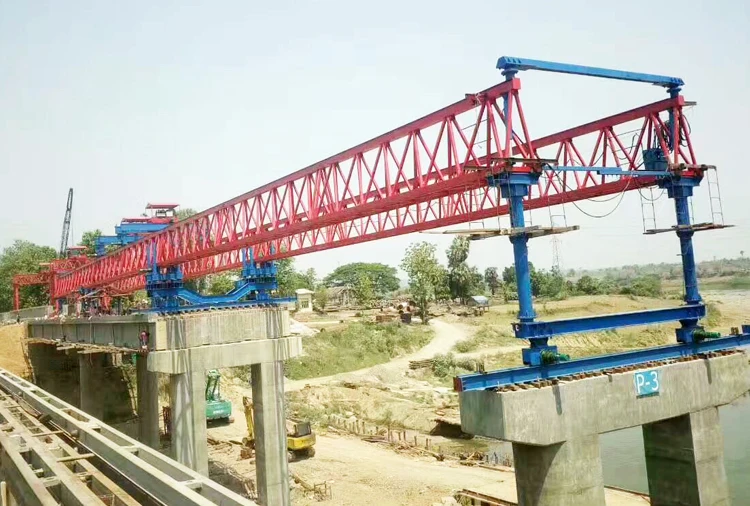

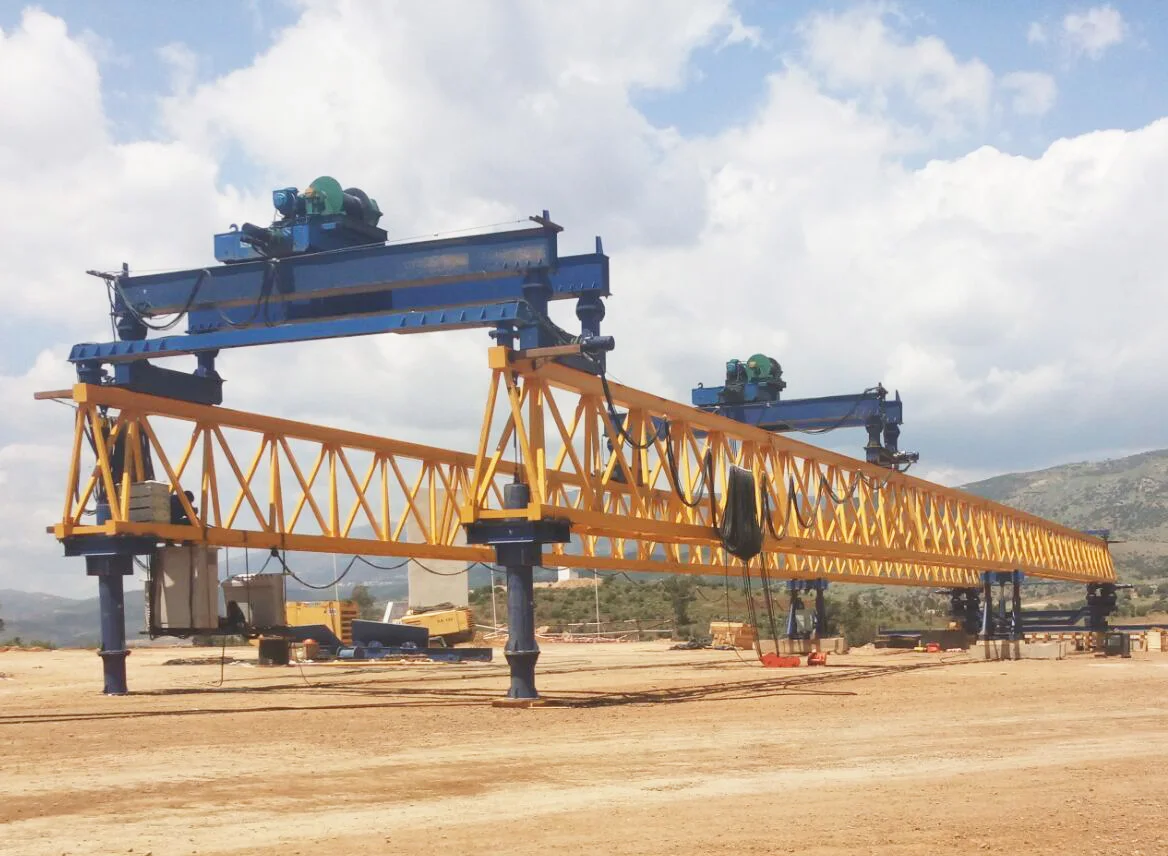

Project: Highway beam launcher JQJ45/85 in Algeria  Feature: small rated load but big span

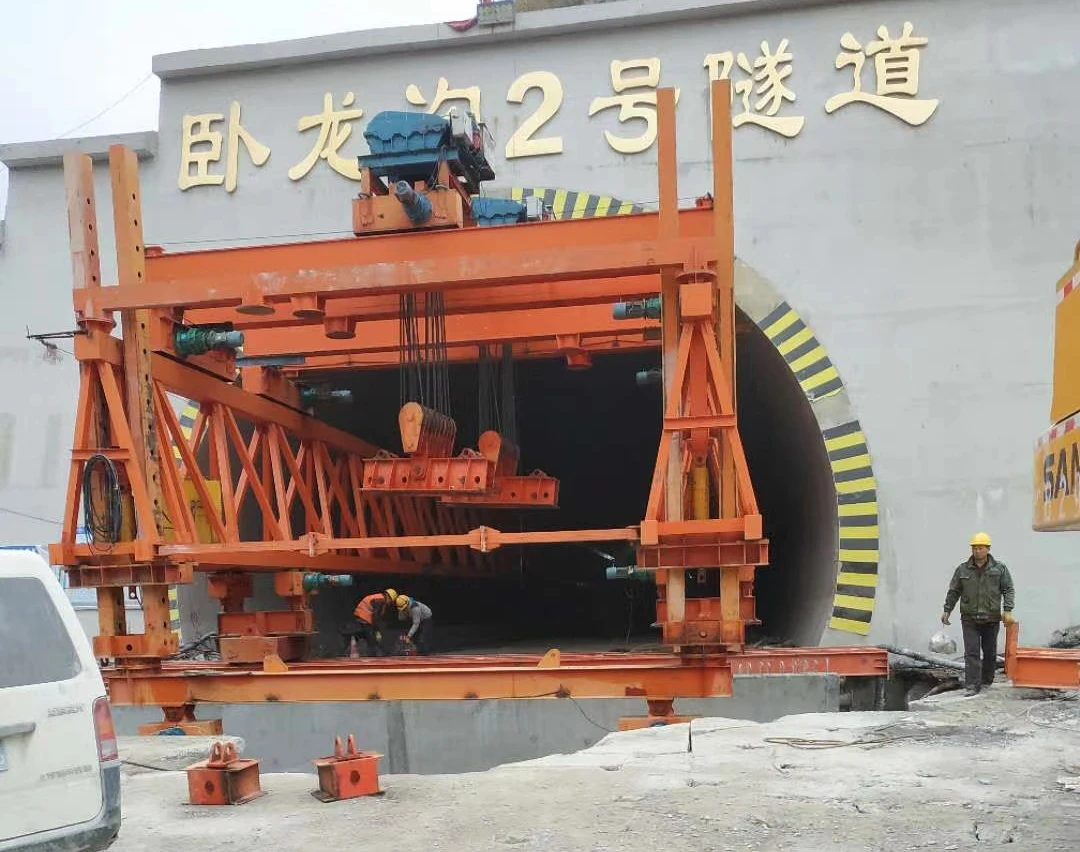

Project: Highway beam launcher JQJ40/140 in China  Feature: Passing through the tunnel





Project: Highway beam launcher JQJ35/120 in Myanmar  Feature: Max. longitudinal slope 7%
