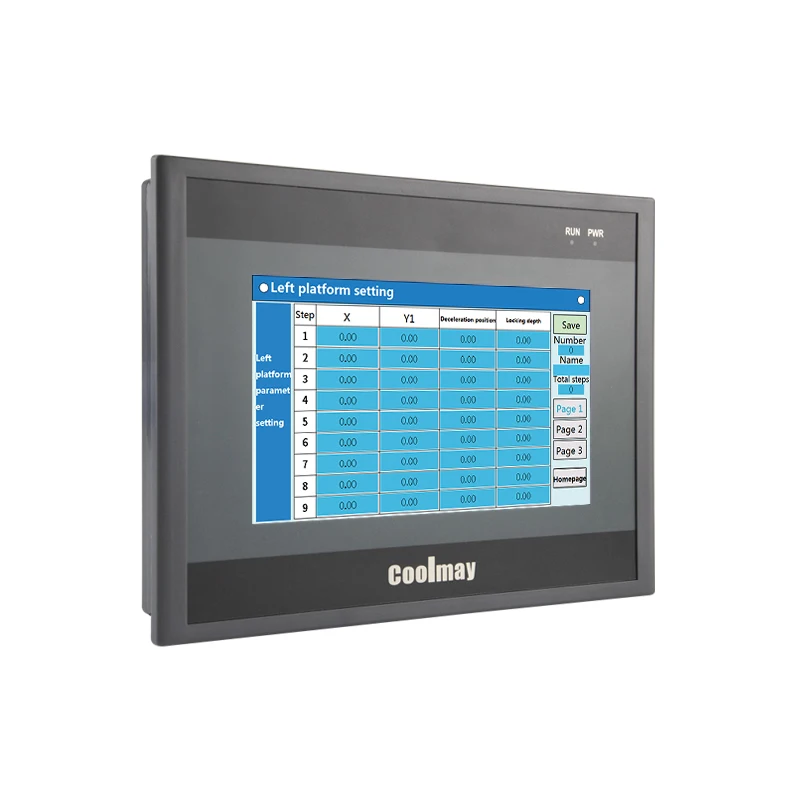

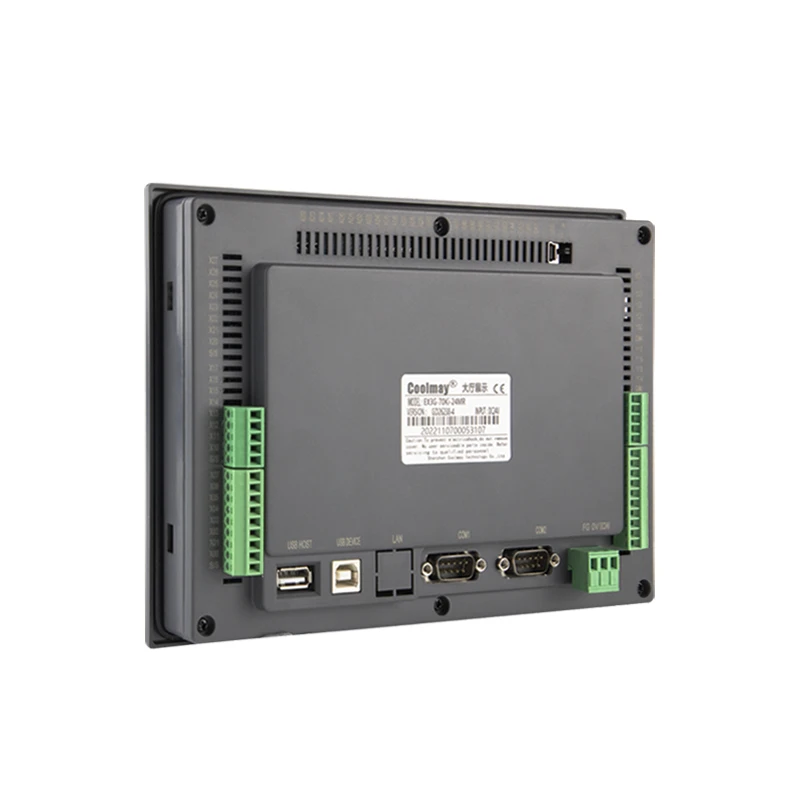

Built in programmable controller PLC 7 inch HMI touch screen with free software
- Category: >>>
- Supplier: Shenzhen Coolmay Technology Co. Ltd.
Share on (1600504435355):
Product Overview
Description
Product Description
Model | EX3G-70Ki |
Dimension | 226*163*35.6mm |
Cutout size | 217*154mm |
Power Consumption | 6-7W |
Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register |
HMI | HMI |
Display | 60K colors resistive touch screen; H/KH series can be portrait display 60K colors resistive touch screen |
Type | 7” TFT |
Display size | 154*87mm |
Resolution (pixels) | 800*480 |
RAM | 64MB |
ROM | NOR Flash 16MB(Disk C of system area)+SD NAND 128MB(Disk D) |
CPU | 32bit CPU 408MHz |
COM port | 1 Type-B (HMI download port); 1 USB 2.0 port |
Software | CoolMayHMI HMI programming software |
PLC | PLC |
I/O level | - Input: Passive NPN, public terminal isolated - Transistor output (MT): Low level NPN, COM connect to negative; - Relay output (MR): Normally open dry contact |
DO type and load | - MOS tube: 2A/point, 4A/4 points COM; - MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; - MR: 2A/point, 4A/4 points COM, 5A/12 points COM. |
High-speed counting | 6 channels single-phase 60KHz, or 2 channels AB (Z) phase 30KHz + 1 channel AB phase 5KHz |
High-speed pulse (only for MT models) | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
COM port | 1x Mini USB programming port; 1x RS232 |
Software | Compatible with GX Developer8.86 and GX WORKS 2 |
EX3G HMI/PLC All-in-one features and advantages
| Powerful and highly integrated | Integrate HMI, digital, analog and temperature in a whole |
| Multiple sizes available | 4.3"/5"/7"/10" optional |
| Switching and analog | up to 30DI/30DO, 16AD/8DA |
| high speed counting input | 6 channel 60khz single phase /2 channel 60khz AB phase and 1 channel 10khz |
| high speed pulse output | Normally 8channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz; 8 channels 10-100KHz can be customized. High speed counting and high speed pulse total can not exceed 480KHz. |
| COM port | Comes with MiniB type USB port AND RS232 port(Ethernet, audio, RS232, RS485 Canbus can be added) |
| Remote control | Network module can be added according to customer requirements for remote control |
