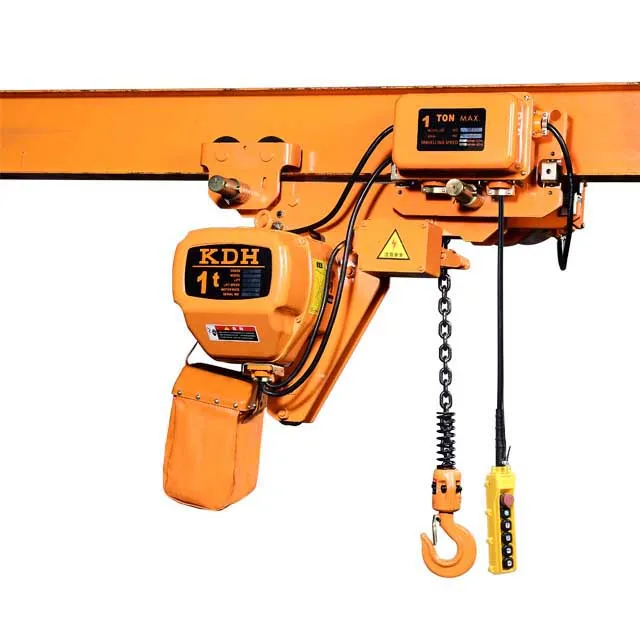

2 Ton electric chain hoist with motorized trolley

Product Overview

Description

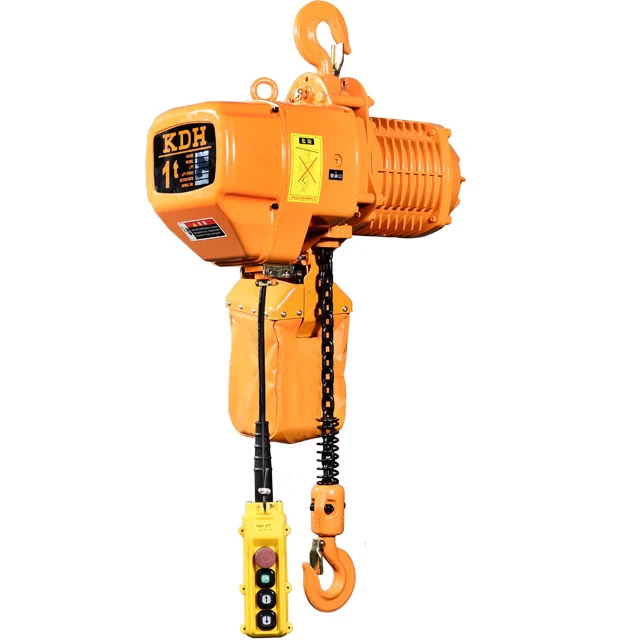

2 Ton electric chain hoist with motorized trolley is a kind of light and small lifting equipment.

The electric chain hoist is composed of motor, transmission mechanism and sprocket.

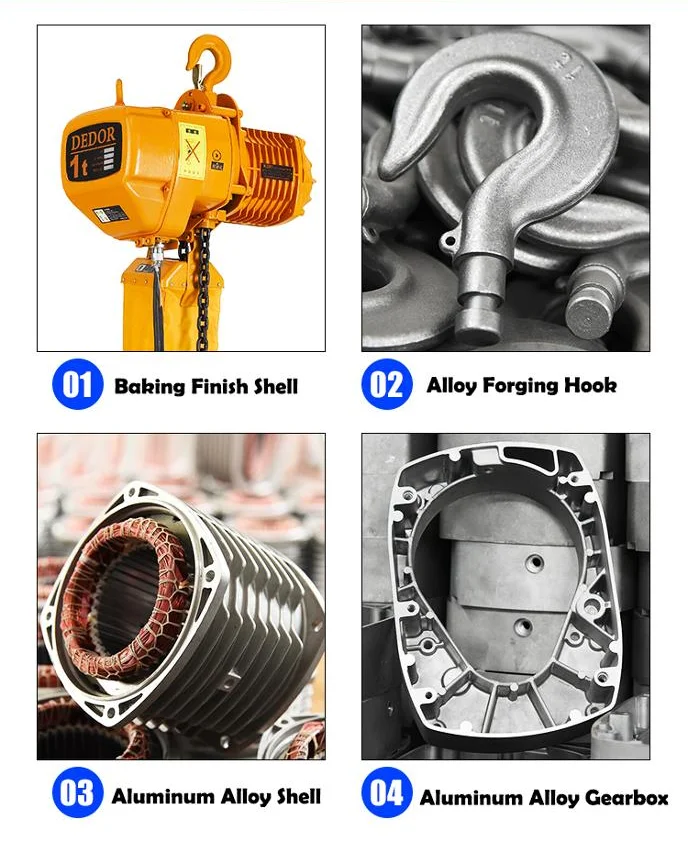

Electric chain hoists are all produced in accordance with international standards. The body has a beautiful appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. It adopts the most advanced technology in the world, fine workmanship, and tight fit between the gears.















Technical parameter

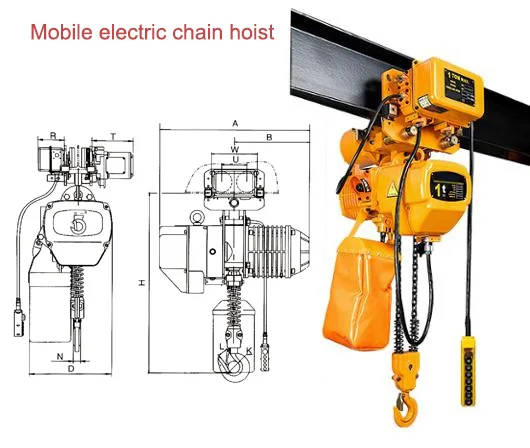

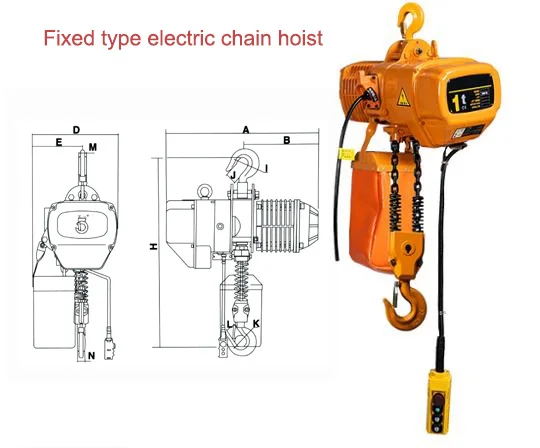

Model	H	A	B	D	E
HHBB0.5-01	530	460	230	288	165
HHBB01-01	650	520	260	300	175
HHBB01-02	680	460	230	288	165
HHBB02-01	800	615	295	430	265
HHBB02-02	835	520	260	300	236
HHBB03-01	845	615	295	430	265
HHBB03-02	950	615	295	430	320
HHBB03-03	950	520	260	350	205
HHBB05-01	1030	615	295	505	320



Model	Capacity/t	Lifting speed	Lifting motor			Chain dia.
		m/min	Power/kw	RPM	Power supply	mm
HHBB0.5-01	0.5	7.2	1.1	1440	3AC 380V 50Hz	φ6.3
HHBB01-01	1	6.8	1.5	1440	3AC 380V 50Hz	φ7.1
HHBB01-02	1	3.6	1.1	1440	3AC 380V 50Hz	φ6.3
HHBB02-01	2	6.6	3	1440	3AC 380V 50Hz	φ10
HHBB02-02	2	3.4	1.5	1440	3AC 380V 50Hz	φ7.1
HHBB03-01	3	5.6	3	1440	3AC 380V 50Hz	φ11.2
HHBB03-02	3	4.4	3	1440	3AC 380V 50Hz	φ10
HHBB03-02	3	2.2	1.5	1440	3AC 380V 50Hz	φ7.1
HHBB05-01	5	2.8	3	1440	3AC 380V 50Hz	φ11.2







Model	H	A	B	D	E
HHBB0.5-01	635	460	230	288	165
HHBB01-01	650	520	260	300	175
HHBB01-02	660	460	230	288	165
HHBB02-01	770	615	295	430	265
HHBB02-02	815	520	260	300	236
HHBB03-01	830	615	295	430	265
HHBB03-02	930	615	295	430	320
HHBB03-03	930	520	260	350	205
HHBB05-01	1015	615	295	505	320

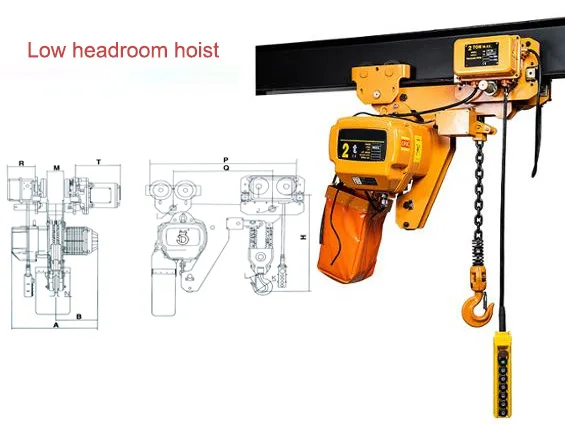

Model	H	A	B	P	Q	M
HHBB0.5-01	440	460	230	585	400	49
HHBB01-01	480	520	260	630	445	56
HHBB01-02	510	460	230	585	400	49
HHBB02-01	570	615	295	720	505	66
HHBB02-02	535	520	260	665	444.5	56
HHBB03-01	640	615	295	775	526	73
HHBB03-02	685	615	295	750	503	66
HHBB05-01	740	615	295	825	541	73
HHBB7.5-01	890	615	295	1041	751	77
