KaiWei IP65 electrical cabinet stainless steel magnetic spice box
- Category: >>>
- Supplier: Shanghai Kaiwei Intelligent Technology (Group) Co. Ltd
Share on (1600504481682):
Product Overview
Description
Product Description
Main Parameters

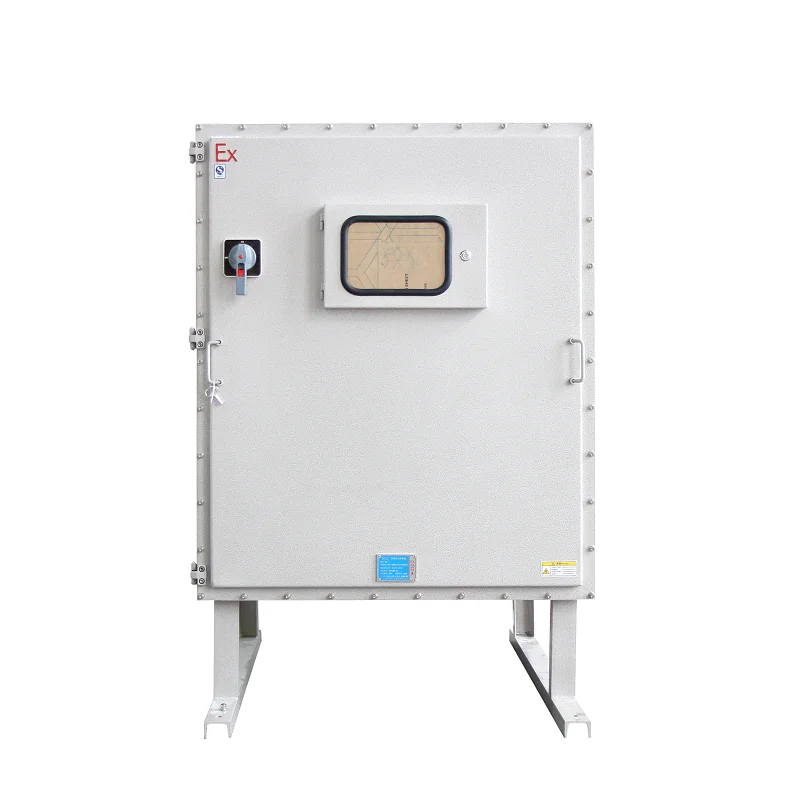

Item Name: | BXK53-100 Explosion-proof Electrical Control Box | ||||||||||||||
Material: | Cold Rolled Steel Sheet or Stainless Steel | ||||||||||||||
Thickness: | Cabinet Body 4.0mm Door Plate:6.0mm Mounting Plate:2.5mm | ||||||||||||||
Standard Configuration: | Door Plate,Cabinet Body,Cover Screw,Mounting Plate(optional) | ||||||||||||||
Surface Treatment: | Etch Primer for Cabinet Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035 | ||||||||||||||
Class of Protection: | IP56(According to GB4205-1993) | ||||||||||||||
MOQ: | 1 PCS | ||||||||||||||
Supply Ability: | 10000 PCS/Month | ||||||||||||||
Delivery Time: | 10-15 days | ||||||||||||||
Remark: | Special Demands Can Be Customized | ||||||||||||||
No. | Order No.(AL7035) | Order No.(Stainless steel SUS304) | Width | Height | Depth |
1 | BXK403020 | BXKSUS403020 | 300 | 400 | 200 |
2 | BXK504020 | BXKSUS504020 | 400 | 500 | 200 |
3 | BXK604020 | BXKSUS604020 | 400 | 600 | 200 |
4 | BXK705020 | BXKSUS705020 | 500 | 700 | 200 |
5 | BXK806030 | BXKSUS806030 | 600 | 800 | 300 |
6 | BXK8070250 | BXKSUS8070250 | 700 | 800 | 250 |
7 | BXK1008030 | BXKSUS1008030 | 800 | 1000 | 300 |
8 | BXK12006040 | BXKSUS12006040 | 600 | 1200 | 400 |
9 | BXK14006040 | BXKSUS14006040 | 600 | 1400 | 400 |
10 | BXK14008040 | BXKSUS14008040 | 800 | 1400 | 400 |
11 | BXK14008050 | BXKSUS14008050 | 800 | 1400 | 500 |
12 | BXK16006040 | BXKSUS16006040 | 600 | 1600 | 400 |
13 | BXK16008040 | BXKSUS16008040 | 800 | 1600 | 400 |
14 | BXK16008050 | BXKSUS16008050 | 800 | 1600 | 500 |
15 | BXK18006040 | BXKSUS18006040 | 600 | 1800 | 400 |
16 | BXK18008040 | BXKSUS18008040 | 800 | 1800 | 400 |
17 | BXK18008060 | BXKSUS18008060 | 800 | 1800 | 600 |
18 | BXK18001050 | BXKSUS18001050 | 1000 | 1800 | 500 |
19 | BXK20006040 | BXKSUS20006040 | 600 | 2000 | 400 |
20 | BXK20006060 | BXKSUS20006060 | 600 | 2000 | 600 |
21 | BXK20008060 | BXKSUS20008060 | 800 | 2000 | 600 |
22 | BXK20001060 | BXKSUS20001060 | 1000 | 2000 | 600 |
23 | BXK22008060 | BXKSUS22008060 | 800 | 2200 | 600 |
24 | BXK220010060 | BXKSUS220010060 | 1000 | 2200 | 600 |
25 | BXK2200120050 | BXKSUS2200120050 | 1200 | 2200 | 500 |
