Sea salt grinding machine,Sugar Pulverizer,Sugar Grinder
US $1500-$1550
Zirconia Mill Jar Planetary Ball Mill Laboratory for Gold Mining
- Category: Grinding Equipment >>>
- Supplier: Jiangxi,Victor,International,Mining,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

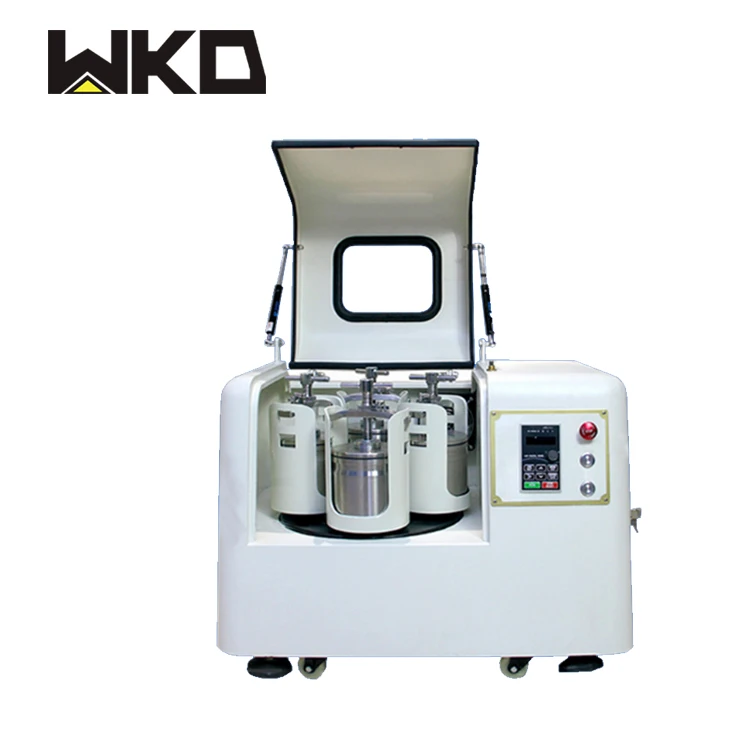

Laboratory planetary ball mill
Laboratory small planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new
product development and small batch production.
Planetary ball mill can grind coarse particles into micro powders. It can mill the materials from 3~10mm maximum into 0.1~1um minimum powder. Planetary Ball Mill Machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.
product development and small batch production.
Planetary ball mill can grind coarse particles into micro powders. It can mill the materials from 3~10mm maximum into 0.1~1um minimum powder. Planetary Ball Mill Machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.
The application of Small gold grinding machine lab ball mill
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, ceramics, clay, fire clay
Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmologist agents, gels, creams, extracts, drugs, pastes, tablets
Metallurgy: ores
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, ceramics, clay, fire clay
Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmologist agents, gels, creams, extracts, drugs, pastes, tablets
Metallurgy: ores
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Details Images

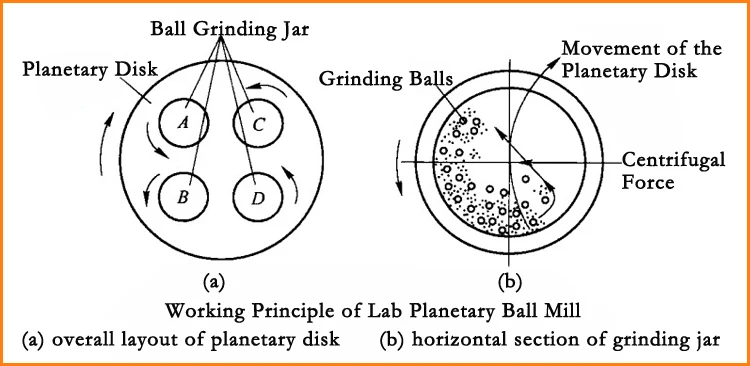

Working Principle
Laboratory ball mill
Lab Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
SIMILAR PRODUCTS
PRODUCT SPECIFICATIONS
Model | Specification | Ball Milling Tank | Remarks | ||
Spec(ml) | Quantity (Items/Set) (Mated with a number of milling balls) | ||||
504L-0.4 | 0.4L | 50~100 | 4 | Can be equipped with 50ml vacuum ball milling tanks | |
504L-2 | 2L | 50~500 | 4 | Can be equipped with 50~250ml vacuum ball milling tanks | |
504L-4 | 4L | 50~1000 | 4 | Can be equipped with 50~500ml vacuum ball milling tanks | |
504L-12 | 12L | 500~3000 | 4 | Can be equipped with 500~2000ml vacuum ball milling tanks | |
504L-20 | 20L | 1000~5000 | 4 | Can be equipped with 3500ml vacuum ball milling tanks | |
Company Profile
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters
and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installationteam.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England,Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installationteam.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England,Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
FAQ
Q1：Are you a manufacturer of mining equipment?
A1：YES, with more than 15 years production & sales experience
Q2: Could your company help design mineral flow chart?
A2: YES, we have about 20 people team of technician and can design a whole set of processing line.
Q3: Can you provide sample testing?
A3: YES, we have mineral testing laboratory and can do sample testing.
Q4: For efficient communication, what information should you provide before quotation?
1) what's your processed material? if it's rock ore, do you have mineral report?
2) what's your capacity(tons per hours)?
