Laboratory scale mini spice tobacco pulverizer Tobacco grinder
- Category: >>>
- Supplier: Changzhou,Bole,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

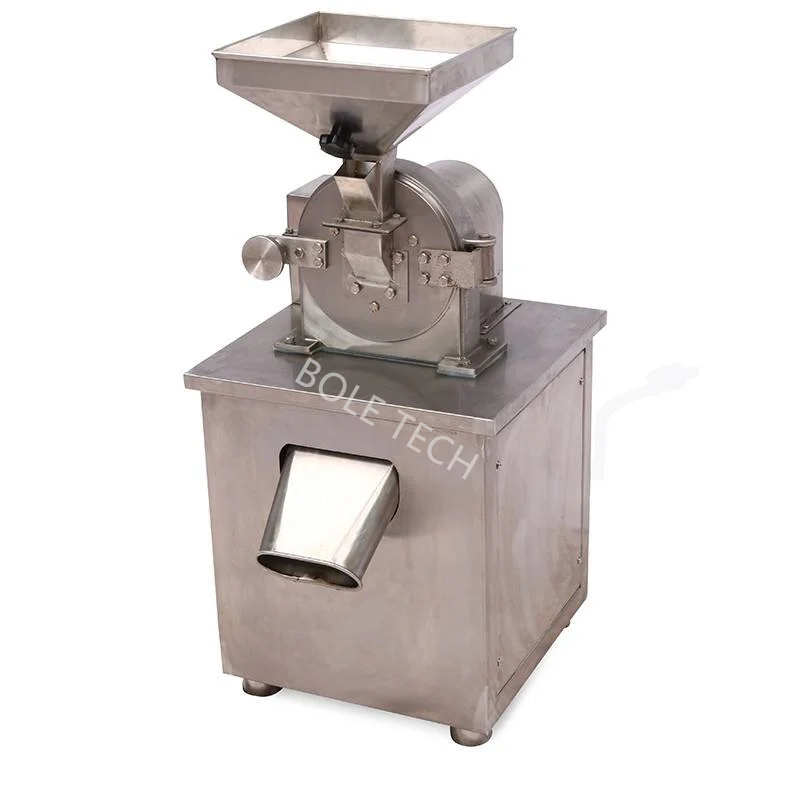

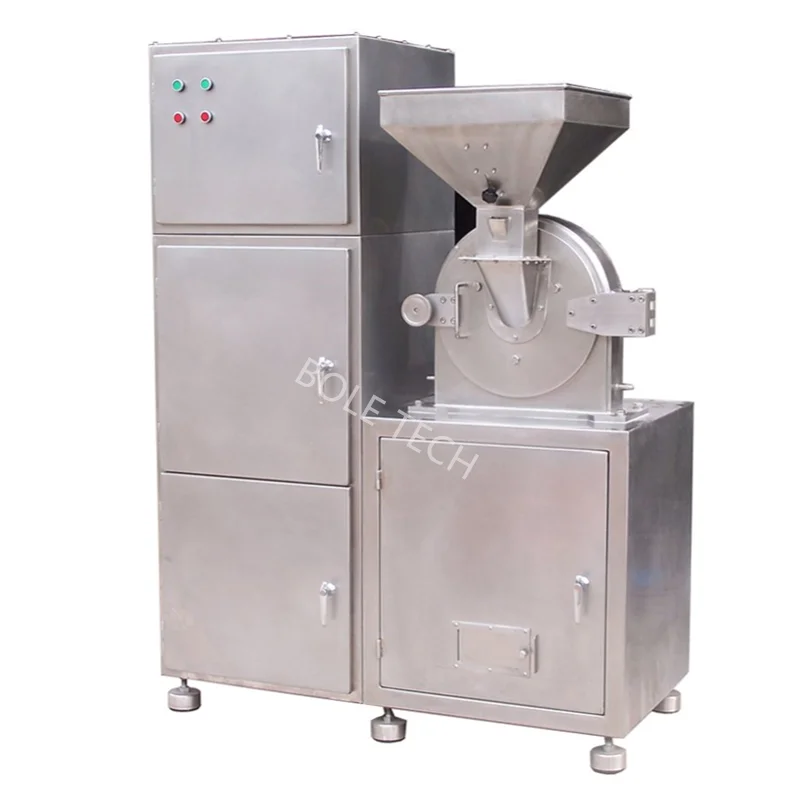

General description of Laboratory Spice Pulverizer

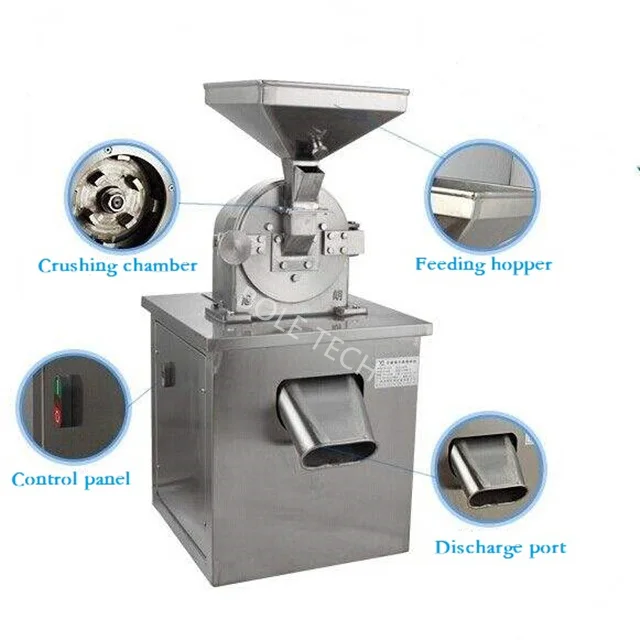

This machine is mainly used in pharmaceutical, food and chemical industries. It can grind various of materials. It is made up of feeding hopper, grinding device and product collecting device. Its structure is simple and easy to clean. All the contact material parts are made of stainless steel.
Work principle of Laboratory Spice Pulverizer
This machine uses the relative high speed motion of movable teeth disc and fixed disc to make the material be grinded under the impact of teeth, friction and the impact among materials. The grinded material is discharged from the grinding chamber directly. The different size can be adjusted by changing the different sieves.
Parameters of Laboratory Spice Pulverizer
Model | 20B | 30B | 40B | 50B |
Capacity(kg/h) | 60~150 | 100~300 | 150~500 | 250~700 |
Feed size (mm) | ≤6 | ≤6 | ≤6 | ≤10 |
Grind mesh (mesh) | 60~120 | 60~120 | 60~120 | 60~120 |
Grind motor (Kw) | 4 | 5.5 | 11 | 11 |
Dusting motor(Kw) | 0.55 | 0.75 | 1.5 | 2.2 |
Overall size (mm) | 1000×550×1450 | 1350×700×1700 | 1700×950×1950 | 1800×1000×2000 |
