  • Large capacity glass bottle 1300ml self brewed filling bottle, food grade wine bottle

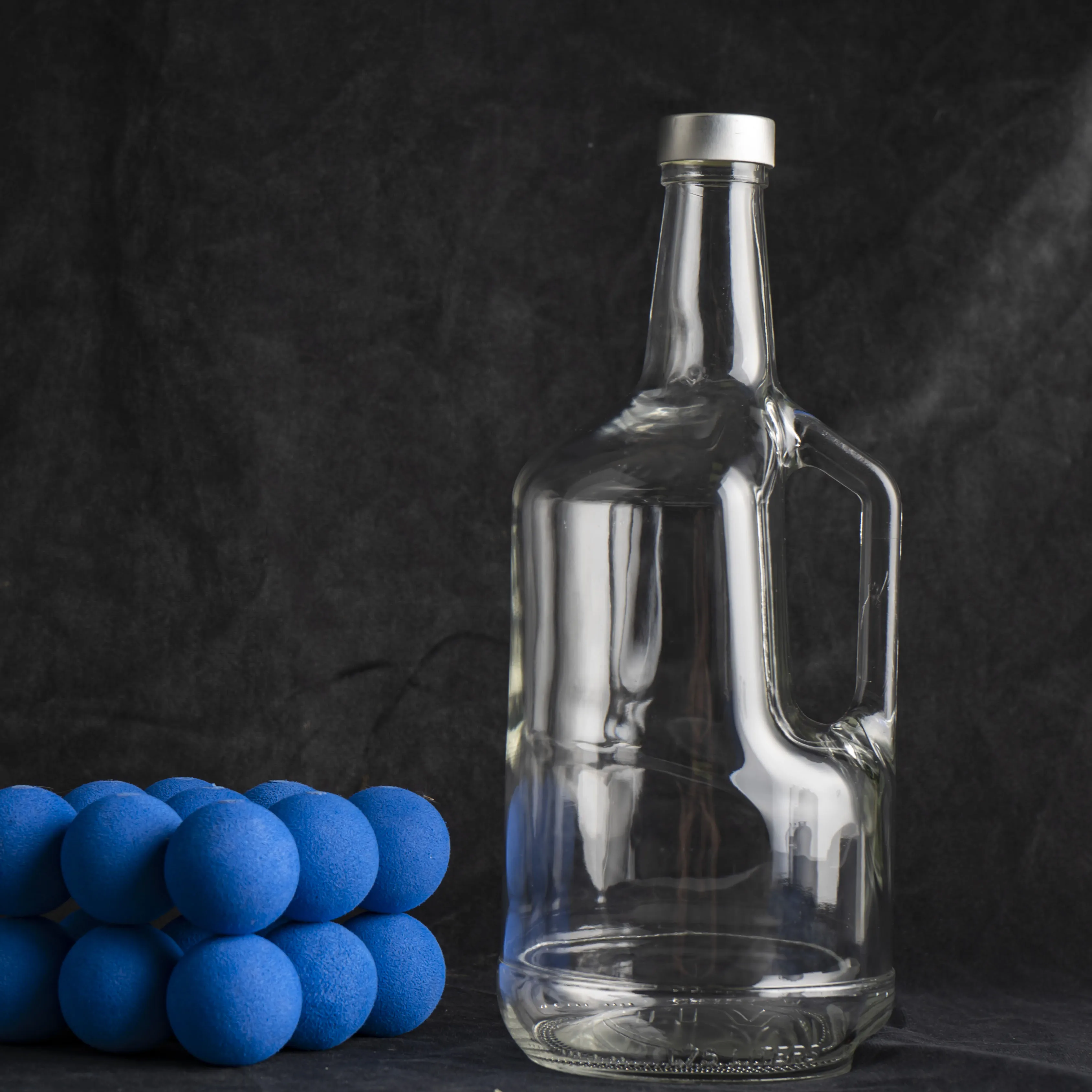

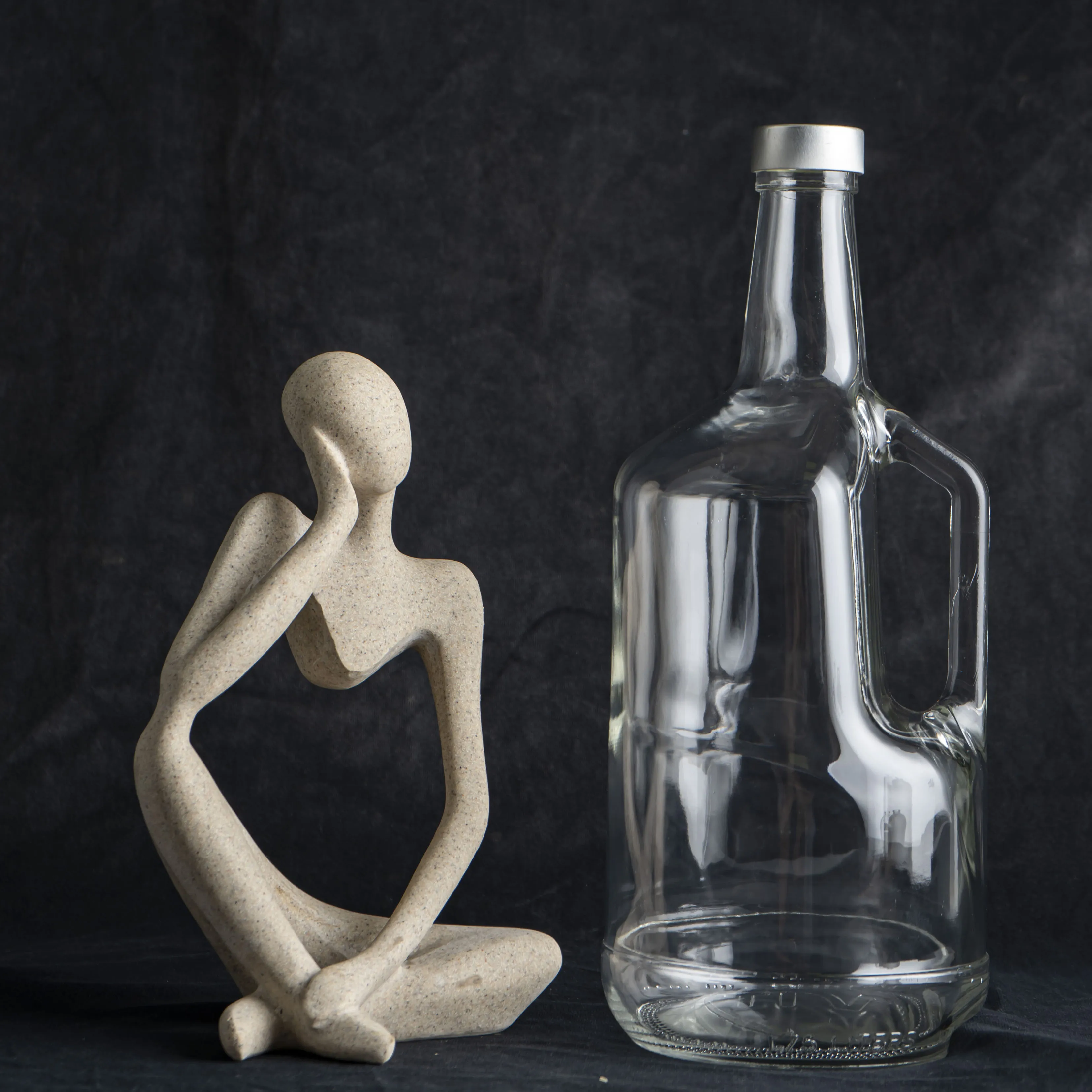

Large capacity glass bottle 1300ml self brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle
Large capacity glass bottle 1300ml self-brewed filling bottle, food grade wine bottle

Large capacity glass bottle 1300ml self brewed filling bottle, food grade wine bottle

Share on (1600505508273):


Price:$0.34 - $0.35

Quantity:


Product Overview

Description



Production chain video

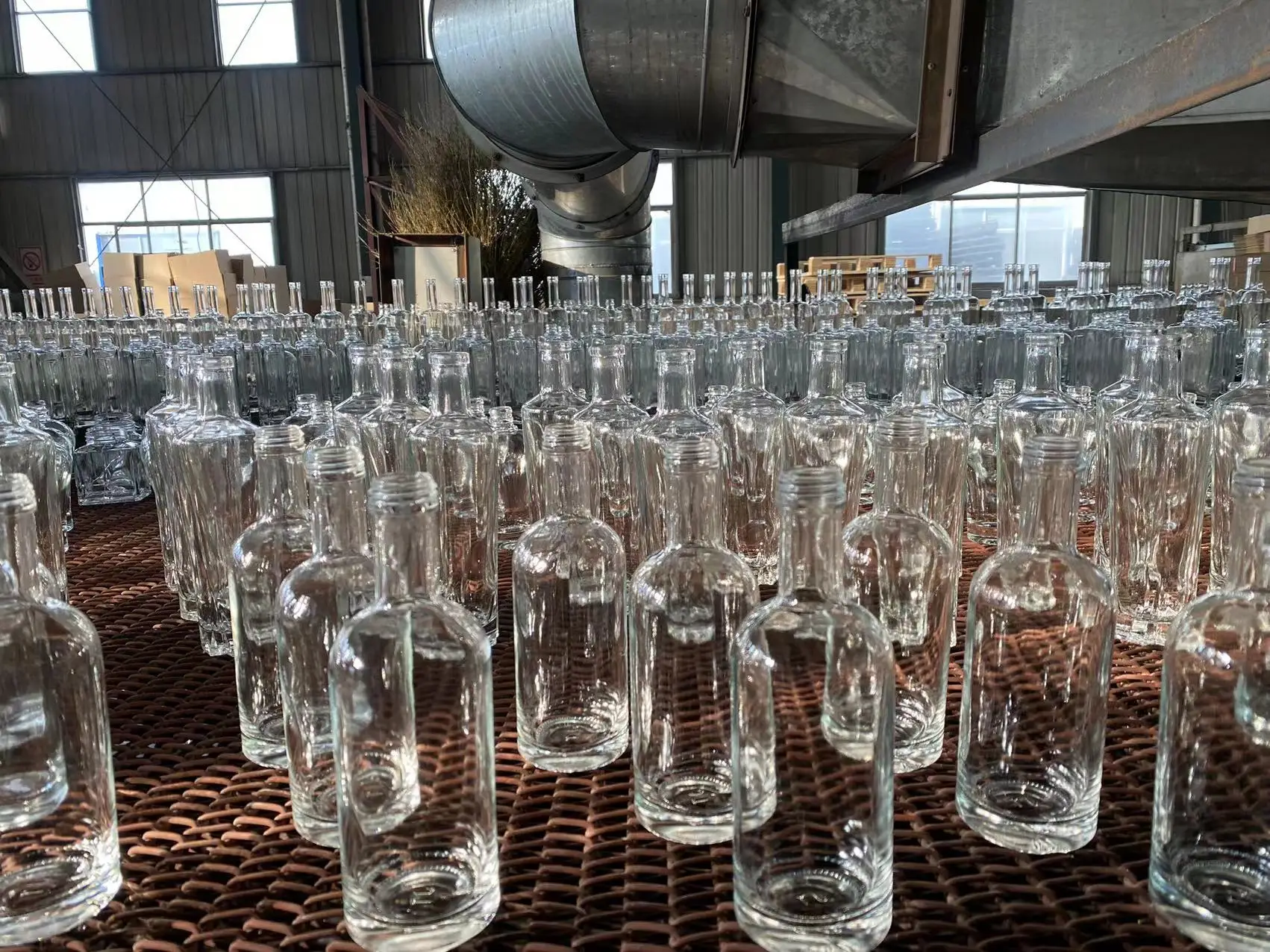

Glass container manufacturing process



Shattered glass
The glass packaging is made of three natural ingredients: silica sand, soda ash, and limestone. These materials are mixed with recycled glass and are called "cullet". Broken glass is the main component of Jiatong glass bottles and containers. These four ingredients-sand, soda ash, limestone and recycled glass-together make up the batch mixture.



Furnace
The bulk mixture enters the furnace. The furnace is heated to 1500 degrees Celsius by gas and electricity to make molten glass. The cover furnace operates 24 hours a day, 7 days a week, and can process hundreds of tons of glass a day. Jiatong Glass has multiple furnaces to support glass manufacturing.



Refiner
When the molten glass mixture comes out of the furnace, it flows into a refiner, which is essentially a covered insulated basin to contain heat. Here, the molten glass is cooled to about 1250 degrees Celsius.



Feeder
Then the molten glass enters the forehearth, and the temperature of the glass reaches a uniform level before entering the feeder. At the end of the feeder, scissors cut the molten glass into "drop shapes", and each drop shape will become a glass container.



Forming Machine
When each droplet falls into a series of molds, the final product begins to form in the molding machine. Compressed air is used to expand the material into a glass container. The glass continues to cool during this part of the manufacturing process and will reach approximately 700 degrees Celsius.


Annealing
After the forming machine, each glass bottle or can undergoes an annealing step. Annealing is required because the outside of the container cools faster than the inside. The annealing process reheats the container and then gradually cools to release heat and strengthen the glass. The glass container is heated to approximately 560 degrees Celsius and then slowly cooled to 150 degrees Celsius. Then the glass bottles and glass jars go to the external process area for external process processing.




Products Description


Brand
Jiatong
Model
Jiatong-686
Capacity
1300ml Customizable
Color
Clear and transparent
Size
Height:296 Diameter:122（mm）
Gross weight
1020g
Custom made
Customizable advanced customization
To pay
T/T T/C
Material
High-quality glass






The main characteristics

Non-toxic, tasteless; transparent, beautiful, good barrier properties, airtight, abundant and common raw materials, low price, and can be used in multiple cycles. And it has the advantages of heat resistance, pressure resistance, and cleaning resistance. It can be sterilized at high temperature and can be stored at low temperature.


Show details

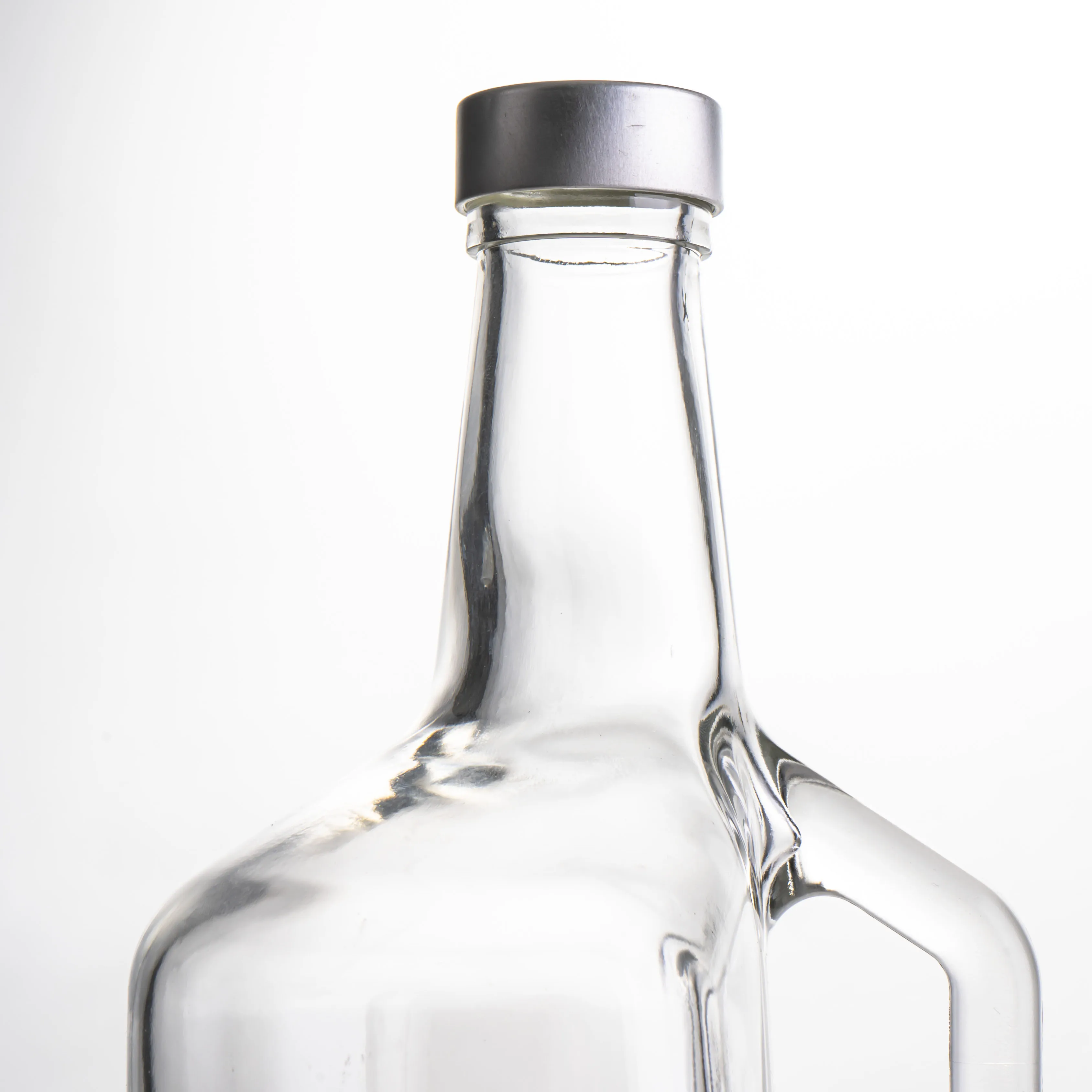

Bottle mouth

The large stopper attached to the mouth of the glass wine bottle is easy to grasp and remove, protecting the contents of the bottle from evaporation. The glass stopper on the wine bottle has a plastic tip at the point of contact for an air-tight fit.
Cork stoppers, rubber stoppers or beautiful crystal stoppers can be used, of course we can also customize

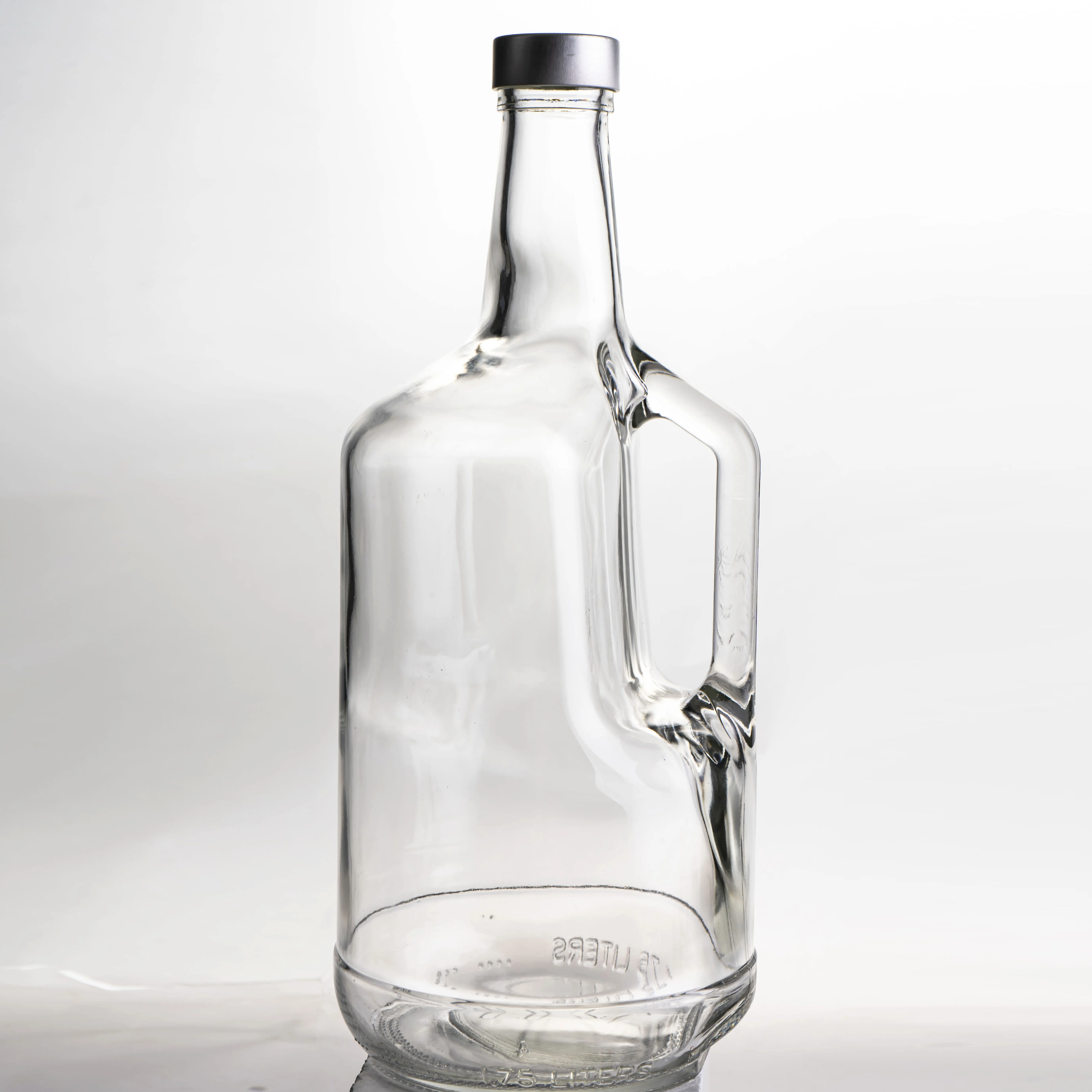

Bottle body
The creation of unique glass bottles can emphasize your brand in an eye-catching and attractive way, while attracting consumers and making your product stand out from the competition. If you can't find the perfect match in our standard catalog, We also have an in-house team of designers and engineers working hand in hand to provide containers that leverage market expertise, brand understanding and consumer trends to help elevate your brand. Packaging is a key determinant of product choice for consumers. Packaging is not only an integral part of your brand, it is also a physical manifestation of your brand.

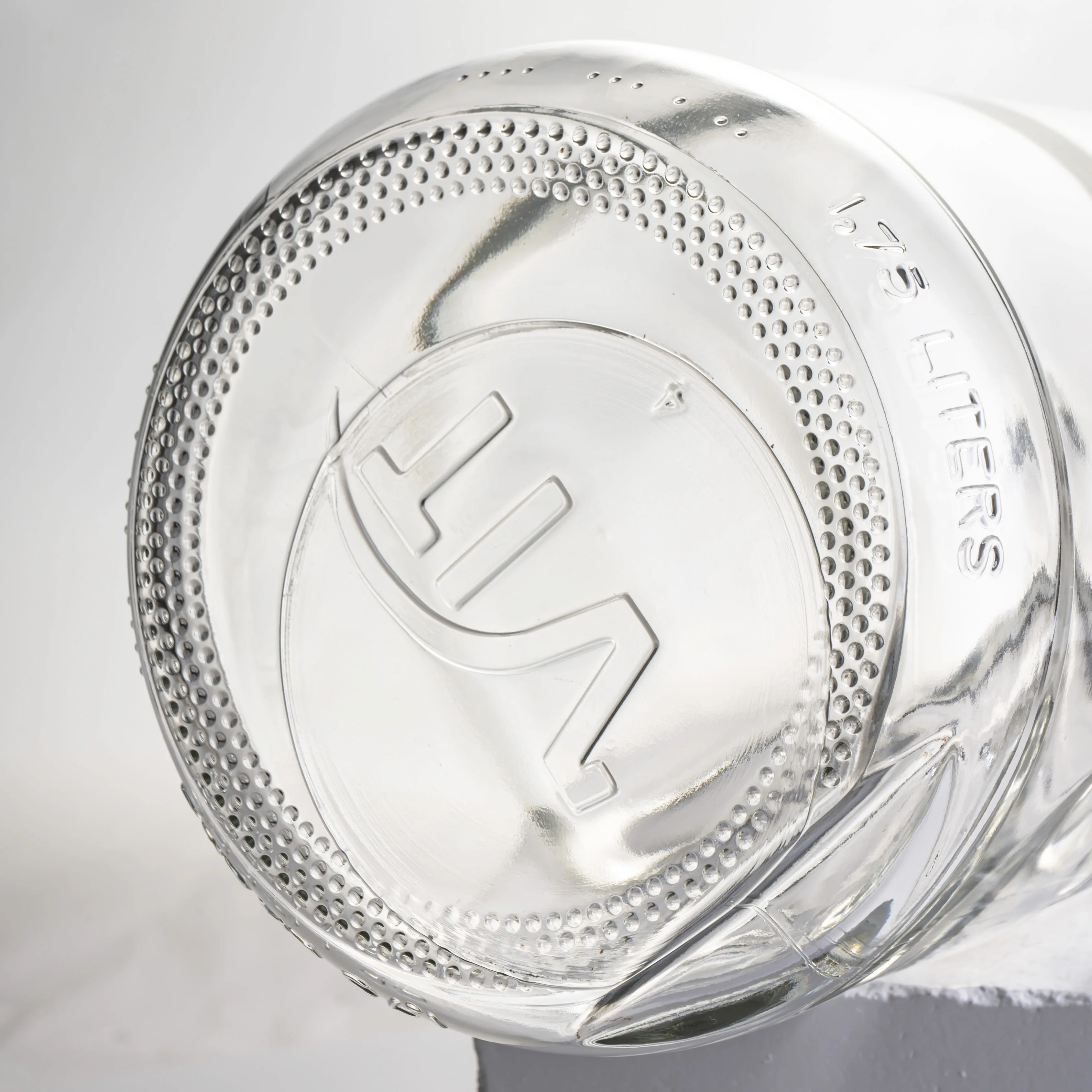

Bottle bottom


The bottom of the bottle is equipped with a sturdy heavy-duty base, which provides excellent balance performance and can effectively prevent tipping. The simple and clear design allows you to easily observe the capacity of the glass.



Advanced customization







1、Craft custom


Printing, painting, frosted, decal, embossed, hot stamping, electroplating, etc. Accept custom design, any craft, meet your
requirements.








2、Bottle cap customization


Cork stopper, rubber stopper, crystal stopper, screw cap, lid barrel, heat shrinkable film, etc. Accept custom design, any size,
any shape, meet your requirements.








3、Glass bottle size


200 ml , 300 ml , 375 ml ,450 ml , 500 ml , 550 ml , 700 ml , 750 ml , 1000 ml etc. Accept custom any size, meet your
requirements.


R & D team


Our R&D department has rich R&D, production, innovation capabilities and management experience. Proficient in the development status and future trends of related technologies in the industry. Rich product analysis capabilities and strong market forward-looking. Open thinking and careful thoughts. Whether you are Looking for a traditional classic bottle or a bold and bold bottle, we can all help you design a mold and create the bottle of your dreams. We can advise on the shape, volume and color of your customized packaging.




Our Company




Yuncheng Jiatong Glass Co., Ltd. is a comprehensive daily glass container manufacturer that produces crystal white, high white and other materials. It is located in the land of Yunzhou, the hometown of China's Water Margin.
The company has gathered a number of professionals and introduced the most advanced production equipment and manual production lines to standardize the neatness of the products and improve the precision of the products. It is a comprehensive large-scale production enterprise integrating R&D, design, production, carving, polishing, spraying, baking and export. The first-class quality and high-quality service are deeply trusted and supported by consumers, and have established a good product image and corporate image. Provide customers with a one-stop high-quality guarantee for purchasing.
The company's adhering to: quality-oriented. Implement a management system that is institutionalized, professionalized, standardized, and connected with the world, and takes perfection and innovation as the unremitting pursuit. We sincerely invite customers at home and abroad to maintain and develop long-term friendly cooperative relations on the basis of equality and mutual benefit to achieve win-win development.


Company strength








1、Perfect Quality Control
We own professional quality management and process inspecion team.

2. High-quality service
Starting from the interests of consumers, customers, and appeals, we will improve service concepts, improve service quality, standardize service operations, and scientifically simplify service procedures, and strive to achieve compliance, efficiency, and humanization.

3. Strong corporate strength
Pursue excellence and create first-class bravely.


Inspection Report




Packaging&shipping




All our bottles are carefully inspected, first by the glass manufacturer, then by our staff, and then shipped to you. The packaging of the bottles is carried out by qualified and trained personnel who must follow detailed procedures established according to customer standards. The bulk bottles are perfectly arranged on the pallet to prevent any damage during transportation and unloading of the pallet. The bottles to be packaged are placed between the dividers in their respective boxes. In both cases, everything is carefully packed with high-strength plastic film. They are all packaged in an extremely safe way to protect your glass bottles from the surrounding environment during transportation and storage, and to prevent the bottles from shifting.


FAQ




1).Are you a manufacturer or a trader.
We are the manufacturer.

2).Can it be customized according to my needs.
Yes, you can give me a product specification

3).Can you provide samples.
Samples can be provided, and the freight needs to be borne by the customer.

4).How long does the sample take.
General samples are shipped within 7-10 days.

5).why should you buy from us not from other suppliers?
The company has gathered many professionals and introduced the most advanced production equipment and manual production lines. It is a comprehensive large-scale production enterprise integrating R&D, design, production, carving, polishing, spraying and bak

6). how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

7).what can you buy from us?
Glass bottle,Cork
