joinwit JW3306D High Performance Live Fiber Identifier Optical Fiber Identifier Built in 10mW Visual Fault Locater
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600505872404):
Product Overview
Description
Products Description
JW3306D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online test.
Features
1.Indicate the signal directions and power in fiber;
2.Indicate the signal presence or absence(Live or dark fiber);
3.Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
4.Displays the relative core power ;
5.Easy-to-replace adaptors;
6.Lower power indication;
7.Build in VFL function.
2.Indicate the signal presence or absence(Live or dark fiber);
3.Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
4.Displays the relative core power ;
5.Easy-to-replace adaptors;
6.Lower power indication;
7.Build in VFL function.
Product Paramenters
Type | FI3306D | |||||
Identified Wavelength Range | 800-1700 nm | |||||
Fiber types | 3.0mm、2.0mm、250μm、900μm | |||||
Signal direction | Directional light display | |||||
Recognizable signal type | 270Hz、1kHz、2kHz | |||||
Accuracy | +10dB ~ -30dBm (continuous wave) | |||||
+10dB ~ -25dBm (modulating signal) | ||||||
Sensitivity | +10 ~ -50 dBm | |||||
VFL wavelength | 650nm | |||||
Output power of VFL | 10mW | |||||
Weight | 300g (including batteries) | |||||

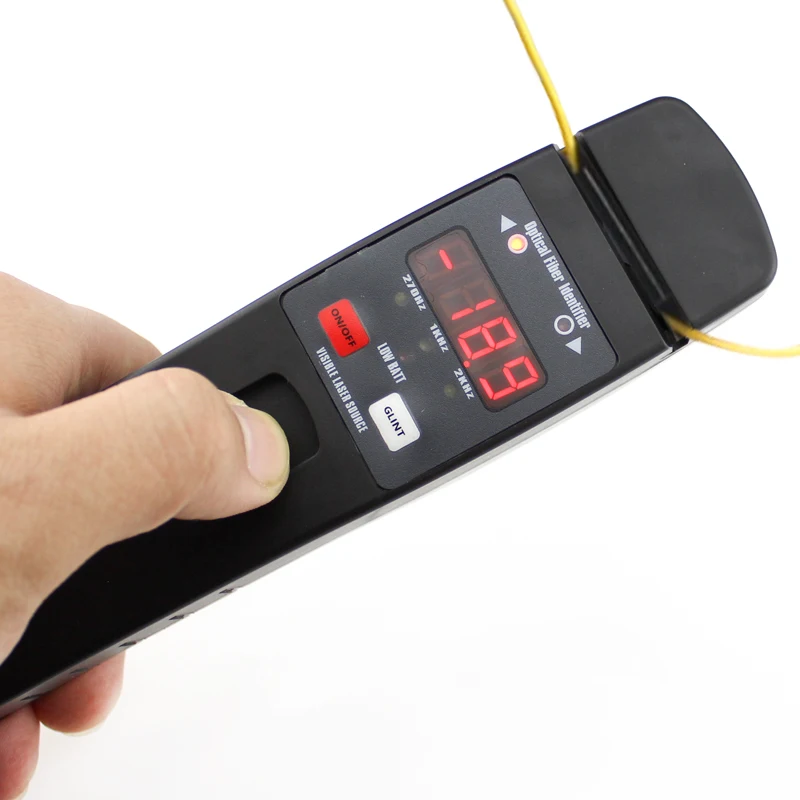

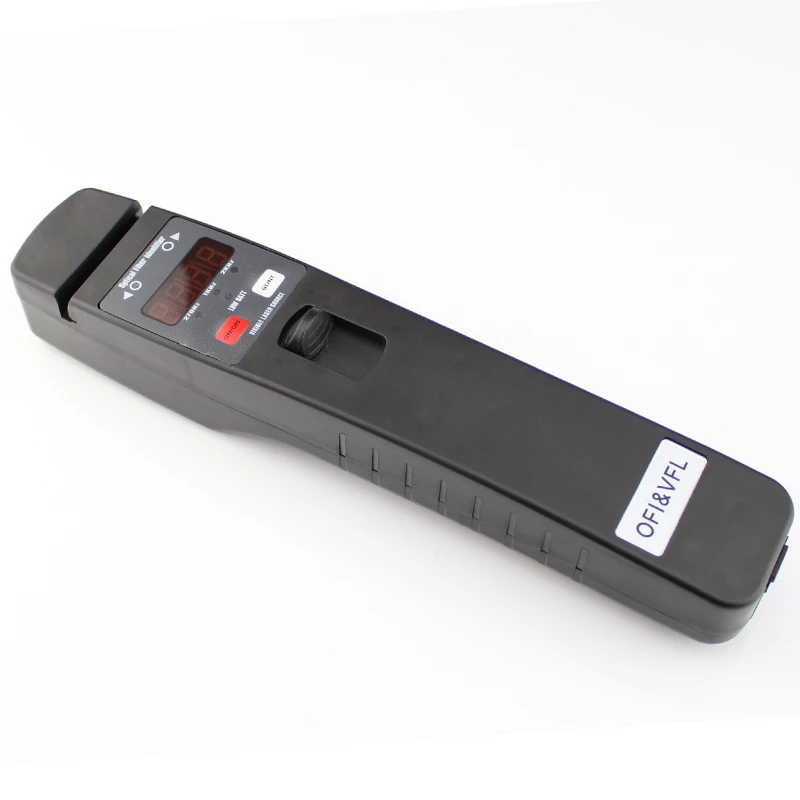

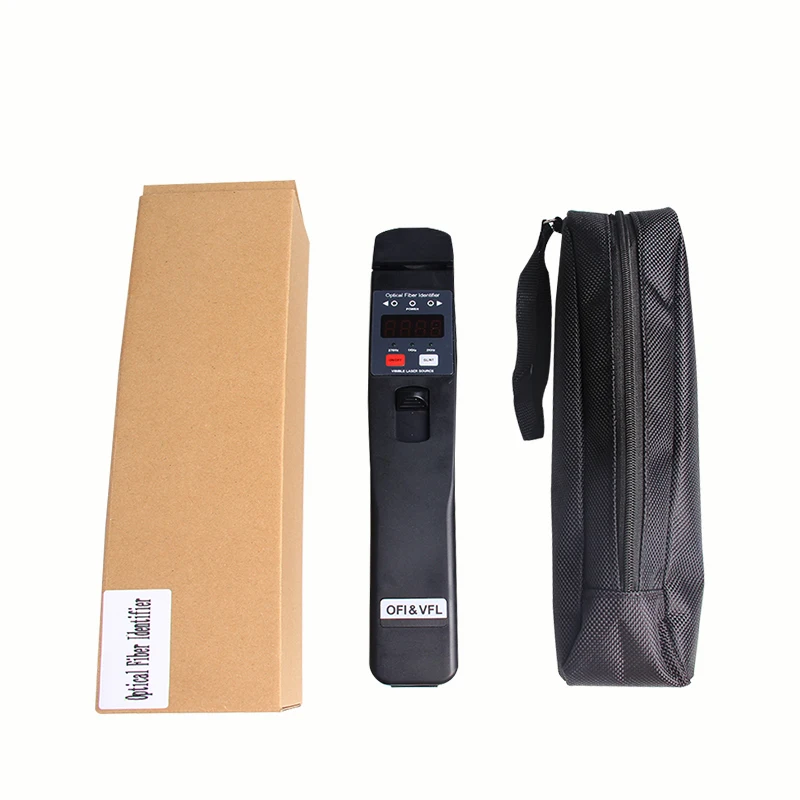

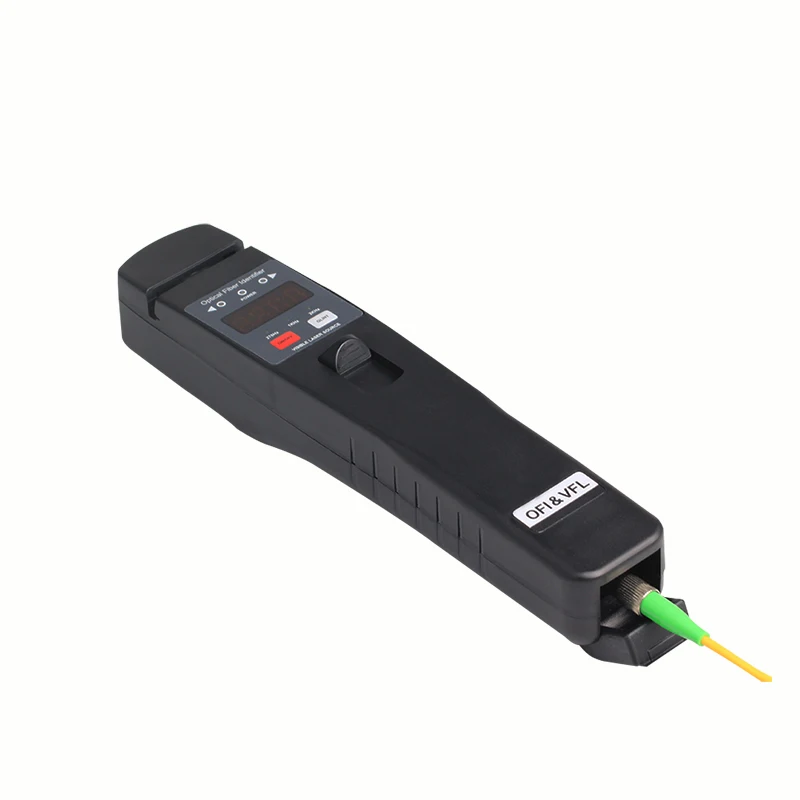

Images
Company Profile
Hefei Equilateral Communication Equipment Co., Ltd (ECE), which located in beautiful city Hefei, Anhui Province, is a high-tech enterprise provider for FTTH Fiber Optic and Network Components.
Our main products are all kinds of Fiber Optic components such as fiber optic Patchcords, fiber optic Adapters, fiber optic meters, fiber optic tools, OLT, Satellite meter, HFC meter etc. All our products are comply with the international quality standard and are greatly appreciated in a variety of different markets. ECE provide customers with high quality products and excellent services, sincerely look forward to your cooperation.
Packing & Delivery
