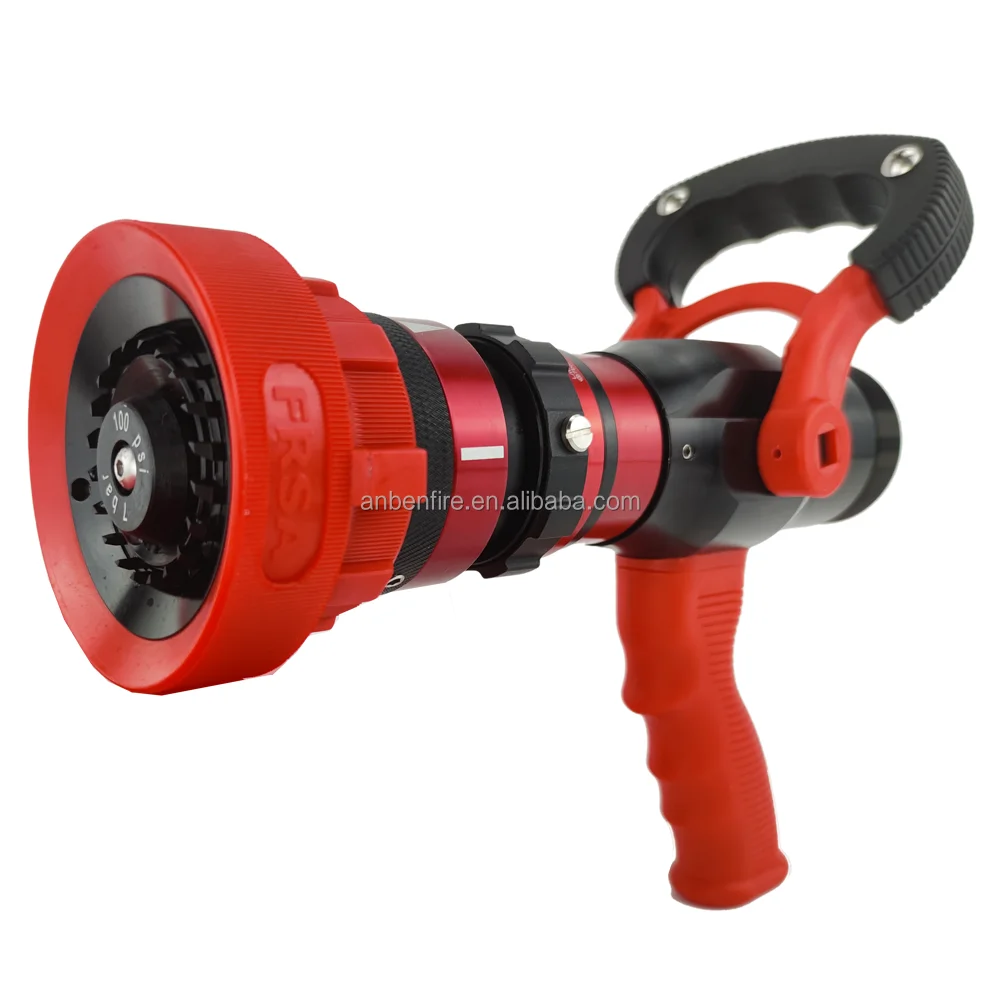

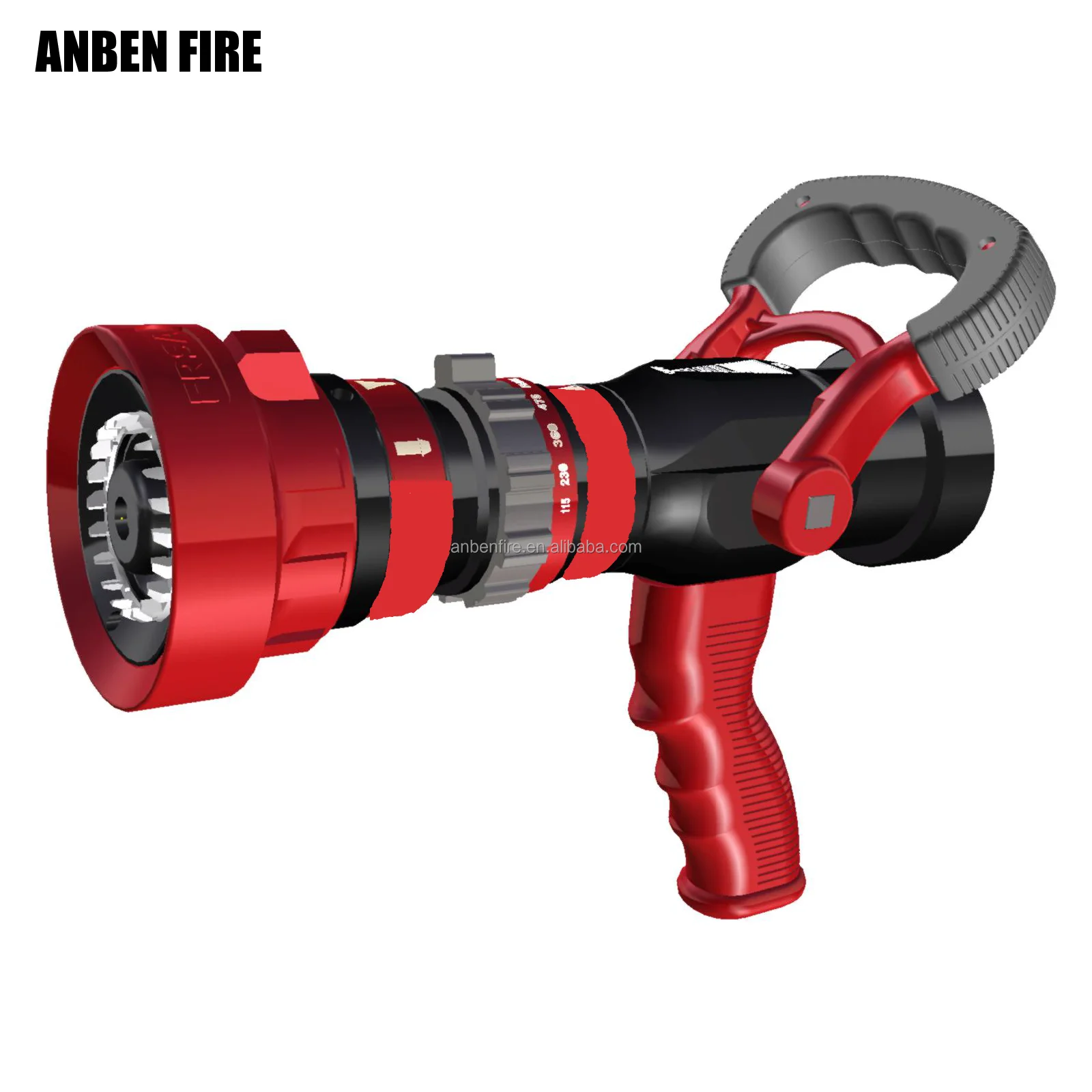

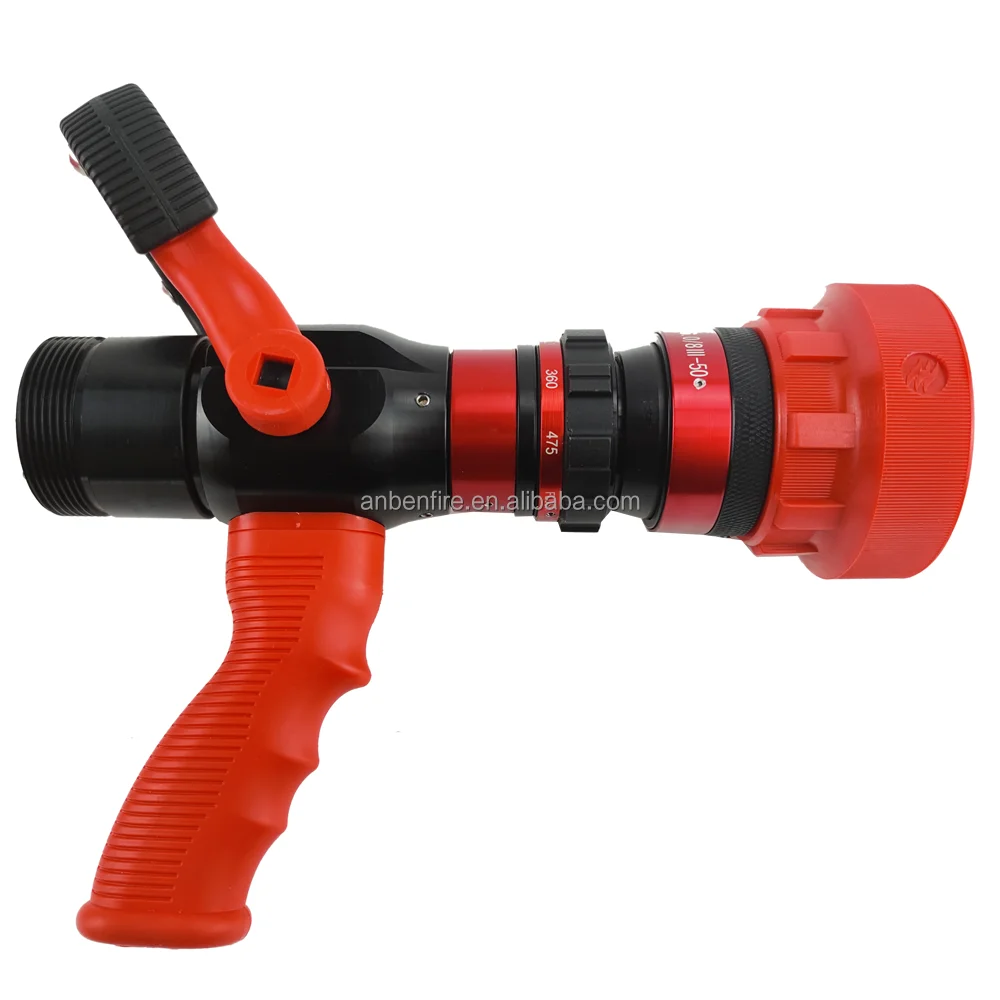

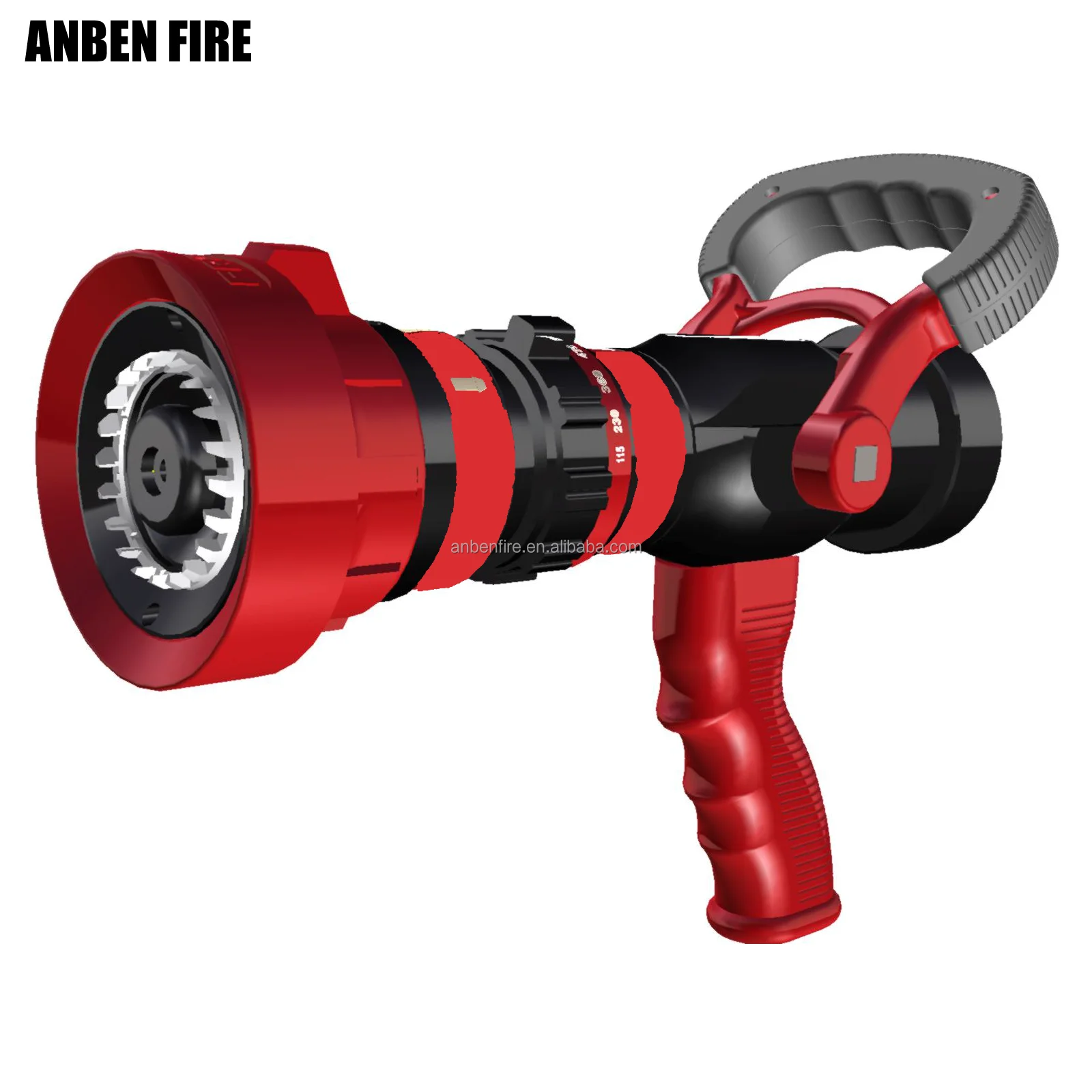

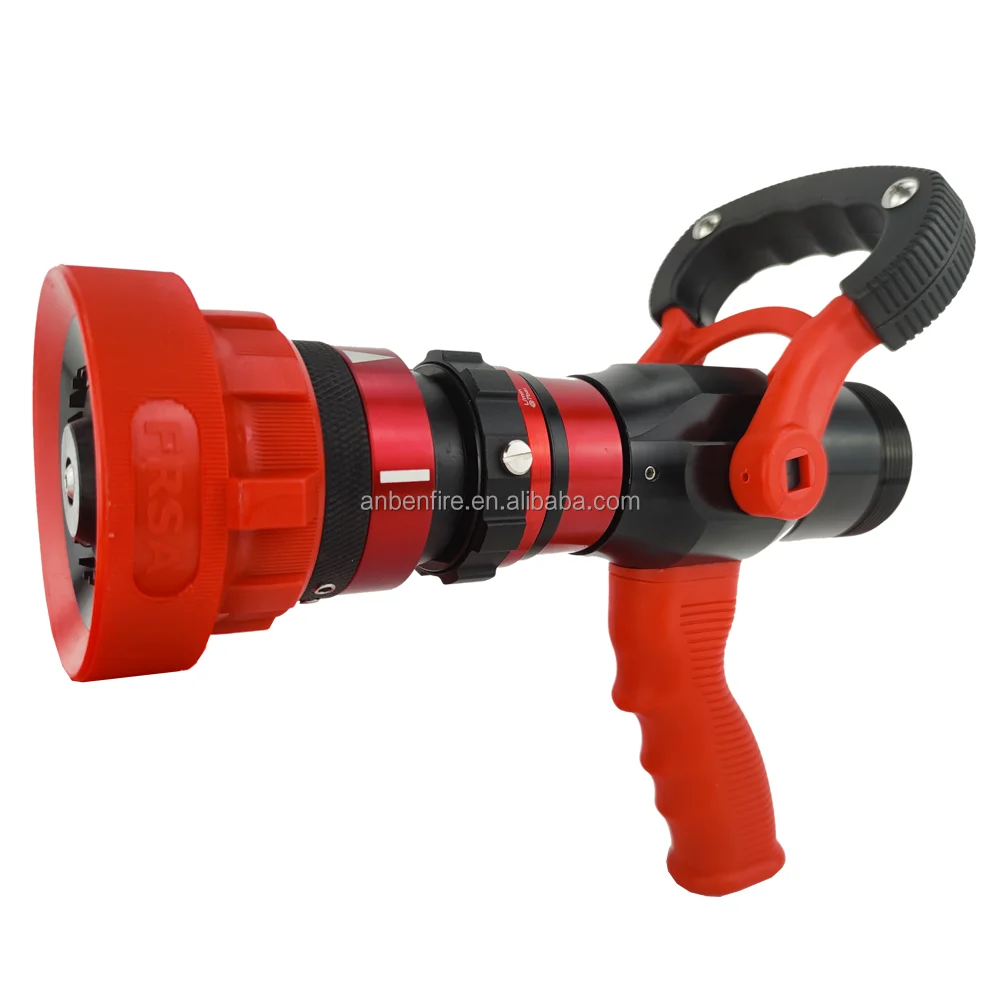

ANBEN 475Liters per Minute Selectable Flow Fire Fighting Hose Nozzle with Pistol Grip
- Category: >>>
- Supplier: Quzhou Anben Firefighting Equipment Co. Ltd.
Share on (1600506053409):
Product Overview
Description
Adjustable 360PSI High Pressure 2 inch/2.5inch 475L FIre Water Nozzle
Forede QLD6.0/8III selectable flow fire nozzle is a constant gallonage nozzle.
With multiple flow settings for operator flow control.
The QLD6.0/8III has four flow degrees,115-230-360-475-FLUSH-LPM.
And it is available both straight stream and fog spray(120 Degree).

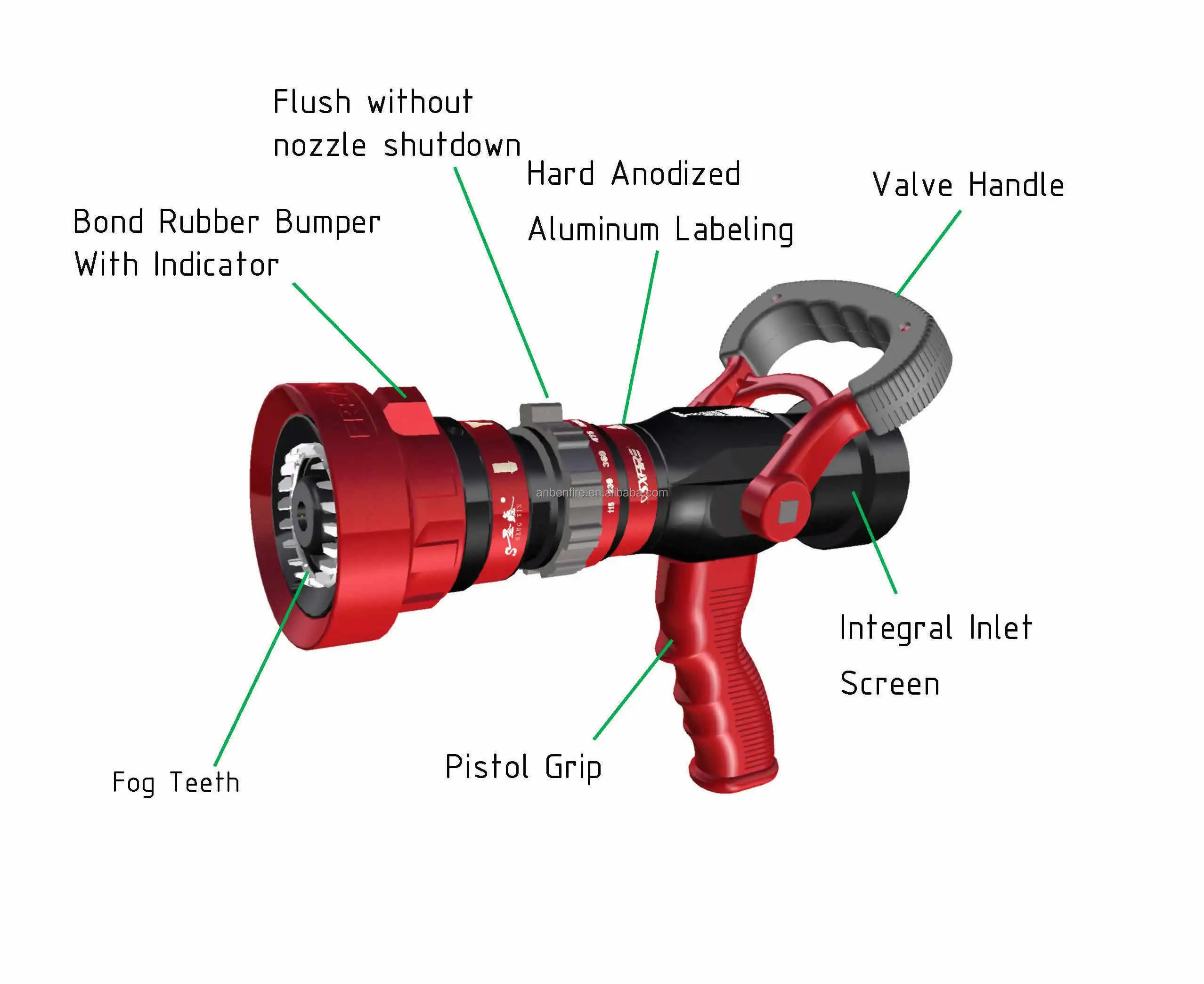

Features:
*Pattern Identification
*Hard Anodized Aluminum labels,LaserEngraved
*Simple to operate (1/4 turn from straight stream to fog)
*Raised lug marks straight stream for limited visibility operations
*Easy to service & repair
*CCC certificate
*Compatible with Quick Attach Foam Tube
*Hard Anodized Aluminum labels,LaserEngraved
*Simple to operate (1/4 turn from straight stream to fog)
*Raised lug marks straight stream for limited visibility operations
*Easy to service & repair
*CCC certificate
*Compatible with Quick Attach Foam Tube
Specifications:
Weight(Except Coupling) | Approx 1.6kg | ||
Material | Body | Hard coated anodized aluminum | |
Valve | ABS | ||
Pistol Grip handle | ABS | ||
Bumper | Rubber | ||
Working pressure | 100PSI ( 7 bar ) | ||
Max. pressure | 360PSI ( 25bar ) | ||
Max. fog angle | 120° | ||
Throw Range | 40m @ 7bar | ||
Flow rate | 30gpm(115 L/m) | @7Bar | |
60gpm(230 L/m) | @7Bar | ||
95gpm(360 L/m) | @7Bar | ||
125gpm(475 L/m) | @7Bar | ||
Flush | |||
Inlet Size | 1.5” (40mm)2 ”(50mm),2.5” (65mm). | ||
Connection coupling | Storz,Instantaneous,NH,GOST,etc. | ||
Operation:

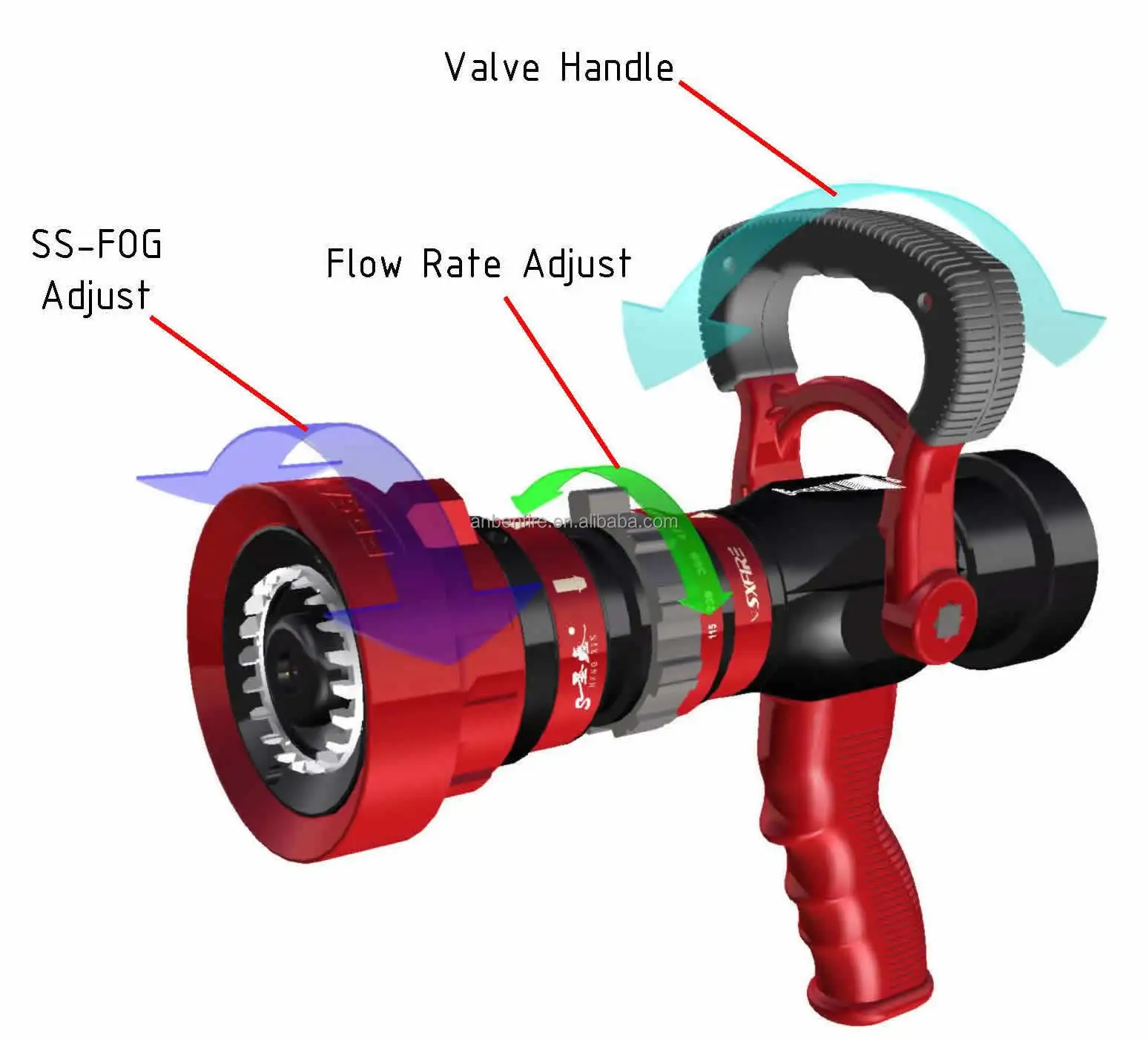

How To use
*Valve Close ： Push the handle forward
*Valve Open ： Pull the handle backward
*Flow rate adjust：Twist the flow adjust ring to obtain required flow rate
*SS-FOG Pattern：Twist the rubber bumper
*Valve Open ： Pull the handle backward
*Flow rate adjust：Twist the flow adjust ring to obtain required flow rate
*SS-FOG Pattern：Twist the rubber bumper

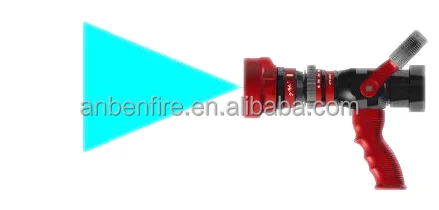

Water flow status:

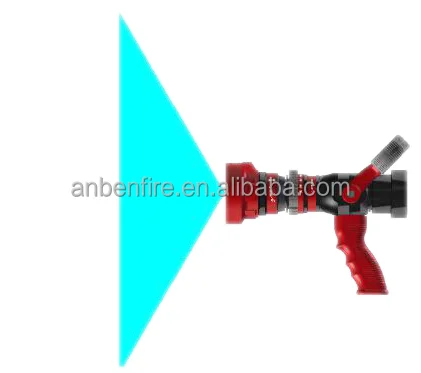

Wide Fog
Narrow Fog

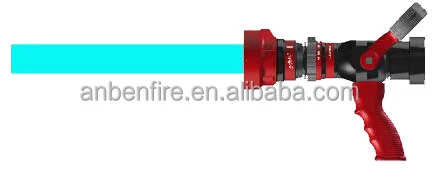

Straight Stream

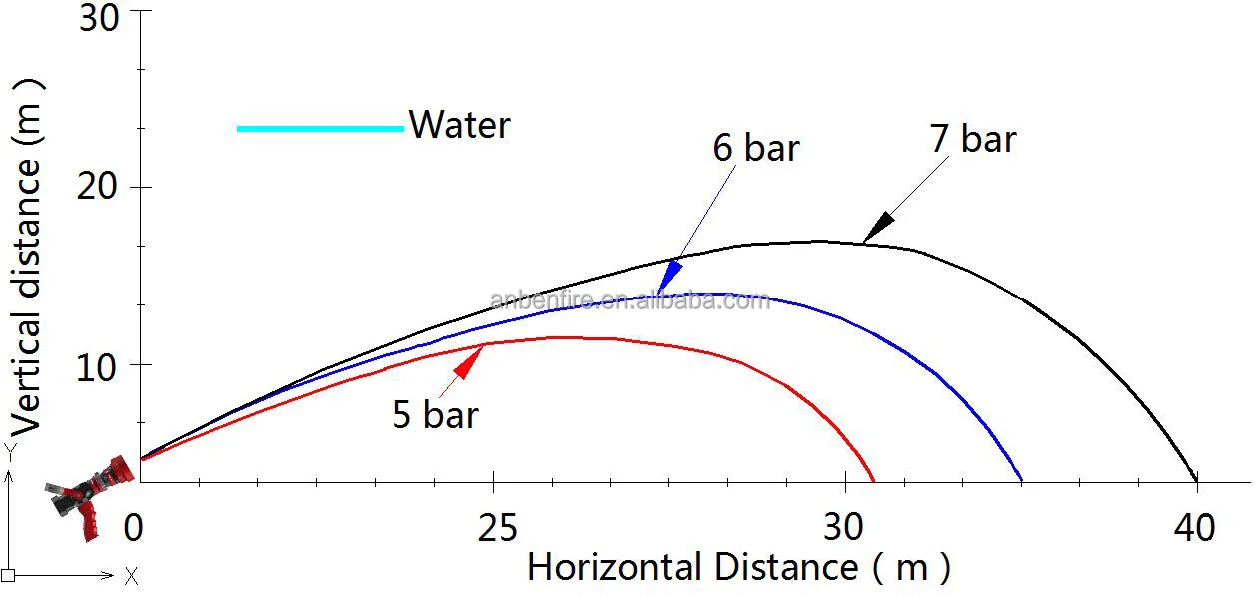

Performance Chart:Testing Environment： 30° throw angle，wind speed≤2m/s

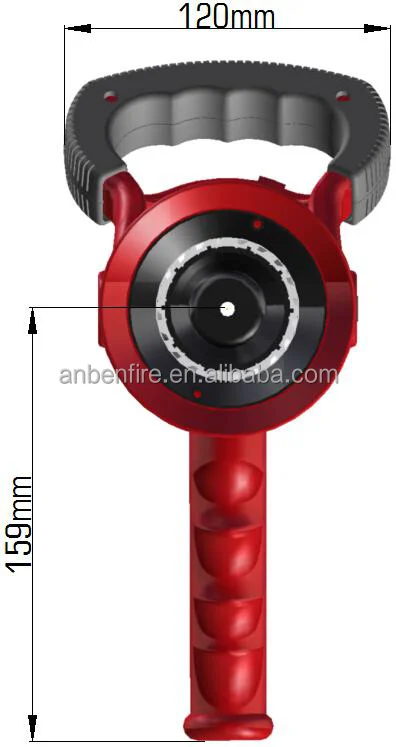

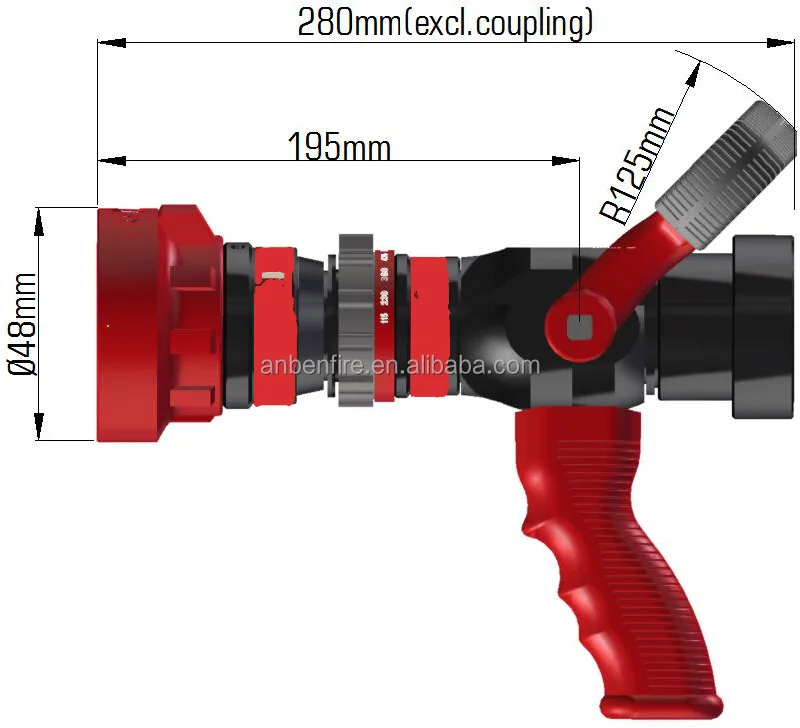

Details Images

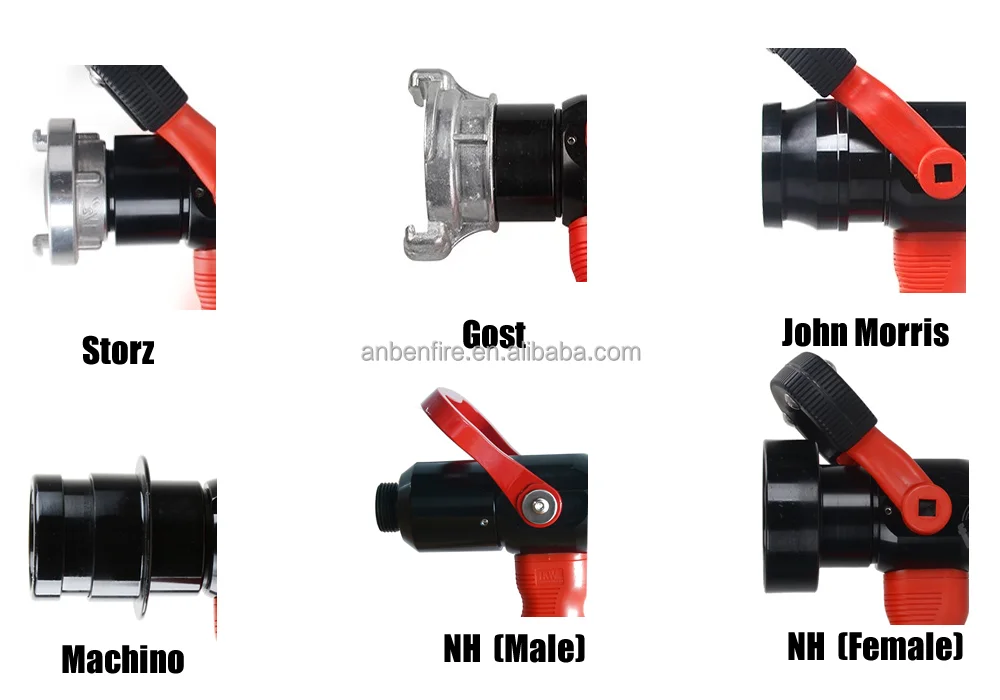

Available Coupling：
