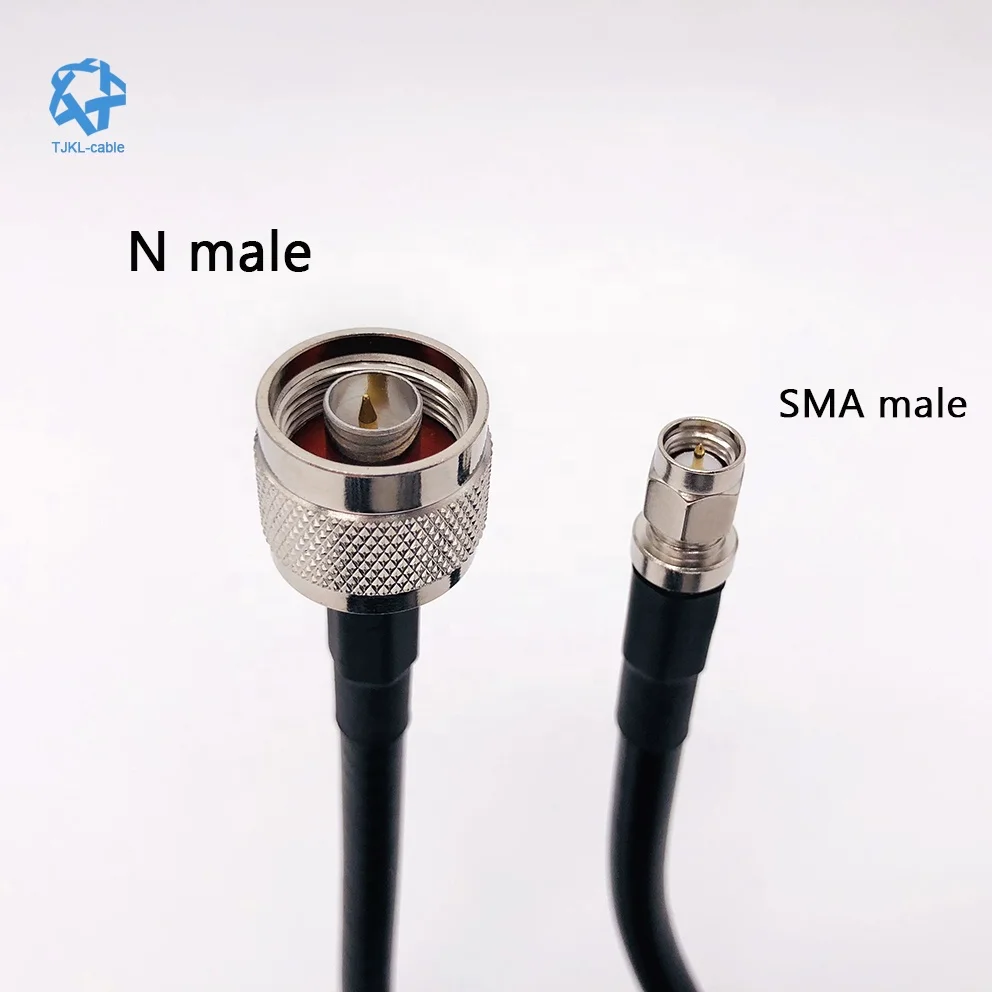

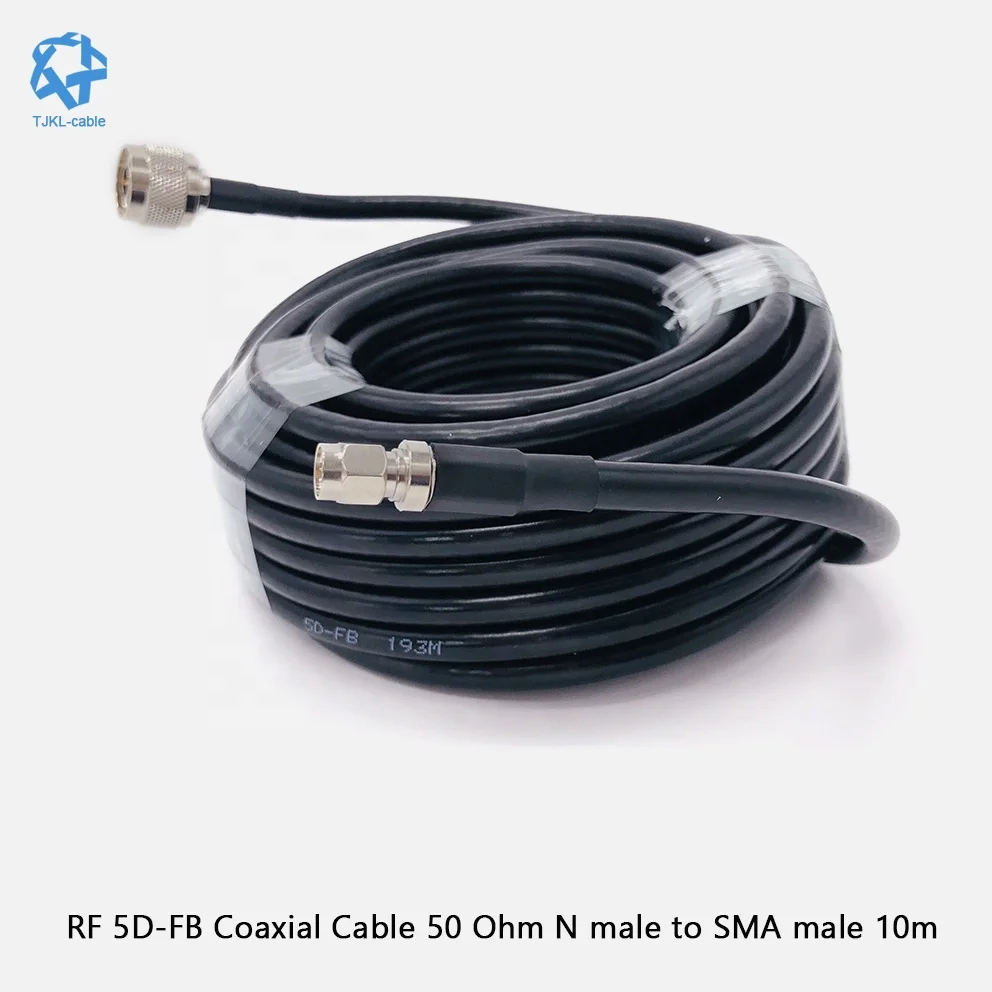

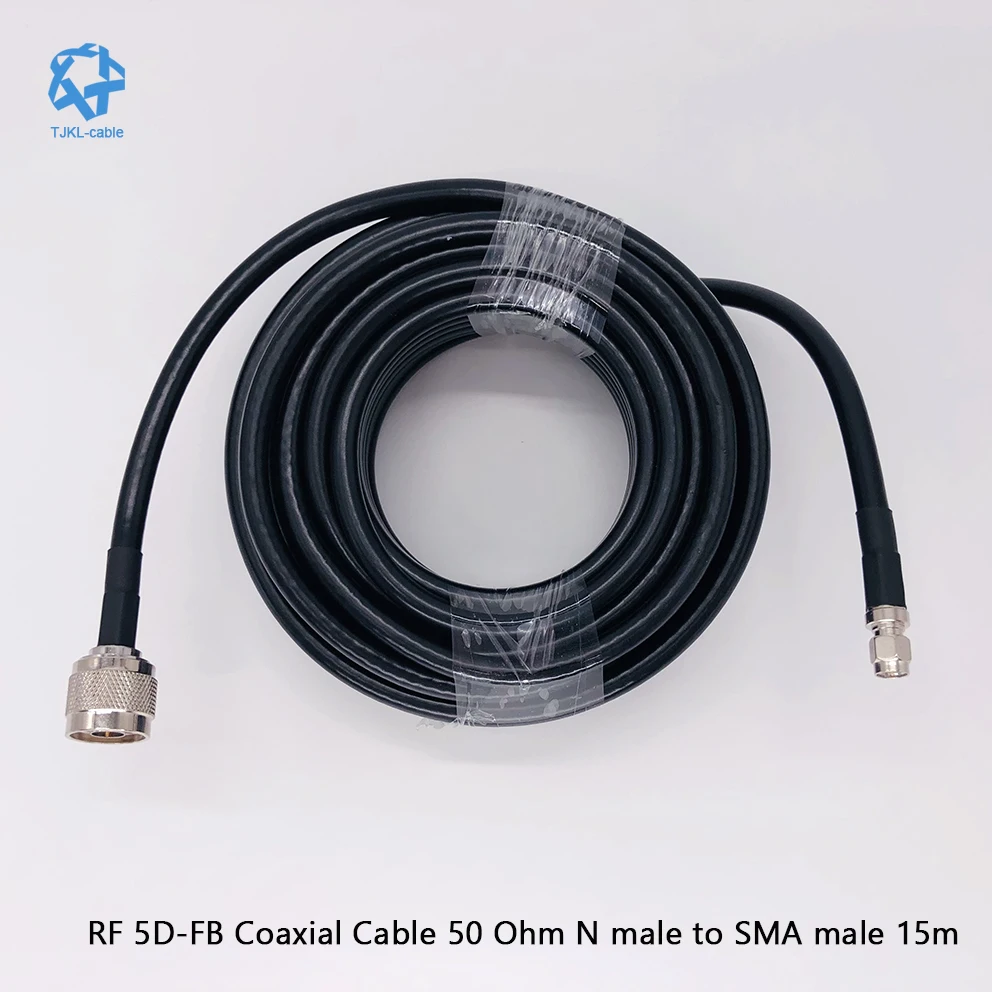

High Quality Low Loss 5D FB Coaxial Cable 50 Ohm Antenna Extension Cable RF Antenna Cable N male to SMA male 10 M
- Category: >>>
- Supplier: Shenzhen Tianjukeli Communication Cable Co. Ltd.
Share on (1600506254564):
Product Overview
Description
Product Paramenters
High Quality Low Loss 5D-FB Coaxial Cable 50 Ohm Antenna Extension Cable RF Antenna Cable N male to SMA male 5 M, 10M, 15M, 20M | ||||
Mechanical Characteristics and Electrical Performance Parameters | ||||
1、 Inner Conductor | BC/CCA Ф1.8±0.02mm | |||
2、Dielectric | Foam Polyethylene (FPE) Ф5.0±0.1mm | |||
3、Outer Conductor | Dual Al Foil(20*0.05)Ф5.2±0.1mm | |||
4、Braid | AL/TC 128*0.12AA Ф5.6±0.1mm | |||
5、Jacket | polyvinyl chloride(PVC) Ф7.5±0.1mm | |||
Mechanical Characteristics | ||||
1、Impedance | 50±2Ω（Ohms） | |||
2、Capacitance | 81±2PF/M | |||
3、Velocity | 82% | |||
4、Peak Power | 1.6KW | |||
5、Jacket spark (V.RMS) | 3000V | |||
6、Inner Conductor Dc resistance | ≯12ohms/1000m | |||
7、OuterConductor Dc resistance | ≯31.68ohms/1000m | |||
8、(GHz)cutoff Frequency | 3G | |||
9、OperatingTemperature ºC | -20-70ºC | |||
10、Min Bend Radius | 75mm | |||
11、Pull strength of the insulation | 3～6lb/in | |||
12、Sheath of the drawing force | 3～8lb/in | |||
13、The surface quality of sheath | The sheath surface should be smooth and shiny. No visual defects such as bag, slub, fish eye, reticulate, etc. | |||
14、jacket-Marking | 5D-FB meters | |||
15、Reel Length | 5M、10M、15M、20M……300M（Customizable length） | |||
16、(>dB)(Screening attenuation) | 90 | |||

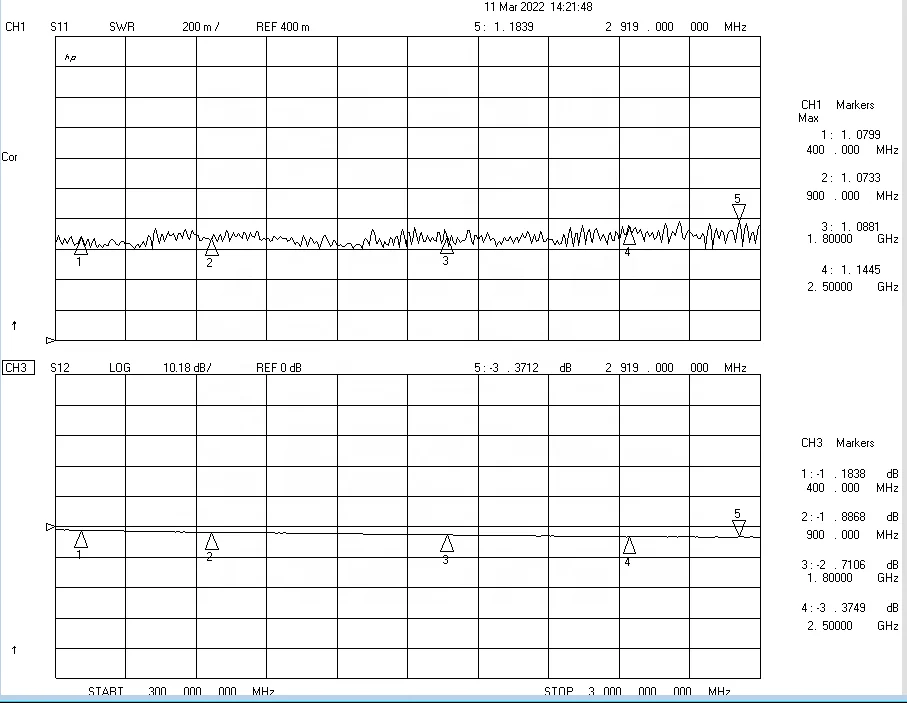

17、VSWR | 30～3000MHZ（Test at both ends of the whole roll≤1.3） | |||
Decay(20℃, sea level test conditions) | ||||
frequency | Attenuation dB/100m | note | ||
100 | 6.4 | |||
400 | 13.4 | |||
900 | 22.6 | |||
1500 | 29 | |||
1800 | 35.6 | |||
2500 | 41.3 | |||
3000 | 45.4 | |||
Products Description
Processing and customization service
Welcome to custom machining
We can also provide a variety of different types of RF connector cable components, connector, cable material can be customized.
Product packaging and transportation
Product packaging and transportation
PackingWe have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort
your results by time or cost to find the most cost-effective shipping service.
Our Advantages
Shenzhen tianjukeli communication cable co., LTD. Is mainly engaged in production, development and sales of mid to high-end RF
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.
We have a 5,000 square meter factory, 60 employees and a complete supply chain. In order to ensure the quality of our products, we
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
We have a strong sales team and are willing to help you. We will help you from product selection to shipping.
Certifications and Licenses
Contact Us
FAQ
Frequently Asked Questions
Q: What is the quality of your products?
A: All of our products have strict quality control procedures and are 100% tested before shipping. Our cable engineers have more than 10 years of experience.
Q: Can you customize coaxialcable?
A: Of course! We have a professional research and development team. Cables can be customized to meet different uses. OEM and ODM
Q: Can you provide free samples for testing?
A: We can offer some lower samples for free. Normally, for new customers, you pay the sample fee first, but when you place an order, we will refund the sample fee to you.
Q: When can you deliver the goods?
A:It depends on the quality of the order and whether we have it in stock. The delivery time is usually 2-12 days.
Q: What are your terms of payment?
A :50% of the purchase price is paid when you place the order and 50% is paid when you are ready to ship.
