Product Overview
Description
Product Description
Immersion is the practice of completely submerging or submerging miniIng equipment in a thermally conductive liquid that is better insulated than ordinary air.
Immersion of powered electronic miniIng rigs in specially designed liquids such as mineral oil, dielectric oil can better dissipate heat from computer chips that are always hot and hashed.
Vrcooler Provide two solution for our customer.

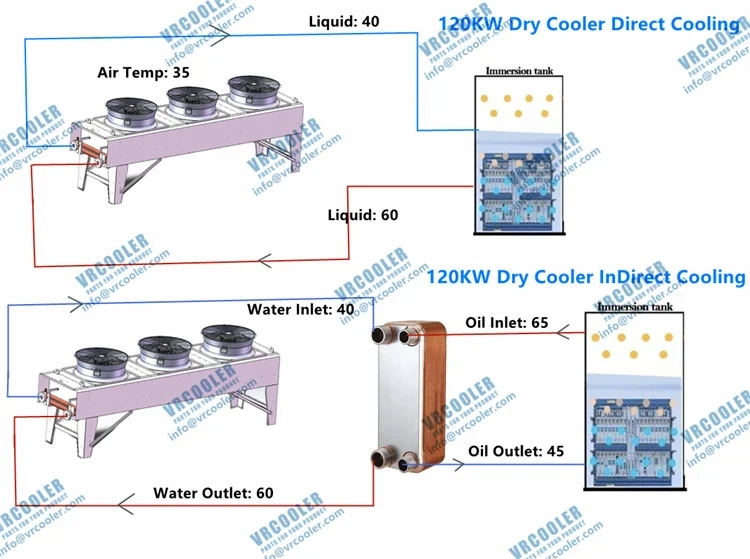

One Immersion Cooling Solution is Dry Cooler direct cooling.

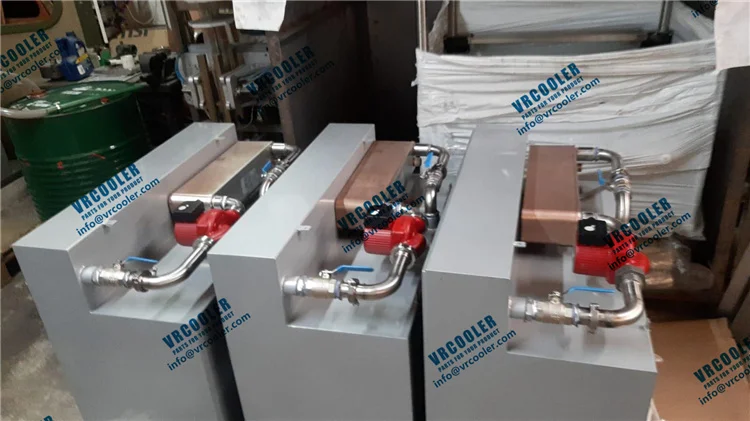

Another Immersion cooling solution is Dry coolers and plate heat exchangers combined with indirect cooling. This is currently the most popular and economical cooling methods.
We designed standard dry cooler model for immersion cooling system. From 40KW to 240KW, Fully meet your cooling needs.
Immersion of powered electronic miniIng rigs in specially designed liquids such as mineral oil, dielectric oil can better dissipate heat from computer chips that are always hot and hashed.
Vrcooler Provide two solution for our customer.
One Immersion Cooling Solution is Dry Cooler direct cooling.
Another Immersion cooling solution is Dry coolers and plate heat exchangers combined with indirect cooling. This is currently the most popular and economical cooling methods.
We designed standard dry cooler model for immersion cooling system. From 40KW to 240KW, Fully meet your cooling needs.
Models
VRcooler Standard Dry Cooler:

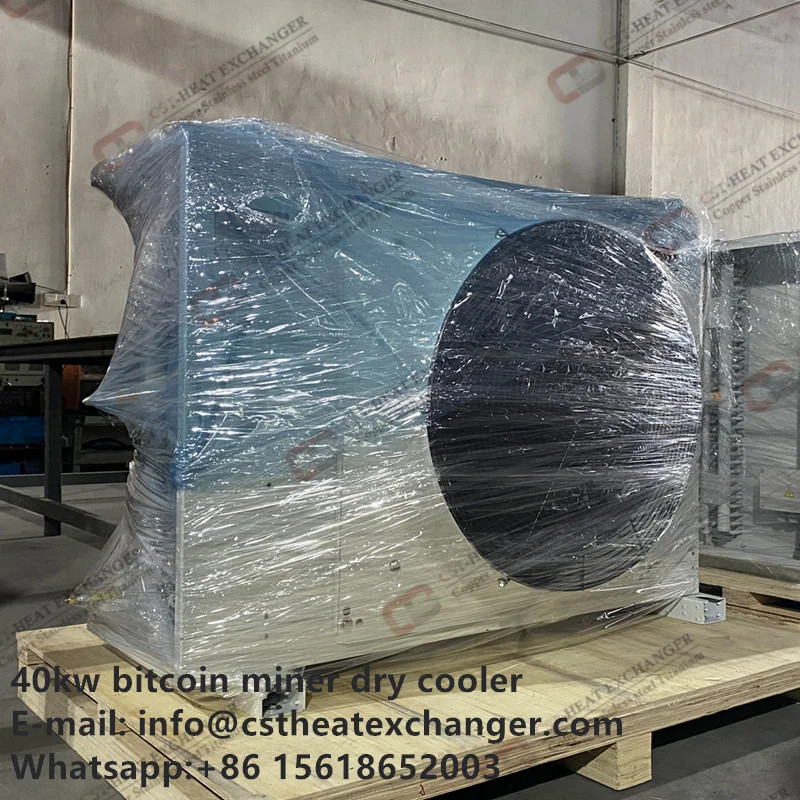

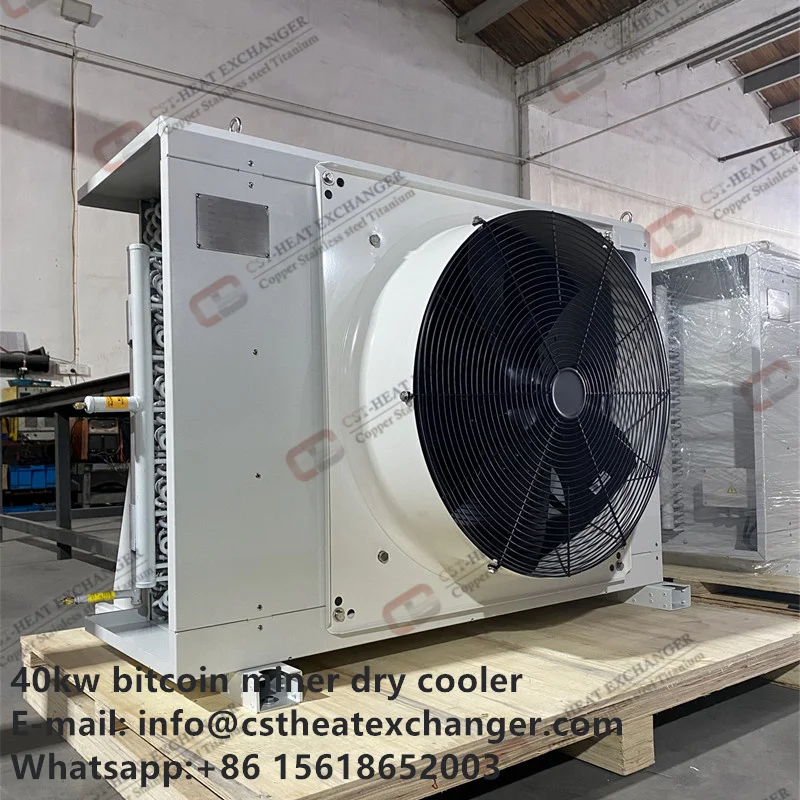

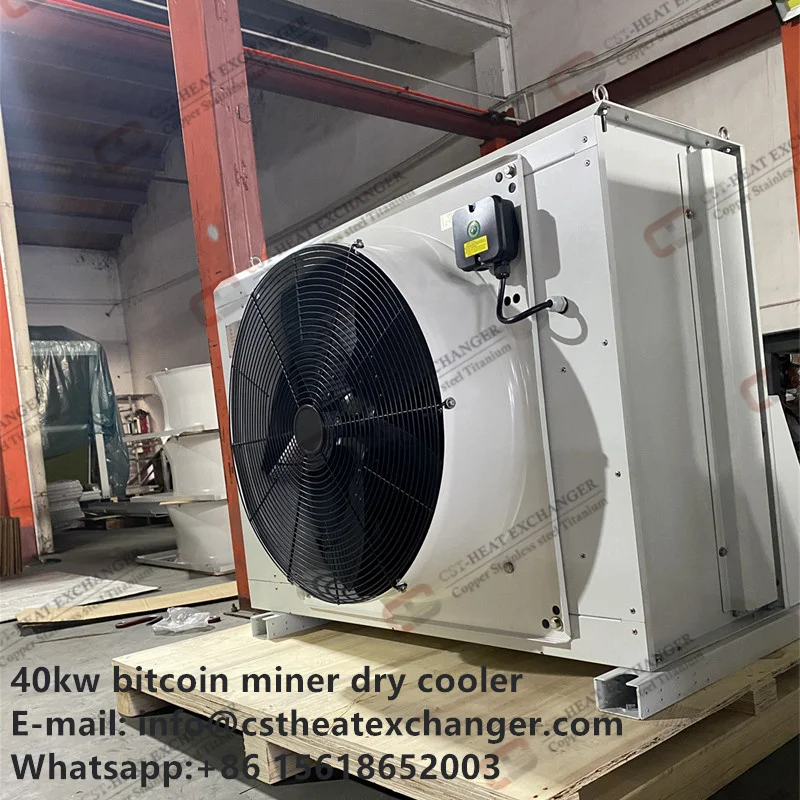

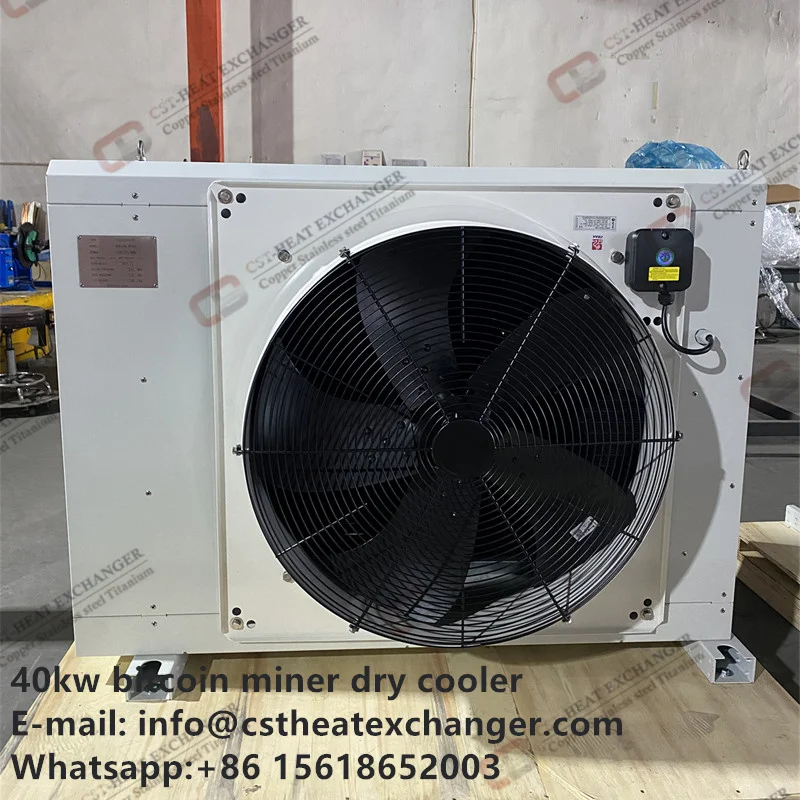

40KW Dry Cooler for Immersion Cooling System:
Suitable for the single immersion enclosure.
40KW Dry Cooler for Immersion Cooling System:
Suitable for the single immersion enclosure.

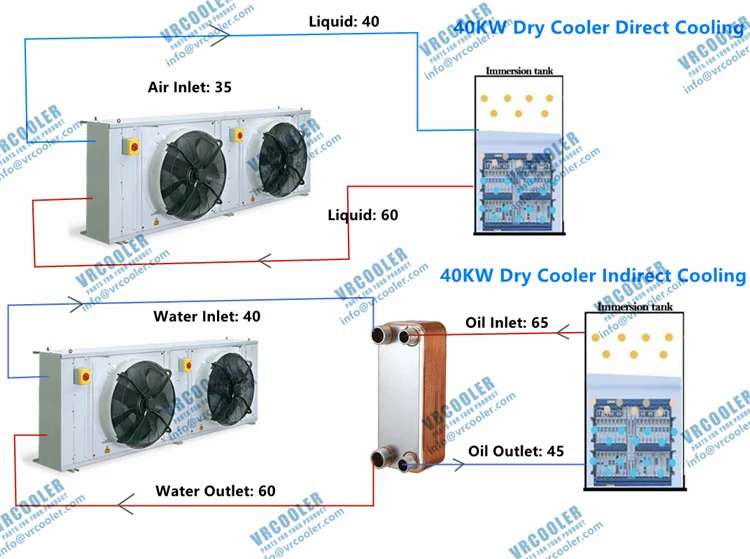

40KW Dry Cooler Direct Cooling | 40KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||||
Capactiy: | 40KW | Capactiy: | 40KW | ||
Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 | ||
Air Temperature(Inlet/Outlet)(℃) | 35/46.1 | Liquid Temperature(Inlet/Outlet)(℃) | 65/45 | ||
Power Standard | 220V/1Ph/50Hz | No. of plates | 73 | ||
Dimensions | 1687x700x952mm | No. of effective plates | 71 | ||
Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | Plate material | ALLOY 316 | ||
Thickness | 0.4mm | ||||
Number of passes | 4 | ||||
120KW Dry Cooler for Immersion Cooling System:
Suitable for the Immersion Rack System.
120KW Dry Cooler Direct Cooling | 120KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||||
Capactiy: | 120KW | Capactiy: | 120KW | ||
Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 | ||
Air Temperature(Inlet/Outlet)(℃) | 35/46.1 | Liquid Temperature(Inlet/Outlet)(℃) | 65/45 | ||
Power Standard | 460V/1Ph/60Hz | No. of plates | 121 | ||
Dimensions | 3410x1115x700mm | No. of effective plates | 119 | ||
Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | Number of passes | 4 | ||
Extension capacity | 4 | ||||
Plate material | ALLOY 316 | ||||
Thickness(mm) | 0.4 | ||||
240KW Dry Cooler for Immersion Cooling System:
Suitable for the multiple Immersion Racks.

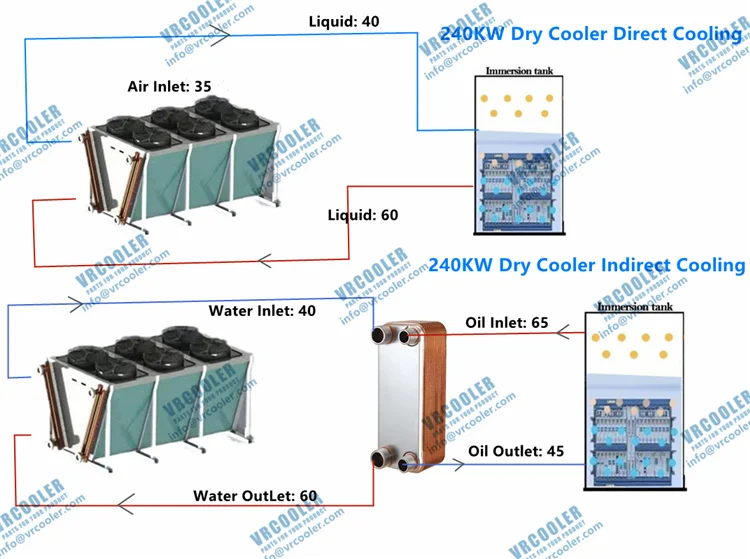

240KW Dry Cooler Direct Cooling | 240KW Dry Cooler with Plate Heat Exchanger Indirect Cooling | ||||
Capactiy: | 240KW | Capactiy: | 240KW | ||
Fluid Temperature(Inlet/Outlet)(℃) | 60/40 | WATER Temperature(Inlet/Outlet)(℃) | 40/60 | ||
Air Temperature(Inlet/Outlet)(℃) | 35/45.85 | Liquid Temperature(Inlet/Outlet)(℃) | 65/45 | ||
Power Standard | 460V/1Ph/60Hz | ||||
Dimensions | 4165X2100X1710mm | ||||
Material: | Copper Tube Aluminum Fin GI Steel powder coating Casing | ||||
Main parts
Name: Tube
•\tStainlesss steel
• 7 mm, 5/16", 3/8", 12 mm, 1/2", 5/8", 20mm, 25mm
Name: Fin
•\tAluminum
•\tCopper
•\tStainless steel
•\tHot deep carbon steel
•\tTitanium
Hdrophilic, Epoxy coated, bare, e-coating
Name: Frame and casing
•\tThick. 1 – 3 mm
•\tGalvanized steel
•\tAluminium
•\tStainless steel
•\tCopper
•\tBrass
Application
1. Steel Industry -- Electrical Arc Furnace / induction furnace cooling
2. Refinery & petrochemicals -- Reactor column cooling
3. Rubber -- Roller cooling
4. Independent Power Stations -- Cooling of engine jacket water, lube oil and inter-stage cooler
5. Plastics -- Cooling of injection molding machine
6. Textiles -- Condensation of process vapour
7. Refrigeration / Air conditioning -- as condenser for air cooled chillers
8. Power Industry -- Turbine lube oil cooler / turbine intercooler
Packing
Packing
The normal package is wooden box, if special project we could adjust packing based on detail project requirements.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

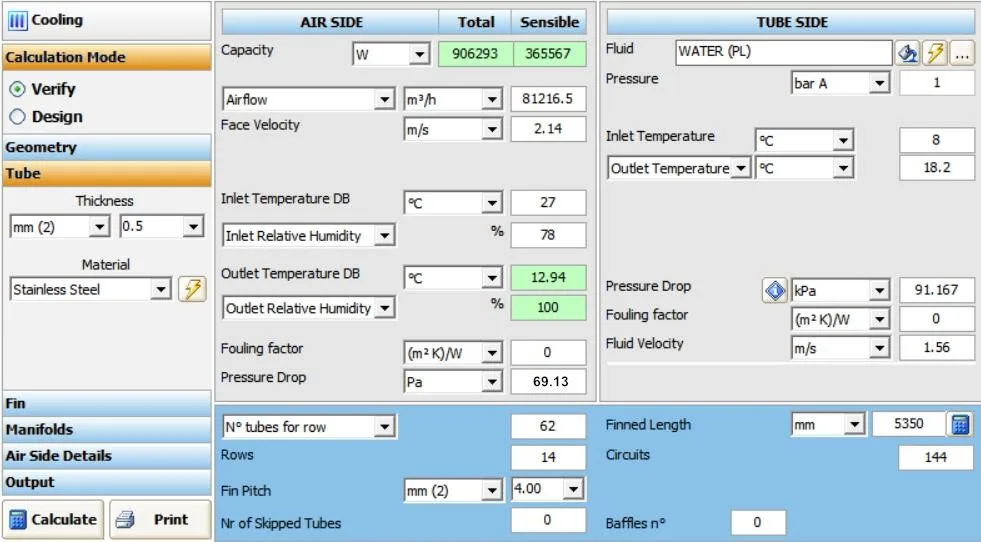

Professional Design soft ware.
Design software from Germany, custom-made for your product

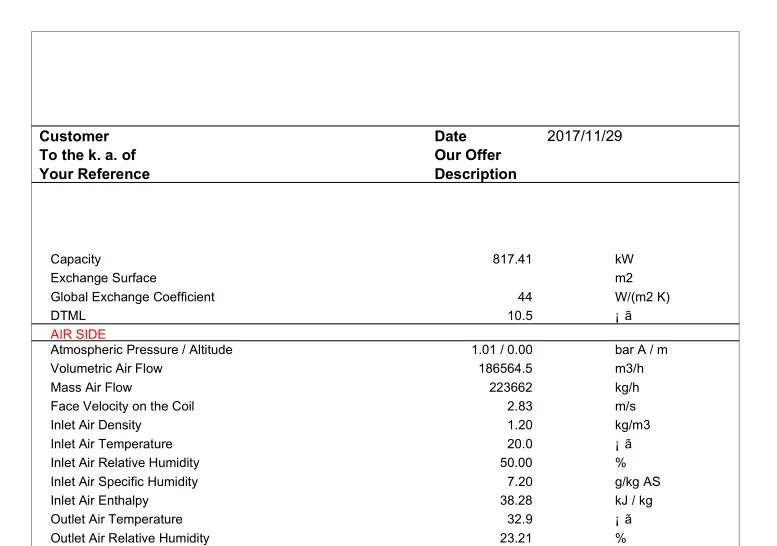

Calcultation.
Clear calculations list various technical specification to help you confirm the details
