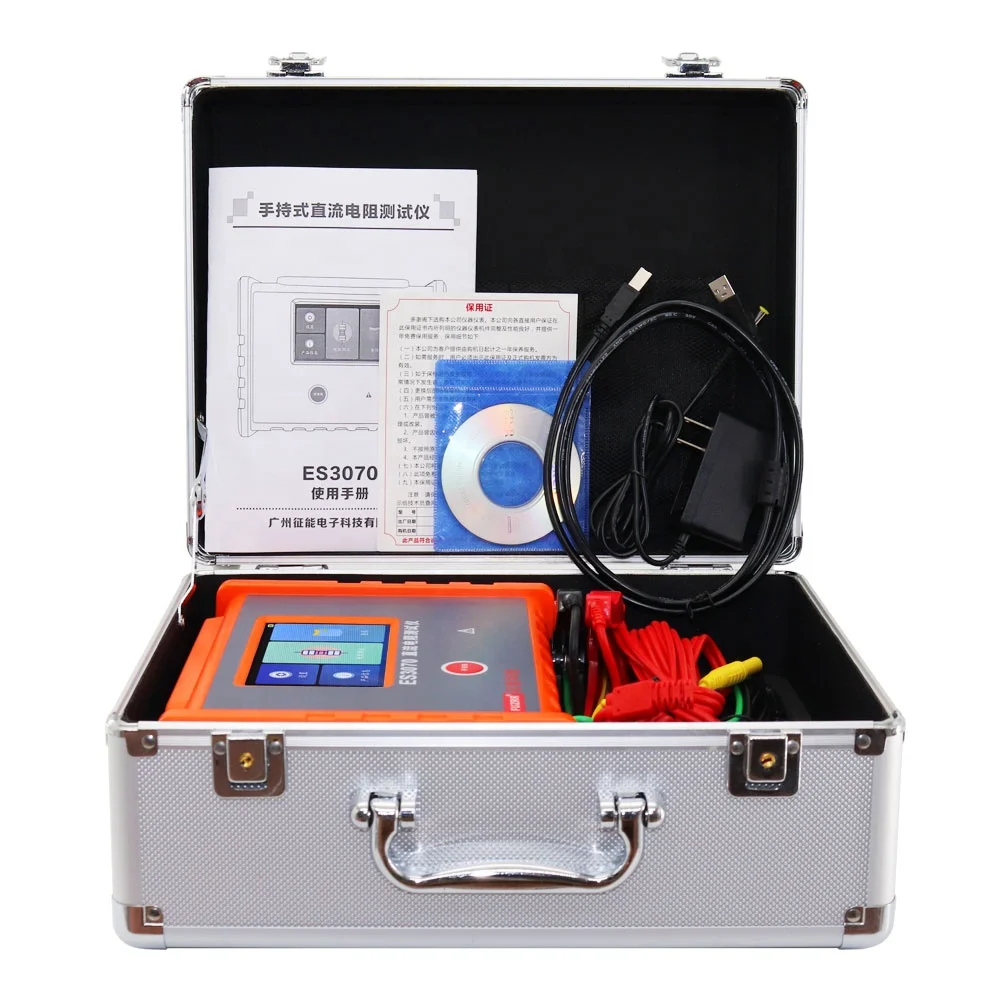

FUZRR ES3070 Handheld 10A DC Resistance Tester Transformer DC Winding Resistance Ohmmeter

Function

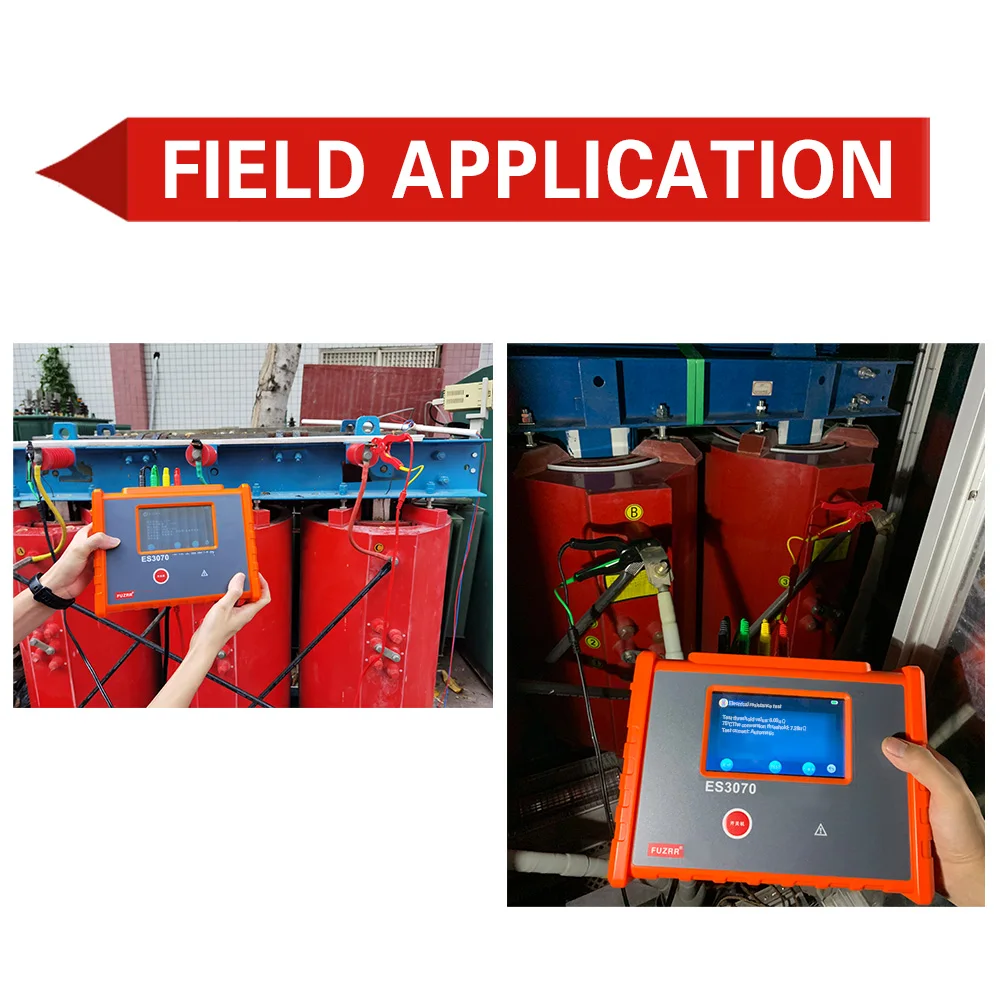

mainly used for measurement of transformer dc resistance, transformer winding resistance, network connectivity, cable conductor
resistance, contact resistance of switches, connectors, relays, winding, motor, transformer winding resistance and metal riveting
resistance, metal component coupling between resistance test, low resistance testing, contact resistance testing, etc.

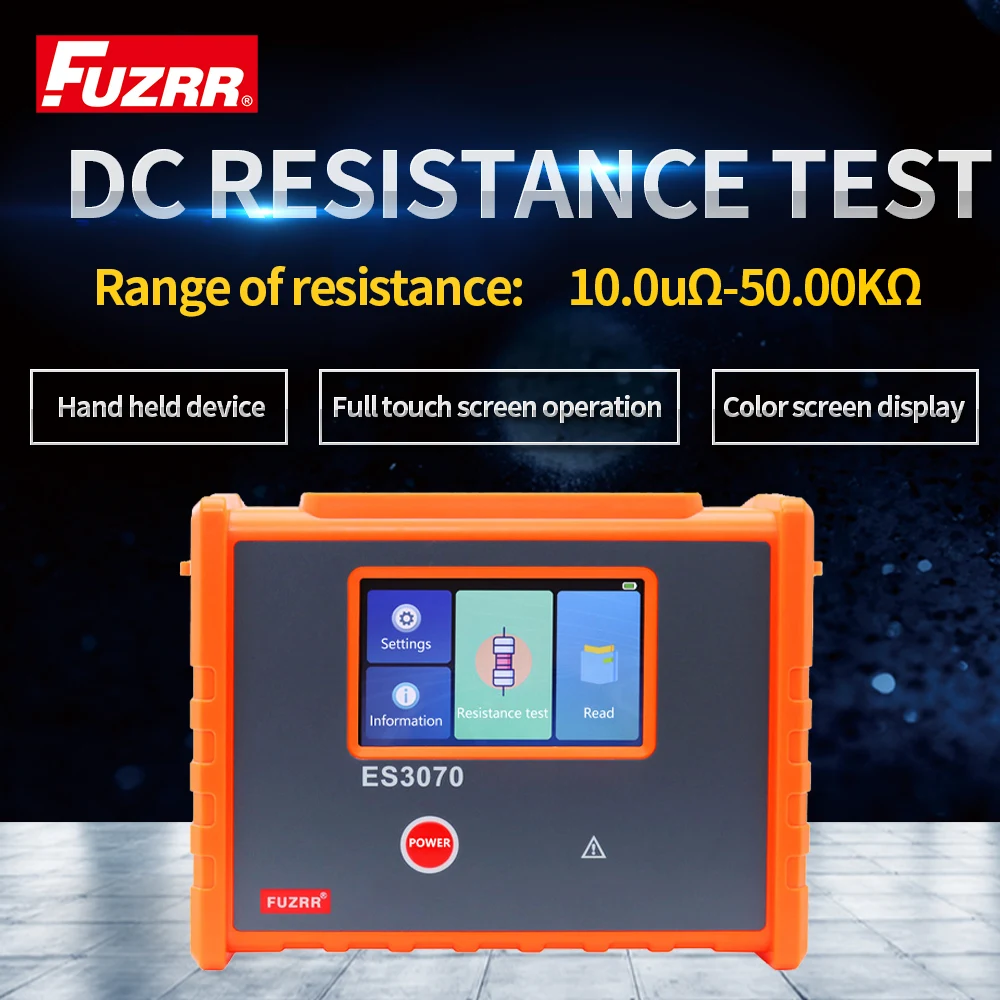

Resistance range

10.0uΩ-50.00KΩ

Resolution ratio

0.1 uΩ

Precision

±0.2%FS±10dgt

Detection method

The four-wire test

Measuring current

10A、5A、1A、0.1A、10mA、1mA

Maximum short circuit current

10A

overload protection

Yes

Self discharge

Yes

Power

DC12.6v 2500mAh large-capacity lithium battery

Charging function

Yes

Back light

Yes, suitable for dark places

Display mode

LCD Full-color display

Overflow shows

The "OL" symbol is displayed when the overrange overflow occurs

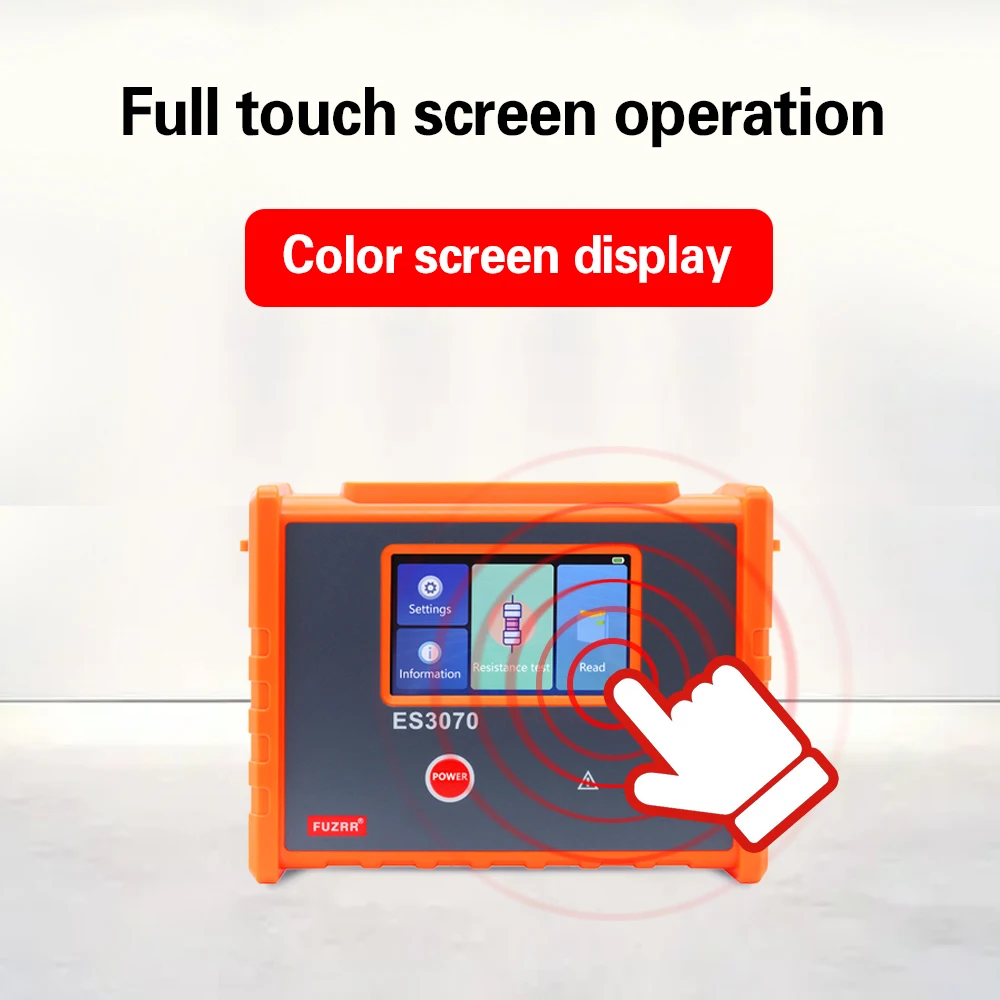

Touch screen operation

Yes

The LCD size

Length and width: 108mm×65mm

Size of instrument

Length, width and height: 240mm×188mm×85mm

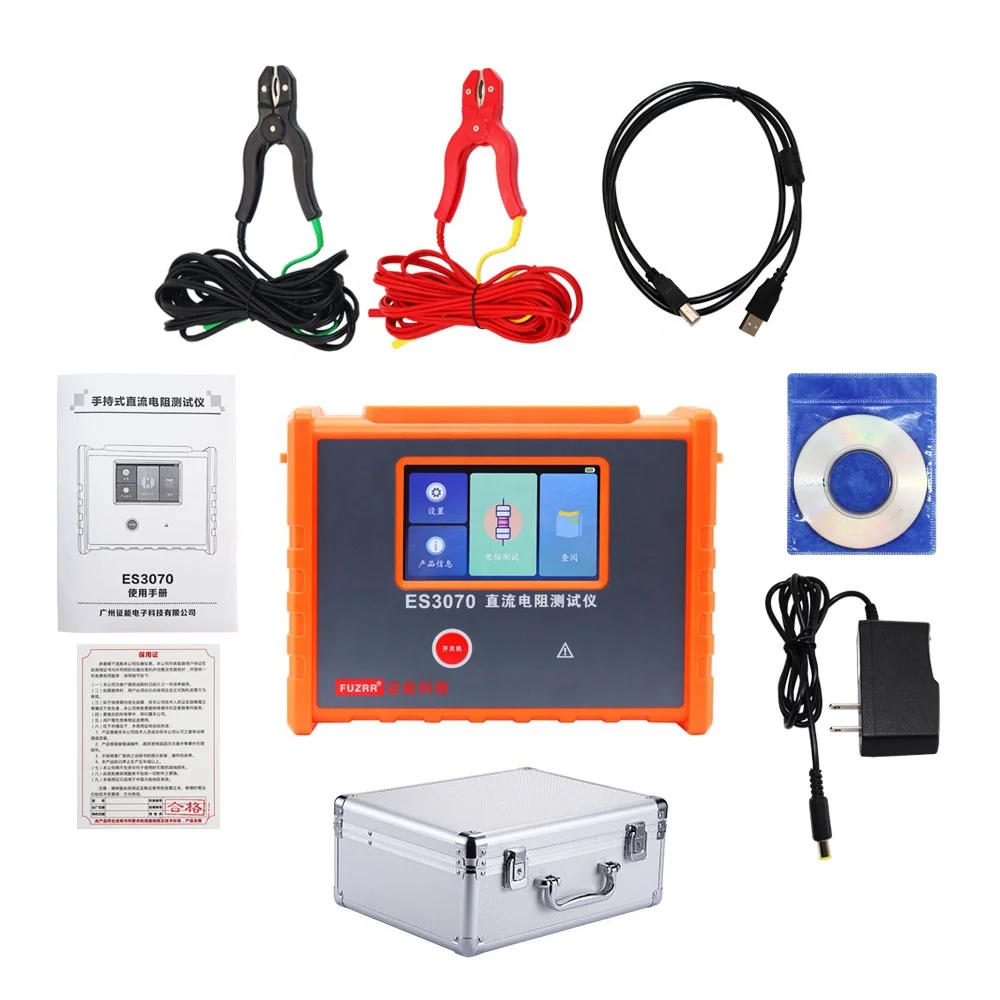

The test line length

5 meters, 1 red, 1 black

USB interface

With USB interface

Line of communication

1 USB communication cable

Data storage

500 groups

View Data

Data access function

Cell voltage

The battery power is displayed in real time, indicating that the battery should be charged in time when the battery voltage is low

Auto power-off

Turn off the meter after no operation for about 15 minutes

Power dissipation

Standby: approx. 116mA (20% brightness)

Measurement: 27W Max

Weight

Instrument: 1100g(including batteries)

Test line: 850g

Operating temperature and humidity

- 10℃~40℃,Below 70%rh

Storage temperature and humidity

-20℃~60℃,Below 70%rh

Insulation resistance

More than 10 m Ω (circuit between the shell and 500 V)

Withstand voltage

AC 3700V/ RMS (between circuit and housing)

Electromagnetic property

IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m

Suitable for safety

IEC61010-1、CAT Ⅲ 600V、Pollution level 2、JJG724-1991 <>, JJG166-1993 <
Regulation of DC Resistor>>, <>
