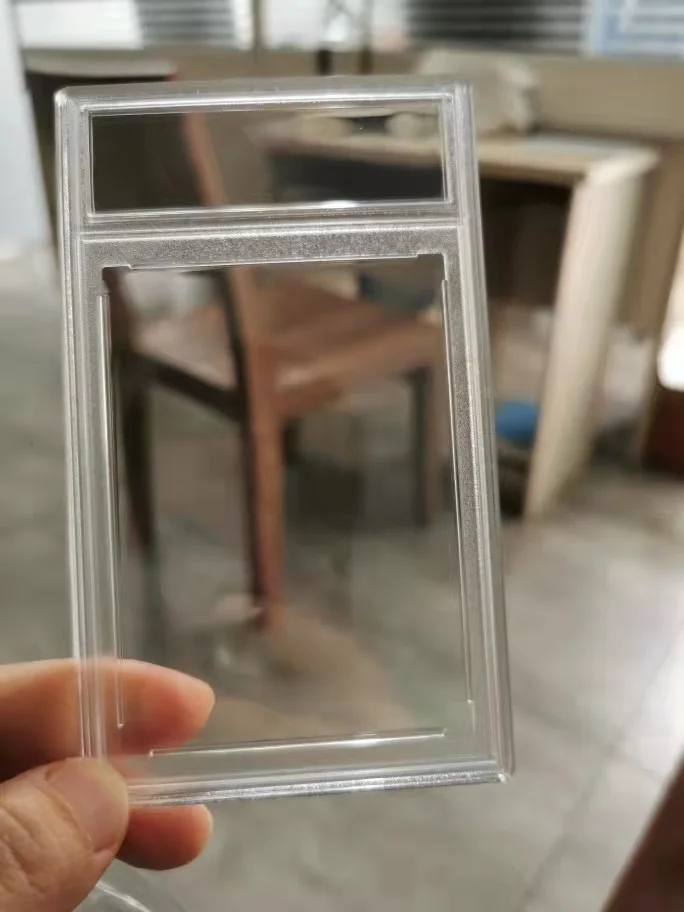

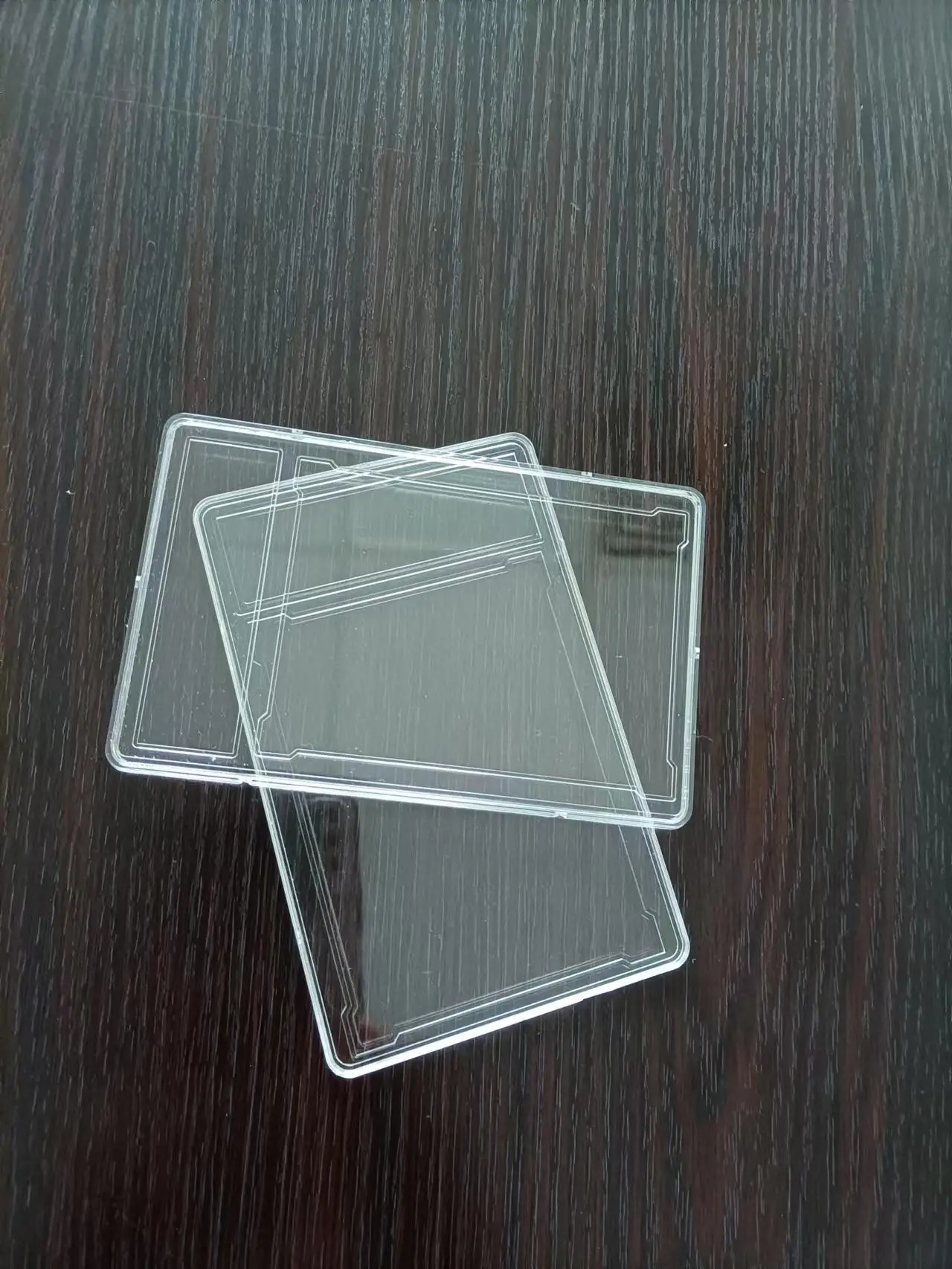

PSA Grading Card Plastic Slabs Case Sealing cf cards Ultrasonic Welding Machine of Plastic welding
- Category: >>>
- Supplier: Wuxi Marcia Technology Co. Ltd.
Share on (1600506751164):
Product Overview
Description
Plastic Ultrasonic welding solution one-stop service
Supply Ultrasonic welding machine in different classifications ：
1. Basic primary ultrasonic welding machine
2. Advanced ultrasonic welding machine (DS series)
3. High precise intelligent ultrasonic welding machine (PTS series)
4. customized service for plastic welding solution.
It can meet your different needs , so you can get any right ultrasonic welding machine here.
Any more further questions, please feel free to contact with us to get free proposals.
Email: 200001@ccmarcia.com
Ms Joan
Products Description

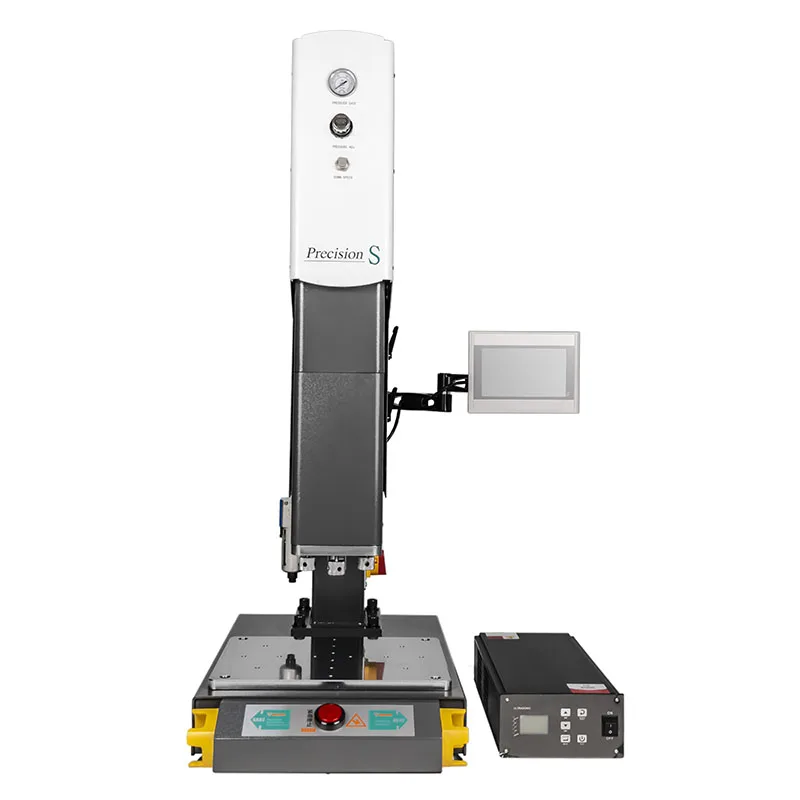

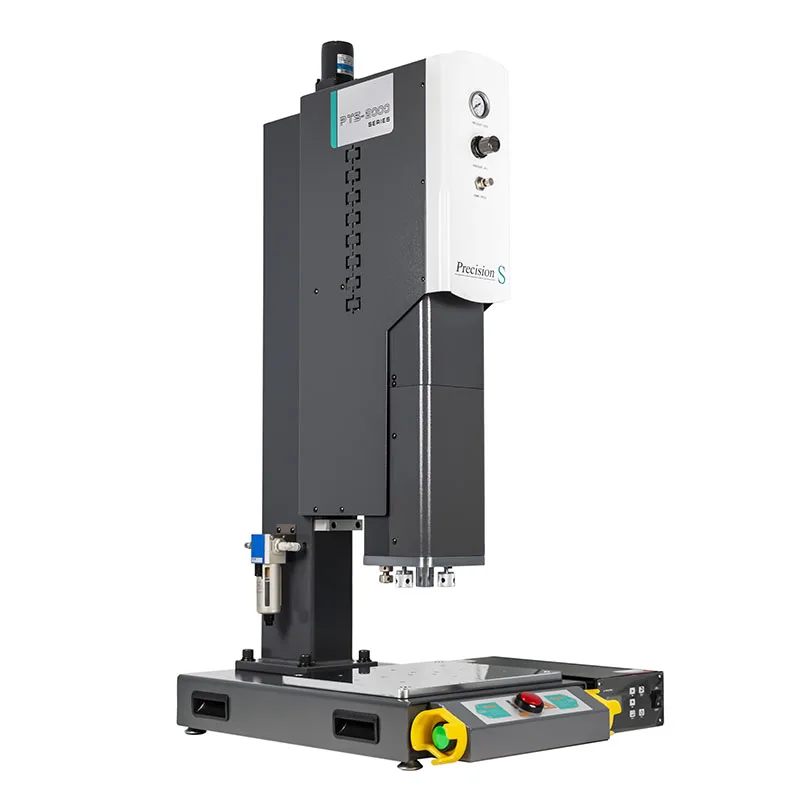

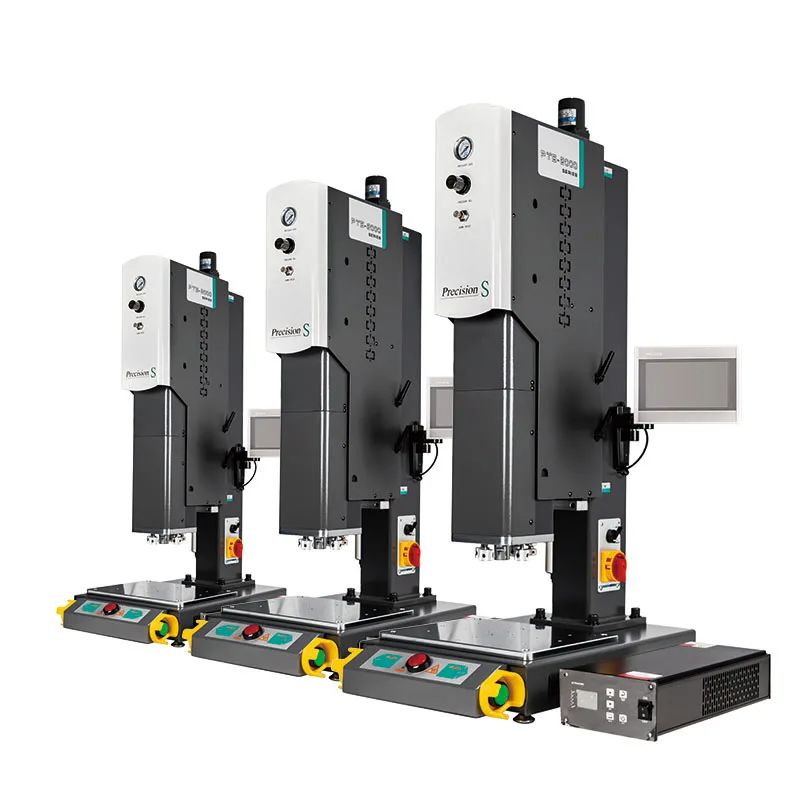

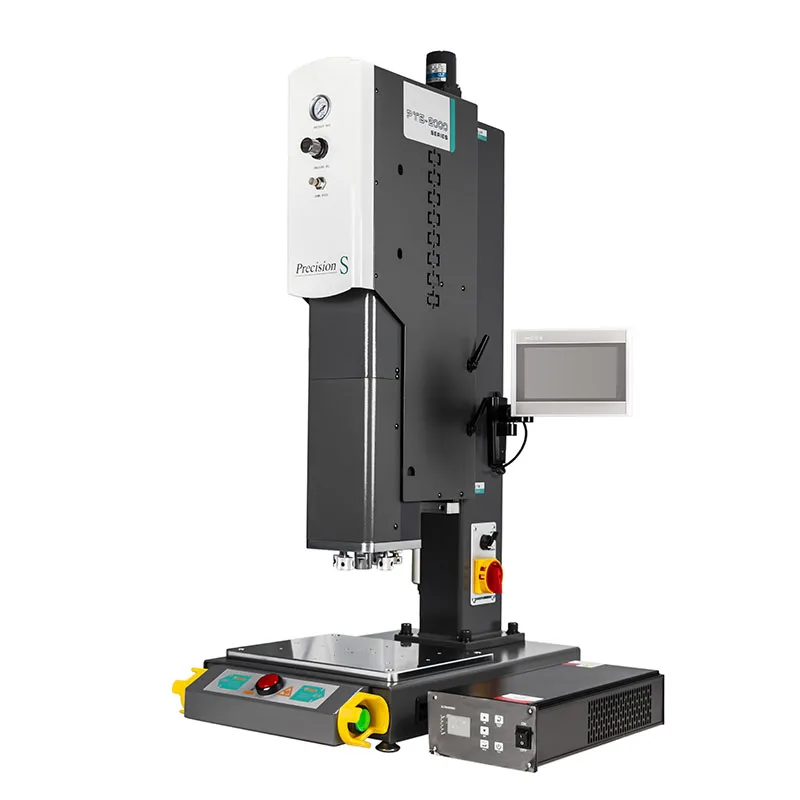

PTS series advanced ultrasonic welding machine
PTS series high precise intelligent ultrasonic welding machine .
With innovation ability to achieve high adaptability, high scalability, high intelligence, it can meet international similar machines standards from the performance and quality.
With innovation ability to achieve high adaptability, high scalability, high intelligence, it can meet international similar machines standards from the performance and quality.
Features:
1. New intelligent circuit system
2. electronic lifting system
3. pressure sensor,
4. external touch screen;
5. Equipped with welding platform balance system
6. linear slide rail lifting system,
7. micrometer positioning system,
With more powerful welding management and data management system, it can realize the whole process control before, during and after welding, which is fully qualified for the welding tasks of more complex and more precise welding parts in the manufacturing field and meet the diverse needs of customers.
1. New intelligent circuit system
2. electronic lifting system
3. pressure sensor,
4. external touch screen;
5. Equipped with welding platform balance system
6. linear slide rail lifting system,
7. micrometer positioning system,
With more powerful welding management and data management system, it can realize the whole process control before, during and after welding, which is fully qualified for the welding tasks of more complex and more precise welding parts in the manufacturing field and meet the diverse needs of customers.
Product Paramenters
Technical parameter of ultrasonic welding machine:
1. Ultrasonic Frequency range: 15khz~40khz
2. Watts:800w~4200w
3. Air pressure: 0.1~1.0Mpa
4. Input voltage: AC220V~240V
5. Welding horn stroke: 75~100mm
6. Overall dimension：600x600x 1250mm
7. Output time:0.01~9.99s
8. Work mode: time/grounding/energy mode
9. Net weight: 120kg
10. Intelligence management: amplitude/quality/data/safety
11. Lift mode: straight line slide electronic lifting system
12. Control mode： button/ touch screen
13. Generator circuit system: digital intelligence automatic frequency-tracking
14. Control system: QDSONIC
15. Language : English & Chinese
16. System safety mode : Password
17. Operation screen: 7inch touch screen
Features：USB data export/welding record/ data statistics
1. Ultrasonic Frequency range: 15khz~40khz
2. Watts:800w~4200w
3. Air pressure: 0.1~1.0Mpa
4. Input voltage: AC220V~240V
5. Welding horn stroke: 75~100mm
6. Overall dimension：600x600x 1250mm
7. Output time:0.01~9.99s
8. Work mode: time/grounding/energy mode
9. Net weight: 120kg
10. Intelligence management: amplitude/quality/data/safety
11. Lift mode: straight line slide electronic lifting system
12. Control mode： button/ touch screen
13. Generator circuit system: digital intelligence automatic frequency-tracking
14. Control system: QDSONIC
15. Language : English & Chinese
16. System safety mode : Password
17. Operation screen: 7inch touch screen
Features：USB data export/welding record/ data statistics
Details Images

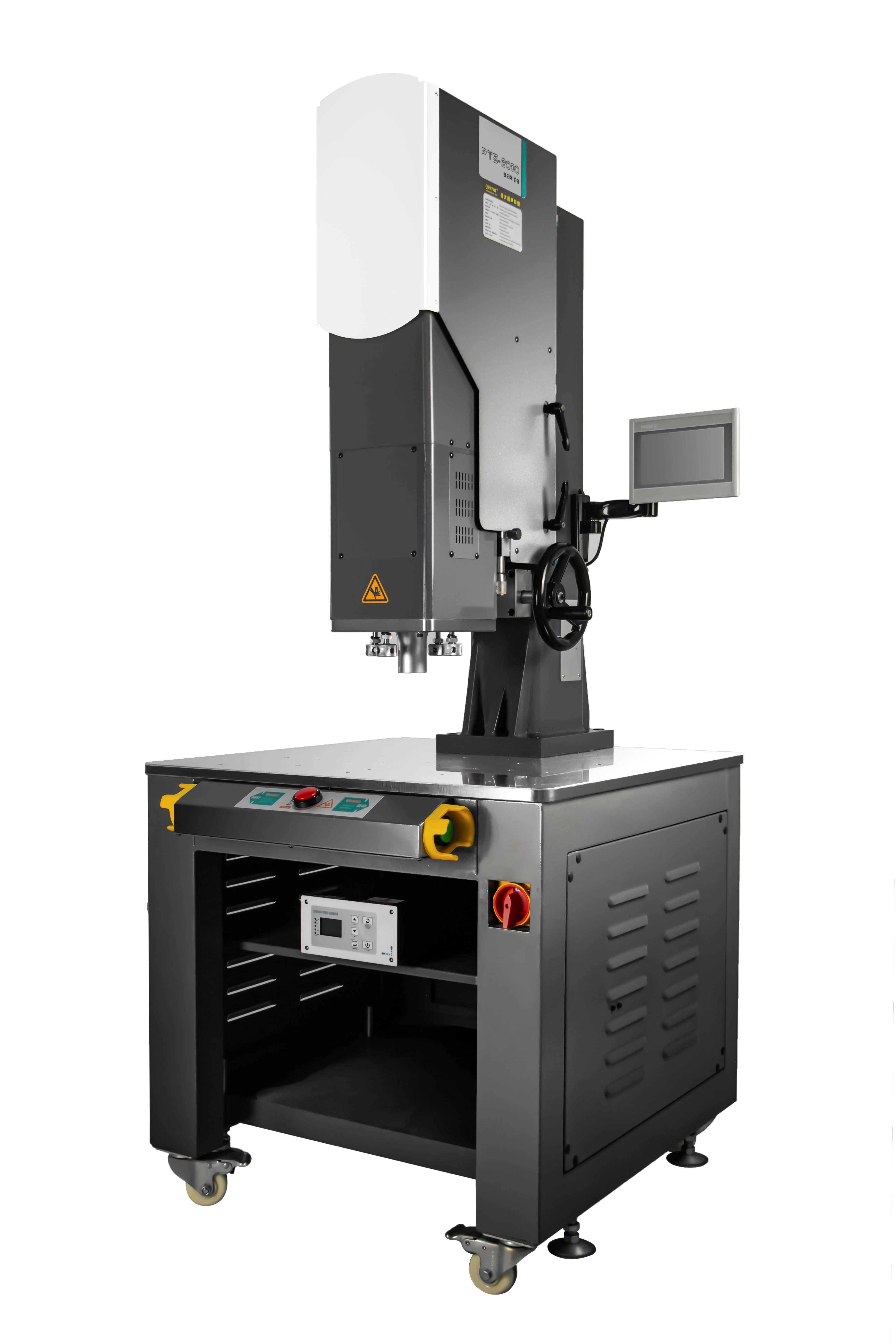

Special frame design
Heavy-duty model, square column, high stability, anti tilt
lifting structure
by electrical motor

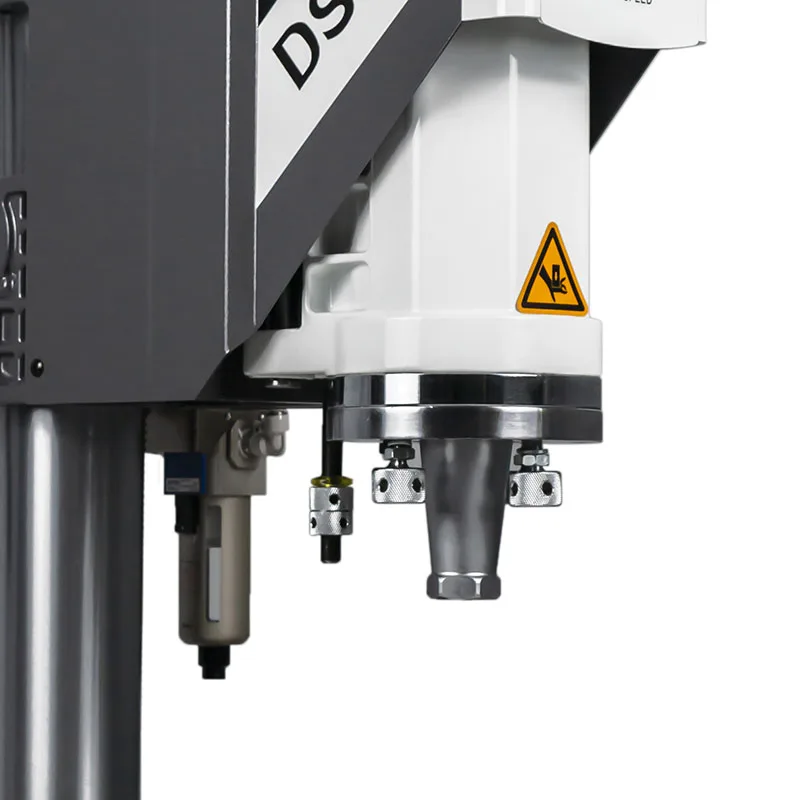

Featured lifting system
Linear slide rail lifting system
.
.

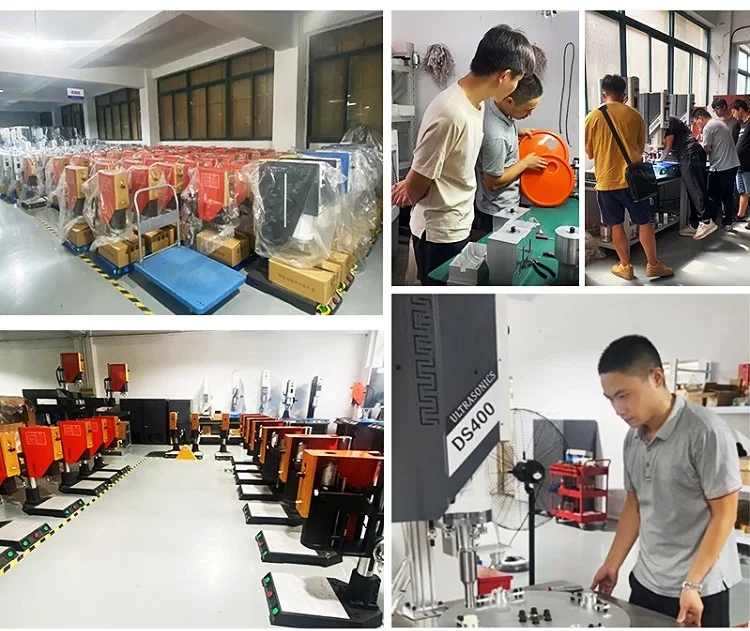

Manufacturing Technique

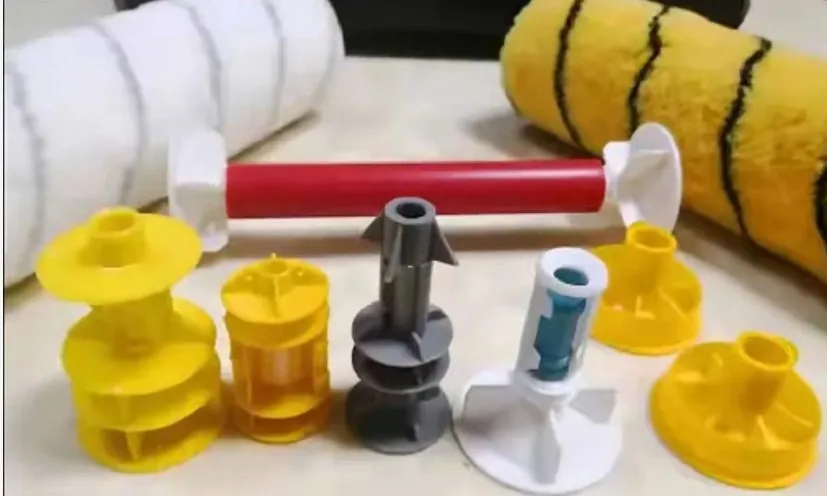

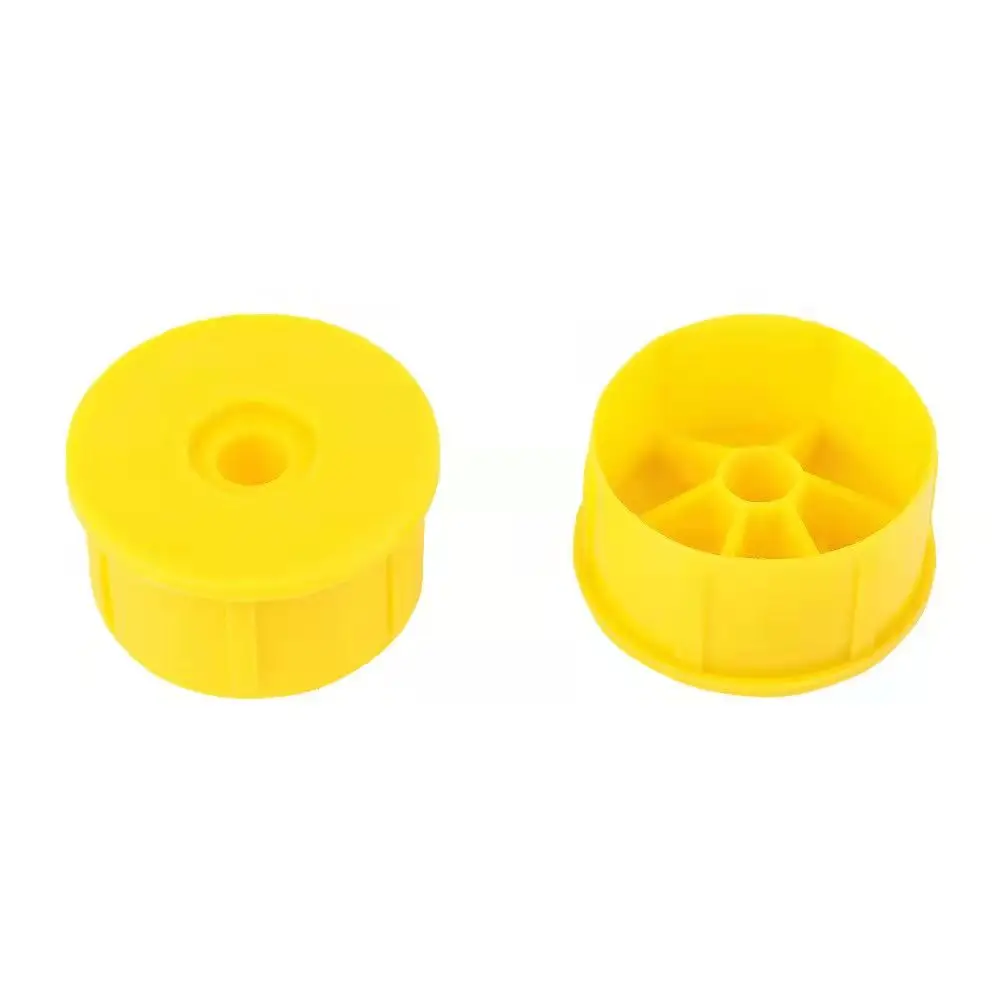

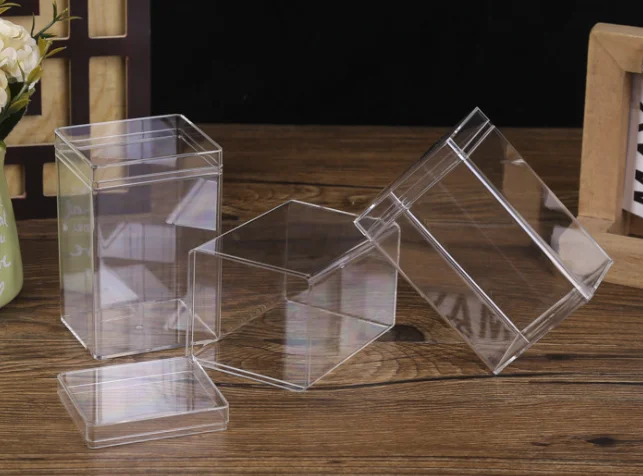

Ultrasonic Mold Application Range
Installation Instructions
More tips for running the plastic welding machine

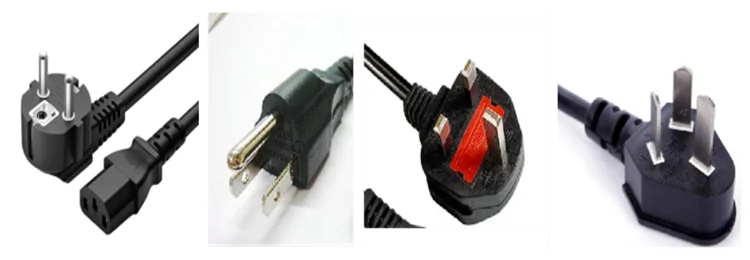

Kindly choose the matching power cord to meet your local socket， then our machine can be attached the power cord for you. Any more questions about ultrasonic welding machine , please contact with us : 0086 13616187265:
please noted that our machine requires 220V power supply (Sometimes a transformer or an adapter needs to be prepared ).Then please pay attention to which cord will match your electric socket. To help you work smoothly to complete the machine set up work, please think carefully about the details in advance.
It requires one air compressor at site to supply air resource .
because the movement of welding machine is driven by air cylinder. any more question , contact with us. Whatsapp : +86 13616187265
Air hose is to connect with the plastic welding machine and air compressor at site .
common diameter is 8mm attached with the ultrasonic welding machine .
