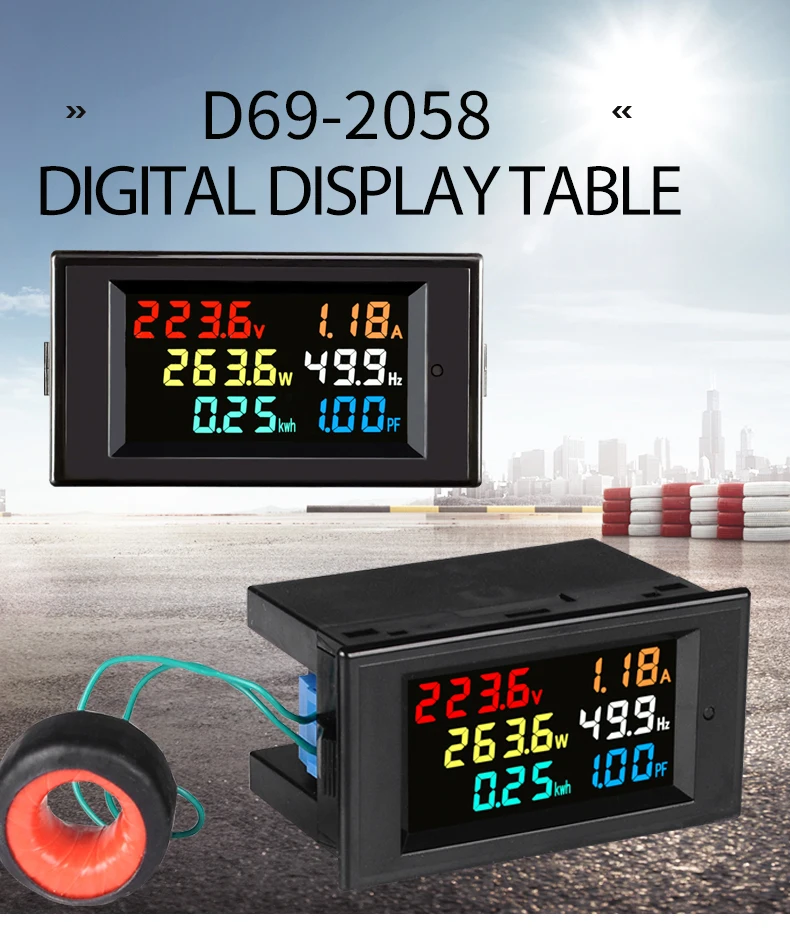

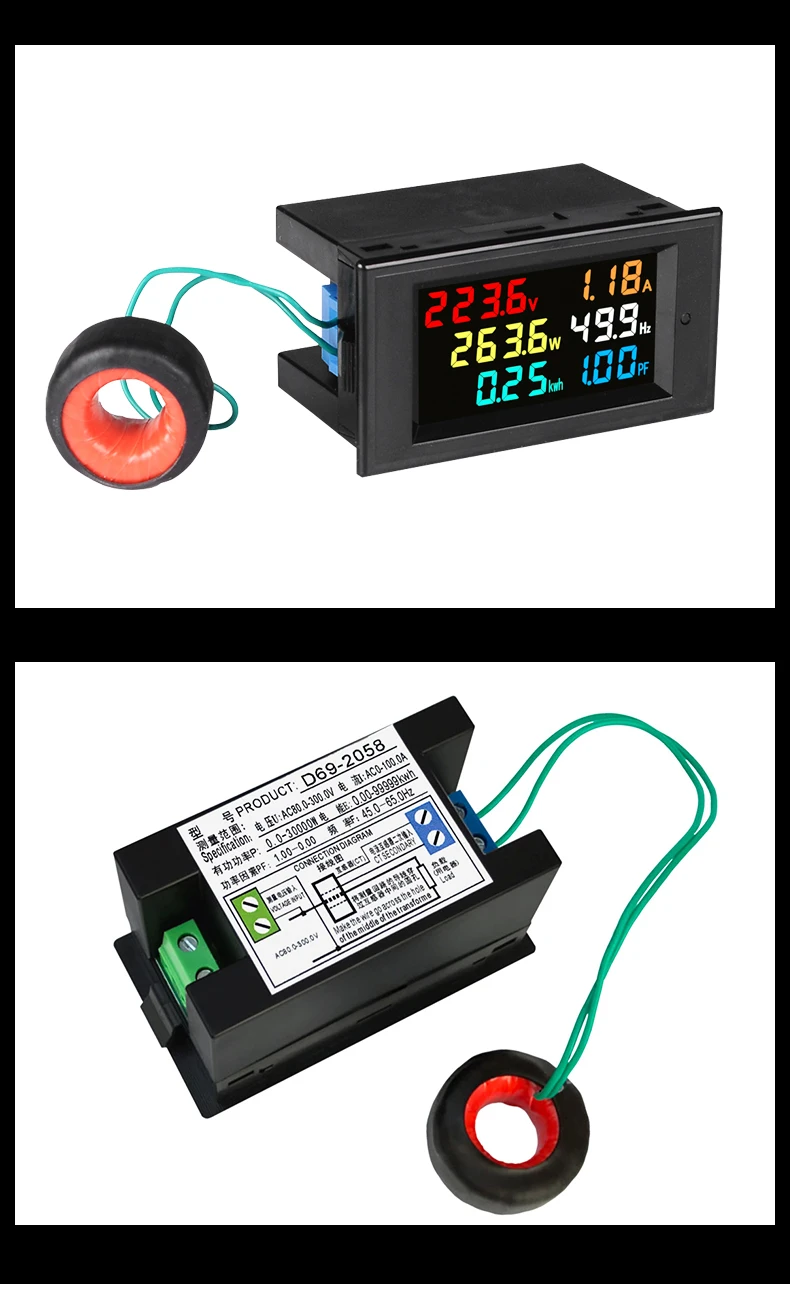

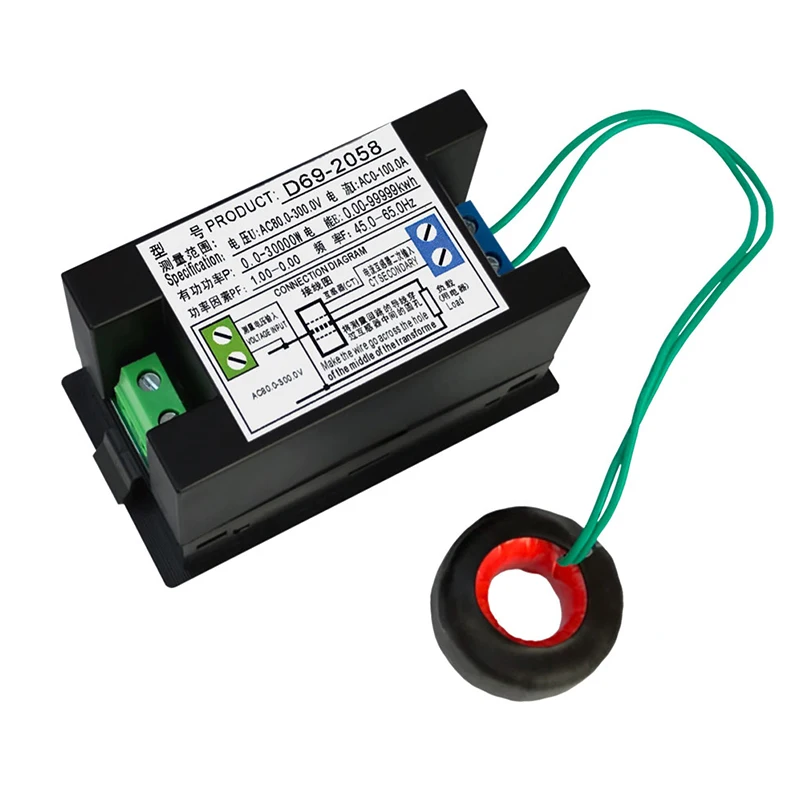

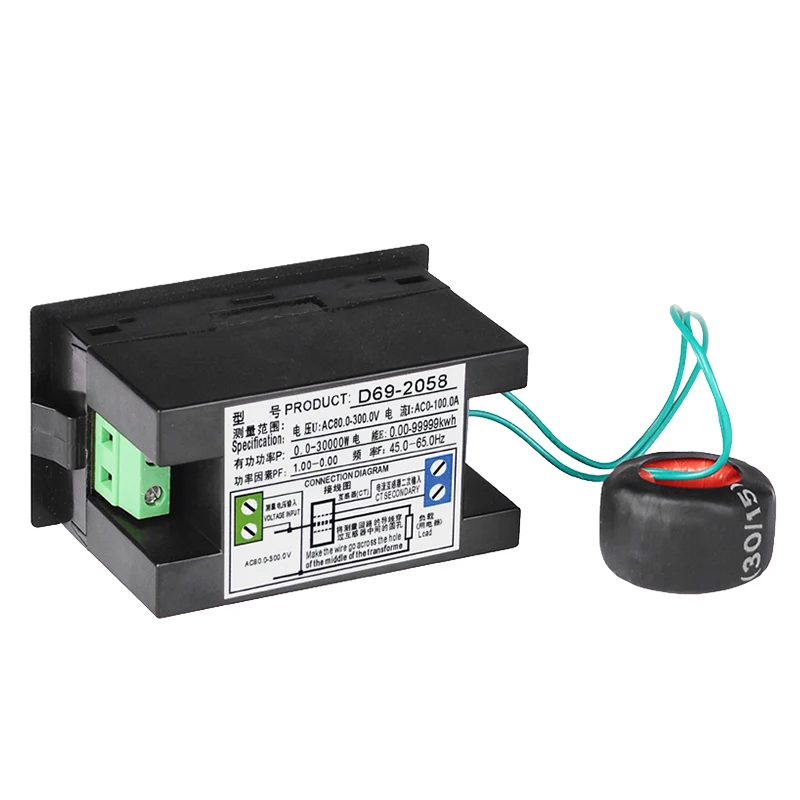

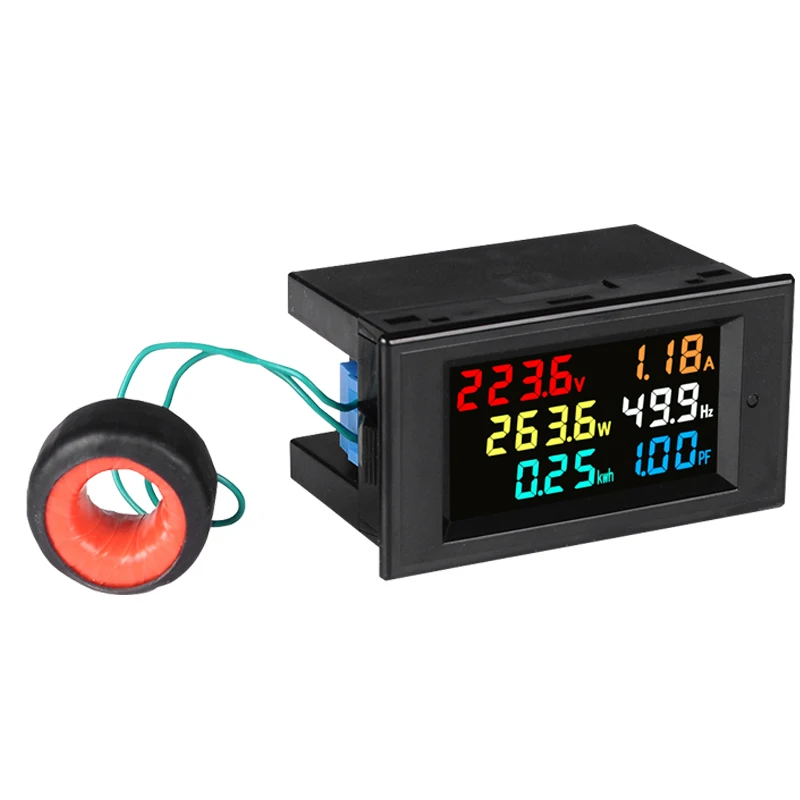

D69 2058 AC Digital Voltage Meter 6in1 AC Digital Monitoring Meter U I P Hz kWh COS AC 80 300V 100A
- Category: >>>
- Supplier: Wenzhou Taiye Electric Appliance Co. Ltd.
Share on (1600506851817):
Product Overview
Description
Description

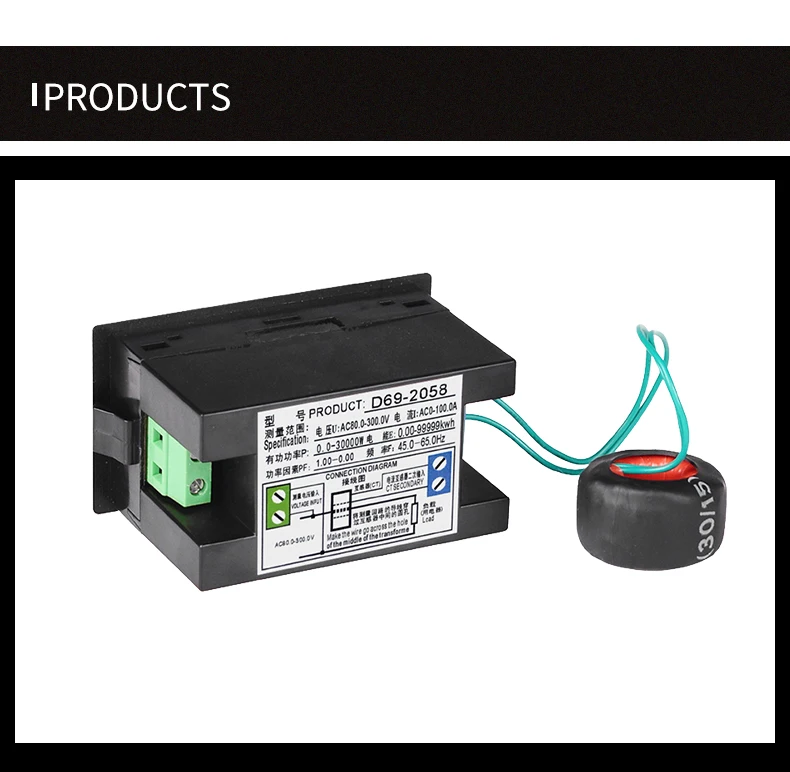

D69-2058 multi-function Digital meter can measure AC voltage,AC current,active power,power factor,power frequency electric energy.HD LCD has adopt for display module.
Specification | ||||
Accuracy | 1% 2 words | |||
Range | AC voltage | AC 80.0-300.0V/200.0-450.0V (You should select the suitable type of meter when your making order) AC current: AC 0-99.99A, minimum resolution is 0.01A AC current: AC 0-40.00A, minimum resolution is 0.01A | ||
Power Frequency | 45.0Hz-65.0Hz | |||
Power Factor | 0.00-1.00PF | |||
Active Power | 0-45000W when the active power between 0 and 9999.9W The display accuracy is 0.1W | |||
Electric Energy | 0-9 99999kwh,when the electric power between 0 and 999.99kwh, The Ndisplay accuracy is 0.01kwh, when between 10000.0-9999.9kwh The display accuracy is 0.1kwh,when between 10000.0 and 999999kwh The display accuray is 1kwh. | |||
Speed | 2 times per second | |||

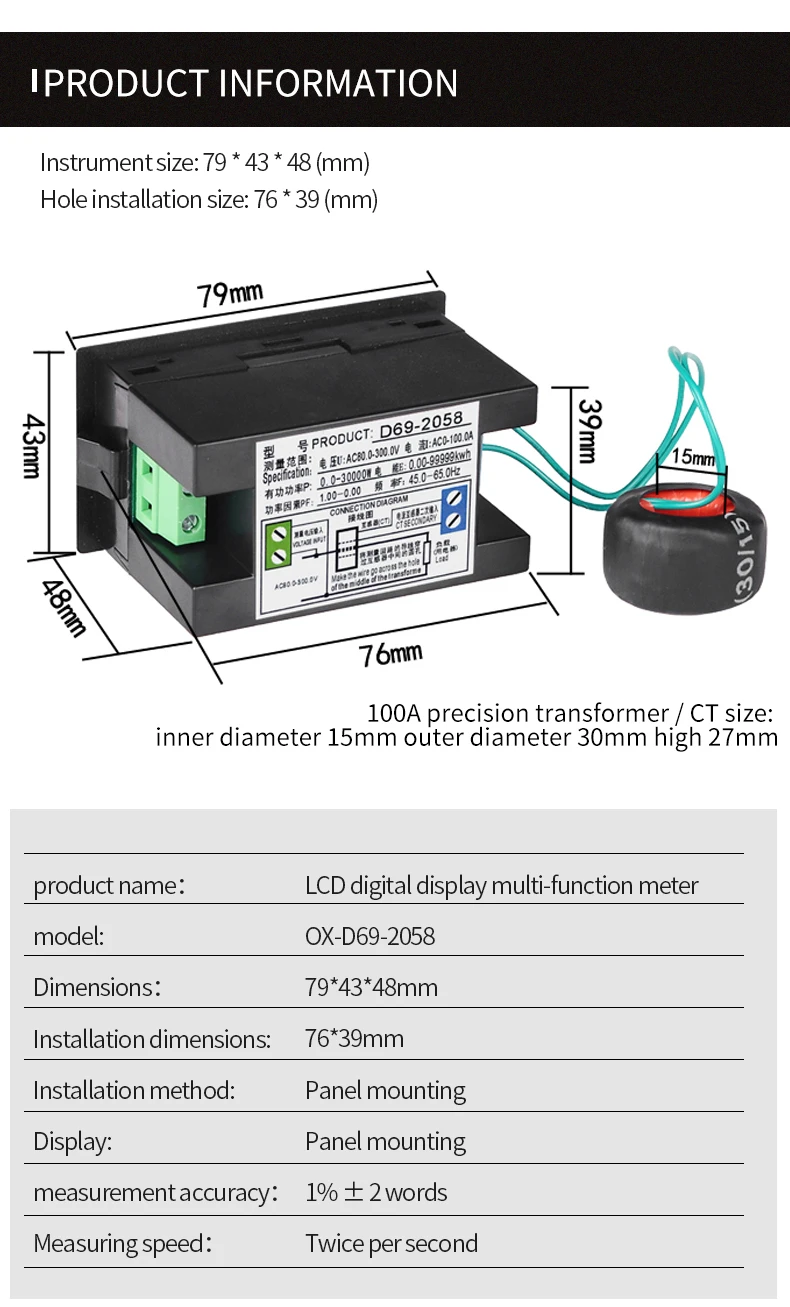

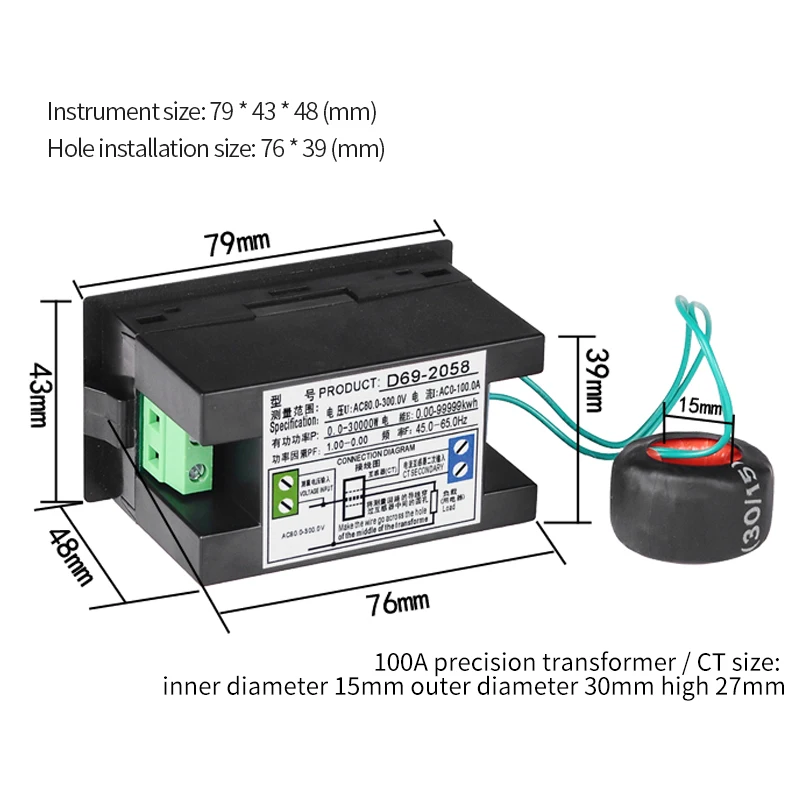

Size | 79*43*48mm | |||
Installation Size | 76*39mm | |||
Auto-saving | When power off, the electric energy will be saved. The saved electric energy will be accumulated continue when the meter power-on next time. | |||
