Trinasolar Solar 545w 550w Trina Tsm Solar Energy Panel 540w 535w 530w Half Cell Panel Solar Price
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600507395525):
Product Overview
Description
Product Description
High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time• Lowest guaranteed frst year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment
High power up to 555W
• Up to 21.2% module efciency with high density interconnect technology
• Multi-busbar technology for better light trapping efect, lower series resistance and improved current collection
• Up to 21.2% module efciency with high density interconnect technology
• Multi-busbar technology for better light trapping efect, lower series resistance and improved current collection
High reliability
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt,ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield
• Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certifcations • The unique design
provides optimized energy production under inter-row shading conditions • Lower temperature coefcient (-0.34%) and operating
temperature
• Up to 25% additional power gain from back side depending on albedo
• Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certifcations • The unique design
provides optimized energy production under inter-row shading conditions • Lower temperature coefcient (-0.34%) and operating
temperature
• Up to 25% additional power gain from back side depending on albedo
product prameters

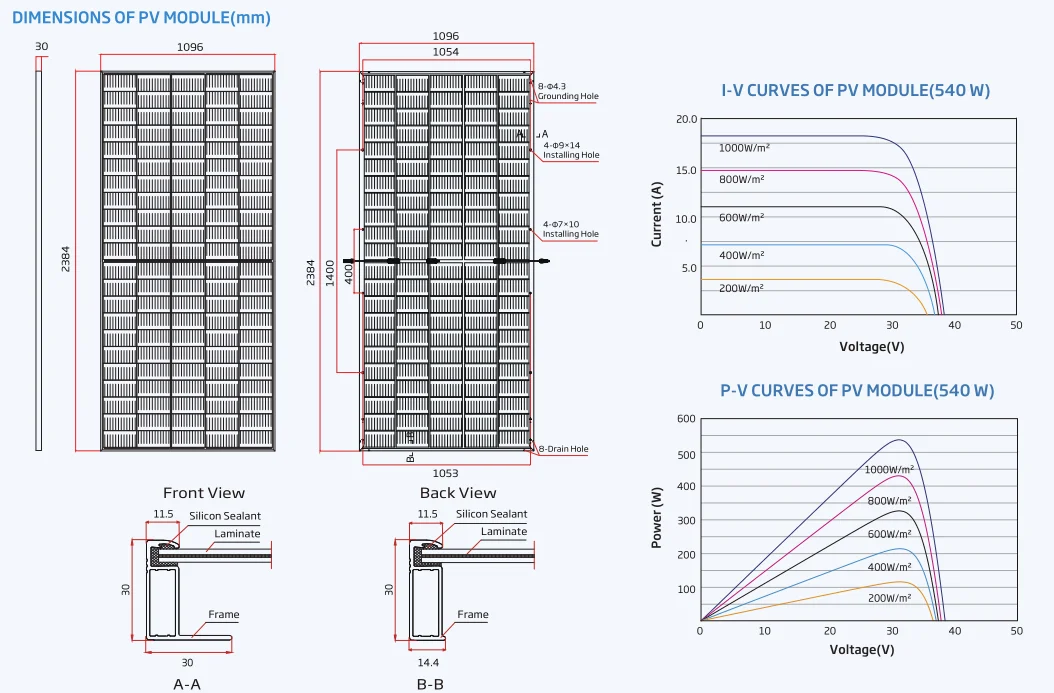

MECHANICAL DATA | ||
Solar Cells | Monocrystalline | |
No. of cells | 110 cells | |
Module Dimensions | 2384×1096×30 mm (93.86×43.15×1.18 inches) | |
Weight | 32.3 kg (71.2 lb) | |
Glass | 2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | EVA/POE | |
Backsheet | White | |
Back Glass | 2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) | |
Frame | 30mm(1.18 inches) Anodized Aluminium Alloy | |
Junction Box | IP68 rated | |
Cable | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 280/280 mm(11.02/11.02 inches) Length can be customized | |
Connector | MC4 EVO2 / TS4* | |
PACKING CONFIGURATION | ||
Module per pallet | 36pcs/pallet | |
Module per 40'HQ container | 720pcs/40hq | |
ELECTRICAL DATA (STC) | ||||||||||||
Peak Power Watts-PMAX (Wp) | 530W | 535W | 540W | 545W | 550W | 555W | ||||||
Maximum Power Voltage-VMPP (V) | 30.8 | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | ||||||
Maximum Power Current-IMPP (A) | 17.21 | 17.28 | 17.33 | 17.37 | 17.40 | 17.45 | ||||||
Open Circuit Voltage-VOC (V) | 37.1 | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | ||||||
Short Circuit Current-ISC (A) | 18.31 | 18.36 | 18.41 | 18.47 | 18.52 | 18.56 | ||||||
Module Efficiency(%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.0 | 21.2 | ||||||
TEMPERATURE RATINGS | ||
NOCT(Nominal Operating Cell Temperature) | 43°C (±2°C) | |
Temperature Coeffcient of PMAX | - 0.34%/°C | |
Temperature Coeffcient of VOC | - 0.25%/°C | |
Temperature Coeffcient of ISC | 0.04%/°C | |
Operational Temperature | -40~+85ºC | |
Maximum System Voltage | 1500V DC (IEC) | |
Max Series Fuse Rating | 35A | |

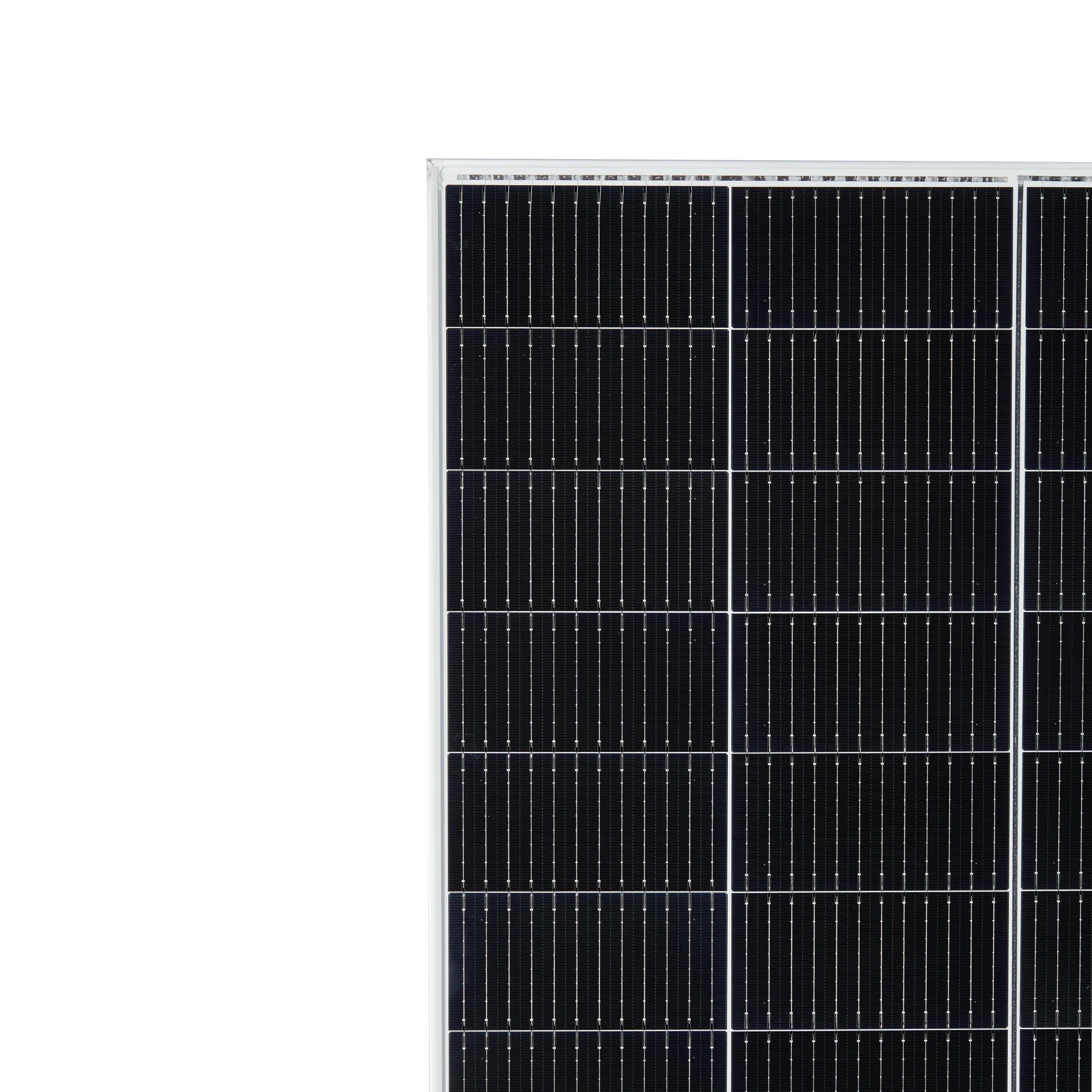

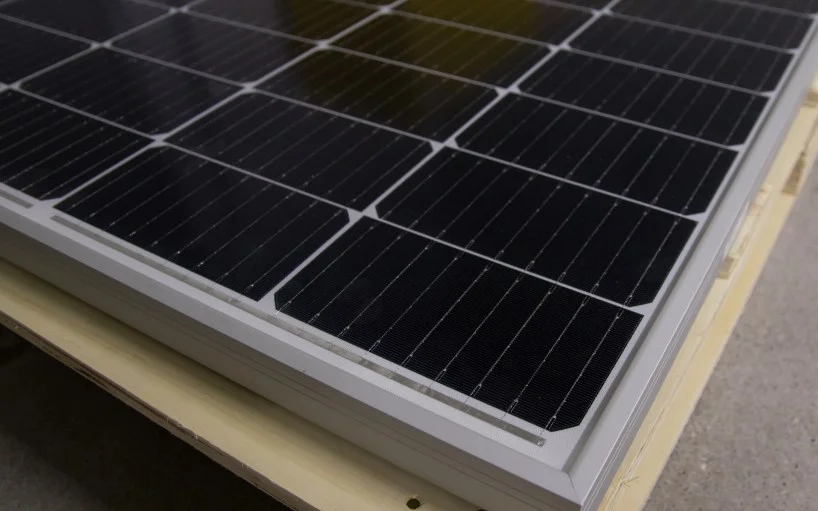

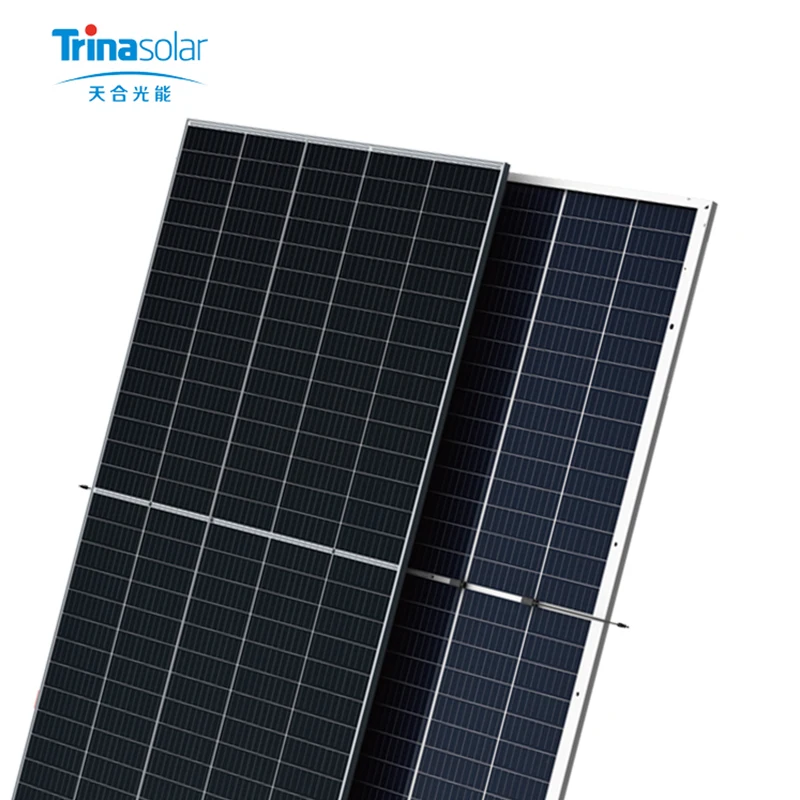

Product details

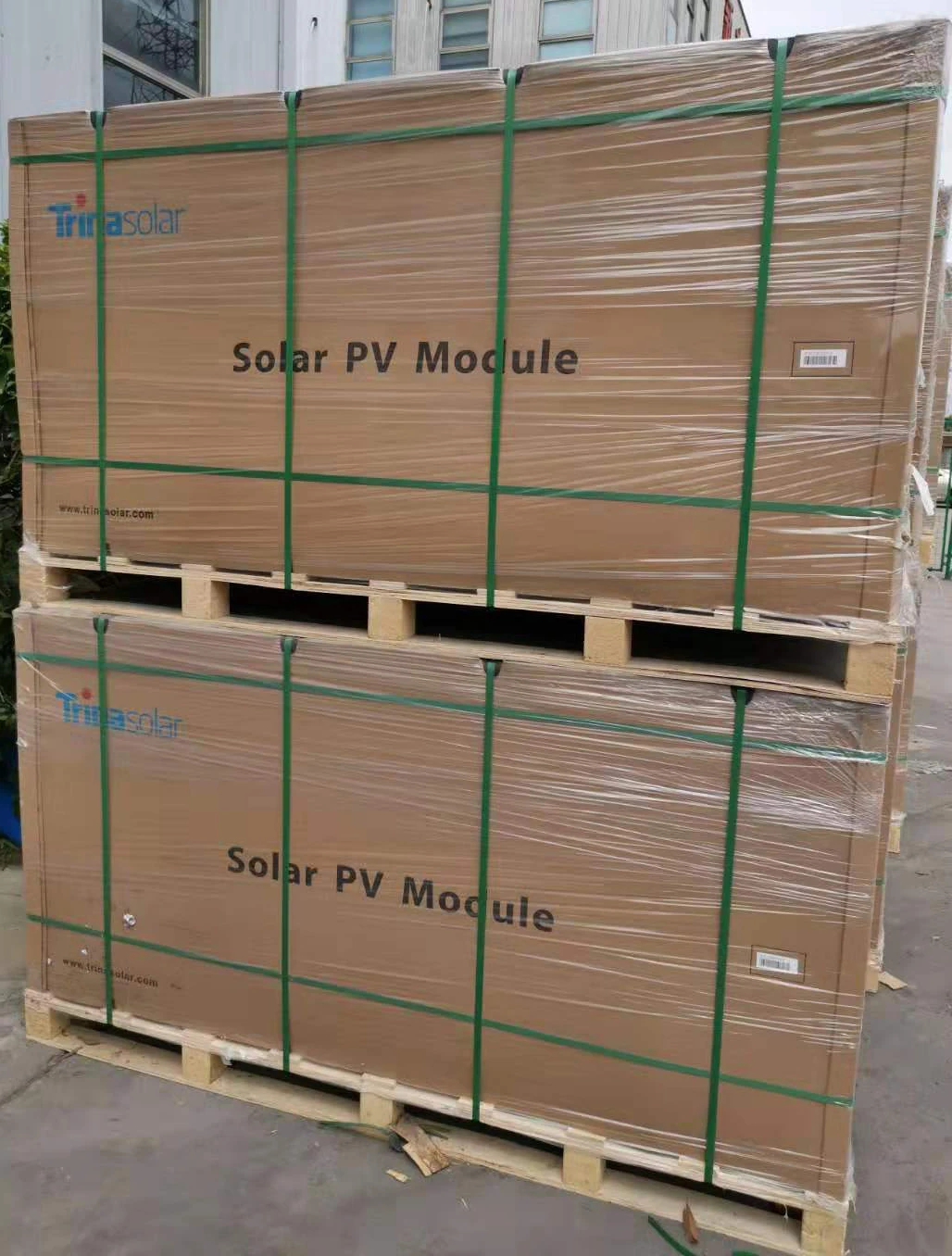

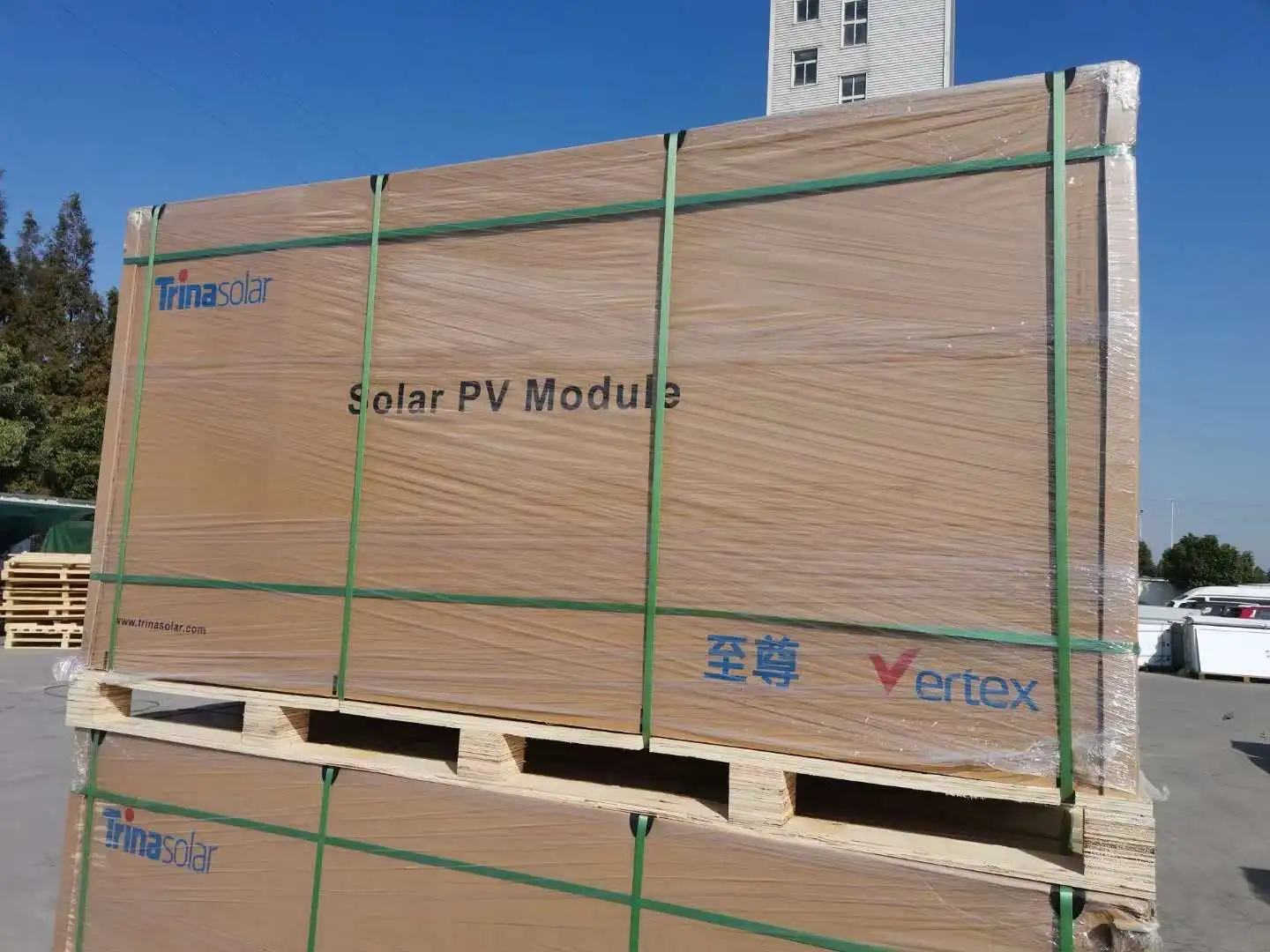

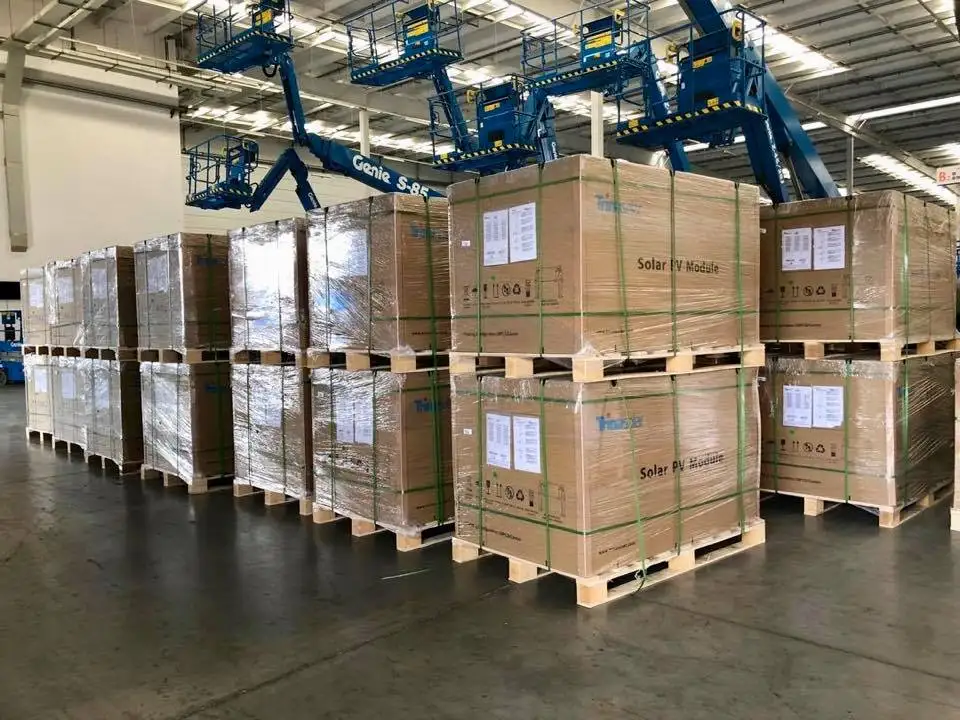

Product packaging
FAQ
1. Who are we?
We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province.
2. What can we provide?
We can provide solar panel,solar inverter,solar energy system.
3. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service
4. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province.
2. What can we provide?
We can provide solar panel,solar inverter,solar energy system.
3. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service
4. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
