Thermoforming Automatic Mini/small Condom Blister Packing Machine with Manual New Product 2020 Multifunctional Provided AL, PVC
- Category: >>>
- Supplier: Qingdao Eastbest Packing Equipment Co. Ltd.
Share on (1600507442437):
Product Overview
Description
Specification
Model | DPP-80 | DPP-140 | DPP-260 |
Cutting Frequency (Times/min) | 20-40 | 6-50 | Al-Al ≤40 Al-plastic ≤60 |
Max. Production Capacity (Blister/h) | 2400 (According to standard plate 80×57) | 20000-110000 | Al-Al ≤100000 Al-plastic ≤300000 |
Max. Forming Area and Depth (mm) | 80×100×26 (can be max to 38mm) | 130×130×14 (can be max to 38mm ) | Al-Al 250×180×15 Al-plastic 250×180×26 ((can be max to 38mm ) |
Travel Range (mm) | 20-100 (Can be manufactured as user's requirements) | 40-120 (Can be lengthened to 160mm according to user's requirements) | 180 (Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) | 80×57 (Can be manufactured as user's requirements) | 80×57 (Can be manufactured as user's requirements) |
Total Power | 380V/220V 50Hz 1.8kw | 380V/220V 50Hz 3.6kw | 380V/220V 50Hz 6.2kw |
Main Motor Power (kw) | 0.75 | 0.75 | 1.5 |
PVC Rigid Sheet (mm) | 0.15-0.5×80 | 0.15-0.5×140 | 0.10-0.15×260 |
PTP Aluminum Foil (mm) | 0.02-0.035×80 | 0.02-0.035×140 | 0.15-0.5×260 |
Dialysis Paper (mm) | 50-100g×80 | 50-100g×140 | PVC 0.02-0.035×260 AL 0.02-0.035×260 |
Mould Cooling | Tap Water or Circulating Water | Tap Water or Circulating Water | Tap Water or Circulating Water |
Overall Dimensions (mm) | 1400×460×950（L×W×H） | 2300×560×1410（L×W×H） | 3800×730×1600（L×W×H） |
Weight (kg) | 450 | 750 | 1600 |

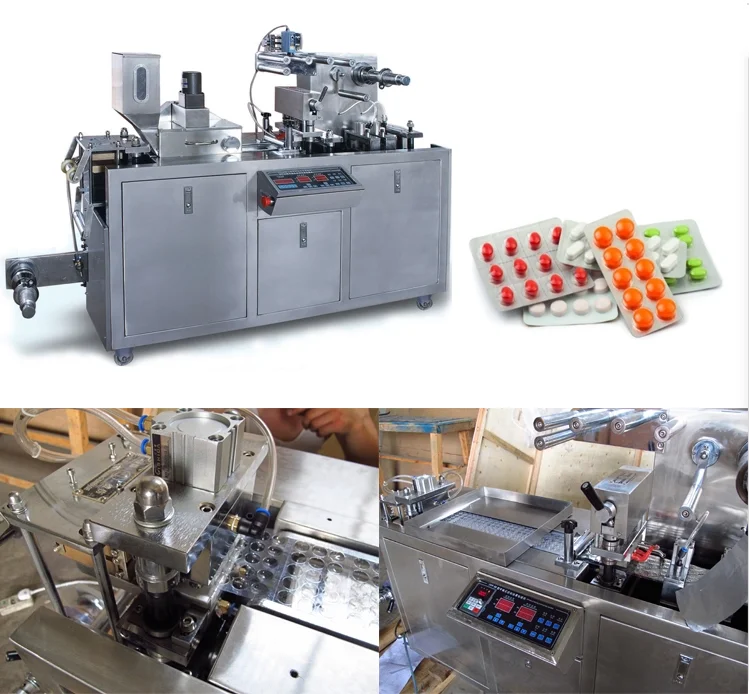

Product Description
This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule,tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape al-plastic, paper-plasti c composite and al-al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. this machine adopts micro-computer PLC,frequency converter, touch panel operation high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.
Usage
It is suitable for capsule, tablet, big honey pill, candy, liquid (ointment), paste, syringe as well as irregular shape Al-plastic
and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

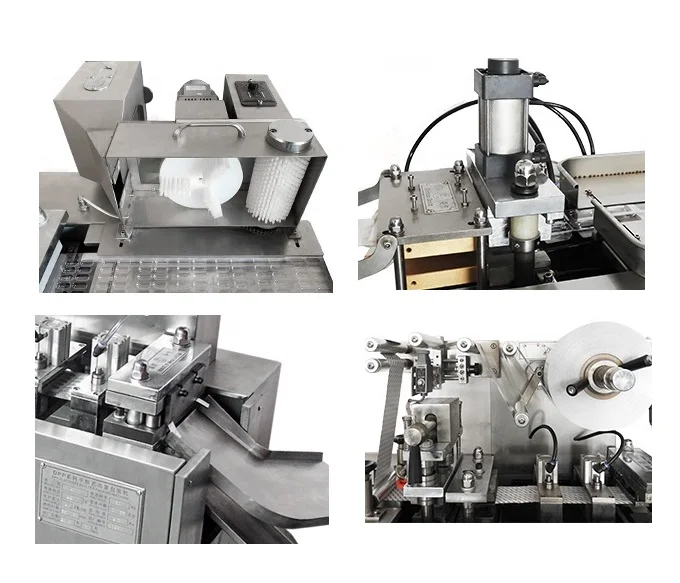

Feature
1. Traction drive by servo motor (traction by precision lead screw or rubber press roller), with precise synchronization. The
length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. Various types of feeder solve the difficulty for irregular shape products packing.

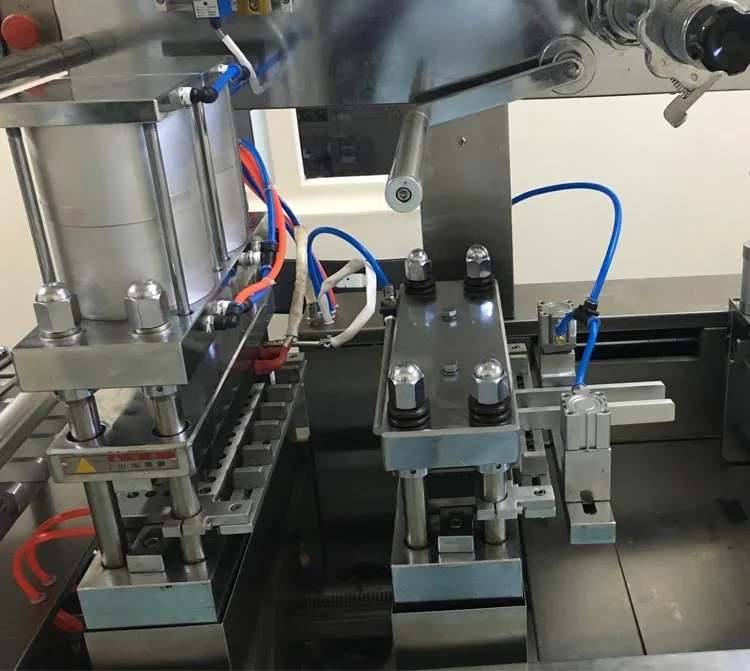

5. Five stations forming, heat-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel
orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.
6. Newly mould orientation device speed up the mould changing requirement.
7. Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean.
8. Apply online detection and ejection system, and the camera detection system can be chosen for option.
Usage
It is suitable for capsule, tablet, big honey pill, candy, liquid (ointment), paste, syringe as well as irregular shape Al-plastic
and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Feature
1. Traction drive by servo motor (traction by precision lead screw or rubber press roller), with precise synchronization. The
length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. Various types of feeder solve the difficulty for irregular shape products packing.
5. Five stations forming, heat-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel
orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.
6. Newly mould orientation device speed up the mould changing requirement.
7. Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean.
8. Apply online detection and ejection system, and the camera detection system can be chosen for option.
