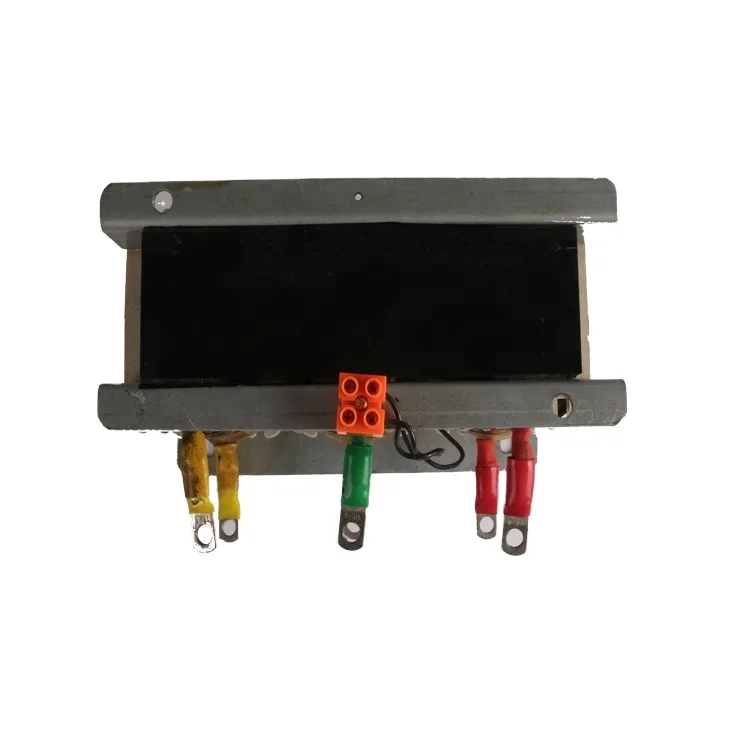

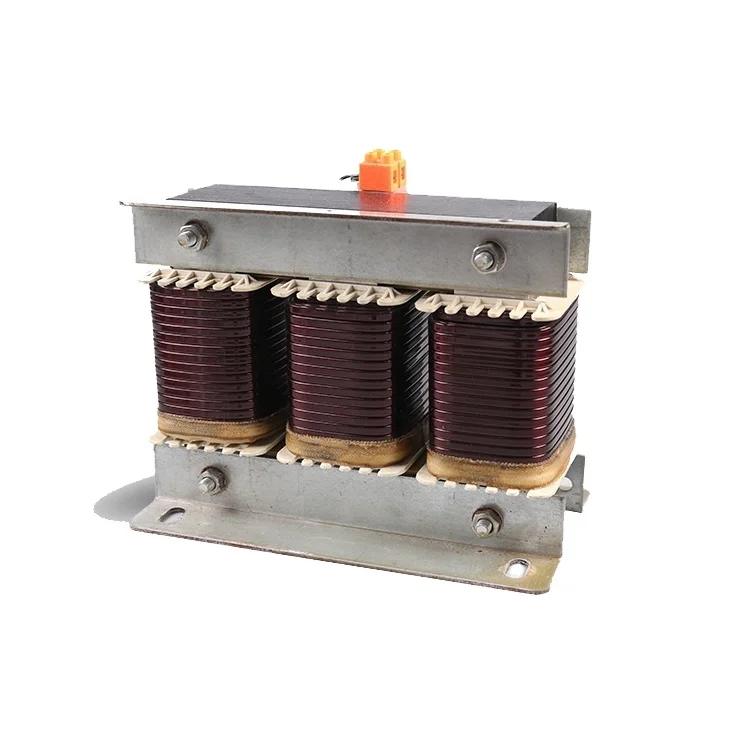

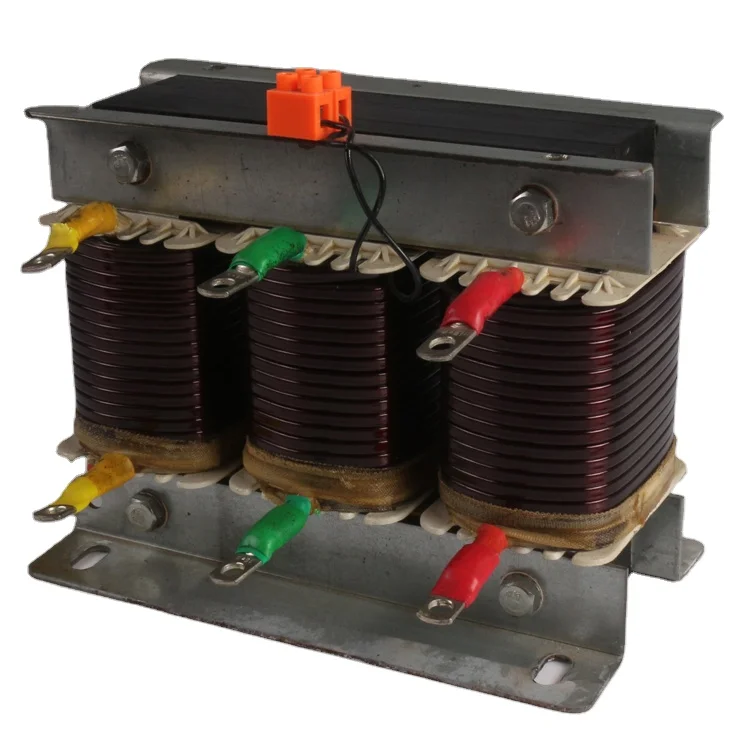

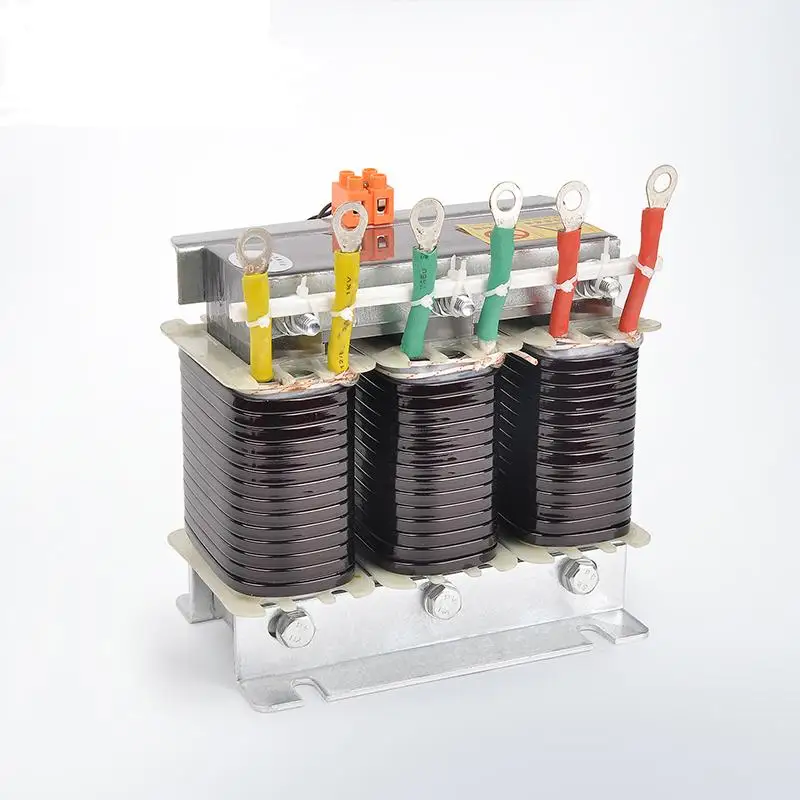

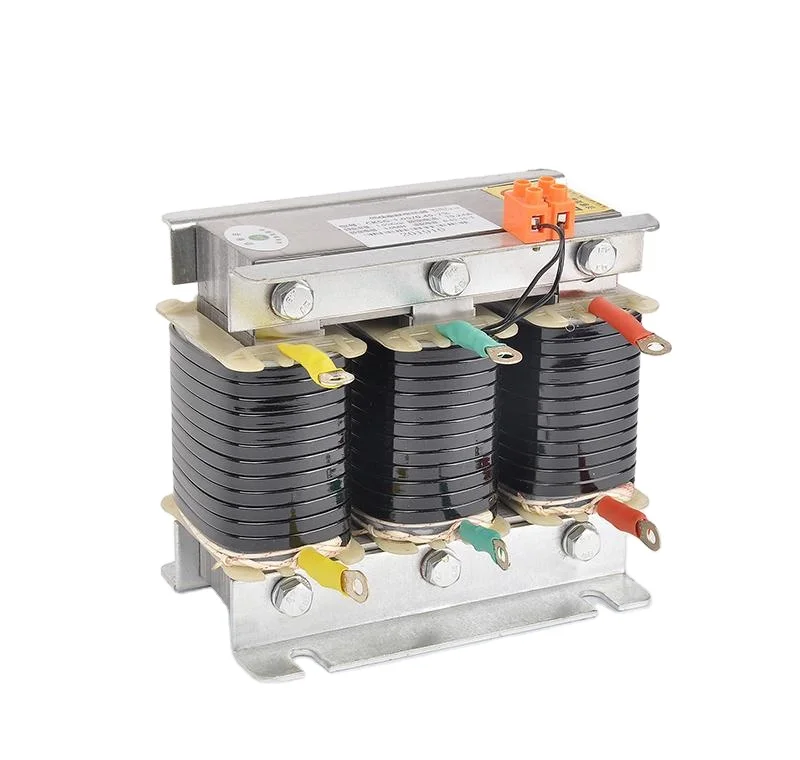

CKSG low voltage series connected reactor or LKSG wave filtration reactor
- Category: >>>
- Supplier: Zhejiang Jiukang Electric Co. Ltd.
Share on (1600507774201):
Product Overview
Description
Why choose us
1. More than 20 years' production experience in capacitors-- our company was establised in 1993.
2. A wide range of products, including motor running capacitor, fan capacitor, low voltage shunt capacitor, float switch , contactor for switching capacitor , reactive power compensation installation etc.
3. A good image: first class automaatic rolling machines, advanced production environment, and advanced production technology etc.
4. Certification: passed the ISO9001 quality management system certificate, ISO14000 environment management system, CBB series capacitors have attained CQC, CE, Roh and UL certificates; low voltage reactive power compensation device have got CCC certificate.
With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.
Certifications
Products Description
Main Usage and Application

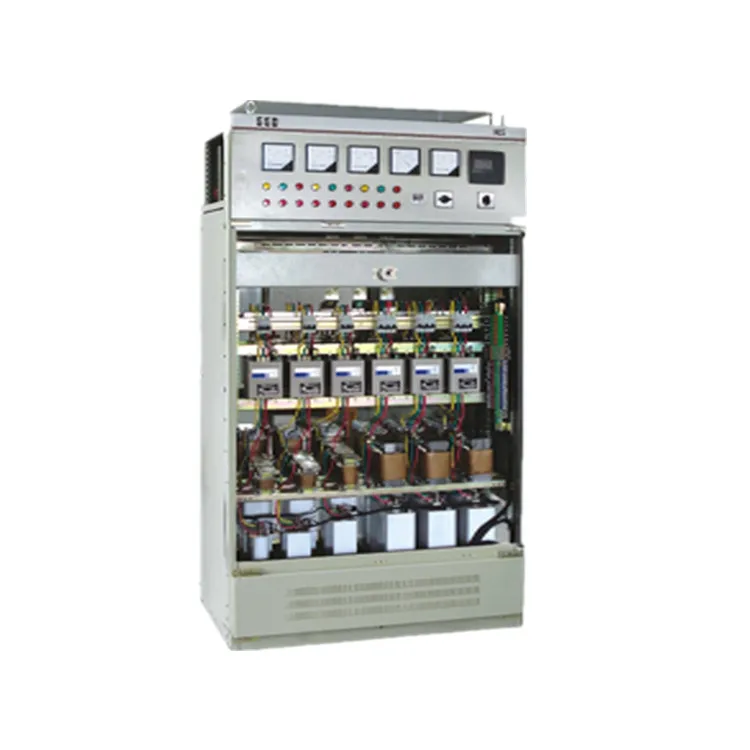

This series of dry type iron core series-connected reactor used in low voltage reactive power compensating cabinet,series-connected with capacitor,when the low voltage system has large loads such as rectifier,conversion device and etc other appliances with harmonic waves,they will produce high harmonic waves and do harm to other electric equipments.
After the reactor series connected with capacitors,it can effectively absorb the harmonic waves, improve the voltage wave,and power factor,and eliminate the surging and operating over-voltage,protect the capacitors.

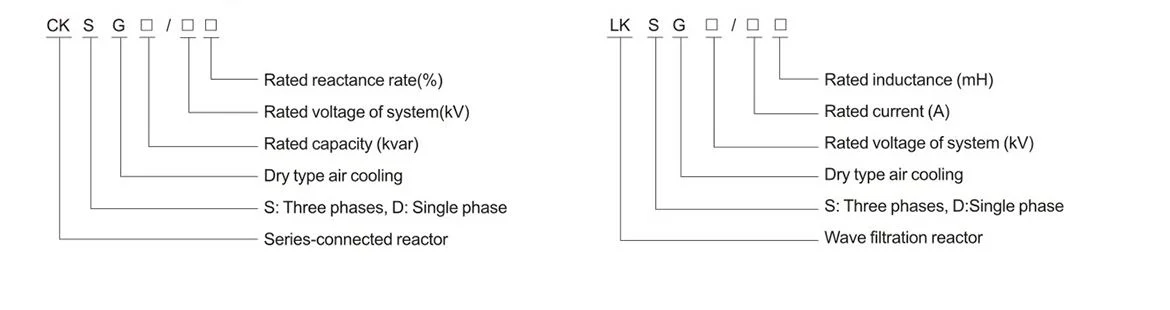

Model meanings

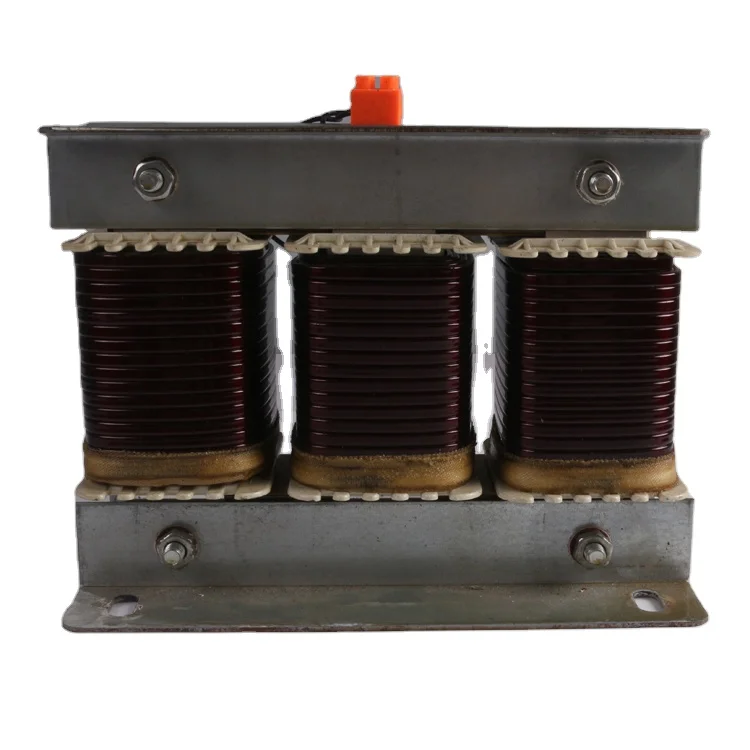

Main Structure Features
1.The reactor has three-phase and single phase type,all of iron core dry type.
2.The iron core made of high quality low loss cold rolled oriented silicone steel sheet,core column consists of multiple gas gap,divided evenly into many small sections,gap isolated by use of epoxy resin layer pressed glass cloth,this can ensure the gap have no change during in service.
3.Coil made of H class or C class enamelled copper flat wire,laid closely and evenly,where it has perfect heat radiating performance,
4.After the core and coil are integrated together,then pre-dry,immerse into painting in vacuum chamber heat dry for solidification,H class paint used for immersion,this can solidly condense the coil and iron coil,which will reduce the noise level in service and has high heatproof class.
5.The fixing parts of core column adopted non-magnetic material,to ensure its high quality and low temperature rise.
6.Exposed surface treat for corrosion resistant,output sides utilize tinned copper pipe terminals
2.The iron core made of high quality low loss cold rolled oriented silicone steel sheet,core column consists of multiple gas gap,divided evenly into many small sections,gap isolated by use of epoxy resin layer pressed glass cloth,this can ensure the gap have no change during in service.
3.Coil made of H class or C class enamelled copper flat wire,laid closely and evenly,where it has perfect heat radiating performance,
4.After the core and coil are integrated together,then pre-dry,immerse into painting in vacuum chamber heat dry for solidification,H class paint used for immersion,this can solidly condense the coil and iron coil,which will reduce the noise level in service and has high heatproof class.
5.The fixing parts of core column adopted non-magnetic material,to ensure its high quality and low temperature rise.
6.Exposed surface treat for corrosion resistant,output sides utilize tinned copper pipe terminals
Main Technical Specifications
1.it can be used in | 400V、660 V power system |
2.Reactance rate: | 1％、6％、12％and etc. |
3.Rated insulation level | 3kV/min |
4.The temperature rise limit in all parts of reactor: | core not more than 85K，coil not more than 95K. |
5.Working noise level | not more than 50dB； |
6.The reactor can work for long term under power frequency plus harmonic component | not more than 1.35 times rated current. |
7.Reactance linear degree: | the ratio between reactance under 1.8 time rated current and value under rated current not less than 0.95. |
8.The difference between any of two phases’ reactance | not out of ＋3％ |
9.Temperature proof grade: | H class（180C）and above |
