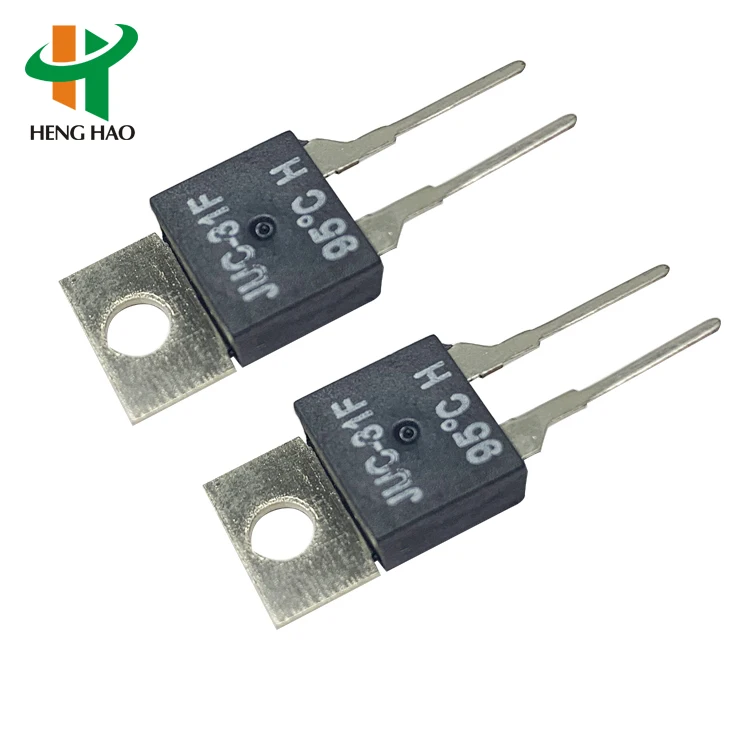

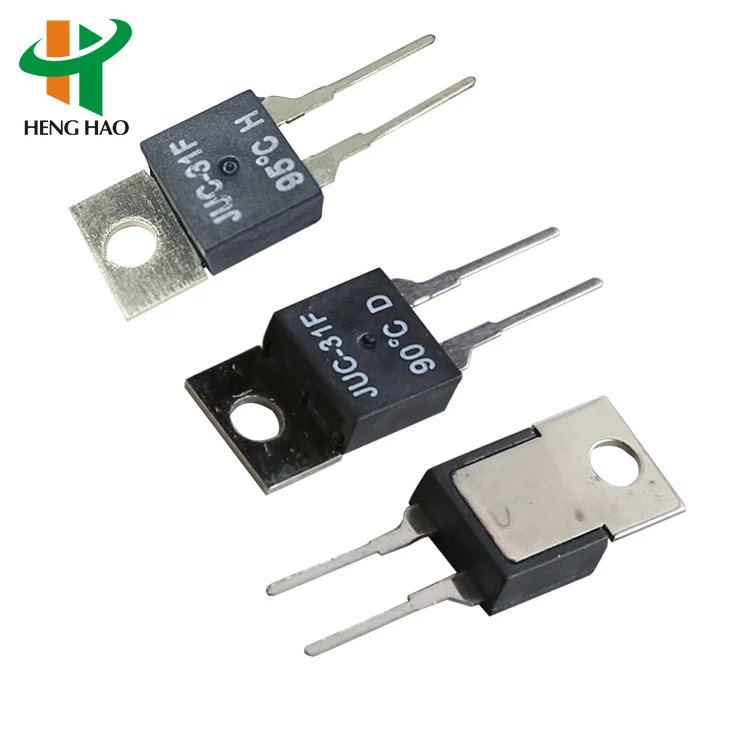

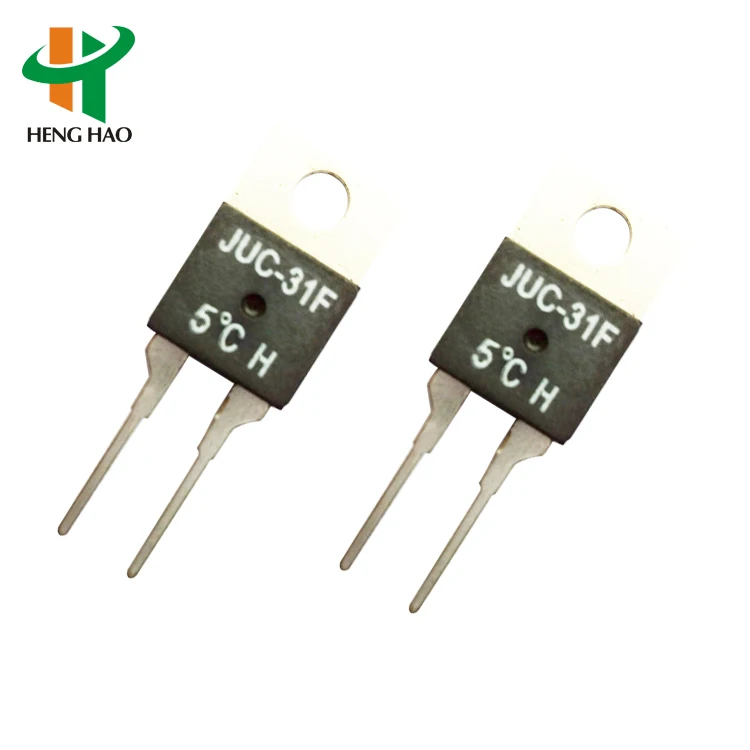

HENGHAO 30 to 150 degree JUC 31F Overload 250V 2A Thermal Temperature Cutout Protector Switch
HENGHAO 30 to 150 degree JUC-31F Overload 250V 2A Thermal Temperature Cutout Protector Switch
HENGHAO 30 to 150 degree JUC-31F Overload 250V 2A Thermal Temperature Cutout Protector Switch
HENGHAO 30 to 150 degree JUC-31F Overload 250V 2A Thermal Temperature Cutout Protector Switch
HENGHAO 30 to 150 degree JUC-31F Overload 250V 2A Thermal Temperature Cutout Protector Switch

HENGHAO 30 to 150 degree JUC 31F Overload 250V 2A Thermal Temperature Cutout Protector Switch

Share on (1600507796501):


Price:$0.18 - $0.25

Quantity:


Product Overview

Description



Products Description


Electrical Rating
AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Open temperature
0-130°C
Reset temperature
10~45 degrees in off temperature decline.
Life times
10000 times
Size
L 29.7mm W10.2mm H5mm
Lead wire
W0.8* T0.3mm terminal
Contact Closure resistance
≤50mΩ
Insulation resistance
≥100mΩ
Used for
JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature
control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power
supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers,
inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product
temperature control or temperature protection..
Certificate approved
UL CQC TUV KC ROHS
