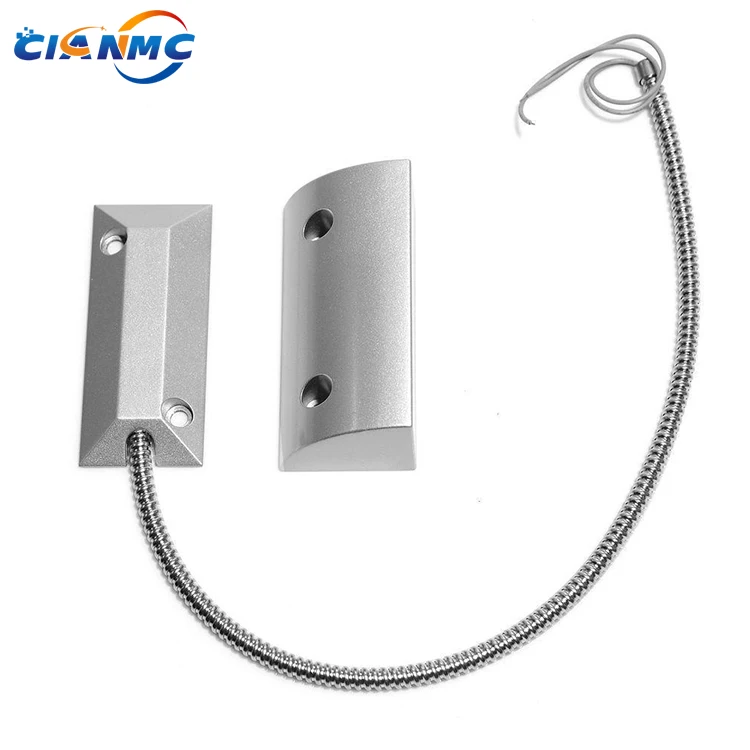

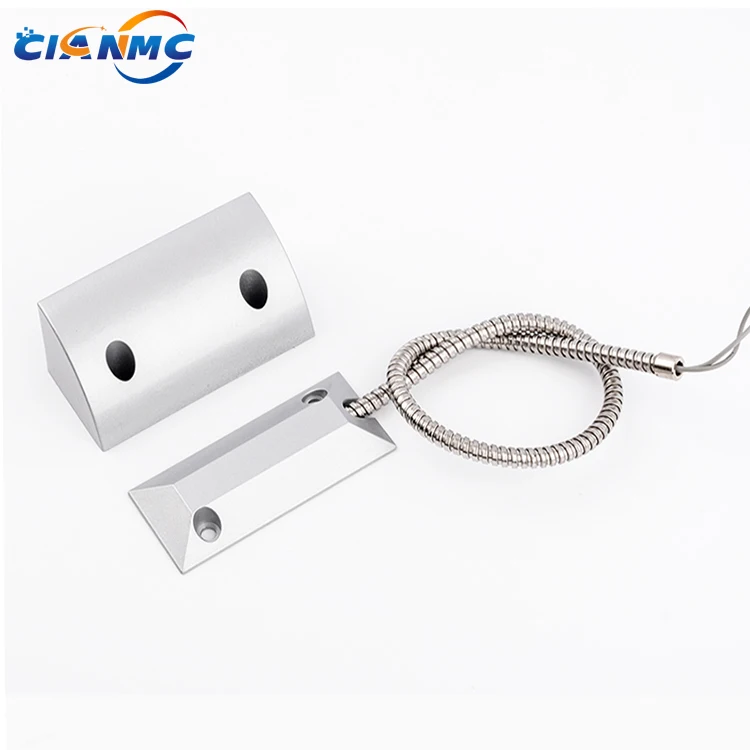

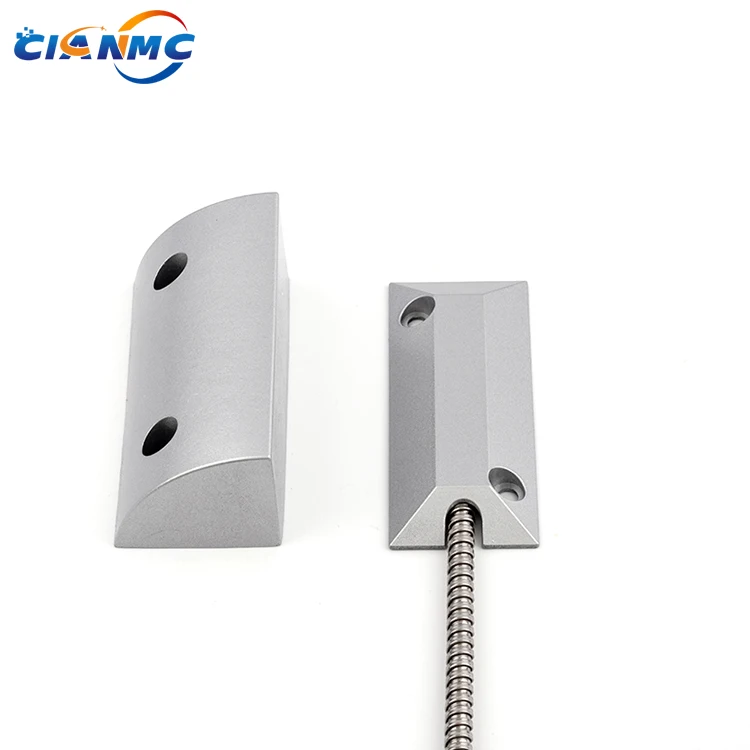

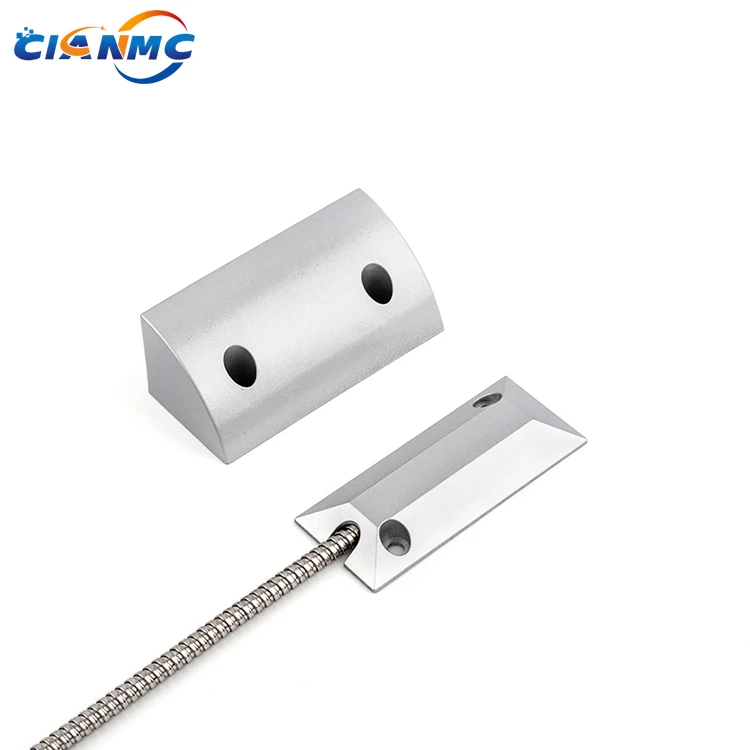

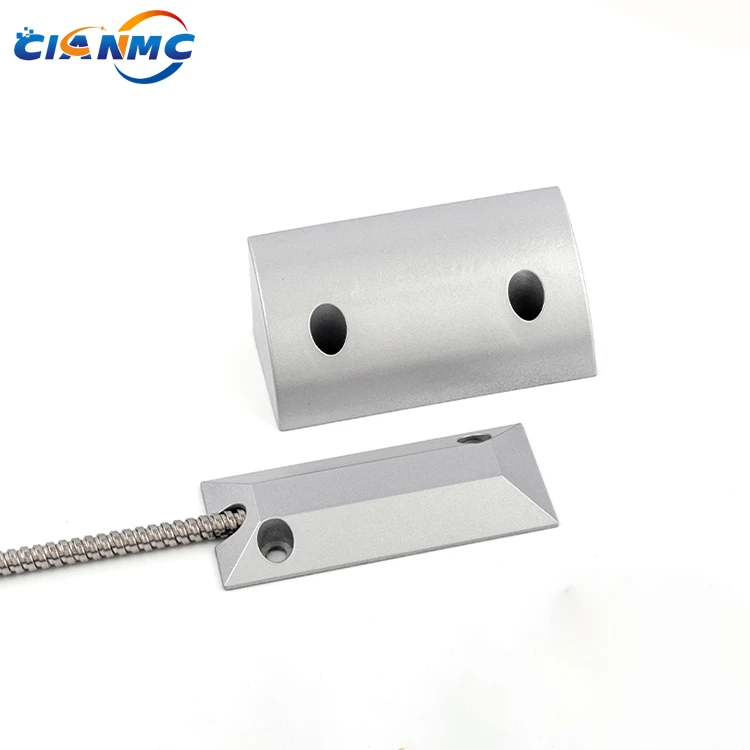

Metal Zinc alloyed Housing NO/NC/COM Roller Shutter Door Magnetic Contact Sensor Switch
- Category: >>>
- Supplier: Shenzhen Cian Electronics Co. Ltd.
Share on (1600507906140):
Product Overview
Description
Product Description
Metal Zinc-alloyed Housing NO/NC/COM Roller Shutter Door Magnetic Contact Sensor Switch
The principle of this shutter door magnetic contact is producing a magnetic field around the sensor through changed the position and polarity of triggerso as to have the sensor worked. Hermetically sealed, lifespan exceed 1 million times at least, easy
installation.
installation.

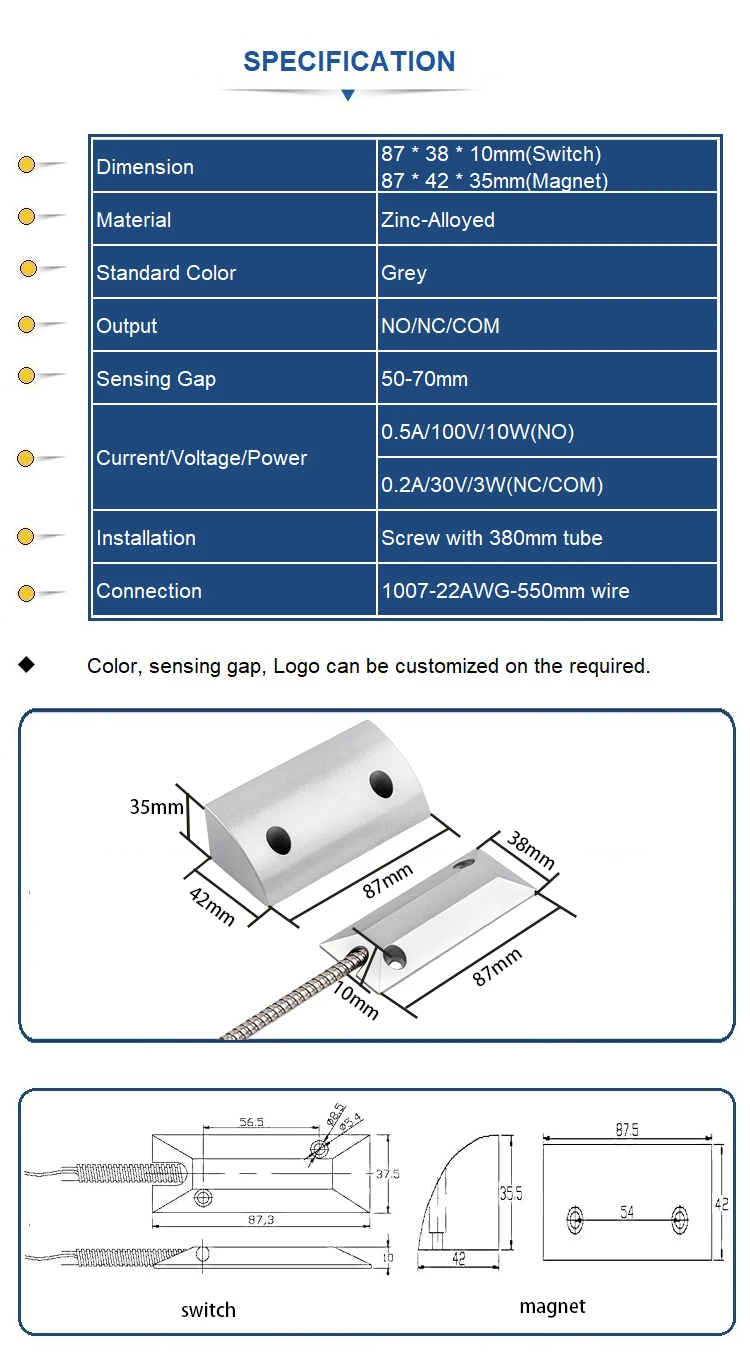

Product name | Shutter door magnetic contact |
Size | 87 * 38 * 10mm(Switch) / 87 * 42 * 35mm(Magnet) |
Material | Zinc-Alloyed |
Color | Grey |

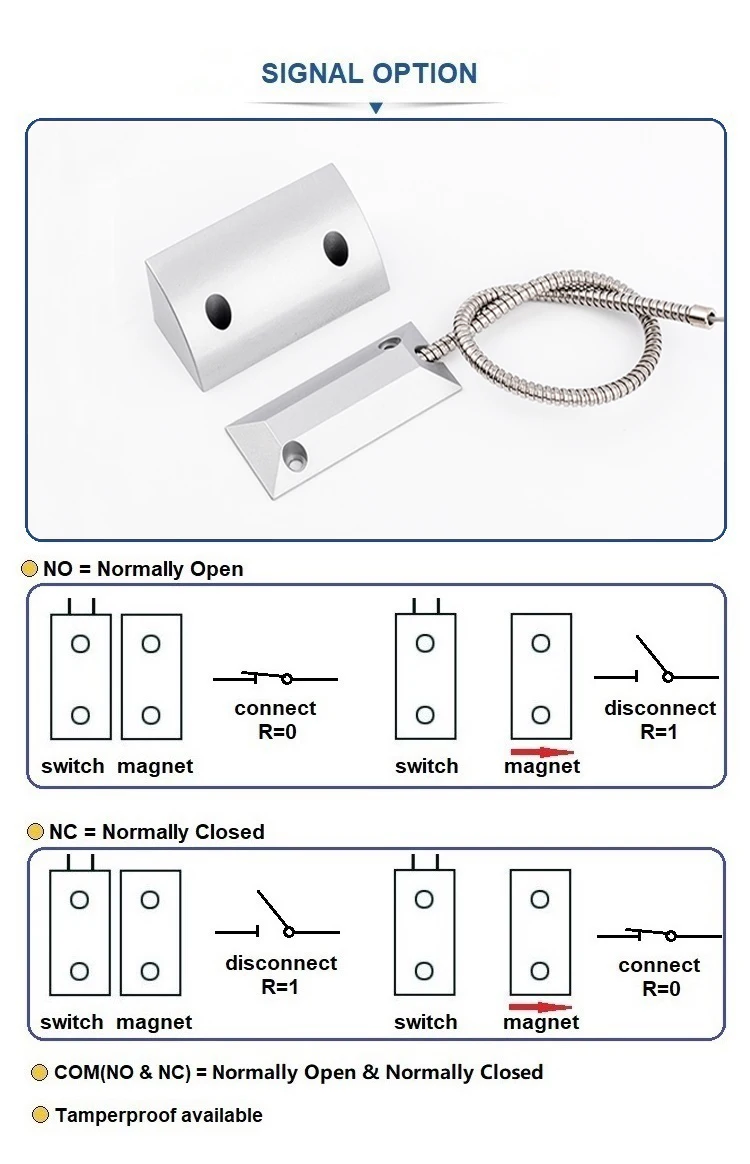

Alarm output | NO(Normally Open)/NC(Normally Closed)/COM(NO&NC) |
Sensing gap | 50-70mm |
Current/Voltage/Power | 0.5A/100V/10W(NO); 0.2A/30V/3W(NC/COM) |
Connection | 1007-22AWG-250mm wire |
Installation | Screw mounted with 380mm metal tube |
Usage/Application | Roller shutters door window/Home security system |
Certificates | CE,ROHS |
Product Paramenters
Product Image
Manufacturing Technique
Application
This shutter door magnetic contact aplly for the kinds of door or window at the place such as below shops, supermarket, factory, warehouse, villa, family, hotel, school, KTV entertainment place, hospital, government bodies etc to control the swtich ON or OFF signal to the third devices of home security alarm system.
