Humidity And Temperature Sensor Probe
US $35.00-$48.00
4 20mA intelligent digital tube temperature transmitter circuit board integrated local display instrument
- Category: Temperature Instruments >>>
- Supplier: Shanghai,Jeoro,Precision,Instruments,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Intelligent digital tube temperature transmitter circuit board
Integrated local display instrument
for RTD and TC 4-20mA
Technical Parameters | ||
Power supply | 12-35VDC | |
Output | 4-20mA | |
Measurement accuracy | RTD 0.1%; TC 0.2% | |
Output current limit | 20.8mA | |
Excitation current | 0.2mA | |
Sensor | various types of RTD, TC | |
Load | ≤500Ω | |
Temperature coefficient | ≤25ppm/℃ F.S | |
Material | PA66 | |
Mounting screw | M4*2 | |
Features
•Adopt FSTN high-definition segment code LCD display
•Use 24-bit Σ-Δ analog front end to ensure high accuracy
•Anti-surge, anti-lightning and anti-reverse connection design
•Enhanced software security design, including low-voltage monitoring reset, multi-task scheduling optimization and other functions
•Using imported components
•Use 24-bit Σ-Δ analog front end to ensure high accuracy
•Anti-surge, anti-lightning and anti-reverse connection design
•Enhanced software security design, including low-voltage monitoring reset, multi-task scheduling optimization and other functions
•Using imported components
Recommend Products

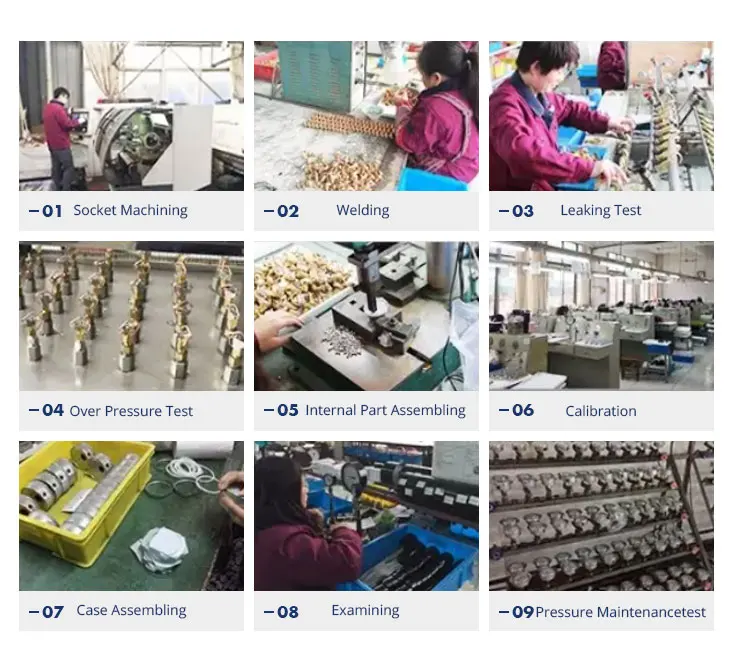

Work Flow
