Factory trade HSB 06 12 pin 35a ip65 waterproof automation heavy duty connectors female male connector insert
- Category: >>>
- Supplier: Zhejiang Sentuo Electric Co. Ltd.
Share on (1600508102425):
Product Overview
Description
GENERAL:
Heavy Duty Connectors (HDC) are rectangular industrial connectors designed to transmit power, data and signal in the toughest of conditions. In environments with vibrations, risk of dust, temperature challenges and mechanical impact, our HDC connectors provide a reliable solution with rock fall safe aluminum enclosures with protection degree IP65. Approved according to EN/IEC 61984 standard, our HDC connectors ranges are available with up to 216 contacts.
FEATURES AND BENEFITS:

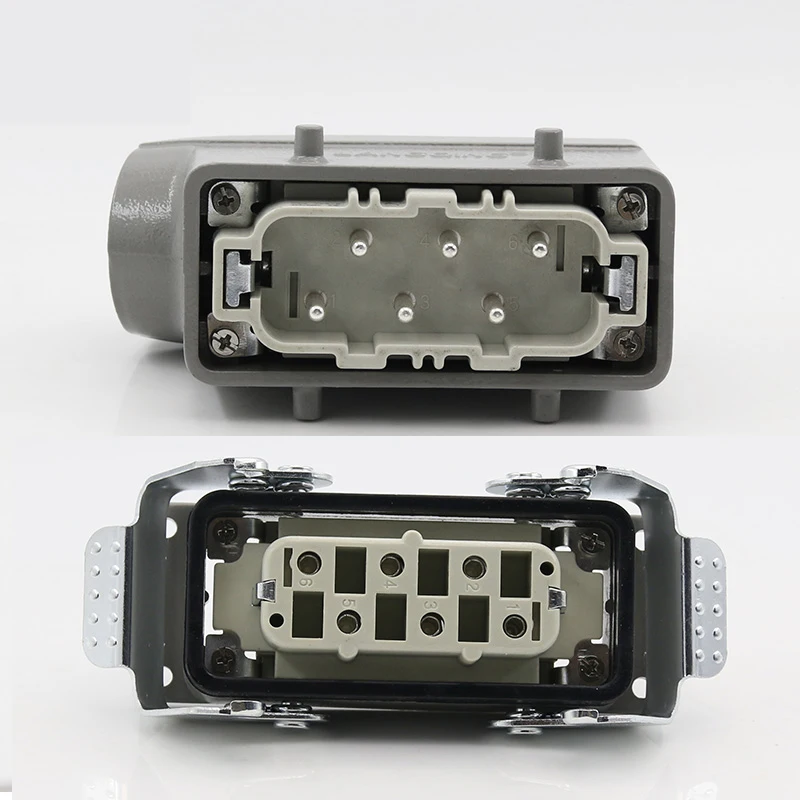

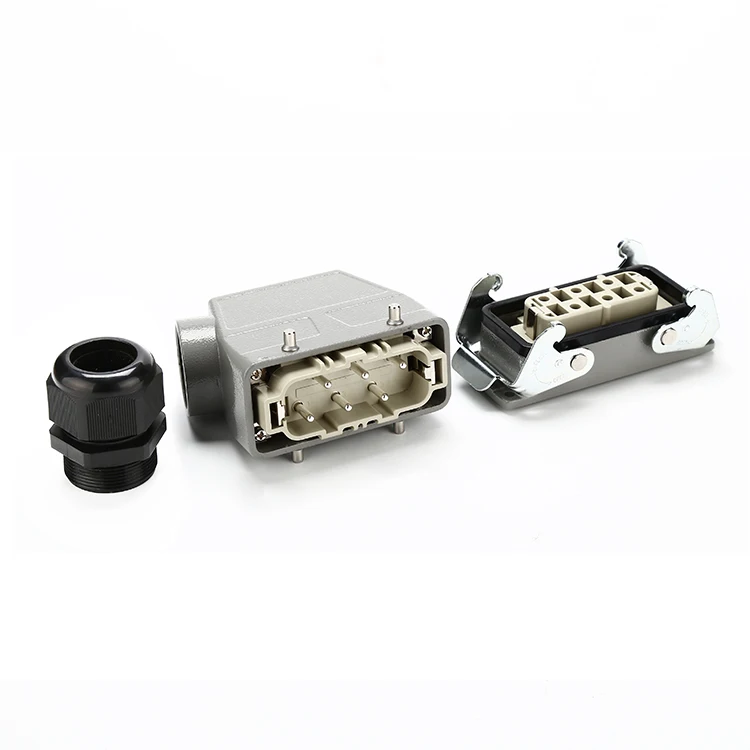

Male insert:
Male insert with screw terminal, crimp terminal ( order contacts separately ) or spring terminal.
Female insert:
Female insert with screw terminal, crimp terminal ( order contacts separately ) or spring terminal.

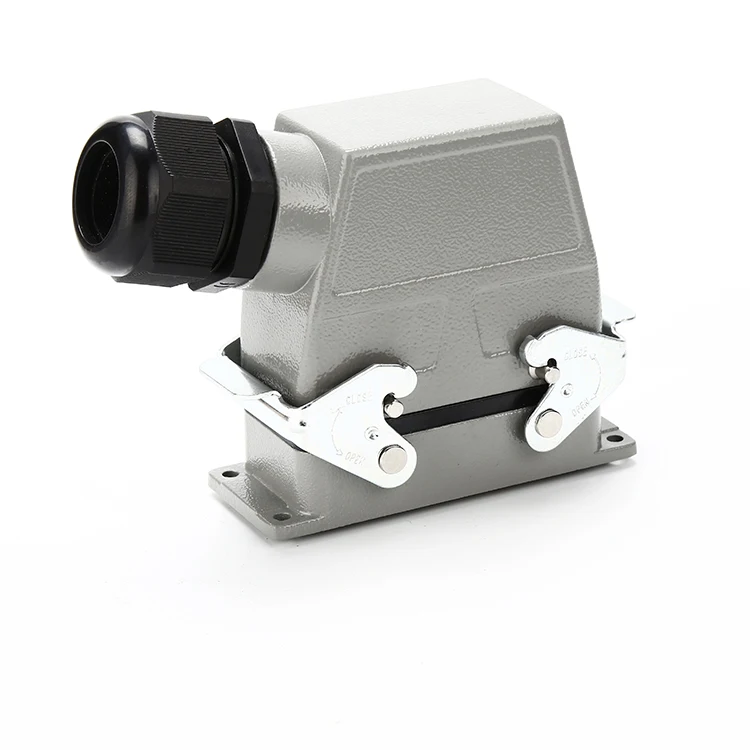

Hoods:
Hoods with low or high construction, side or top cable entry, 2 or 4 bolts, 1 or 2 locking levers.

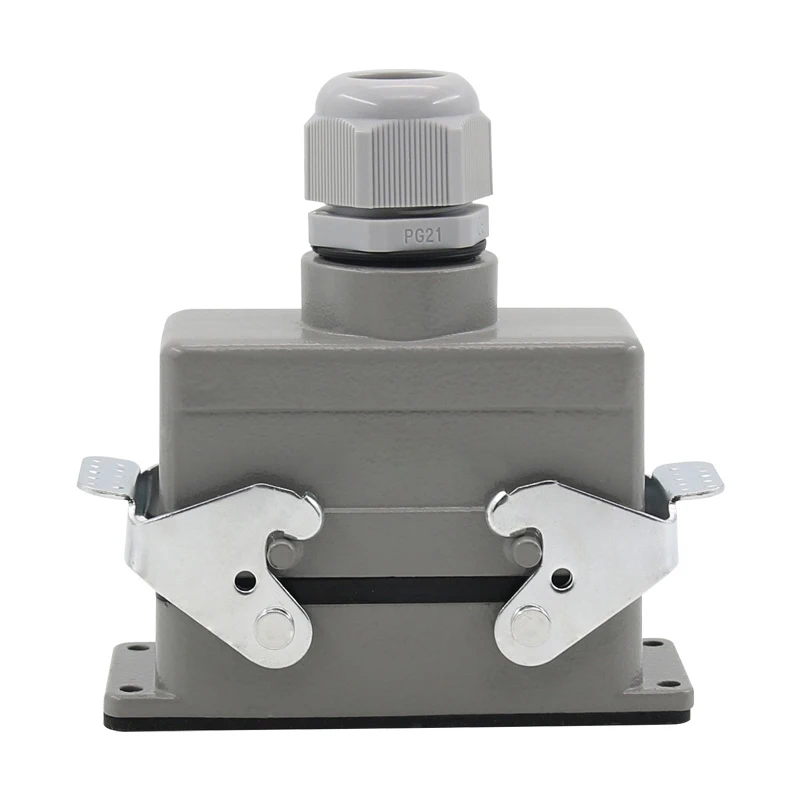

Housings:
Bulkhead mounting housing with or without protection cover, 1 or 2 locking levers.
Surface mounting housings with low or high construction with or without protection cover, 2 or 4 bolts, 1 or 2 locking levers, 1 or 2 cable entries.
Cable entry protection:
Cable glands with normal or multiple sealing.
Metal or plastic cable glands.
Special cable entry protection or extensive range of accessories.
Male insert with screw terminal, crimp terminal ( order contacts separately ) or spring terminal.
Female insert:
Female insert with screw terminal, crimp terminal ( order contacts separately ) or spring terminal.
Hoods:
Hoods with low or high construction, side or top cable entry, 2 or 4 bolts, 1 or 2 locking levers.
Housings:
Bulkhead mounting housing with or without protection cover, 1 or 2 locking levers.
Surface mounting housings with low or high construction with or without protection cover, 2 or 4 bolts, 1 or 2 locking levers, 1 or 2 cable entries.
Cable entry protection:
Cable glands with normal or multiple sealing.
Metal or plastic cable glands.
Special cable entry protection or extensive range of accessories.
TECHNICAL DATA:
Number of Contacts | 06，12+PE |
Rated Current | 35A |
Working Voltage Conductor | 400/690V |
Rated Impulse Voltage | 6KV |
Pollution Degree | 3 |
Flammability Acc.to (UL94) | V0 |
Terminal | Screw terminal |
Thread | M20/PG11 |
Material | Polycarbonate |
Pollution Dgree 2 Also | 10A 230/400V 4KV 2 |
Limiting Temperatures | -40℃...+125℃ |
MecHEnical Working Life- mating Cycles | ≥500 |
Material | Copper alloy |
Surface | Gold plated/Silver plated |
Contact Resistance | ≤3mΩ |
Wire Gauge | 10AWG |
Tightening Torque | 1.2Nm |

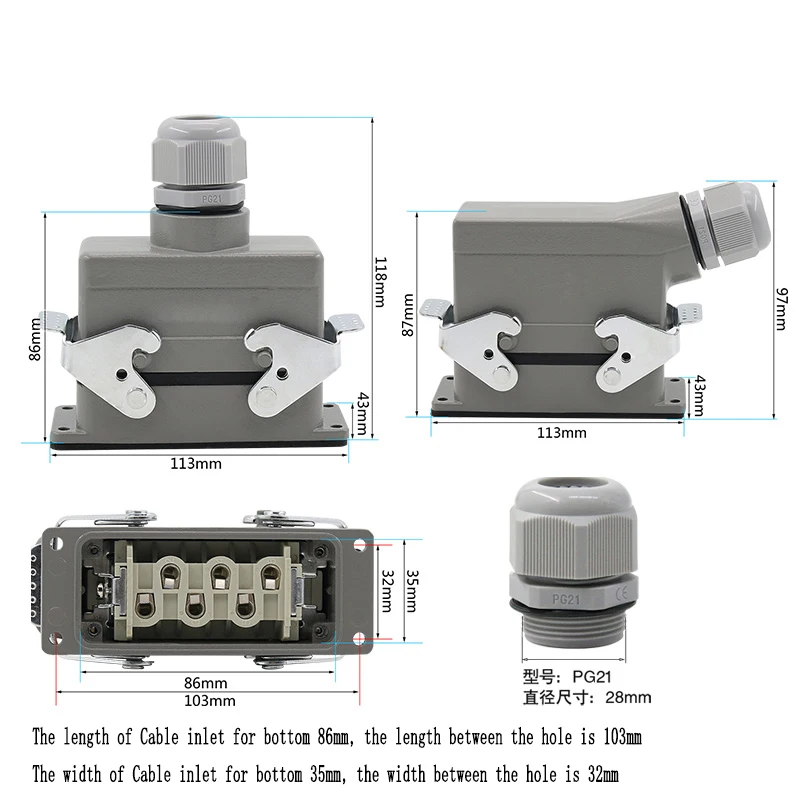

PRODUCT DETAILs:
PRODUCT OVERVIEW:
CONTACT:
