China Factory Supply 240tph Asphalt Mixing Plant for Road Construction

Share on:

Price in USD:Details


Product Overview


Product Description

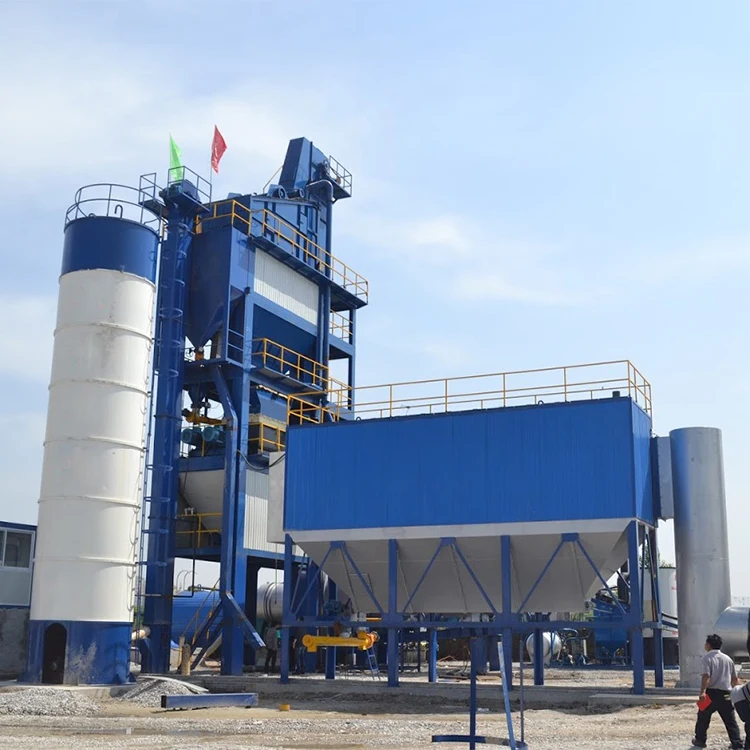

The asphalt plant adopts modular design, easy installation and maintenance, fast removal and transportation. It is mainly used for the construction of highways, highways, municipal roads, airports and ports.
1. Modular design and integrity steel base, reasonable layout, demolition, transportation and installation faster and easier.

2. Superior drying drum plate design, and independent research and development of advanced combustion heating technology to improve efficiency, reduce energy consumption.

3. Plus high hot aggregate bin design to increase the stock of hot aggregate storage, to increase producing capacity.

4. Automatic/manual control system with failure self-diagnosis program, simple and safe.

5. Core components adopt international famous brand products, such as Siemens electrical components, EBICO burners, Switzerland METTLER TOLEDO weighing sensor, etc., reduces the failure rate and prolong its service life.


Sinoroader | Aggregate Supplying System

1.Protective plates on both sides of the aggregate hoppers to avoid sundries getting into the aggregates and conveying belt;

2.To make the supplying smoother, vibrators are equipped below each hopper;

3.Adds grid plate at top of each hopper to buffer the shock from aggregates flow, meanwhile it screens oversize aggregates;

4.Conveying belt is protected by dustproof cover to reduce dust emission;

5. Adds belt cleaners and pinch rollers to make the aggregates supplying more fluent and accurate, besides, they also extend the belt durability;

6.Small vibrating screen is added between belts, to further screen oversize aggregates;

7.The supplying system has insufficient material alarm system, ensuring a safe and smooth production.

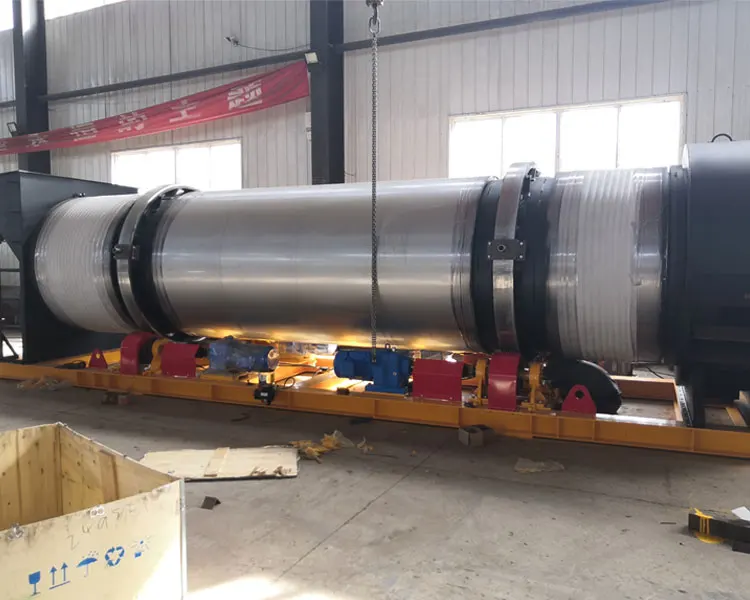

Sinoroader | Drying System Batch Mix Asphalt Plant,LB Asphalt Plant,Mobile Asphalt Plant

1.Driving units have auto lubrication device, greatly reduces labor cost;

2.Different areas inside the drying drum have different blade configurations, which can handle aggregates in different processes;

3.The rolling rings and rollers are applying high strength wear-resisting material. Deviation preventing rollers for both rolling rings;

4.The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;

5.The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.


Sinoroader | Aggregates Elevating System

1.The aggregates elevator takes modular design with newest dust sealing structure;

2.Elevator applies double plate link chains design, which extends the elevator's service life and reduces maintain frequency.

3.Excellent leakproofness with the moters;

4.Applies famous cycloidal pin gear speed reducers, more powerful and reliable;

5.The aggregates slide tunnel adopts damping structure wear-resisting plate link chains to enhance the performance.


Sinoroader | Screening System
1.Vibrating screens that apply world famous vibration motors are completely sealed;
2.Aggregate storage bin adopts large bin structure to avoid material overflow;
3.Aggregate bins are separated by high strength wear-resisting plate to avoid aggregates mixing.


Sinoroader | Weighing System

Adopts world famous brand (TOLEDO) weighing component, to make sure that the measurement error of aggregates is below 0.5%, and the measurement error of bitumen and filler is below 0.25%.


Sinoroader | Mixing System Asphalt Batch Mix Plant,Batch Mix Asphalt Plant,Asphalt Road Construction Machine,LB1500 Asphalt Mixing Plant,Mobile Asphalt Mixing Plant.

A.The mixer, mixing blades and liner plates are all using the best materials with high hardness and high abrasion performance;

B. The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.


Sinoroader | Finished product storage system

1. The storage silo has heating device to keep asphalt temperature and quality;

2.The silo has anti-blocking device to keep asphalt quality.


Company Information

 Henan Sinoroader Heavy Industry Corporation is a world-famous road and bridge machinery manufacture,located in Zhengzhou City, Henan Province.Our producing base is located in Weidu District,Xuchang City with factory area over 80,000 m2.Sinoroader has first-class production equipment and R&D team.Sinoroader has more than 500 production and research staff and workers,responsible for product re- search,design,production,installation,commissioning and after-sales service.The R&D team has obtained master's degree or above,and 60 of them have got PHD.The production team includes more than 200 senior technical workers and 320 skilled workers. Core business includes:road and bridge machinery equipment manufacturing;old equipment alteration;Project construction design & con- sulting service.Core products series includes:asphalt mixing plant;concrete and stabilized soil mixing plant;road maintenance equipments and material;Bitumen related equipments.Can meet the diferent needs of different regions,different markets and different customers all over the world.
In addition to Domestic market team,Sinoroader market department also has Southeast Asia,Central Asia,Africa,Middle Eastern Asia and American market teams.In these major regions,Sinoroader has set up branch offices in Pakistan,Uzbekistan,Uganda,Myanmar,Philip- pines,and Kenya to be responsible for the expansion of overseas business.





Our Services


1. Any inquiry will be replied within 24 hours.


2. Factory visit is welcomed and airport pick up service.


3. We can do the designs according to the customers' requirement.


4. We can offer you the high quality & reasonable price,and we have trade assurance.


5. 12 months super long time guarantee period.




Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.

Q2. What markets do you export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.

Q3. Is it available to print our own brand ?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.

Q4. How can I get the price of your product?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.


Q5. What is your after-sale service?

12 month warranty.

Provision with relevant technical support.

Available spare parts after ordering.
