compact size,light weight marsh geophone string for oil exploration in all kinds of shallow water areas

compact size,light weight marsh geophone string for oil exploration in all kinds of shallow water areas

Category: Other Electronic Measuring Instruments >>>
Supplier: SmartSolo(Beijing)Inc.

Price:$120.00 - $160.00

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

1、DMC5 Marsh Geophone String is a kind high sensitivity marsh geophone string
2、Low cost, high construction efficiency, high signal-to-noise ratio, strong resistance to harsh environment, reliable waterproof performance
3、The portable structure is convenient for field transportation and construction with the lowest workforce cost; Compared with the conventional detector series, it is easier to find problems and more easier to repair and maintenance
4、Low harmonic distortion element and good coupled design which can provide better SNR.
5、The case is made of high strength and low water absorption, so that buried three components light, strong, wear - resistant, water - proof, can be used in a variety of harsh environment. Shape-taper design is for easy deployment and barrier-free recovery.

Spike: 75mm Spike and 102mm Spike
6、Waterproof: IP68
7、Cable

Two cores

2-100-250F 6.35mm(0.250 ");

:Pull Strength Range:90kg；
Three cores
3-100-250F 6.35mm(0.250 ");3-100-225F 5.7mm(0.225")
Pull Strength Range:120kg；

8、working temperature:-10℃ to +70℃
9、Connectors: DCK waterproof single Male/Female Connector (KCK/408 Series)/customized

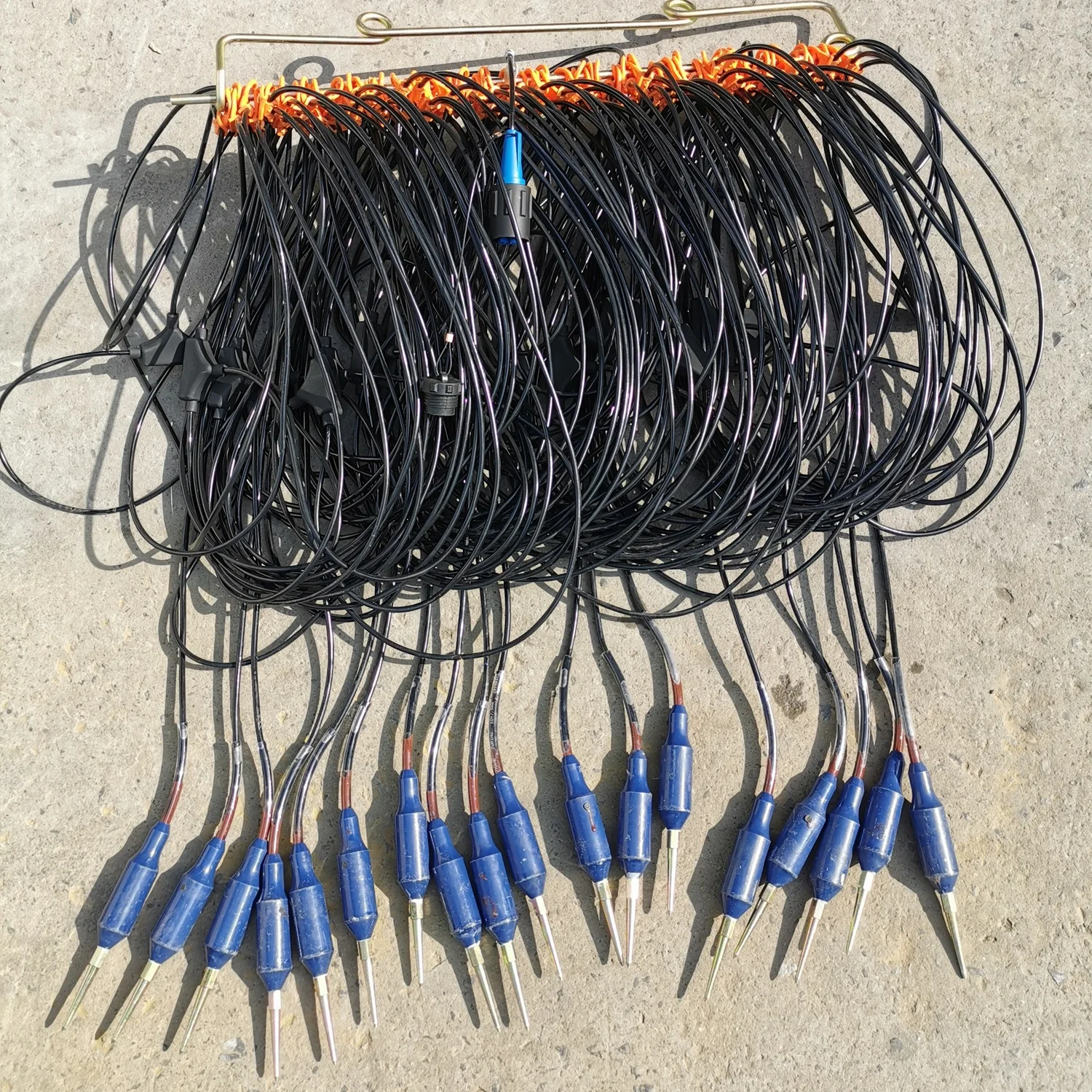

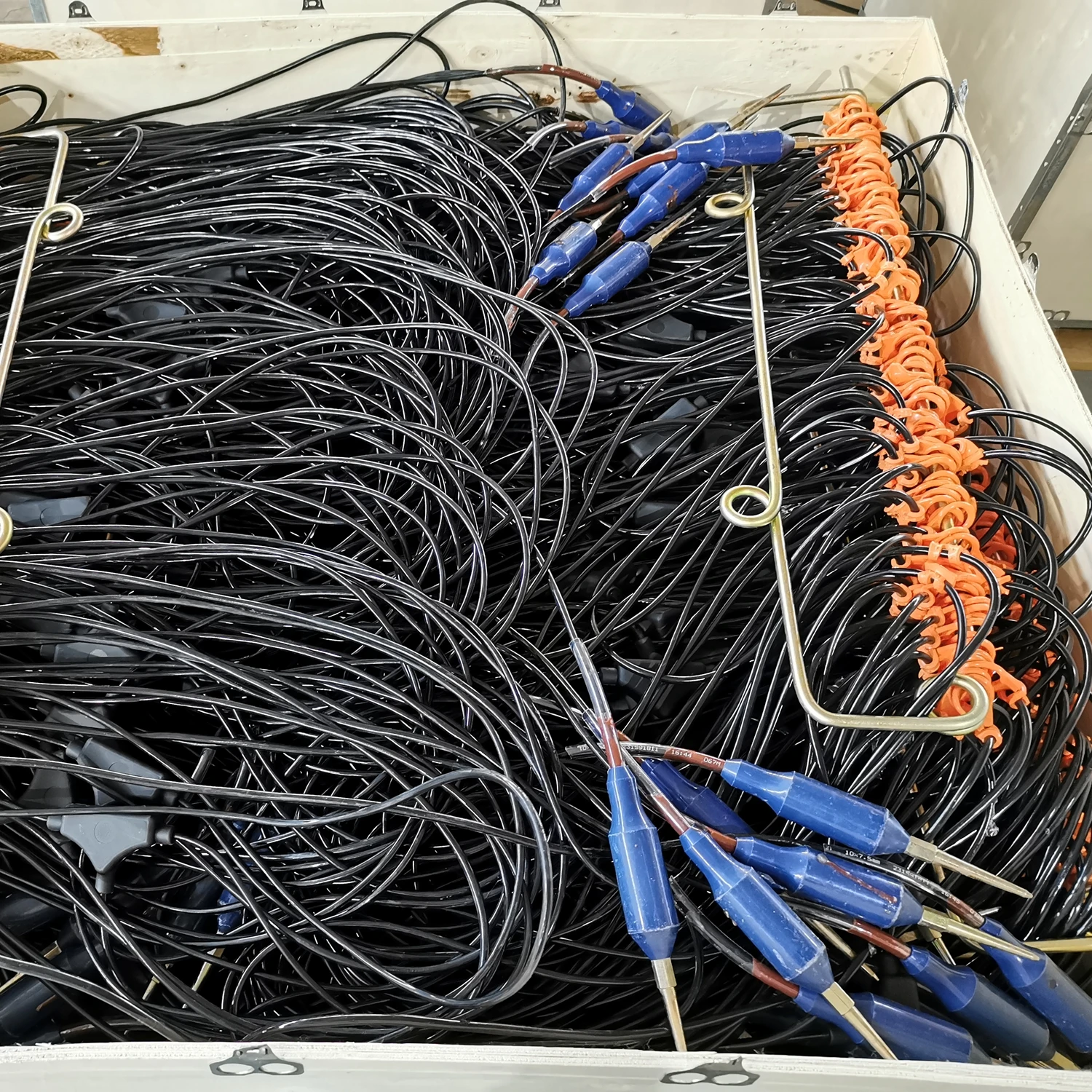

Product Images

PRODUCT SPECIFICATIONS

Shell color	customizable blue
Geophone element	HP102
Connector	customizable DCK screw-on push-on Male/female Plug，
Cable diameter	5.7,6.4 mm also customizable
Use environment	marsh,shallow water,transition zone（water depth 0-15 meter）
Frequency	10HZ
Working method	Vertical
Spike	75mm brass/steel or 102mm brass

Why Choose Us

High quality and 100% test

1.We have more than 30 years of experience

2.we use supper special method to make it high quality

3.Perfect design from our own patent

4.we use very good material

5.100% test before delivery.

Company Profile

About us

The DTCC Group was formed in 1999, with its headquarters located in Calgary, Canada. It is a manufacturer of vibration sensing and measuring equipment. This equipment, which uses “internet of Things” technology,is designed for use in unusual and challenging environments.The DTCC Group has an international presence. in addition to the corporate, training and marketing facilities in North America, we have a Business Development Center located in Beijing, together with a Research, Development and Manufacturing Facility in Shenzhen. Aditional production locations are in Langfang, Hebei and Dongguan, Guangdong.DTCC also has offices and subsidiaries in several other countries round the world. Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
