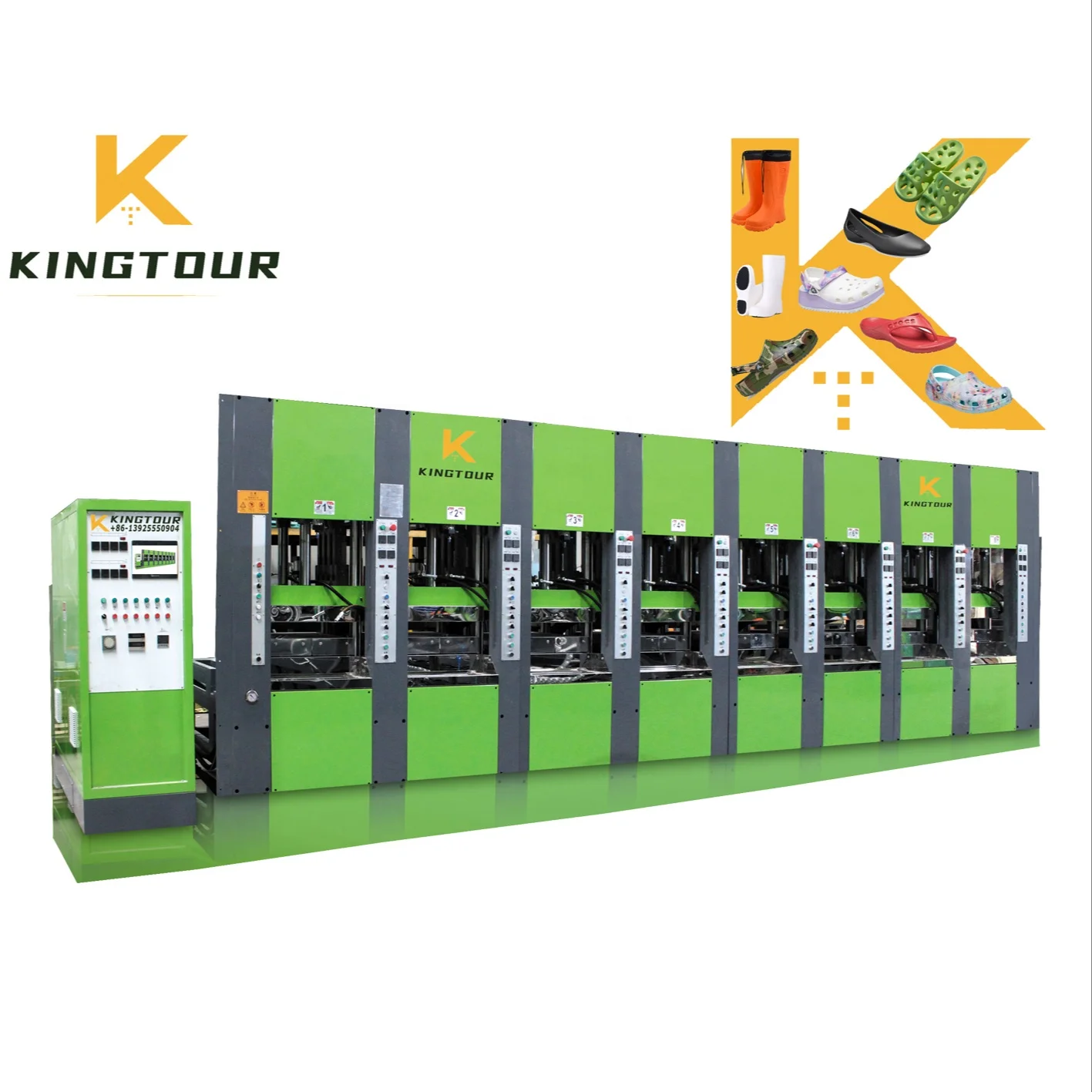

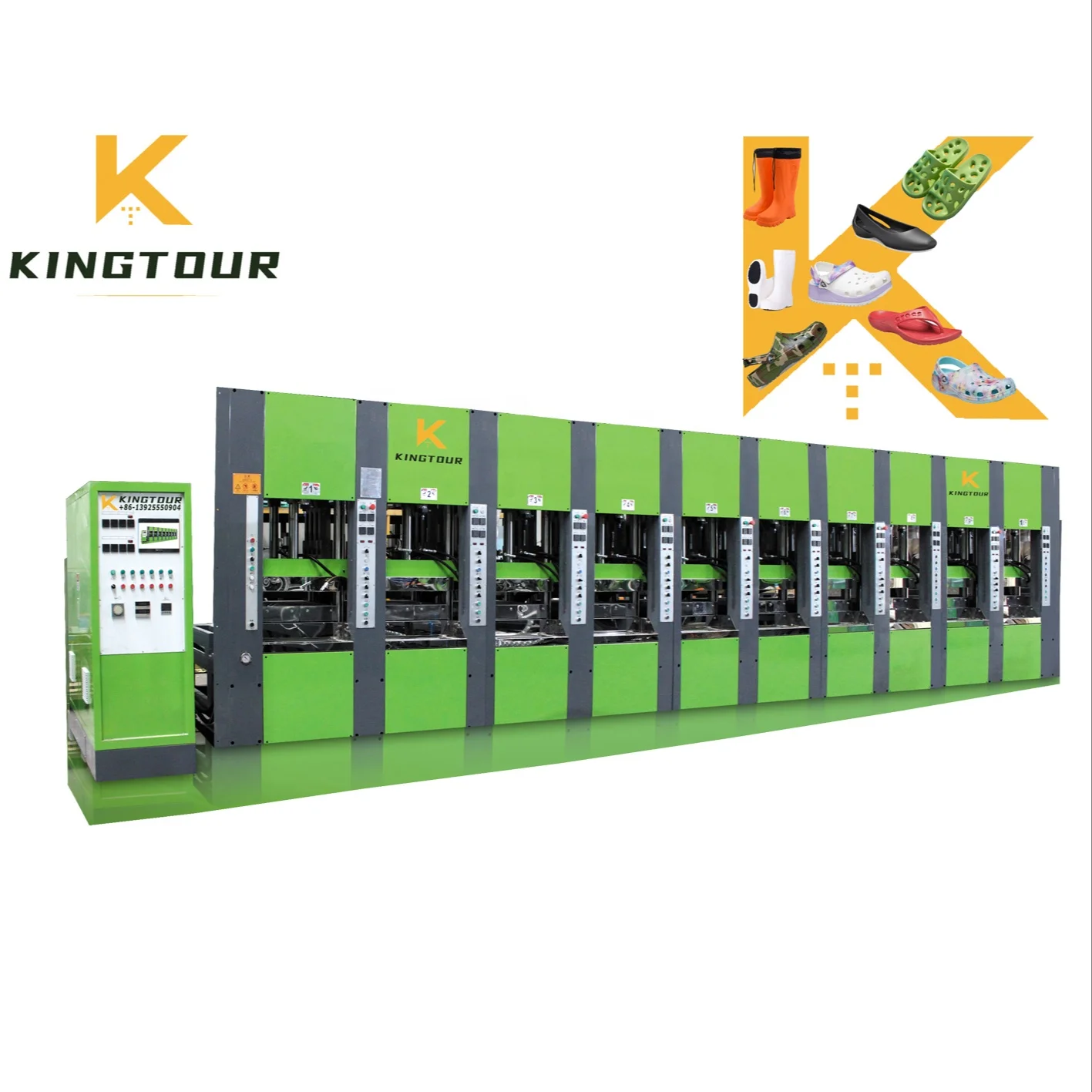

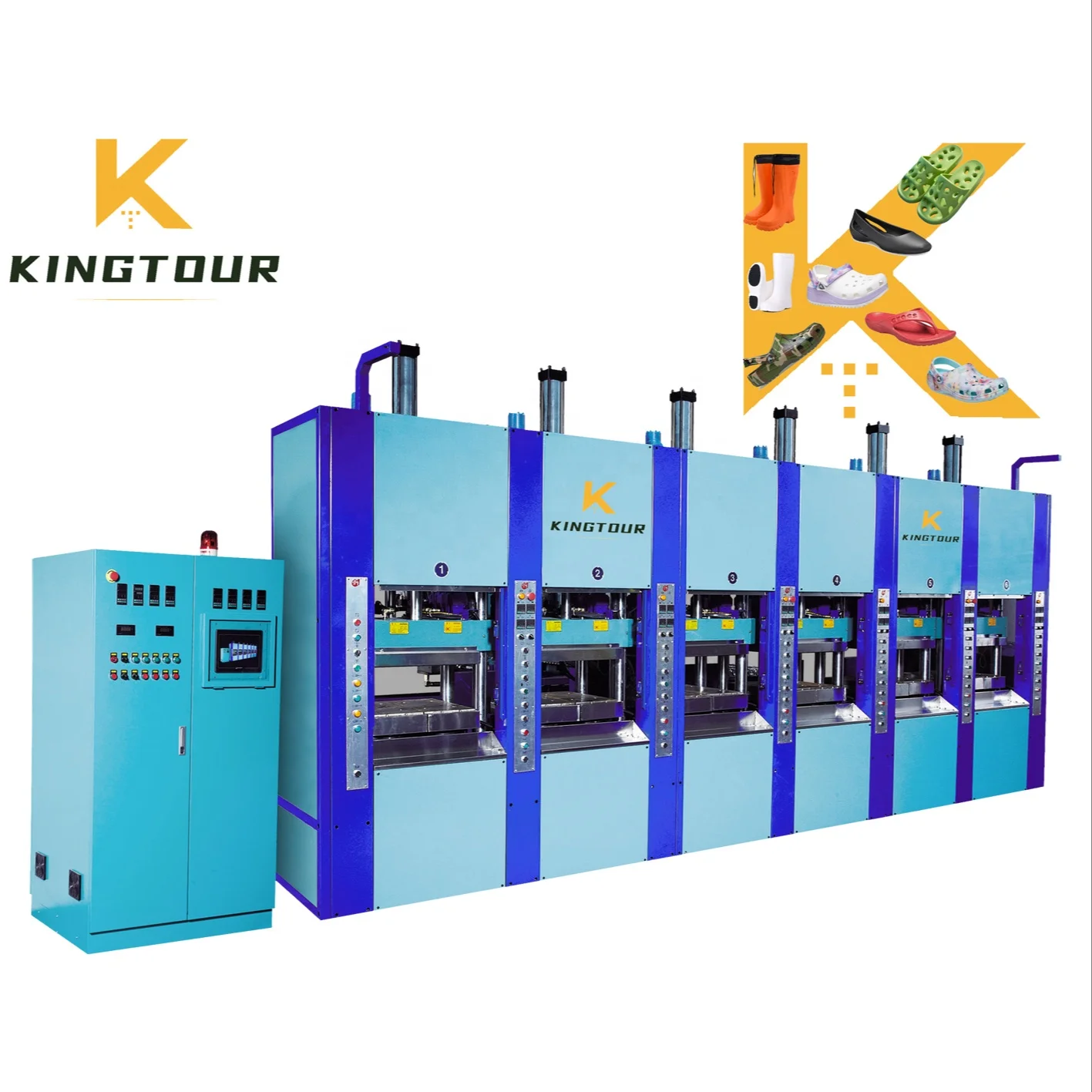

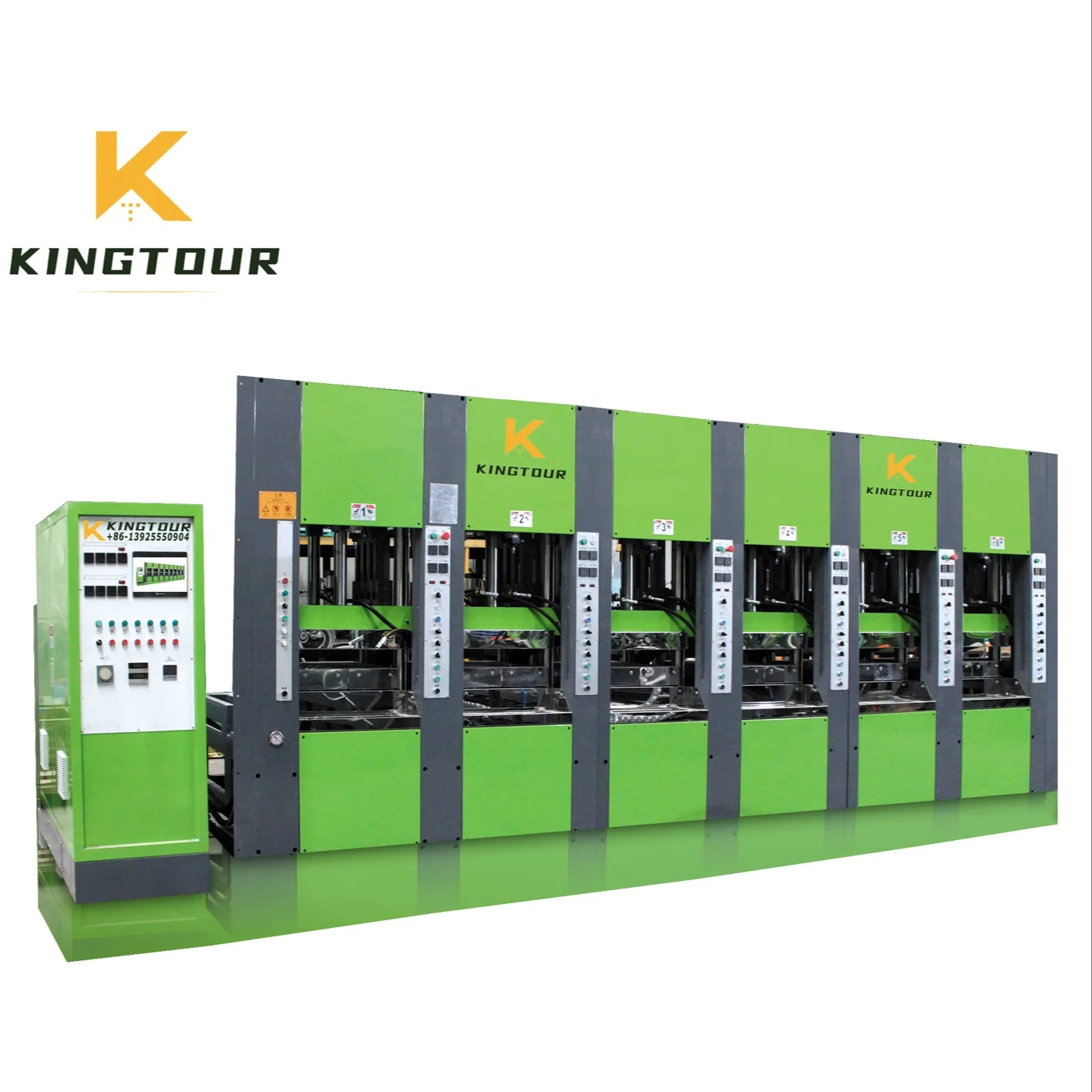

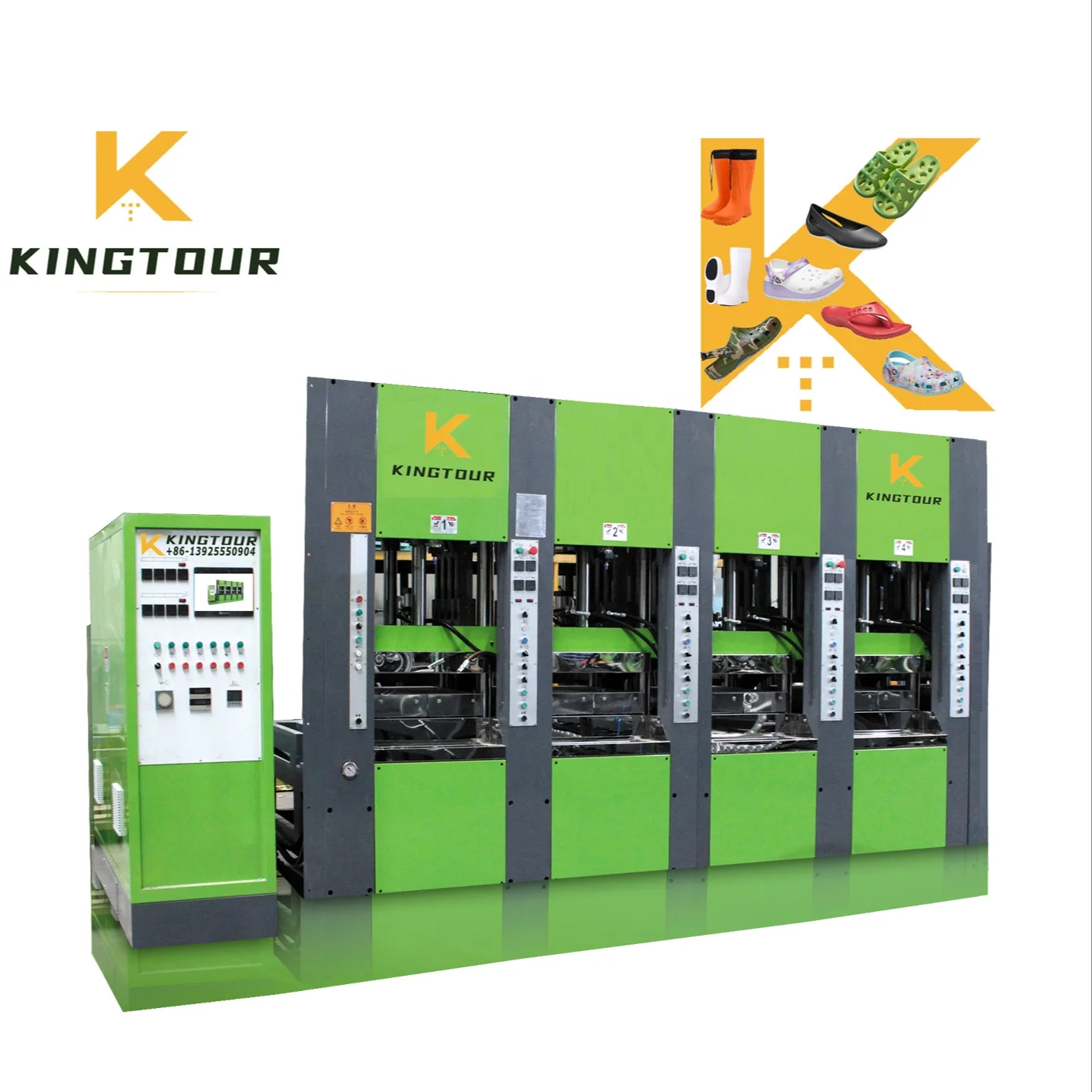

KT-686 EVA Shoe Sole Machine
This machine can make various kinds of slipper, shoe, sandal, boot and sole with EVA material.
3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.
4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.
5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.
6. Automatic system for open and close mold will reduce labor intensity a lot.
7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.
8. Low operate platform,Operating height is ergonomic and comfortable .
9. It does not need water cooling circulation for mold station.
10. Automatic safety door and fence structure ensure the safety of personnel.
It only need 100 square meters and 2 workers, then you can start to make slippers.
it is very suitable for the new investors.
1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.
2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.
2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.
3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.
4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.
5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.
6. Automatic system for open and close mold will reduce labor intensity a lot.
7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.
8. Low operate platform,Operating height is ergonomic and comfortable .
9. It does not need water cooling circulation for mold station.
10. Automatic safety door and fence structure ensure the safety of personnel.
FEATURES AT A GLANCE
Specification of EVA slipper making machine
Model: KT-686
Production: 400-600 Pcs/Hour
Work station: 6 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 76.8 kw
Hydraulic system:51.9 kw
Total power: 150 kw/h
Temperature control: 4 section
Machine dimension: 8100*4600*3050 mm
Machine weight: 25800 kgs
Loading into a 40 feet container
Model: KT-686
Production: 400-600 Pcs/Hour
Work station: 6 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 76.8 kw
Hydraulic system:51.9 kw
Total power: 150 kw/h
Temperature control: 4 section
Machine dimension: 8100*4600*3050 mm
Machine weight: 25800 kgs
Loading into a 40 feet container
Finished samples
Flip flop sample produced by our machine
You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
Slipper sample produced by our machine
We have more than 10,000 designs in our sample room, please contact me for more designs.
Machine Video
PRODUCT CONFIGURATION
PLC+Full-touch screen operation
Imported control valve
Power saving of servo system
