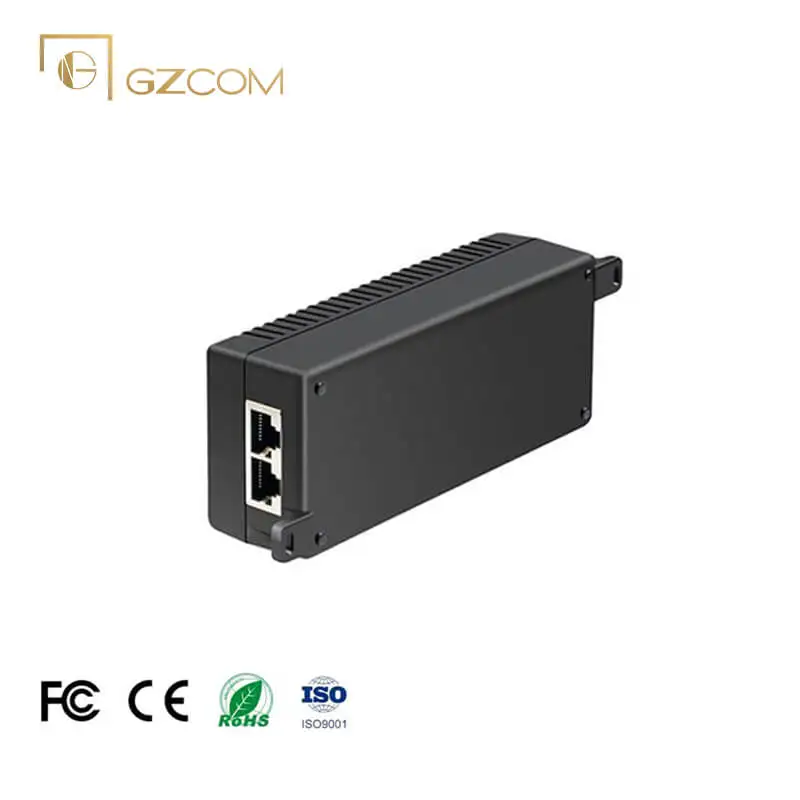

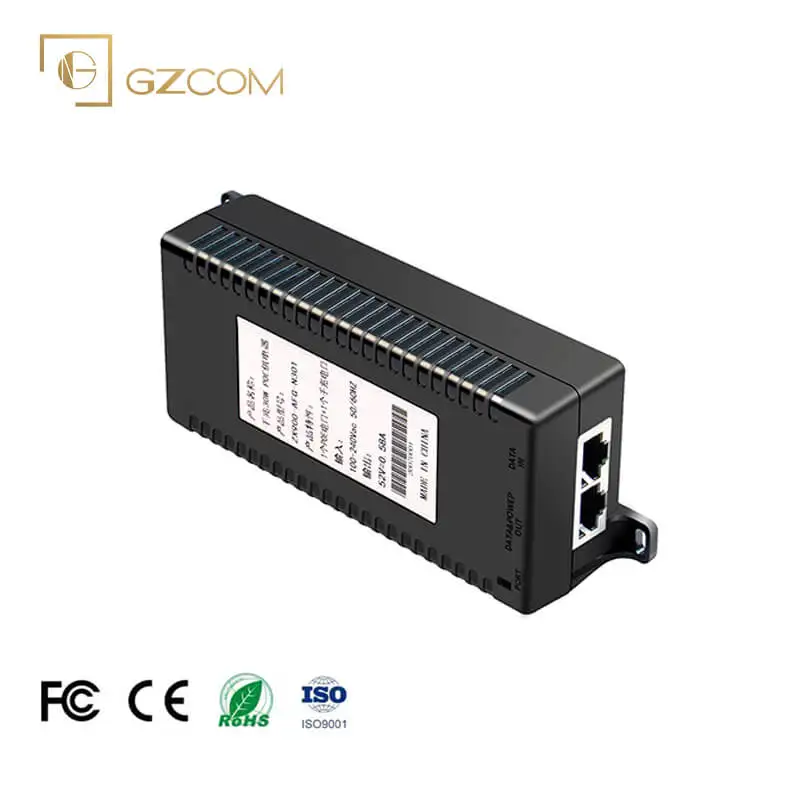

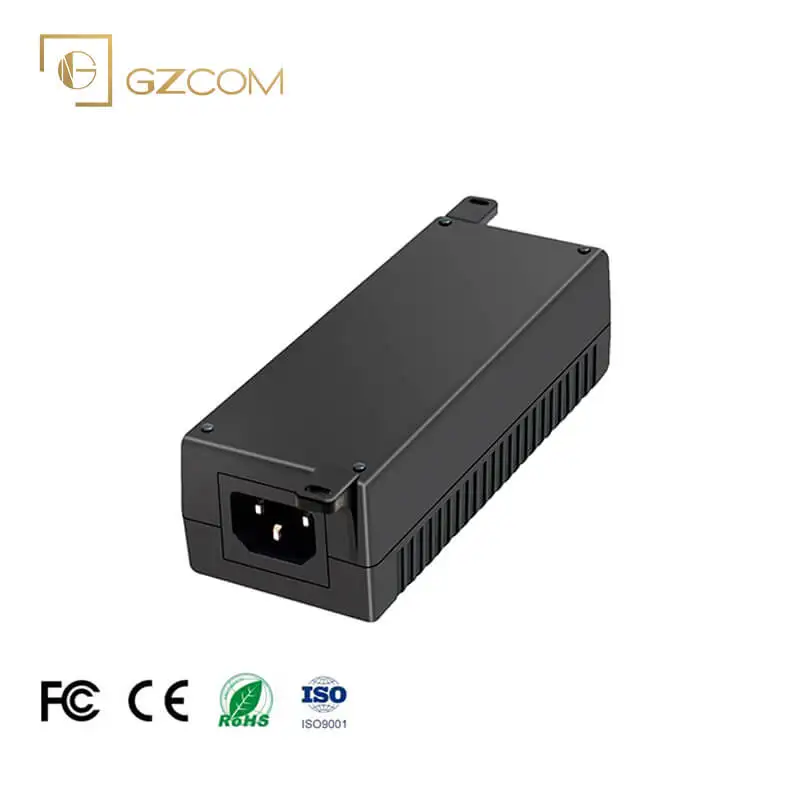

Manufacturer wholesale 2.5G 30W 48v IEEE 802.3af/at PoE Injector For CCTV IP Camera
- Category: >>>
- Supplier: Shenzhen Gzcom Communication Co. Ltd.
Share on (1600508185247):
Product Overview
Description
Product Description
Product Paramenters
I/O Interface | ||
Power | AC 100-240 V | |
Ethernet | 1*2.5G Ethernent Port 1*2.5G PoE Port | |
Standard | ||
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) | |
PoE protocol | IEEE802.3af （15.4 W） IEEE802.3at （25.4 W） | |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |
Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) | |
Protection | ||
Security Certificae | CE、FCC、RoHS | |
Environment | ||
Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~80°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet | |
Indication | ||
LED Indicators | PROT | |
Mechanical | ||
Structure Size | Product Size：142* 55*40MM Package Size：210* 160*55MM Product Net-Weight：0.2KG Product Gross-Weight：0.4KG | |
Packing Info | MEAS：600*495*435MM Packing Qty：60PCS Packing weight：25 KG | |
Power Voltage | Input Voltage: AC 100-240 V | |
Package List | PoE Injector * 1 pair User Manual * 1 pcs Power Cable * 1pcs | |
Ordering Info | ||
GZ-I-30P | 30W Gigabit POE Injector | |

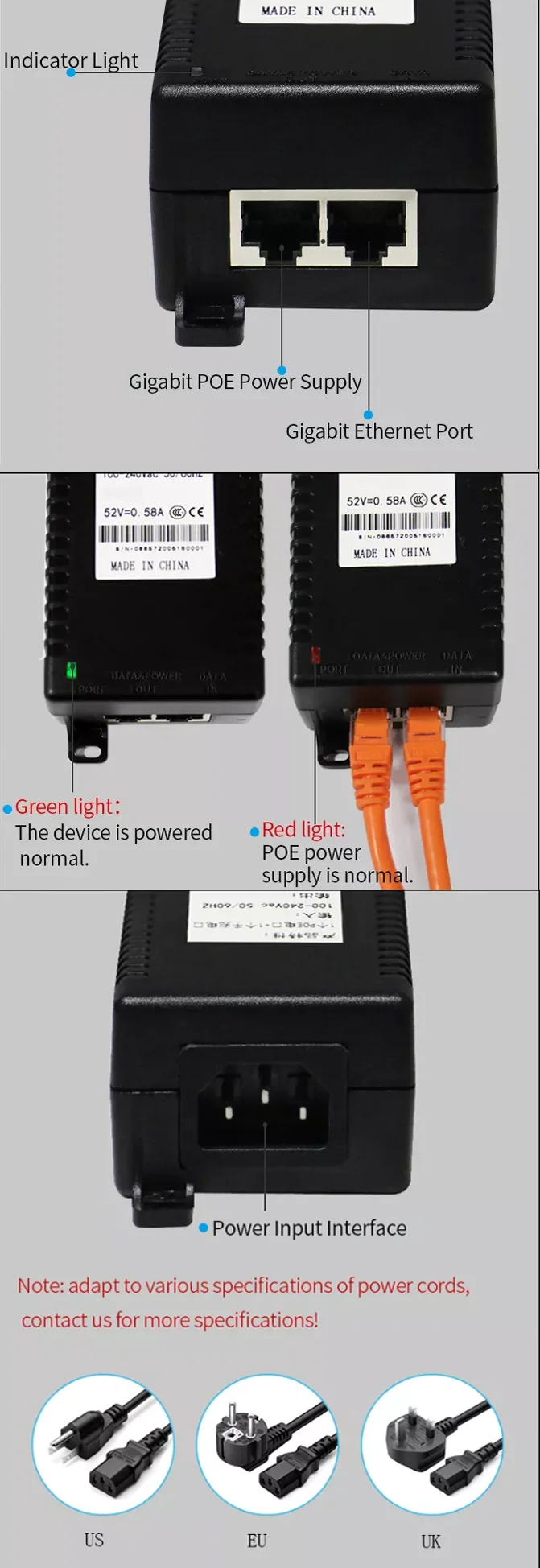

Details Images
