Yonker Official Handheld E4 Portable Patient Monitor With Etco2 4 Inch 4 Parameters Cardiac Icu Vital Signs Monitor For Sale
- Category: >>>
- Supplier: Xuzhou Yongkang Electronic Science Technology Co. Ltd.
Share on (1600508291446):
Product Overview
Description
Product Description
Yonker E series is vital signs monitor designed and R&D for the transport, portable environment.
IE4 is a handheld vital signs monitor, small size, easy to move, flexible parameters combination, cheap price, to meet the needs of customization.
Product performance:

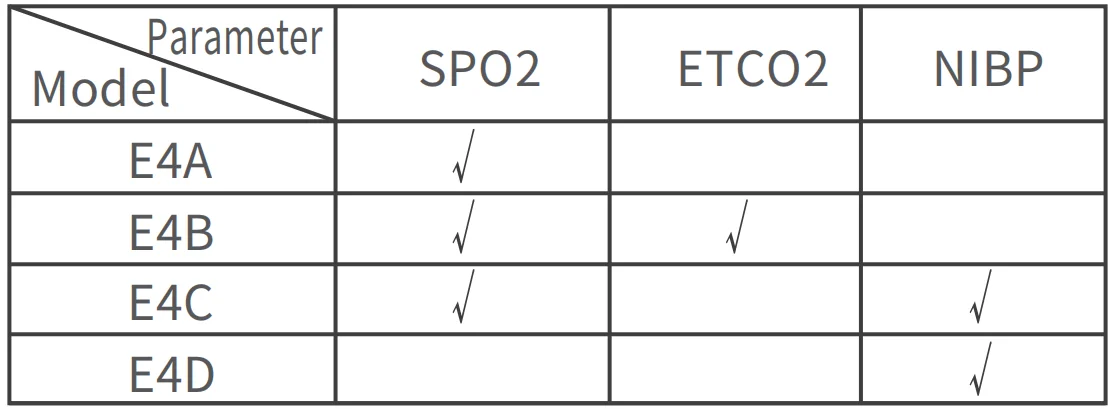

1. Diversified functional combinations: SpO2, SpO2 + CO2, SpO2 + blood pressure, blood pressure. 4 different
functional combinations can be better adapted to different customer needs;
2. Adopt 4-inch TP fit touch screen, touch more sensitive, full viewing angle display effect is better;
3. Dustproof and waterproof grade: IP22;
4. Dual-contact and Type-C two charging methods can be switched at will, storage and charging two-in-one;
5. Built-in 2000mAh polymer lithium battery, on single
blood oxygen state, can detect more than 5h;
blood oxygen state, can detect more than 5h;
6. Battery and power supply line to power, convenient to apply to different environmental conditions;
7. With sound and light alarm, it is convenient for medical staff to observe the patient's status in real time;
8. Touch plus physical button combination (machine side switch button, one key pressure measurement button);
9. Bare metal size: 155.5*73.5*29 easy to hold and transfer;
10. Gravity sensing system, vertical screen and horizontal screen two kinds of display and storage methods, better applied in different fields.
Scope of application:
E4 handheld vital signs monitor is suitable for patient transport, rounds, outpatient clinics, operating room and other places, suitable for neonatal, pediatric, adults, the elderly and other groups of people.
E4 handheld vital signs monitor is suitable for patient transport, rounds, outpatient clinics, operating room and other places, suitable for neonatal, pediatric, adults, the elderly and other groups of people.

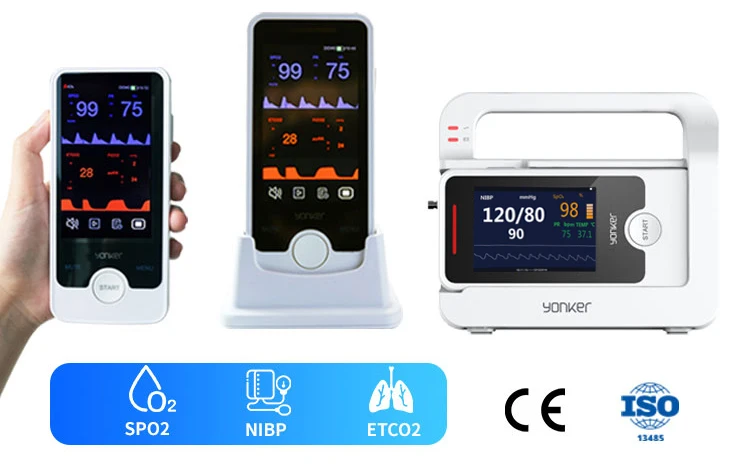

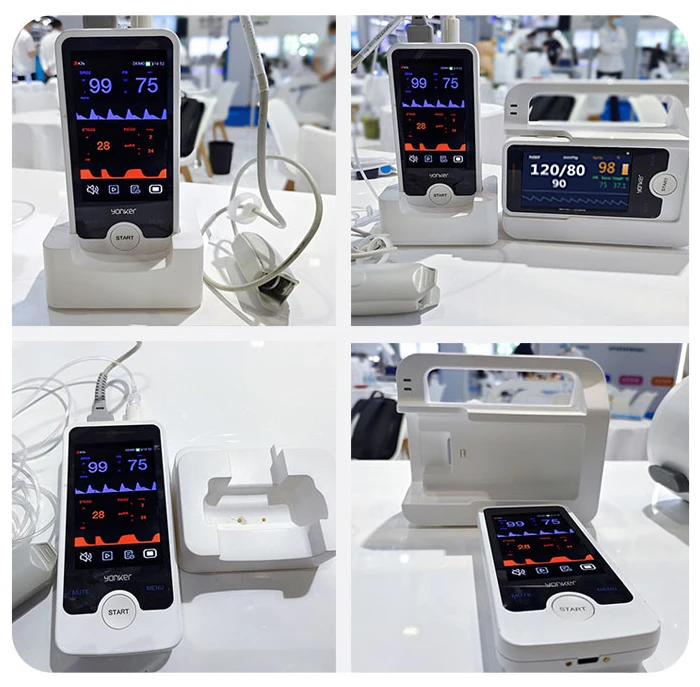

Product Show
1. Adopt 4-inch TP fit touch screen, touch more sensitive, full viewing angle display effect is better;
2. Gravity sensing system, vertical screen and horizontal screen two kinds of display and storage methods, better applied in different fields;
3. Bare metal size: 155.5*73.5*29 easy to hold and transfer.
2. Gravity sensing system, vertical screen and horizontal screen two kinds of display and storage methods, better applied in different fields;
3. Bare metal size: 155.5*73.5*29 easy to hold and transfer.
1. Dual-contact and Type-C two charging methods can be switched at will, storage and charging two-in-one;
2. Built-in 2000mAh polymer lithium battery, on single blood oxygen state, can detect more than 5h;
3. Battery and power supply line to power, convenient to apply to different environmental conditions;
4. Dustproof and waterproof grade: IP22.

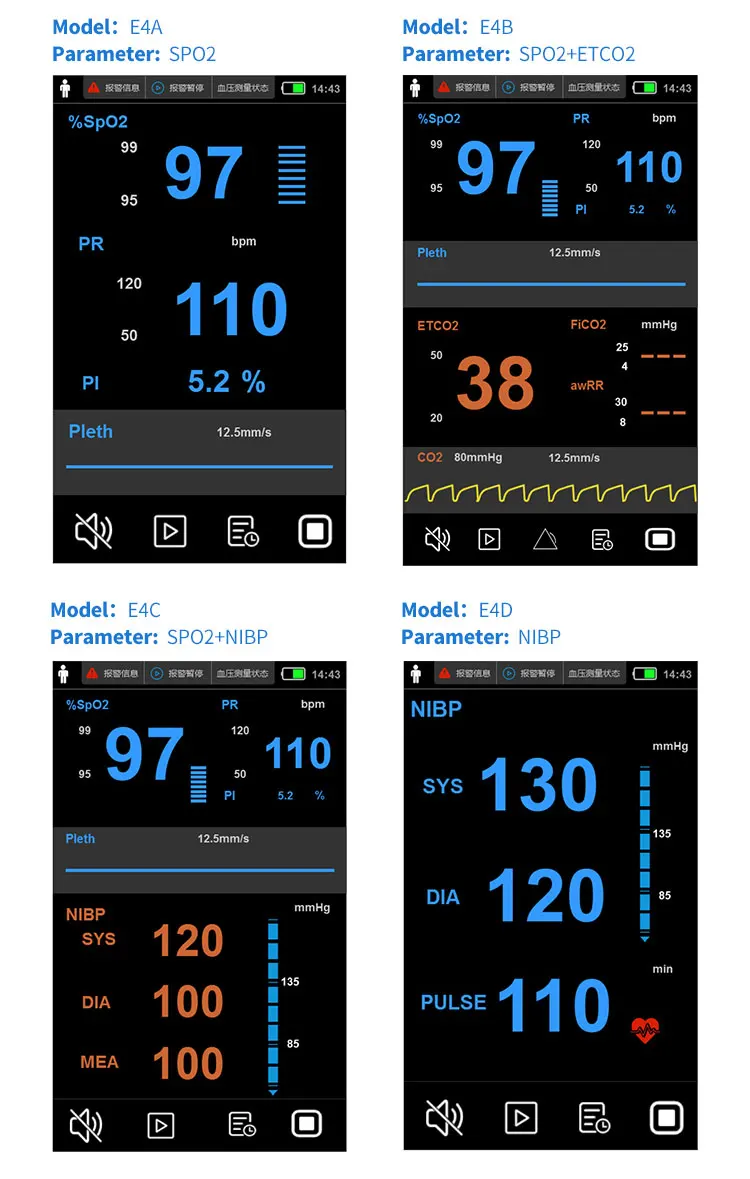

Diversified functional combinations: SpO2, SpO2 + CO2, SpO2 + blood pressure, blood pressure. 4 different functional combinations can be better adapted to different customer needs.
Quality Standards and Classification | CE, ISO13485 |
SFDA: ClassⅡb | |
Anti-electroshock degree: | |
ClassⅠequipment | |
(internal power supply) | |
CO2/SpO2 /NIBP: BF | |
Display | 4” real color TFT screen |
Resolution: 480*800 | |
One alarm indicator(yellow/red) | |
Standard touch screen | |
Environment | Operating environment : |
Temperature: 0 ~ 40℃ | |
Humidity: ≤85% | |
Altitude: -500 ~ 4600m | |
Transport and Storage environment : | |
Temperature: -20 ~ 60℃ | |
Humidity: ≤93% | |
Altitude: -500 ~ 13100m | |
Power Requirements | AC: 100 ~ 240V, 50Hz/60Hz |
DC: Built-in rechargeable battery | |
Battery: 3.7V 2000mAh | |
Fully charged for about 5 hours (single blood oxygen) | |
5min operating after low battery alarm | |
Dimension and Weight | Host size: 155*72.5*28.6mm 773g(about) |
Package: 217*213*96mm | |
Storage | Can store 500~1000 sets of historical data |
NIBP | Method: Pulse wave oscillometry |
Work mode: Manual/ Auto/ STAT | |
Measure interval of auto mode: | |
1,2,3,4,5,10,15,30,60,90,120 | |
Measuring Time of STAT Mode: 5 minutes | |
PR range: 40 ~ 240bpm | |
Measure & alarm range: | |
Adult | |
SYS 40 ~ 270mmHg | |
DIA 10 ~ 215mmHg | |
MEAN 20 ~ 235mmHg | |
Pediatric | |
SYS 40 ~ 200mmHg | |
DIA 10 ~ 150mmHg | |
MEAN 20 ~ 165mmHg | |
Static pressure range: 0 ~ 300mmHg | |
Pressure precision: | |
Max. average error: ±5mmHg | |
Max. standard deviation: ±8mmHg | |
Overvoltage protection: | |
Adult 300mmHg | |
Pediatric 240mmHg | |
Pulse Rate | Range: 30 ~ 240bpm |
Resolution: 1bpm | |
Precision: ±3bpm | |
SPO2 | Range: 0 ~ 100% |
Resolution: 1% | |
Precision: | |
80% ~ 100%: ±2 % | |
70% ~ 80%: ±3 % | |
0% ~ 69%: ±no definition given | |
CO2 | Only side stream |
Warm-up time: | |
when the ambient temperature is 25 ℃, the carbon dioxide curve (capnogram) can be displayed within 20/15 seconds, and all the | |
specifications can be fulfilled within 2 minutes. | |
Measurement range: | |
0-150mmHg, 0-19.7%,0-20kPa (at 760mmHg), | |
atmospheric pressure provided by the host. | |
Resolution | |
0.1mmHg ： 0-69mmHg | |
0.25mmHg ： 70-150mmHg | |
Precision | |
0-40mmHg ： ±2mmHg | |
41-70mmHg ： ±5%（reading） | |
71-100mmHg ： ±8%（reading） | |
101-150mmHg ：±10%（reading） | |
Respiratory rate range 0- 150 BPM | |
Respiratory rate accuracy: ±1 BPM | |
Application Range | Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU/Transfer |

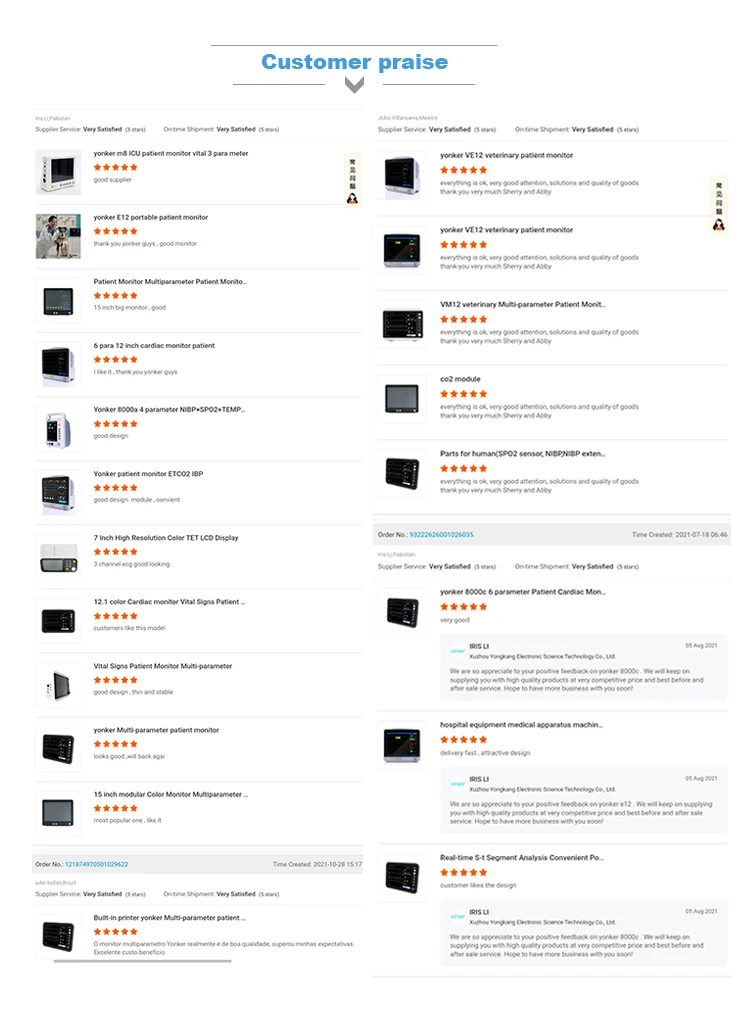

Customer Reviews
You May Like
Company Profile

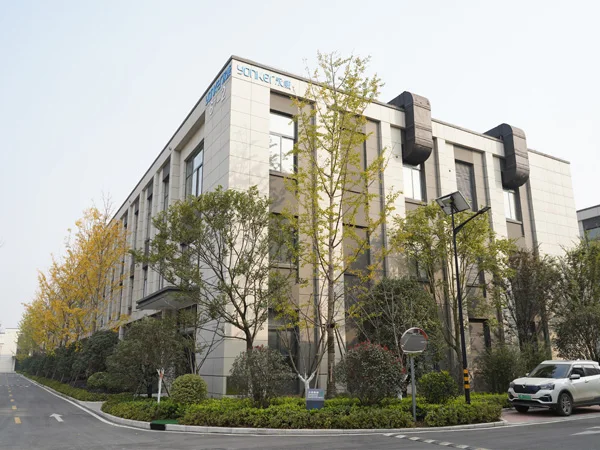

About Yonker.

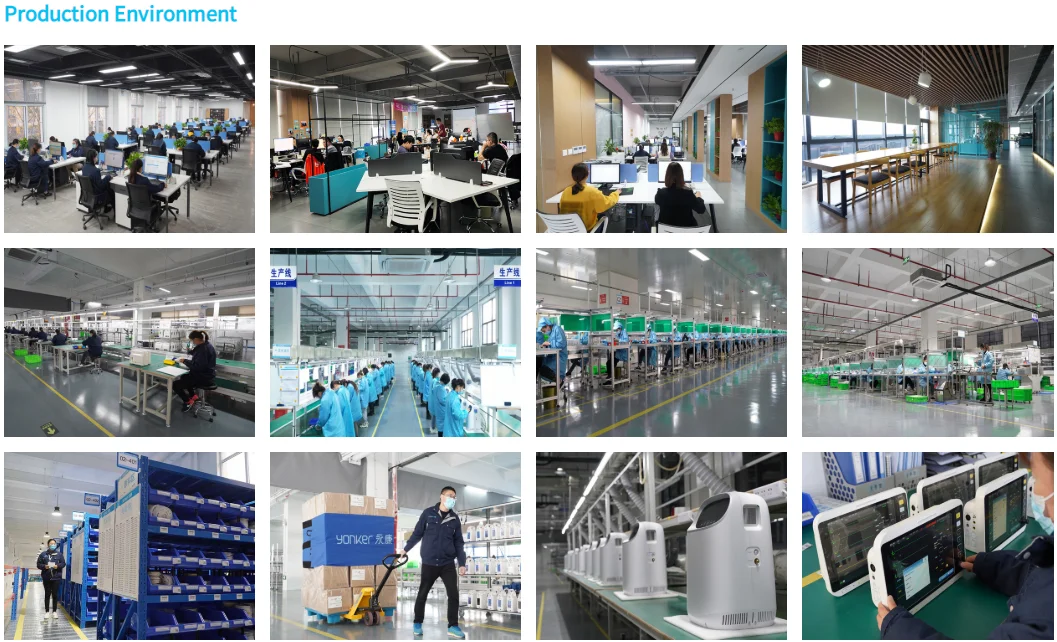

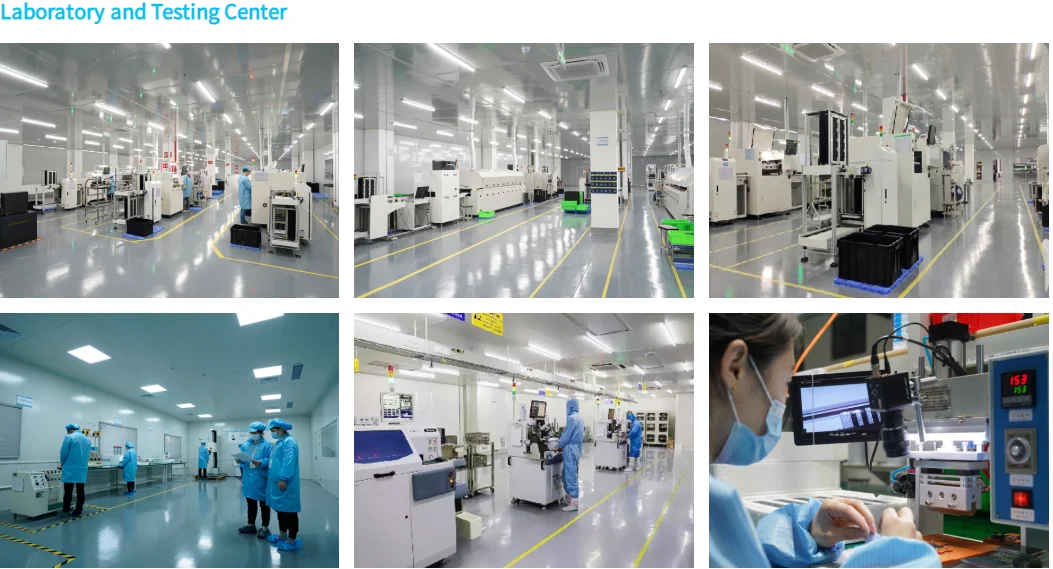

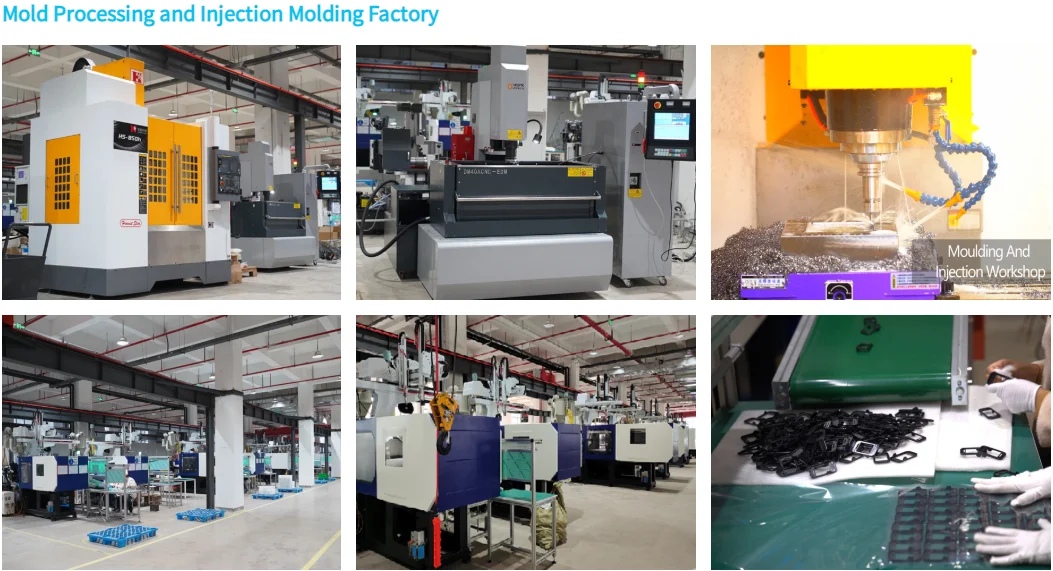

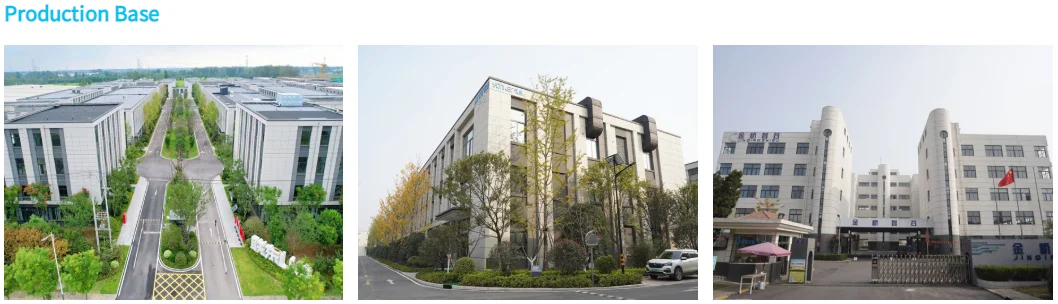

Yonker has two R&D centers in Shenzhen and Xuzhou with a R&D team of about 100 person. At present we have nearly 200 patents and authorized trademarks. Yonker also has three production bases cover an area of 40000 square meters equipped with independent laboratories, testing centers, professional intelligent SMT production lines, dust-free workshops, precision mold processing and injection molding factories, forming a complete and cost-controllable production and quality control system. The output is nearly 12 million units to meet the customized needs of global customers.
