Amensolar 5kw MPPT Charge Controller 110v/120v for US 8kw Solar Power Inverters With UL 1741 On Off Grid Solar Hybrid Inverter
- Category: Solar Energy Products >>>
- Supplier: Amensolar,Ess,Co.,Ltd.
Share on:
Product Overview
Description
5KW/8KW/10KW
HYBRID ON/OFF GRID INVERTER
HYBRID ON/OFF GRID INVERTER
Key Features:
◆ UL Certification
◆ 48V low-voltage batteries
◆ 120V/240V(split phase), 208V(2/3 phase), 230V(singlephase)
◆ 48V low-voltage batteries
◆ 120V/240V(split phase), 208V(2/3 phase), 230V(singlephase)
◆ Exclusive Appearance Designed by Mercedes-Benz Designers
◆ Solarman APP Remote Monitoring for IOS and Android
◆ Touch Button
◆ IP65 Rated
◆ 5 Years Warranty
◆ 7 * 24 Hours Engineer Online Support

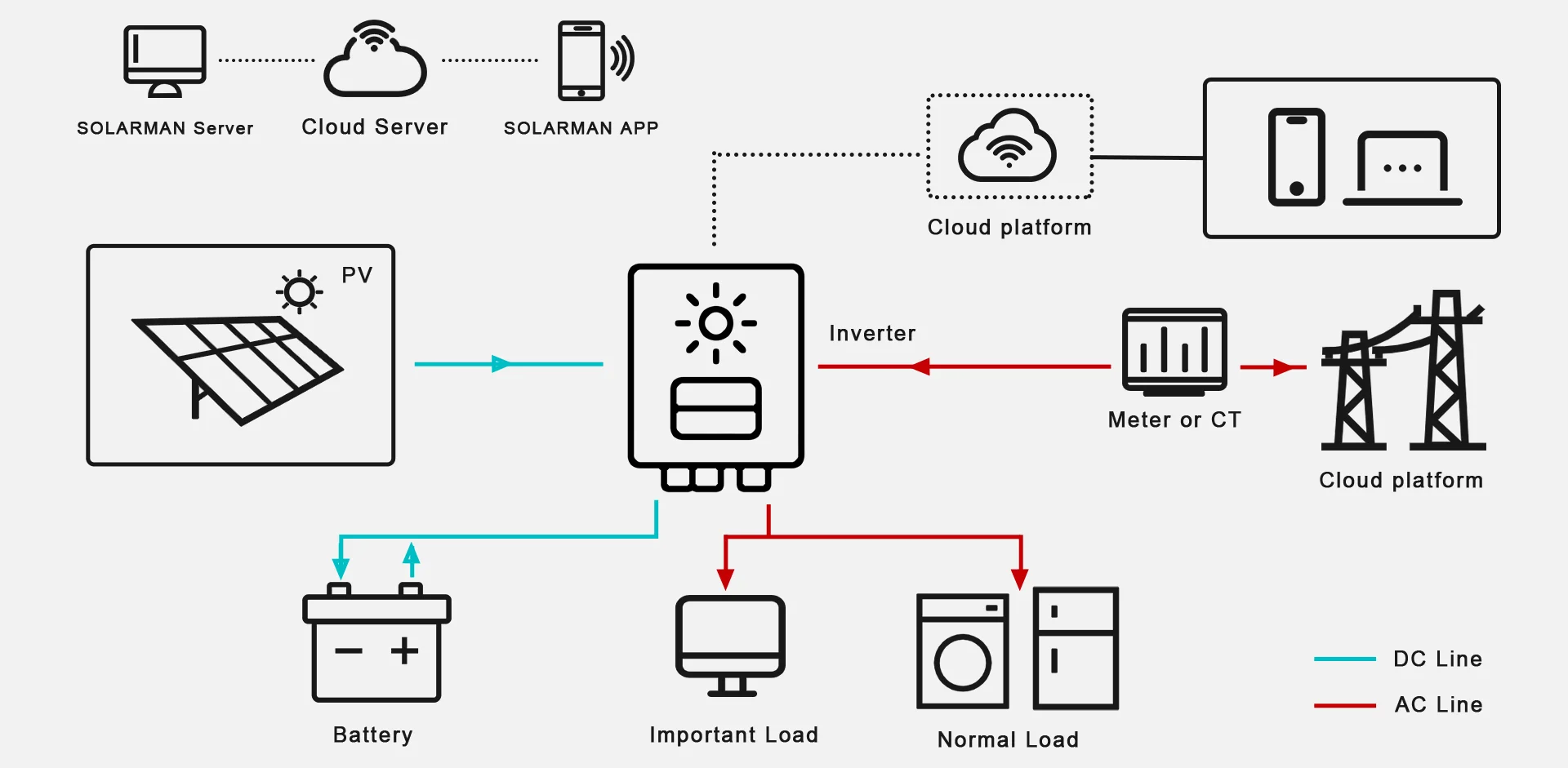

Application Scenarios
Product Paramenters
Model | N3H-X5.0-US | N3H-X8.0-US | N3H-X10.0-US | |||||||||
INPUT(PV) | ||||||||||||
Max power(kw) | 7.5 | 12 | 13 | |||||||||
Max. DC voltage (V) | 500 | |||||||||||
MPPT voltage range (V) | 120~500 | |||||||||||
Max. Input current of single MPPT (A) | 12 | |||||||||||
MPPT tracker/strings | 4 | |||||||||||
AC output | ||||||||||||
Rated output power (kVA) | 5 | 8 | 10 | |||||||||
Max, output current (A) | 24 | 38.3 | 47.8 | |||||||||
Ac output voltage(V) | 120/240(split phase), 208(2/3 phase),230 (single phase) | |||||||||||
Frequency (Hz) | 50/60 | |||||||||||
PF | 0.8lagging-0.8leading | |||||||||||
THDi | ＜3% | |||||||||||
AC output topology | Split phase, 2/3 phase, single phase | |||||||||||
Battery | ||||||||||||
Battery voltage range (V) | 40~58 | |||||||||||
Max. charging voltage (V) | 58 | |||||||||||
Max. charge/discharge current (A) | 120/120 | 190/190 | 210/210 | |||||||||
Battery type | lithium /Lead-acid | |||||||||||
Communication interface | CAN/RS485 | |||||||||||
EPS output | ||||||||||||
Rated power (kVA) | 5 | 8 | 10 | |||||||||
Rated output voltage (V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||||||||||
Rated output current (A) | 24 | 38.3 | 47.8 | |||||||||
Rated frequency (Hz) | 50/60 | |||||||||||
Automatic switching time (ms) | ＜20 | |||||||||||
THDu | ＜2% | |||||||||||
Overload capacity | 125%,60S/150%,15 | |||||||||||
General data | ||||||||||||
Max. efficiency | ＞98.2% | |||||||||||
North american efficiency | ＞97.2% | |||||||||||
Ingress protection | IP65/NEMA 3R | |||||||||||
Noise emission (dB) | ＜25 | ＜29 | ＜29 | |||||||||
Operation temperature | —25℃~60℃ | |||||||||||
Cooling | Natural | |||||||||||
Relative humidity | 0~95% (non-condensing) | |||||||||||
Altitude | 2,000m (>2,000 Derating) | |||||||||||

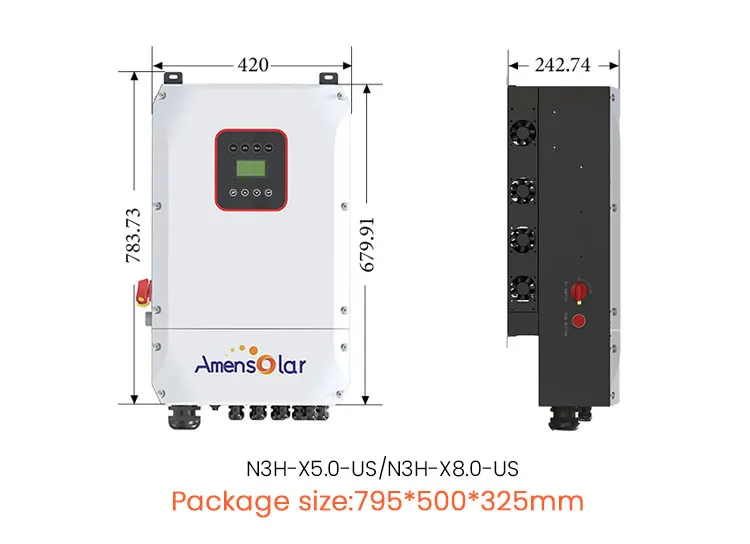

Dimensions W*D *H (mm) | 500x810 x350 | |||||||||||
Weight (kg) | 44kg | |||||||||||
Isolation transformer | No | |||||||||||
Self-consumption (W) | ＜3 | |||||||||||
Display and communication | ||||||||||||
Display | LCD, touch screen | |||||||||||
Interface:RS485/Wifi/4G/CAN/DRM | Yes | |||||||||||
Safety standard | UL1741SA all options, UL1699B, CSA 22.2 | |||||||||||
EMC | FCC Part 15, Class B | |||||||||||
On-grid | ΙΕΕE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,I,III ,NRS | |||||||||||

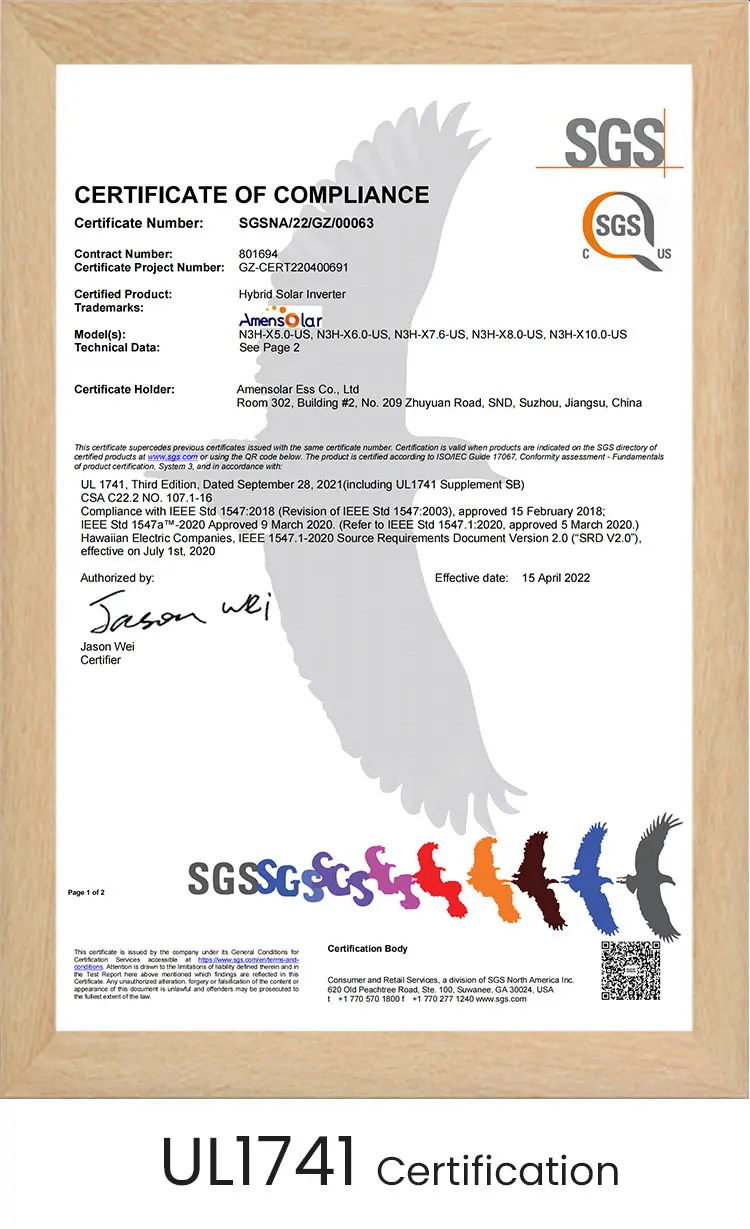

Certifications
About us
About Amensolar
Amensolar ESS Co, Ltd., located in Suzhou, an international manufacturing city in the center of the Yangtze River Delta, is a high-tech photovoltaic enterprise integrating R & D, production and sales.
Holding the concept of "Focusing on quality, technology upgrading, customers' demand and professional service" Amensolar has become the strategic partner with many famous solar energy companies in the world.
Amensolar's main products include solar photovoltaic energy storage inverters, energy storage battery systems, etc, and Amensolar provides the services of system design, project construction and maintenance, and third-party operation and maintenance.
Agents Benefits
Our agent are leading the local market with a very low price advantage.
Get holiday gifts,coupons and other benefits from Amensolar
OEM/ODM Service: Free design drawings for unique product design.
New products have priority to get the right to ship and choose.
Free store, poster, promotion ad design
Provide a full set of product use and installation guidance
Customer Cooperation
Package And Delivery
FAQ
Yes, Amensolar inverter has UL1741 Certificate, and we could supply UL multiple listing for customer.
Q2: Can Amensolar inverters be paralleled? How many pieces can be paralled together at most?
Yes, Amensolar inverters can be paralleled. For now, there is no quantity limit under on-grid mode, and 4 pieces of inverters can be paralleled at most under off-grid mode.
Q3: Which brand of WIFI doggle do you use with your inverter?
Solarman WIFI app is used with Amensolar inverter.
Q4: Do you provide OEM?
Yes, Amensolar can provide OEM service.
Q2: Can Amensolar inverters be paralleled? How many pieces can be paralled together at most?
Yes, Amensolar inverters can be paralleled. For now, there is no quantity limit under on-grid mode, and 4 pieces of inverters can be paralleled at most under off-grid mode.
Q3: Which brand of WIFI doggle do you use with your inverter?
Solarman WIFI app is used with Amensolar inverter.
Q4: Do you provide OEM?
Yes, Amensolar can provide OEM service.
