37KW 50HP Solar Water Pump Inverter 3Phase 380V AC DC Input Hybrid Solar Pump Inverter wiht MPPT and VFD
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600508306200):
Product Overview
Description
Product Description
GOLDBELL GS500 series solar pump inverter, supports single-phase 220V and three-phase 220V/380V pumps, the power from 0.75KW to 630KW. Easy to use, durable quality.
High Efficiency MPPT
◆ MPPT efficiency up to 99%.
◆ The software can quickly detect the changes in DC bus voltage,Inverter will adjust dynamically to make sure the maximum output power of solar panel when sunlight and temperature change.
◆ The software can quickly detect the changes in DC bus voltage,Inverter will adjust dynamically to make sure the maximum output power of solar panel when sunlight and temperature change.
Adapt to various types of water pump
◆ Used for all type of AC 220V/380V water pump;
◆ No matter deep well water pump or surface pump,the inverter can adapt them.
◆ Applicable for various pump motors: asynchronous motor, synchronous motor,PMSM.etc
◆ No matter deep well water pump or surface pump,the inverter can adapt them.
◆ Applicable for various pump motors: asynchronous motor, synchronous motor,PMSM.etc
Multiple pump & Inverter protection
◆ Dry-pumping:auto stop when shortage of water, and auto restart when with enough water in deep well.
◆ Tank-full:auto stop when full of water,and restart when with shortage of water in the tank.
◆ Sleep-Wake up:Auto stop when weak sunlight or
sunset,and auto restart when strong sunlight or sunrise.
◆ Build-in protection: over-voltage,over-current,
overload,under load.etc
◆ Tank-full:auto stop when full of water,and restart when with shortage of water in the tank.
◆ Sleep-Wake up:Auto stop when weak sunlight or
sunset,and auto restart when strong sunlight or sunrise.
◆ Build-in protection: over-voltage,over-current,
overload,under load.etc
Compatible with AC power/generator input, PV and AC power complementary
◆ Solar DC and AC power can input inverter at same time.
◆ When strong sunlight,inverter will only use solar;
When weak sunlight,inverter will use both solar power and AC power,do not waste solar energy.
When at night,inverter will switch to only use AC power, and next morning it will switch to use solar.
◆ When strong sunlight,inverter will only use solar;
When weak sunlight,inverter will use both solar power and AC power,do not waste solar energy.
When at night,inverter will switch to only use AC power, and next morning it will switch to use solar.

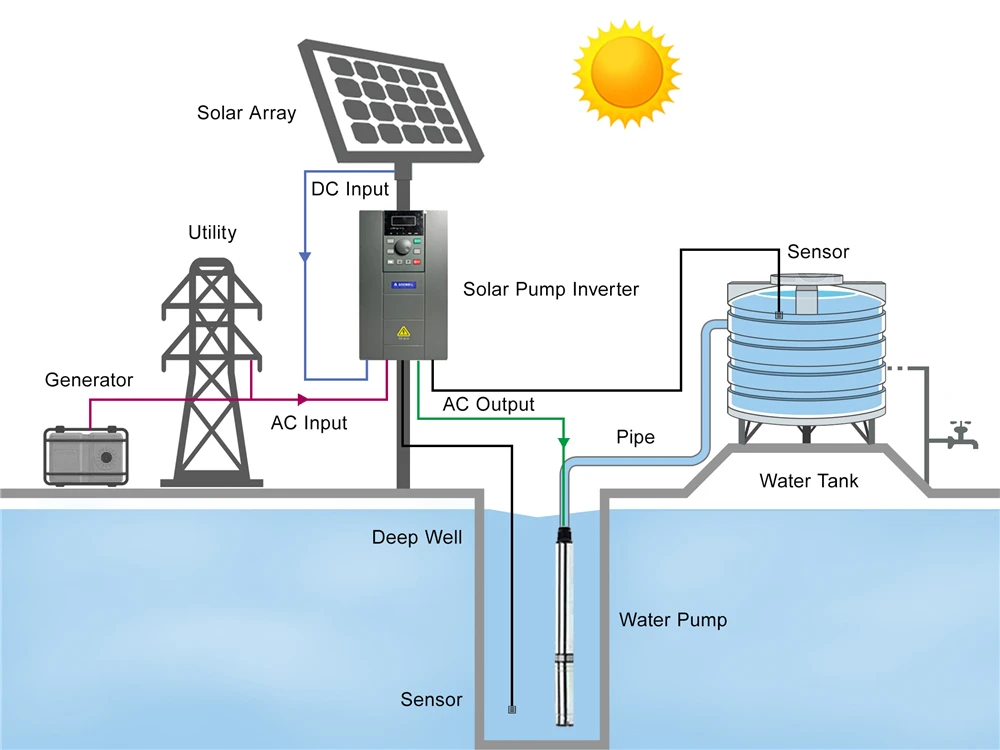

How the solar water pump system works
System composition: The GOLDBELL solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.
Specification
Name Rule
Model Selection
Model No. | AC Input (V) | Solar DC input (Voc) | AC output (V) | Power (KW) | Input Current(A) | Output Current (A) | ||||||
220~240V,2S series | ||||||||||||
GS500-0.75G-2SB | 1PH 220~240V 50/60HZ | 150~450 Voc | 1PH/3PH 220~240V 50/60HZ | 0.75KW | 8.2 | 4 | ||||||
GS500-1.5G-2SB | 1.5KW | 14 | 7 | |||||||||
GS500-2.2G-2SB | 2.2KW | 23 | 10 | |||||||||
GS500-4.0G-2SB | 4.0KW | 29.4 | 17 | |||||||||
380~480V,4T series | ||||||||||||
GS500-0.75G/1.5P-4TB | 3PH 380-480V 50/60HZ | 250-800 Voc | 3PH 380-480V 50/60HZ | 0.75KW/1.5KW | 3.4 | 2.1 | ||||||
GS500-1.5G/2.2P-4TB | 1.5KW/2.2KW | 5 | 3.8 | |||||||||
GS500-2.2G/3.0P-4TB | 2.2KW/3.0KW | 5.8 | 5.1 | |||||||||
GS500-4.0G/5.5P-4TB | 4.0KW/5.5KW | 10.5 | 9 | |||||||||
GS500-5.5G/7.5P-4TB | 5.5KW/7.5KW | 14.6 | 13 | |||||||||
GS500-7.5G/11P-4TB | 7.5KW/11KW | 20.5 | 17 | |||||||||
GS500-11G/15P-4TB | 11KW/15KW | 26 | 25 | |||||||||
GS500-15G/18P-4TB | 15KW/18.5KW | 35 | 32 | |||||||||
GS500-18G/22P-4TB | 18.5KW/22KW | 38.5 | 37 | |||||||||
GS500-22G/30P-4TB | 22KW/30KW | 46.5 | 45 | |||||||||
GS500-30G/37P-4TB | 30KW/37KW | 62 | 60 | |||||||||
GS500-37G/45P-4TB | 37KW/45KW | 76 | 75 | |||||||||
GS500-45G/55P-4TB | 45KW/55KW | 92 | 91 | |||||||||
GS500-55G/75P-4TB | 55KW/75KW | 113 | 112 | |||||||||
GS500-75G/90P-4TB | 75KW/90KW | 157 | 150 | |||||||||
GS500-90G/110P-4TB | 90KW/110KW | 180 | 176 | |||||||||
Wiring Diagram

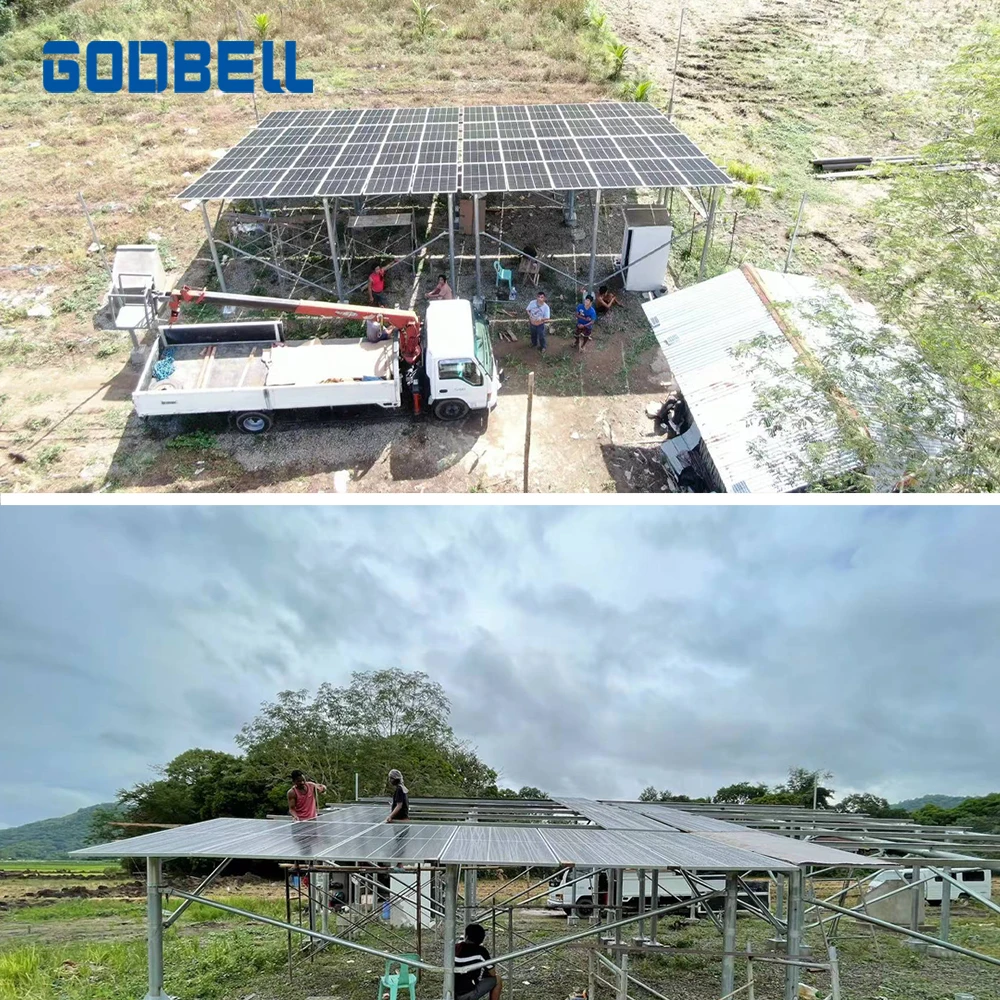

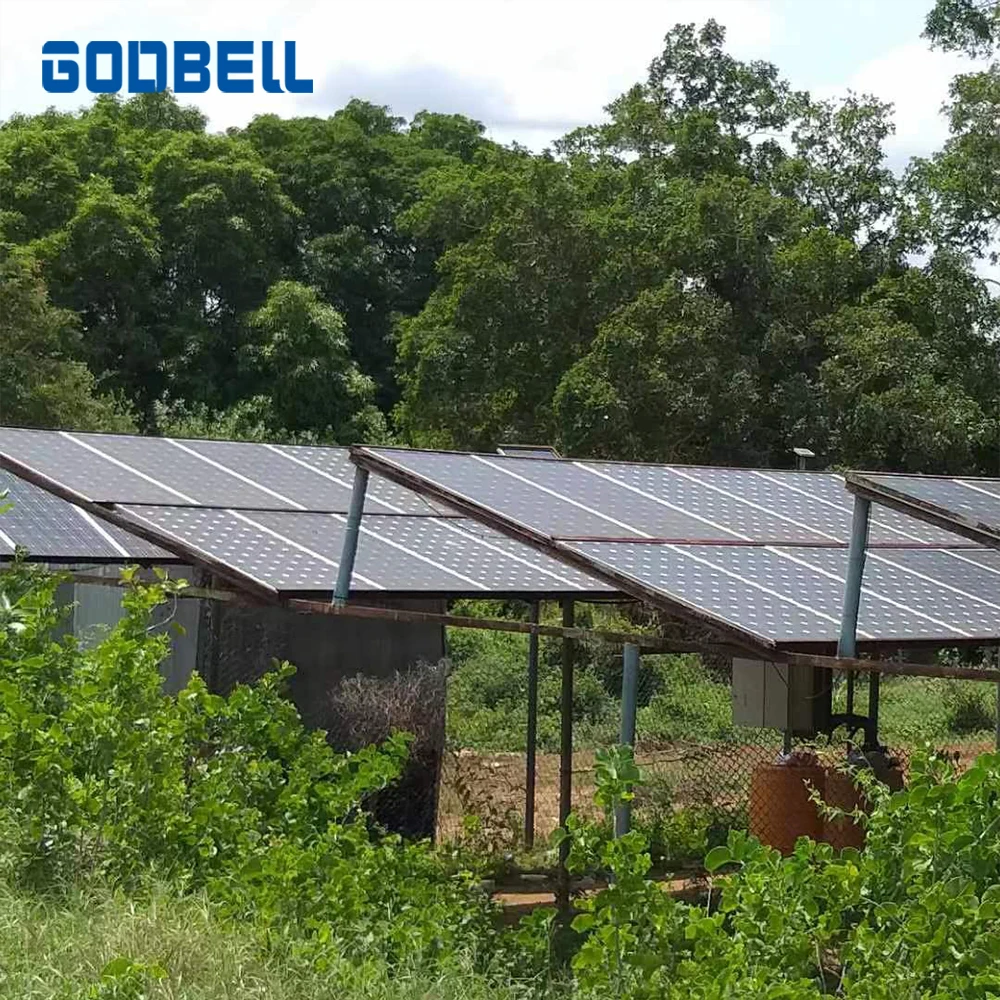

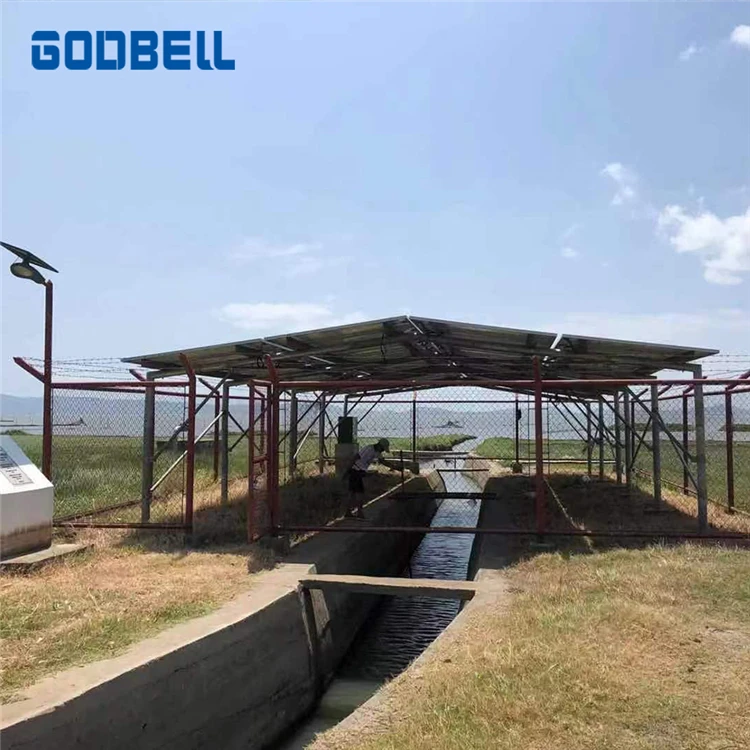

Cooperation Case
Project country | Mogadishu,Somalia | ||
Installtion place | Agriculture farm | ||
Solar pump system one-stop solution design | Water pump | Customer own pump, 55KW 3PH 380V surface pump. with rate 450 m3/h water flow, and 15m head | |
Solar pump inverter | GS500-75G/90P-4TB, 75KW 150A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | 92KW total power solar panel 225PCS 410W/pcs mono half cell solar panel Connection: 15PCS series * 15 strings parallel Life time: more than 25 years | ||
Mounting structure | He supply by himself | ||
Benifits | Customer before run his 55KW pump by diesel generator, after know it can change to be solar, so he use our 75KW solar pump inverter and 90KW solar panel to drive the system. Compared the diedel, he can save much cost. | ||
Benifits | Before as no AC on grid power, customer pump water only by diesel generator. But as the diesel price keep increasing, and trouble maintainance,so he decide to change the power to be solar. The pump model 6SP60-12 are put 85m depth,it can pump about 400-450 m3 water per day. And Automatic operation every day, unattended, automatic start at sunrise, automatic shutdown at sunset, unmanned operation. Compared diesel generator cost, the solar pump system just need about 3-4 years can recovery of investment cost,after 3 years, no any cost. They are very satisfied the solar water pump system. | ||
Company Profile
GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Packing & Delivery
* Outer packing: high quality strong export carton or wooden box.
* Inner packing: pearl cotton and PE bag to protect the inverter or water pump from damage during transportation.
* Inner packing: pearl cotton and PE bag to protect the inverter or water pump from damage during transportation.
* We will help you choose the most suitable transportation plan according to your needs and the volume and weight of the goods, and support air, sea and land transportation.
FAQ

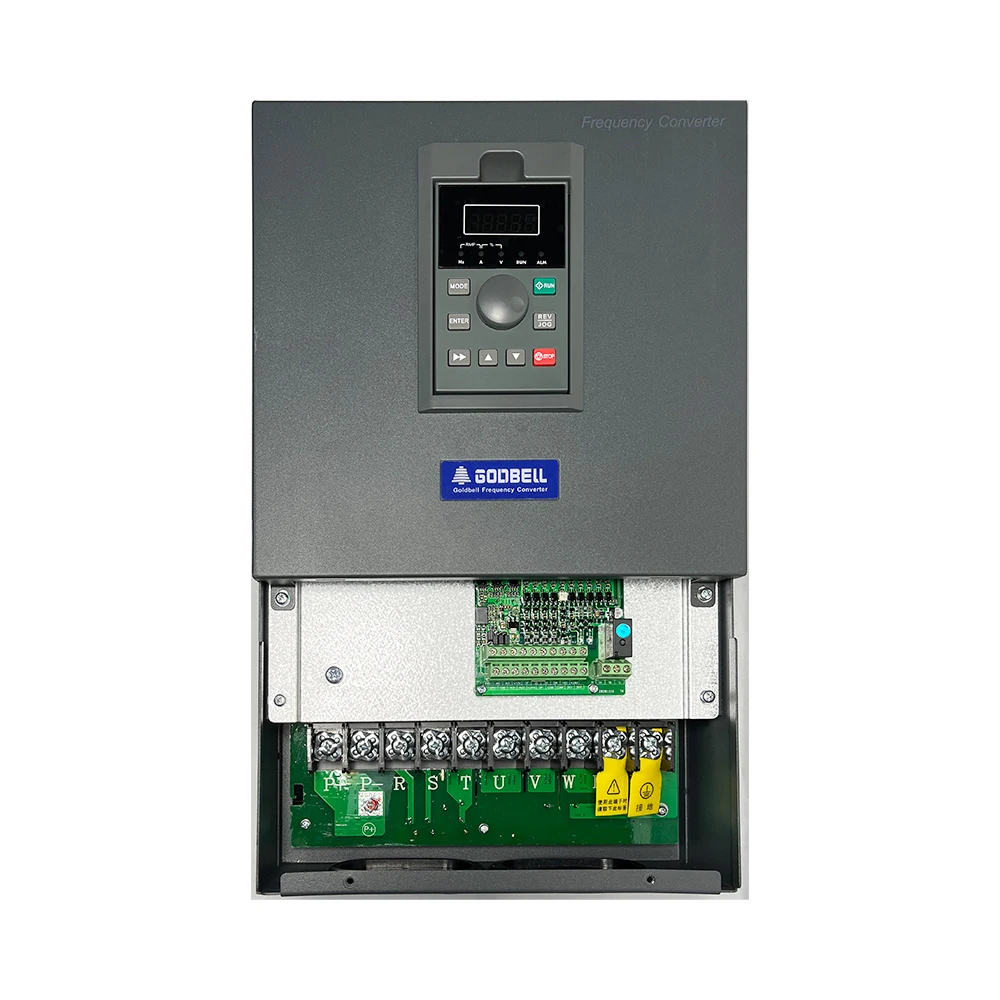

Q1: How can i connect the solar panel,inverter, grid/generator, pump?
A1: Connect wires like below diagram
For 3PH 380V~480V pump
Input/output | Inverter Wires Connection | Note |
Solar Input | P+ connect to solar panel + P- connect to solar panel - | Do not connect reverse + - |
Grid/Generator Input | R S T connect to grid/generator 3PH 380V | If no protection,never break on solar and grid at the same time,otherwise the gird power will charge to solar panel,the panel will be damaged. |
Output | U V W connect to pump motor 3PH 380V | If cables from inverter to pump are over 80m,better add a AC output reactor to improve the efficiency. |
For 3PH 220V~240V pump
Input/output | Inverter Wires Connection | Note |
Solar Input | P+ connect to solar panel + P- connect to solar panel - | Do not connect reverse + - |
Grid/Generator Input | R S T connect to grid/generator 3PH 380V | If no protection,never break on solar and grid at the same time,otherwise the gird power will charge to solar panel,the panel will be damaged. |
Output | U V W connect to pump motor 3PH 380V | If cables from inverter to pump are over 80m,better add a AC output reactor to improve the efficiency. |
For Single phase 220V pump
Name | Wires connect | Note |
Solar Input | P+ connect to solar panel + P- connect to solar panel - | Do not connect reverse + - |
Grid/Generator Input | R S connect to grid/generator 1PH 220V | If no protection,never break on solar and grid at the same time,otherwise the gird power will charge to solar panel,the panel will be damaged. |
Output | U V connect to pump motor 1PH 220V | With capacitor,pump connect U V, and set P11.00=000 |
