Product Overview
Description
Ethernet connect LED DVI Slave Controller H802RA rgb rgbw dmx spi online Artnet controller
Product Description
Artnet dmx spi online rgb rgbw pixel led controller:
Product Name: H802RA Artnet Controller
Max control: 4 output, each channel 1024 pixels
Drive Pixels Number: 4096 pixels
Working power: 1.3W
Material: Matel +Plastic
Number of Programs: 4Max
Max No. of Pixel: 4096
Working Signal port: Support allocating address for DMX512 chips
Drive Pixels Number: 4096 pixels
Working power: 1.3W
Material: Matel +Plastic
Number of Programs: 4Max
Max No. of Pixel: 4096
Working Signal port: Support allocating address for DMX512 chips
Features:
1. Support ArtNet-protocol,
2. 4 universes (each has 512 channels) output, each port can control up to 680 pixels under ArtNet protocol (can be set to 170,340, 510, 680)
3. can work with lighting software compatible with ArtNet-protocol
4. supports RGB or RGBW lamps (with driver chip)
5. With LED studio software (non-ArtNet-protocol), it can control up to 4096 pixels, and each port can control up to 1024 pixels.
6. Support allocating address for DMX512 chips (for example UCS512, TM512).
7. Controlled by master controller or PC.
8. Transmission distance between two controllers is up to 100 meters.
H802RA supports the following IC (under the ArtNet-protocol):
TM1812, TM1804, TM1809, UCS1903, UCS1909, UCS1912, WS2811, WS2812, WS2813, SK6812,SM16703, SM16712, INK1003, DMX512, UCS512, UCS5603, WS2821, TM512, APA102, SK9822, TM1914,TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
2. 4 universes (each has 512 channels) output, each port can control up to 680 pixels under ArtNet protocol (can be set to 170,340, 510, 680)
3. can work with lighting software compatible with ArtNet-protocol
4. supports RGB or RGBW lamps (with driver chip)
5. With LED studio software (non-ArtNet-protocol), it can control up to 4096 pixels, and each port can control up to 1024 pixels.
6. Support allocating address for DMX512 chips (for example UCS512, TM512).
7. Controlled by master controller or PC.
8. Transmission distance between two controllers is up to 100 meters.
H802RA supports the following IC (under the ArtNet-protocol):
TM1812, TM1804, TM1809, UCS1903, UCS1909, UCS1912, WS2811, WS2812, WS2813, SK6812,SM16703, SM16712, INK1003, DMX512, UCS512, UCS5603, WS2821, TM512, APA102, SK9822, TM1914,TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).
Package Include
1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor
1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor

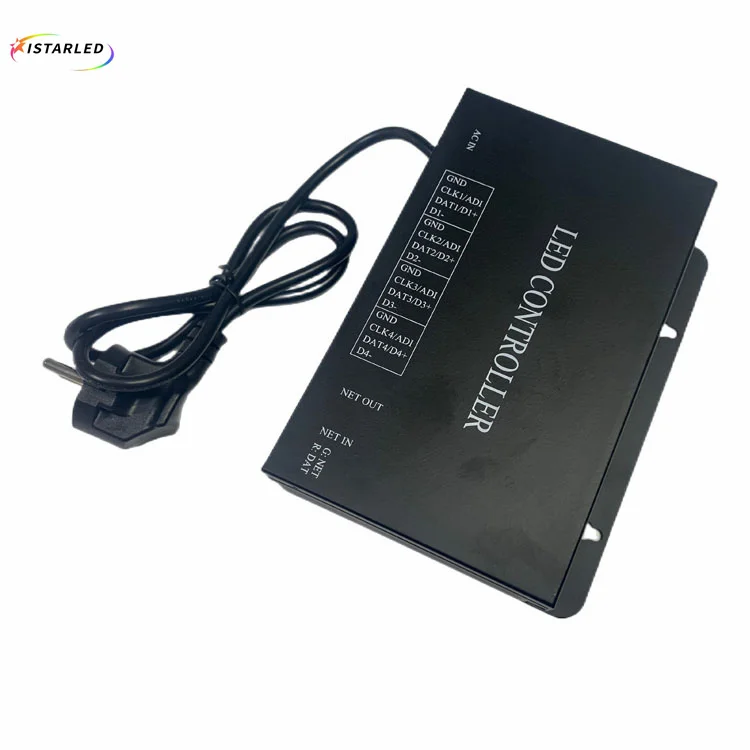

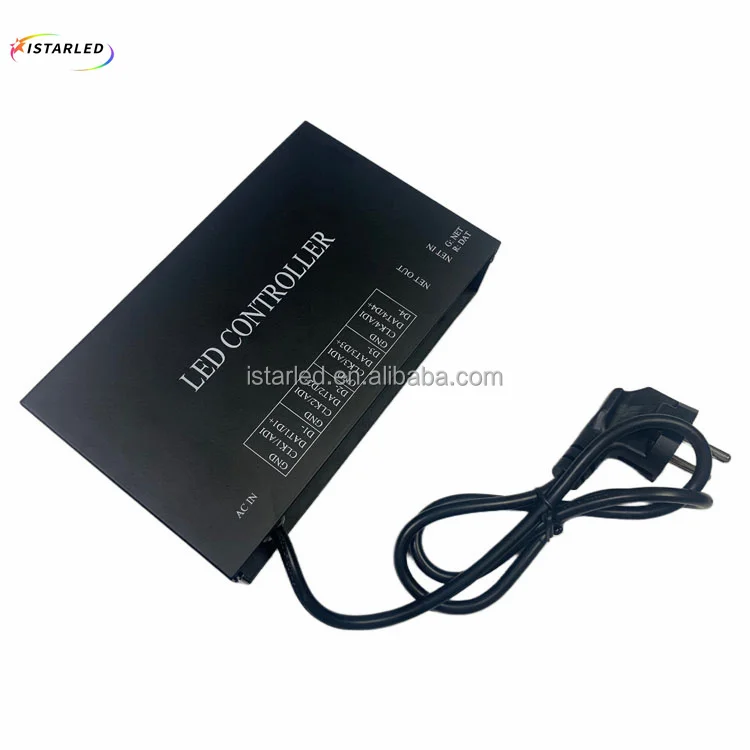

Product images
dmx spi led dvi h802ra rgb pixel led controller with EU plug:
Connection diagram:
