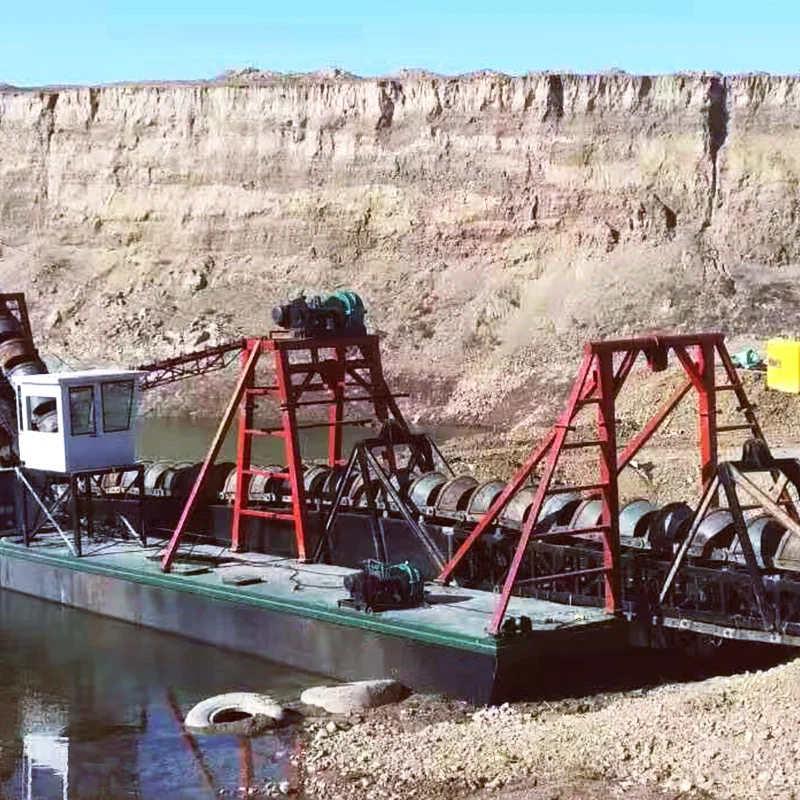

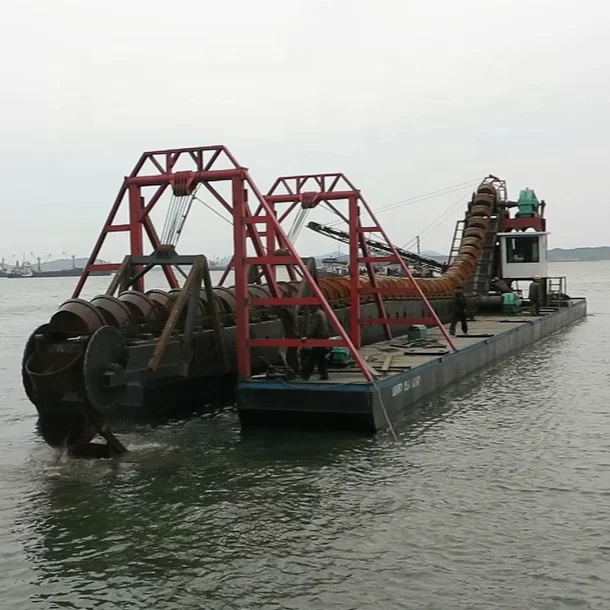

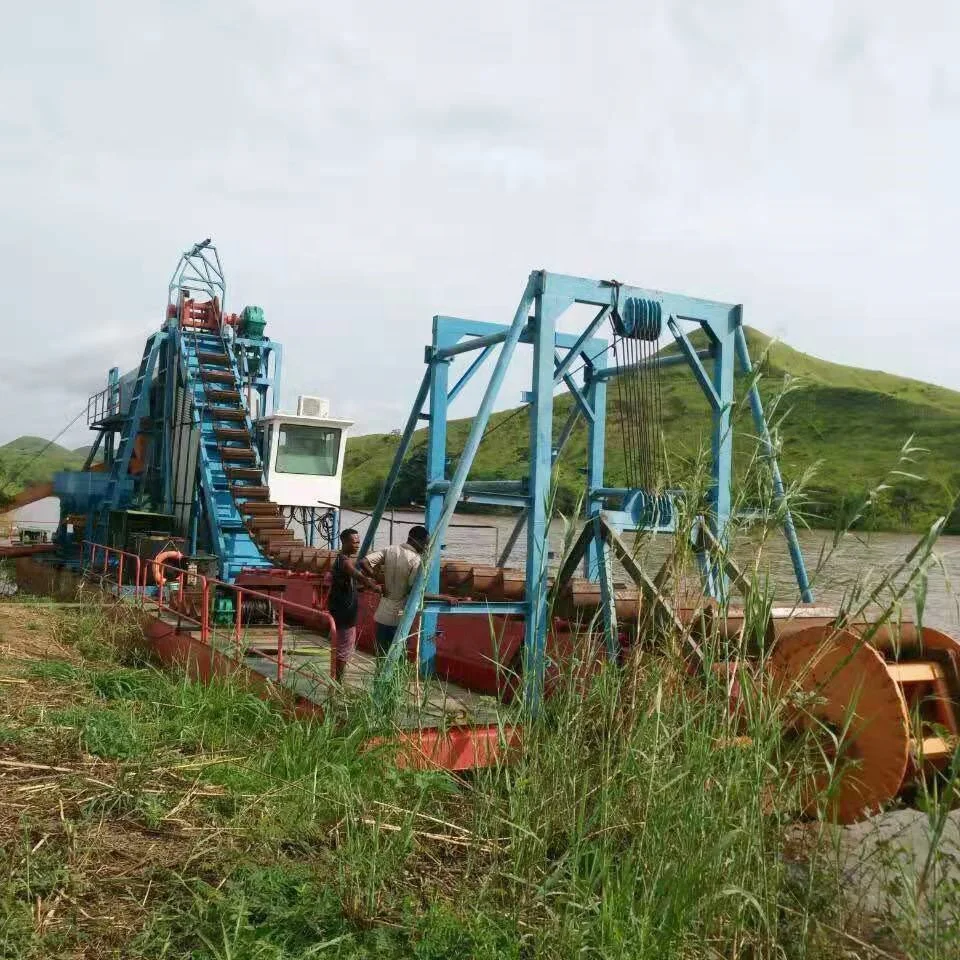

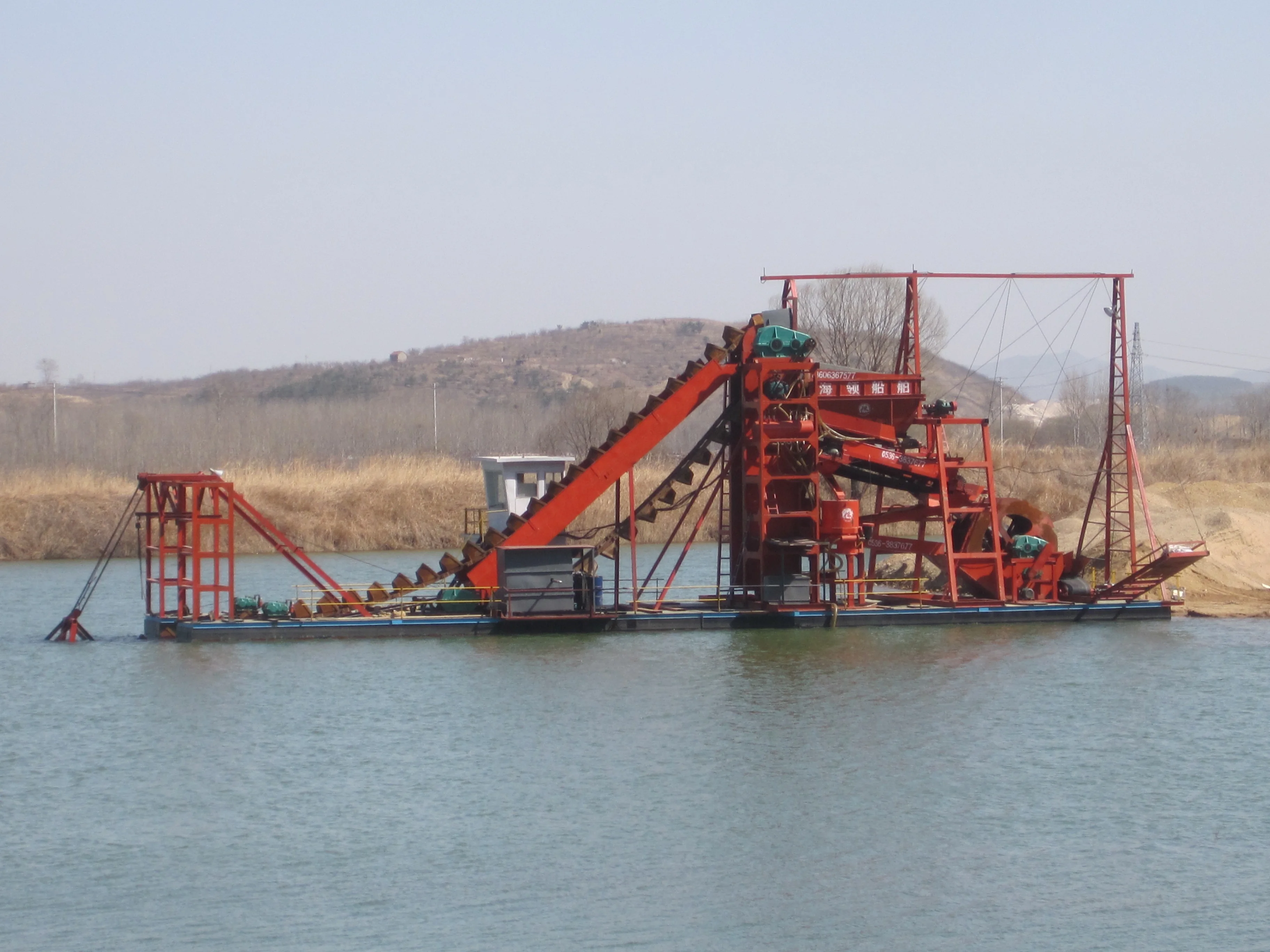

HIKOS chain bucket dredger floating gold dredge for sale
- Category: >>>
- Supplier: Weifang Hikos Shipyards Co. Ltd.
Share on (1600508729465):
Product Overview
Description
Product Overview
Dredging Machine-Bucket Chain Gold Dredger Introduction:
This is kind of bucket chain sand dredger. Pontoon box structure according to the geographical conditions designed for the operation of the entire ship with the operating room, operating desk, generator set, dredging device, sand and stone separation device, tailings conveying device, lifting device, positioning device, etc. Workflow is extended flat screen first, sand and stone material into the bucket through the motor drive, and then into the sand and stone separation stage, the stones within 200mm after screening through chute to conveyor belt for conveying .
One set propulsion hanging paddle machine 30HP for long distance walk. It is convenient for walking in the smooth water.
One set propulsion hanging paddle machine 30HP for long distance walk. It is convenient for walking in the smooth water.
Features of Gold Bucket Chain Dredger from HIKOS
1) The gold bucket chain dredger are designed according to clients specific mining conditions and requirements.
2) Dredging depth could be min 5 meters and max 30 meters.
3) Processing capacity could be 50tph-400tph.
4) The chain bucket system digs the materials from river/sea bottom, convey it up and feed into the trommel.
5) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
6) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
7) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator with all batteries, cables and wires.
9) Gold refinery plant to make final product of gold bars.
10) Easy for installation, operation and maintaining.
11) One-Step gold mining solutions from A to Z.
2) Dredging depth could be min 5 meters and max 30 meters.
3) Processing capacity could be 50tph-400tph.
4) The chain bucket system digs the materials from river/sea bottom, convey it up and feed into the trommel.
5) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
6) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
7) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator with all batteries, cables and wires.
9) Gold refinery plant to make final product of gold bars.
10) Easy for installation, operation and maintaining.
11) One-Step gold mining solutions from A to Z.

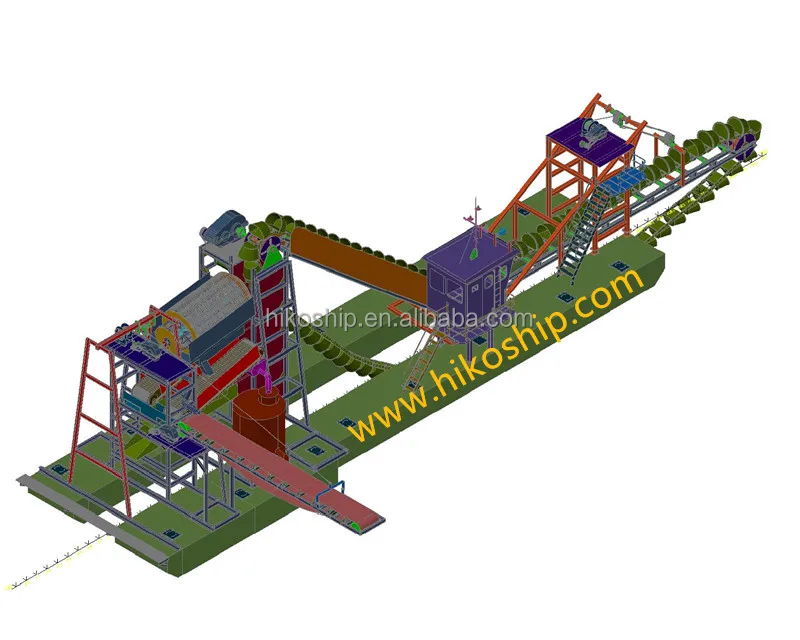

The main equipment of the ship from head to stern in turn is:
- - Underwater wheel system
- - Forward hoist
- - Bridge gantry frame
- - Bridge
- - Bridge winch
- - Main frame and chain bucket wheel
- - Gravel screening device
- - Gravity separation equipment
- - Tail transport equipment
- - Forward hoist
- - Bridge gantry frame
- - Bridge
- - Bridge winch
- - Main frame and chain bucket wheel
- - Gravel screening device
- - Gravity separation equipment
- - Tail transport equipment
PRODUCT SPECIFICATIONS
bucket chain gold dredger main parameter | ||||||||||||
Model | Working capacity | Dredging depth | Pontoon length | Total Power | Bucket number | Chain number | ||||||
HIKOS-BCD80 | 80m3/h | 7m | 16m | 60KW | 54pcs | 112pcs | ||||||
HIKOS-BCD120 | 120m3/h | 15m | 28m | 120KW | 70pcs | 140pcs | ||||||
HIKOS-BCD140 | 140m3/h | 15m | 28m | 120KW | 70pcs | 140pcs | ||||||
HIKOS-BCD200 | 200m3/h | 15m | 28m | 160KW | 62pcs | 124pcs | ||||||
HIKOS-BCD300 | 300m3/h | 15m | 28m | 200KW | 62pcs | 124pcs | ||||||
Details Images

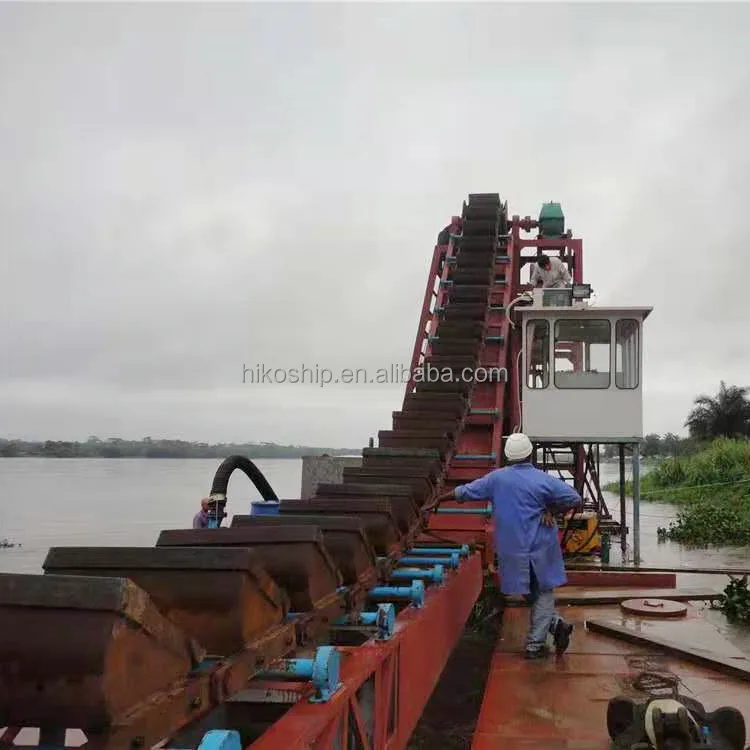

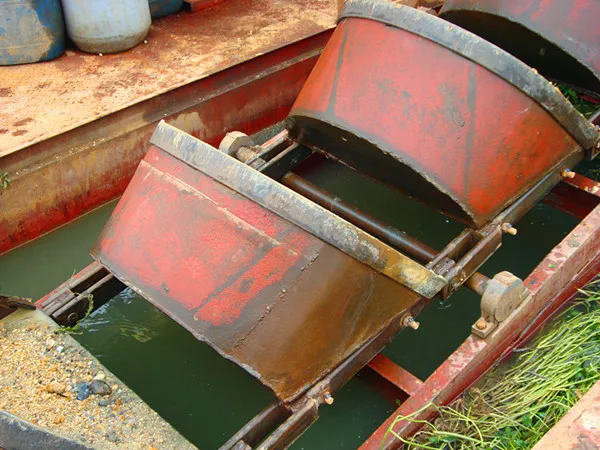

1.Chain bucket system
Name: chain and bucket system
Chain material: forged high-manganese steel
Bucket material: High-Manganese steel with forged lips, anti-tearing
Bucket size: depending on the dredger processing capacity
Function: to dig the materials from pond/river/sea bottom
Name: chain and bucket system
Chain material: forged high-manganese steel
Bucket material: High-Manganese steel with forged lips, anti-tearing
Bucket size: depending on the dredger processing capacity
Function: to dig the materials from pond/river/sea bottom

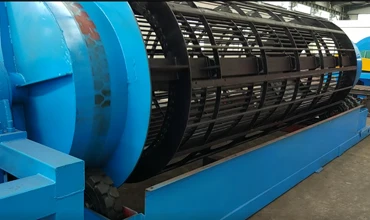

2.Screening System
Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement
Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement

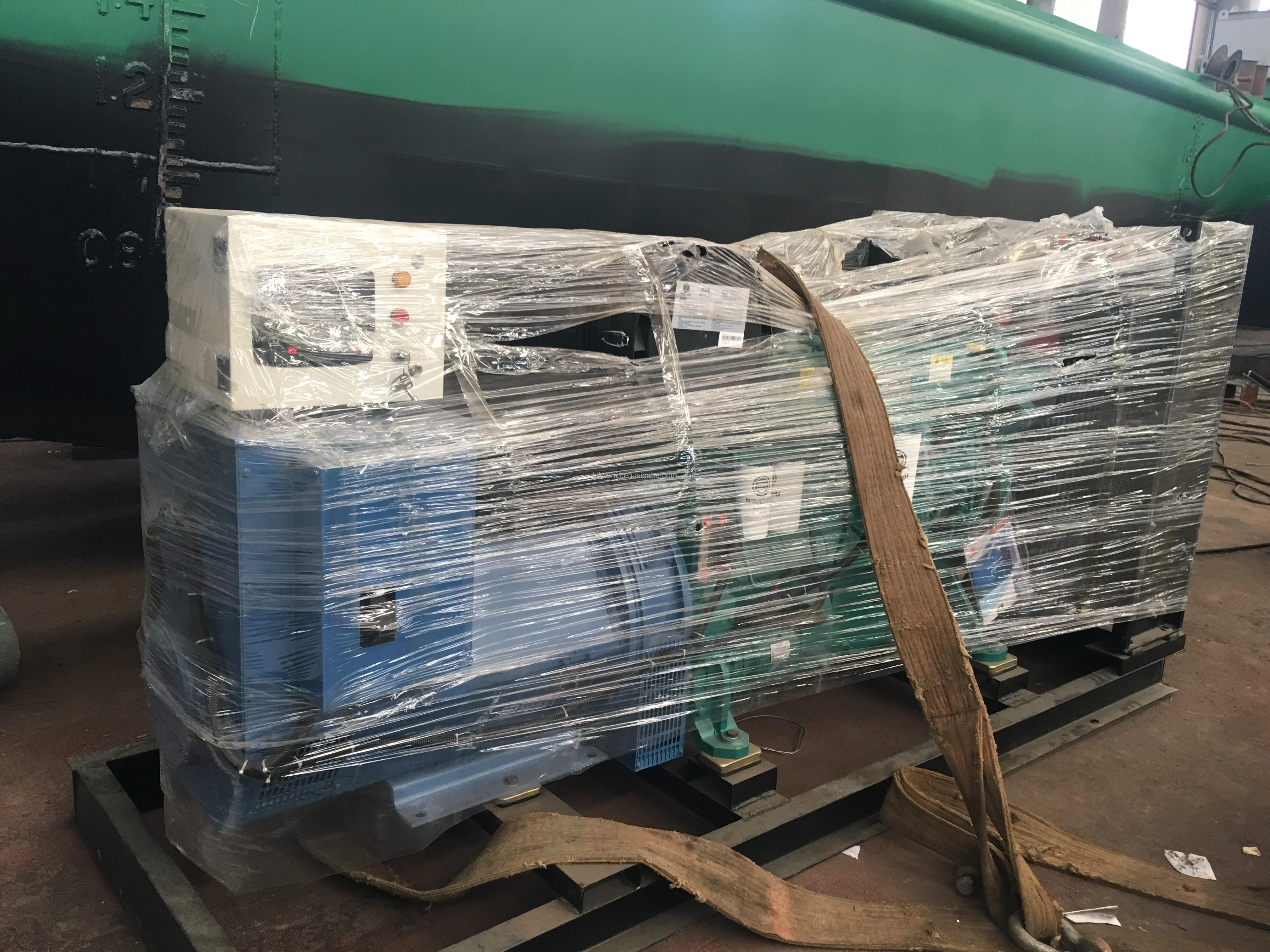

3.Powering system
Name: Diesel GeneratorPower: 100Kw-350Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems
4.Control system
Name: Control desk
Type: buttons type
Control person: 1 person
Function: to control all the equipment in the dredger
Name: Control desk
Type: buttons type
Control person: 1 person
Function: to control all the equipment in the dredger

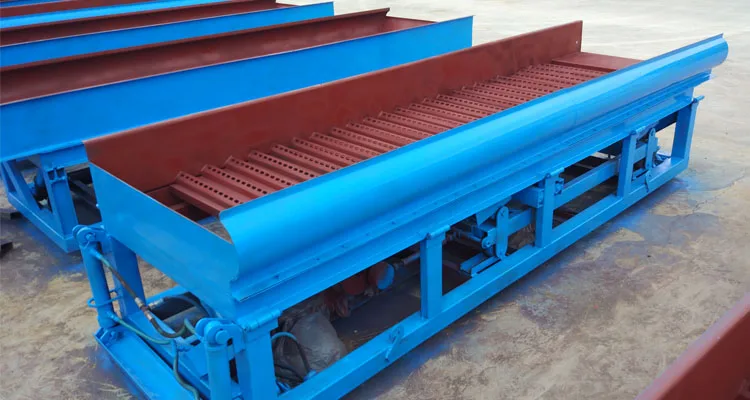

5.Coarse Gold Recovery System
Name: Vibrating Sluice + sluice box
Vibrating sluice type: Hydraulic type
Size: 1m*6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for coarse gold recovery
Recovery rate: 99%
Name: Vibrating Sluice + sluice box
Vibrating sluice type: Hydraulic type
Size: 1m*6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for coarse gold recovery
Recovery rate: 99%
6.Fine Size Gold Recovery System

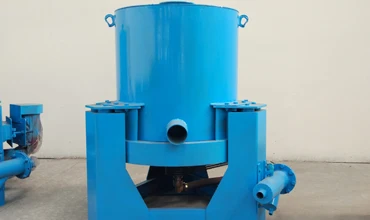

Name: Knelson type centrifugal concentrator
Processing capacity: 15tph-60tph dry solids
Quantity: 2-4 pcs
Remark: Fully continuous type
Function: for fine size dust gold recovery (-6mm)
Recovery Rate: 99%
Name: Knelson type centrifugal concentrator
Processing capacity: 15tph-60tph dry solids
Quantity: 2-4 pcs
Remark: Fully continuous type
Function: for fine size dust gold recovery (-6mm)
Recovery Rate: 99%
Title goes here.

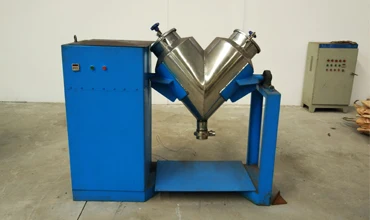

7.Mercury Amalgamator
Type: V-shaped
Working mode: amlagamator + distiller retort
Function: With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentators
Recovery rate: 100%
Type: V-shaped
Working mode: amlagamator + distiller retort
Function: With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentators
Recovery rate: 100%

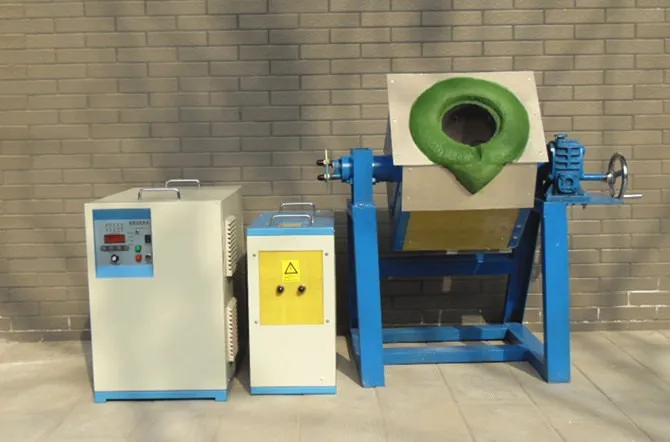

8.Gold Smelting Furnace
Capacity: 10-15kg per batchMoulds: 100g; 200g; 500g; 1000g
Function: to smelting the gold sand and make into final product of gold bars

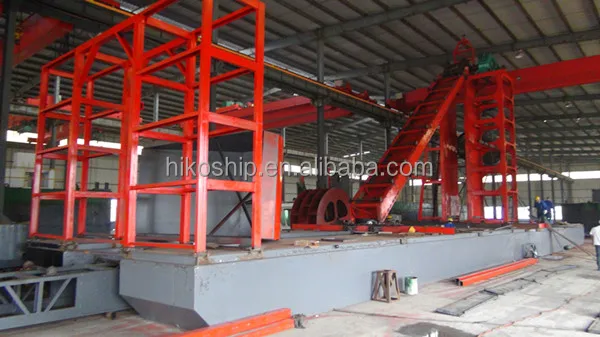

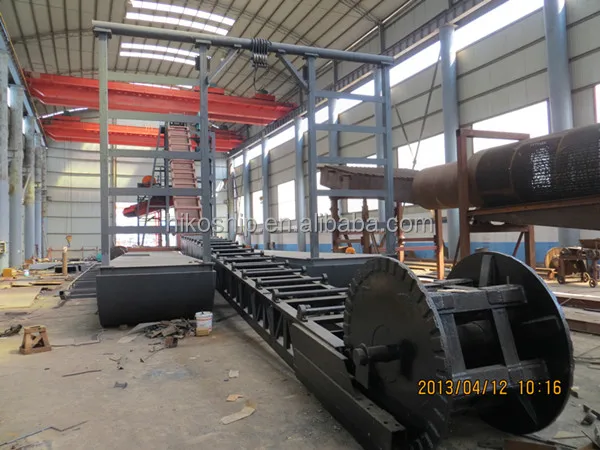

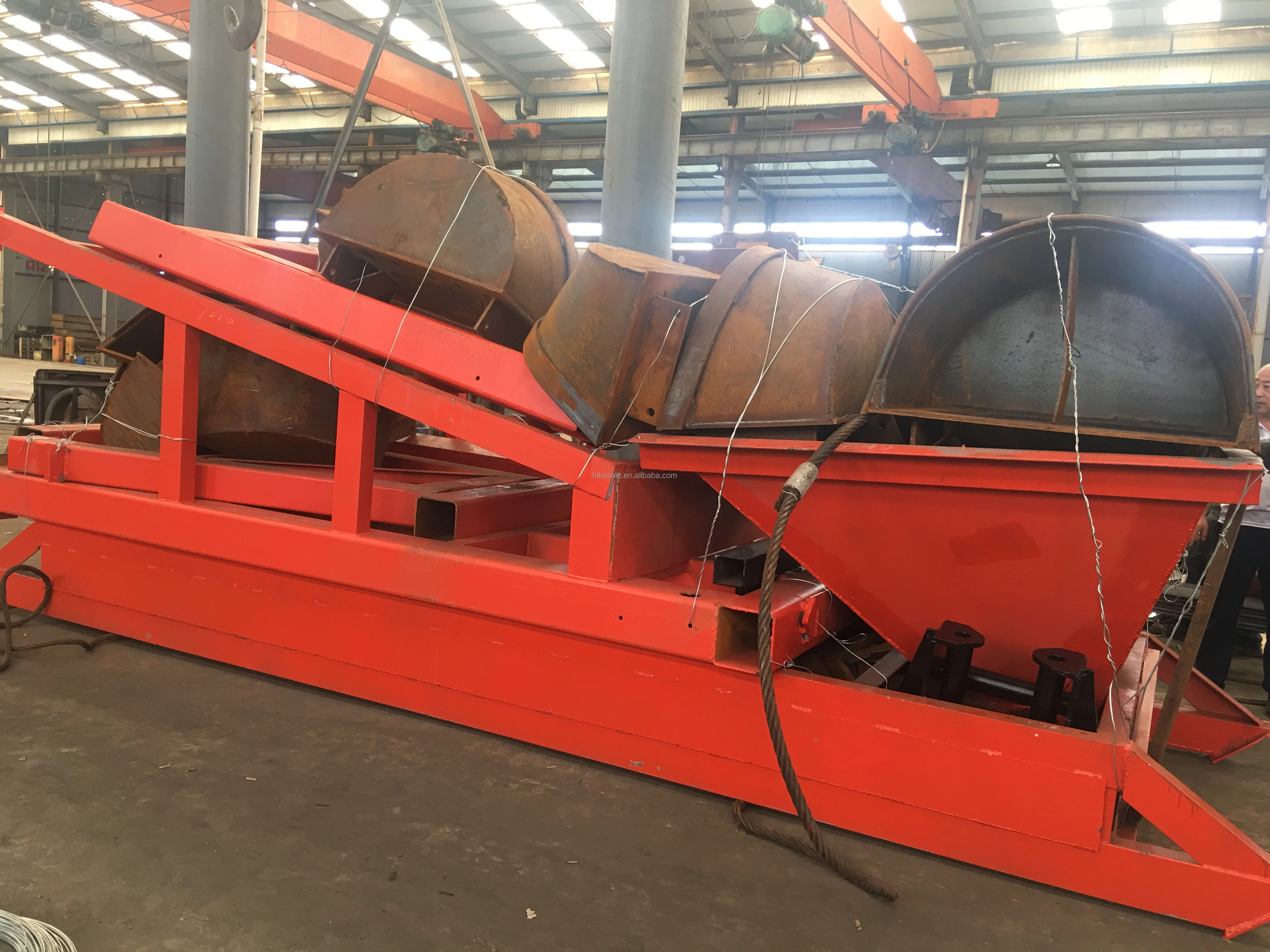

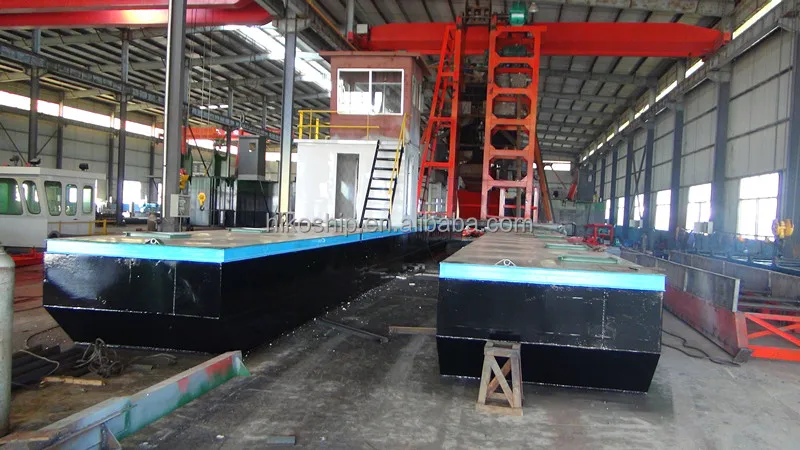

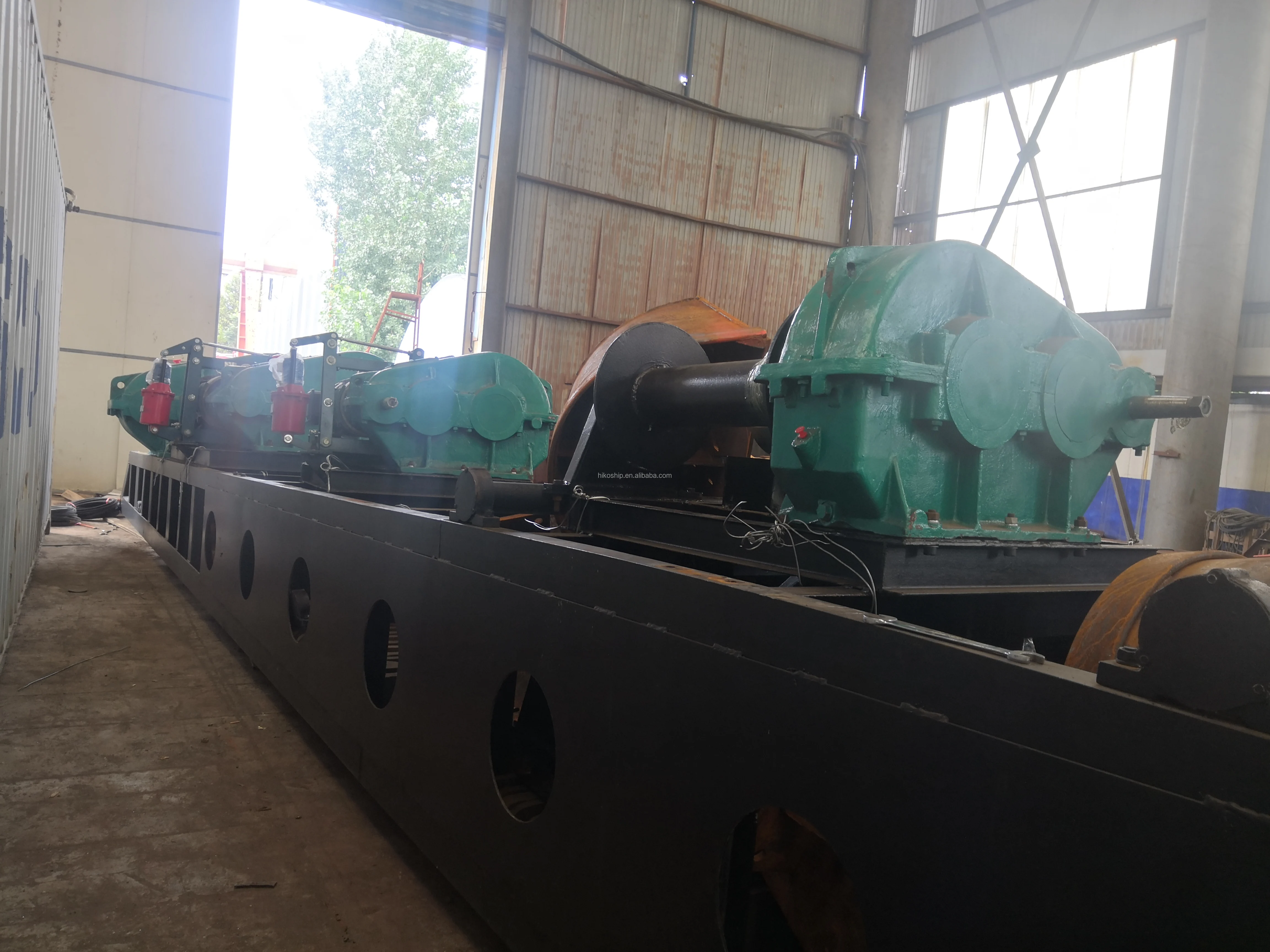

Bucket Chain Gold Dredger Workshop

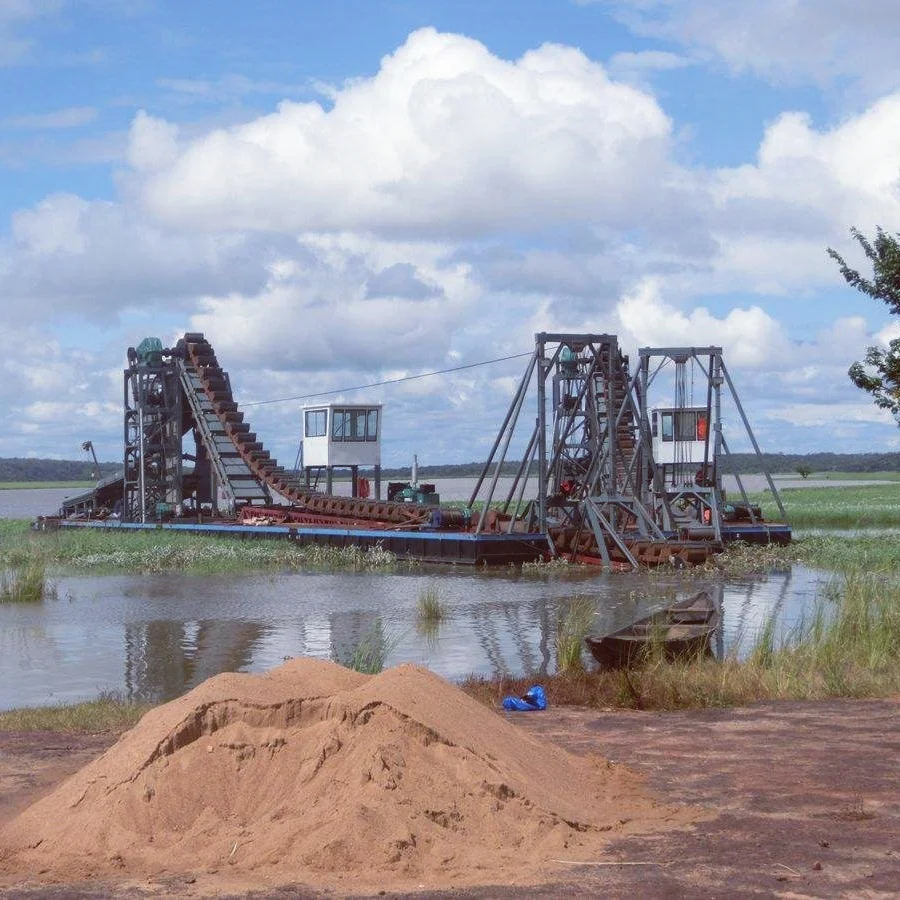

Application Project

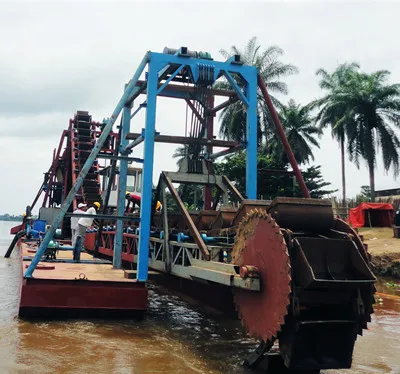

Dredging machine bucket chain gold dredger in Mongolia for dredging project
Dredging equipment chain bucket gold dredger i in
Kazakhstan for dredging project
Kazakhstan for dredging project
Dredging machine bucket chain gold dredger in Ghana for dredging project
Package and Delivery
Dredging machine bucket chain gold dredger in South Africa for dredging project
By container or in bulk
The bucket chain gold dredger can be shipped in containers or transported by bulk carriers, and each component can be strengthened and fixed, and protect the dredger from damage.
HIKOS Global After-Sales Service
Spare parts:
*Support spare parts are in stock.
*We provide a convenient way for you to order parts. You can simply select the parts you need according to your specs and have them delivered directly to your site.
*Free spare part in the first year and later cost price and services.
*Support spare parts are in stock.
*We provide a convenient way for you to order parts. You can simply select the parts you need according to your specs and have them delivered directly to your site.
*Free spare part in the first year and later cost price and services.
Installation and commissioning:
*After delivery we send two experienced engineers who will be to guide installing and train local workers. 24/7 technical support standby.
*We have offices and agents in some countries and are ready to provide you with solutions.
*After delivery we send two experienced engineers who will be to guide installing and train local workers. 24/7 technical support standby.
*We have offices and agents in some countries and are ready to provide you with solutions.
Maintenance and Support:
*12 months manufacturing warranty on all new installed component parts.
*12 months warranty on engine.
*12 months warranty on hull and all fabricated parts.
*In the event that our customers dredging experience unskilled or mechanical failure or they just need to shoot a minor problem, our engineers are available at customer's services, there are always engineers for installation and training if customers needs. Before dredger ex-factory, it will be tested at our launching site for performance and safety like in the work place.
*12 months manufacturing warranty on all new installed component parts.
*12 months warranty on engine.
*12 months warranty on hull and all fabricated parts.
*In the event that our customers dredging experience unskilled or mechanical failure or they just need to shoot a minor problem, our engineers are available at customer's services, there are always engineers for installation and training if customers needs. Before dredger ex-factory, it will be tested at our launching site for performance and safety like in the work place.
Certificate
Our company has been through ISO 9001 Quality System Certification of CCS. The design, construction, quality inspection is according to the standards and regulations of CCS.
Free Training:
*Our Services offer training and expertise that can help you make sure all of you personnel are operating as safely as possible.
*We will help you teach people at every level of your operation how to operate safely and how to communicate clearly, effectively and openly about any potential safety concerns.
*As technology continues to enhance our world, we are constantly developing and refining advanced technologies. These products, along with the extensive training curriculum offered, provide everything you need to maximize the performance of your equipment, reduce costly downtime, increase your return on investment, improve safety in your workplace, enhance operator performance, and
much more.
*Our Services offer training and expertise that can help you make sure all of you personnel are operating as safely as possible.
*We will help you teach people at every level of your operation how to operate safely and how to communicate clearly, effectively and openly about any potential safety concerns.
*As technology continues to enhance our world, we are constantly developing and refining advanced technologies. These products, along with the extensive training curriculum offered, provide everything you need to maximize the performance of your equipment, reduce costly downtime, increase your return on investment, improve safety in your workplace, enhance operator performance, and
much more.
And we have obtained 26 types of Certificate of Utility Model Patent and 23 types of Certificate of Design Patent.
Company Introduction

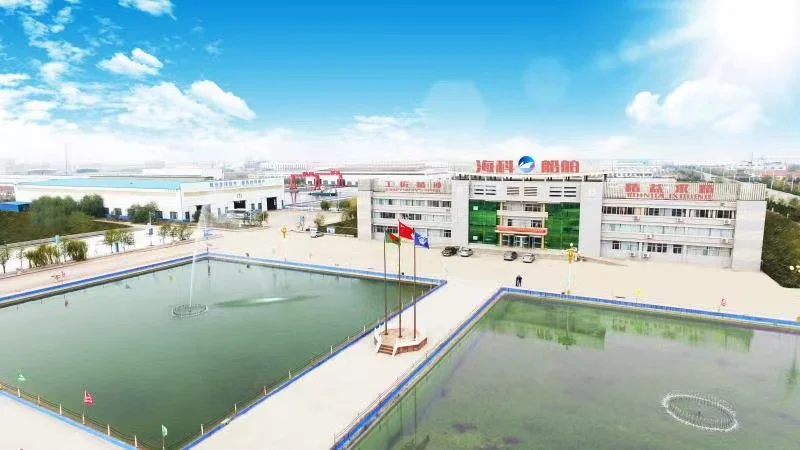

Hikos Company Introduction
