CK40S GSK Siemens Slant Bed Gang Type Tools Pneumatic Collet Small CNC Lathe
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600508889367):
Product Overview
Description
Products Description

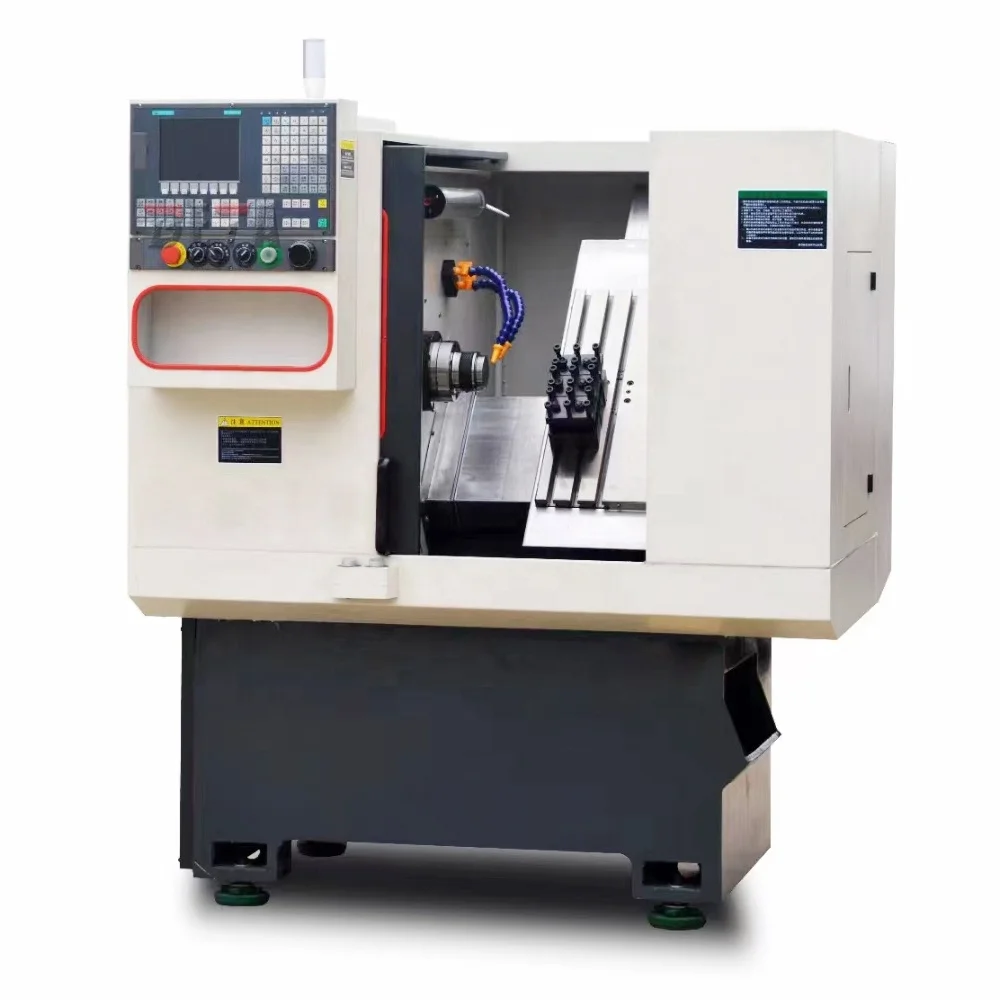

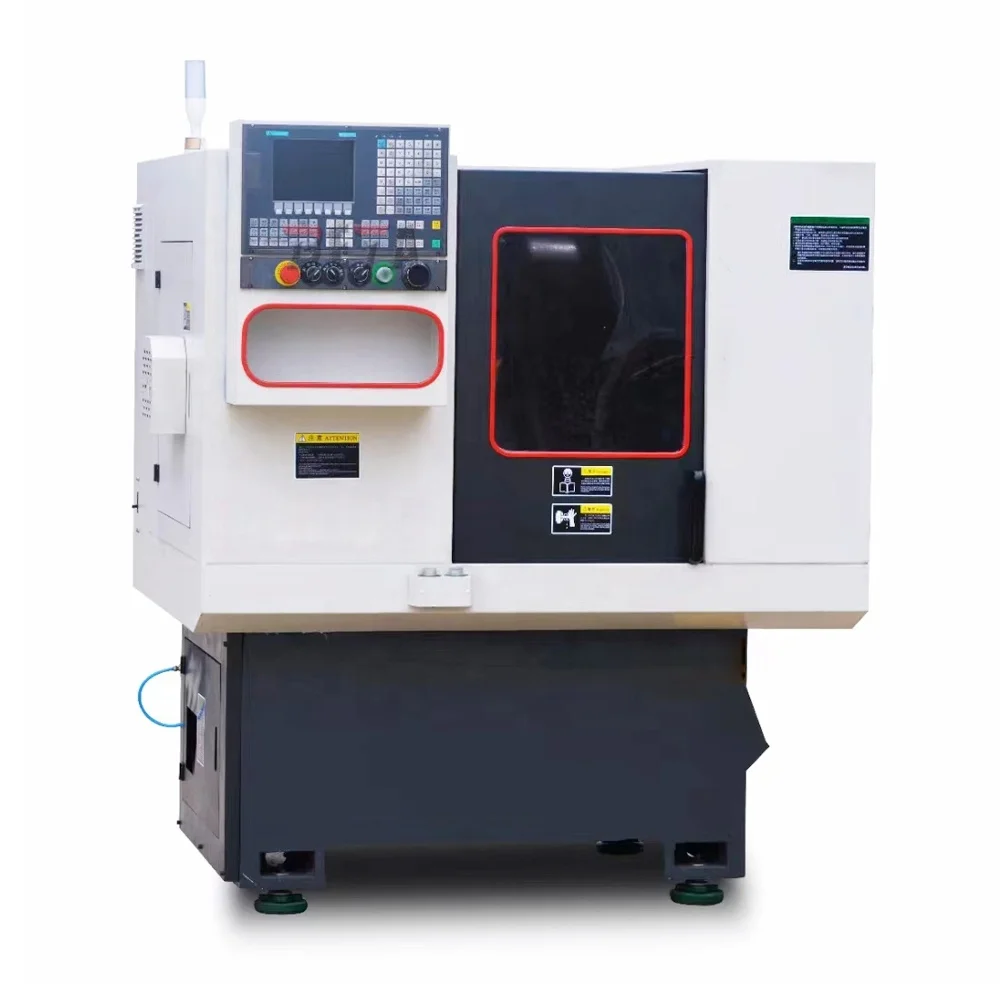

CK40S GSK Siemens Slant Bed Gang Type Tools Pneumatic Collet Small CNC Lathe
Product Parameters
MODELS | CK40S |
CNC Controller | GSK980 |
X-axis travel (diameter) | 600mm |
Z-axis travel | 260mm |
Spindle nose | A2-5 |
Max.bar diameter through spindle | Ф40mm |
Spindle speed | 3000rpm |
Clamping type | Pneumatic collet |
Guideway type | 45 degree slant guideway |
Max.diameter through carriage | 120mm |
Max. Moving speed X-axis | 20m/min |
Max. Moving speed Z-axis | 20m/min |
Toolpost type | Gang tools |
Quantity of gang tools | 3 pcs |
Tailstock | No tailstock |
Tool cross section | 20×20mm |
Size of carriage | 600*260mm |
Width of bed | 300mm |
Spindle motor power | 3 kw |
Repeatability accuracy | 0.005 mm |
Overall dimensions(L×W×H) | 1600*1150*1770mm |
Net weight | 1000 kg |
