Product Overview

Description

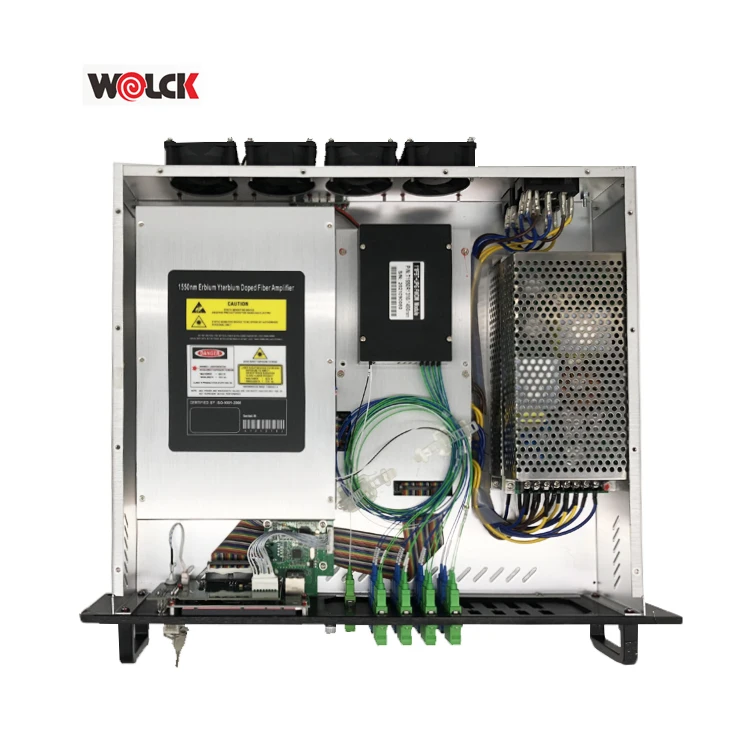

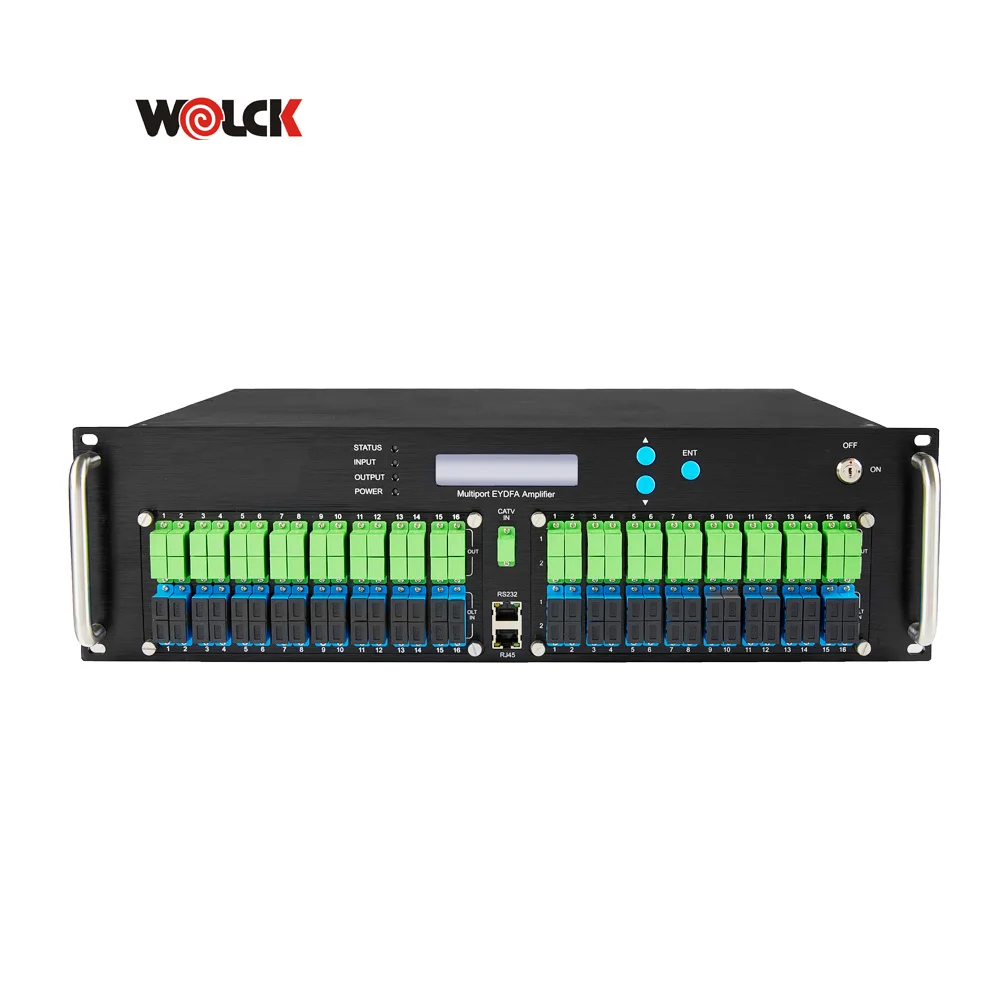

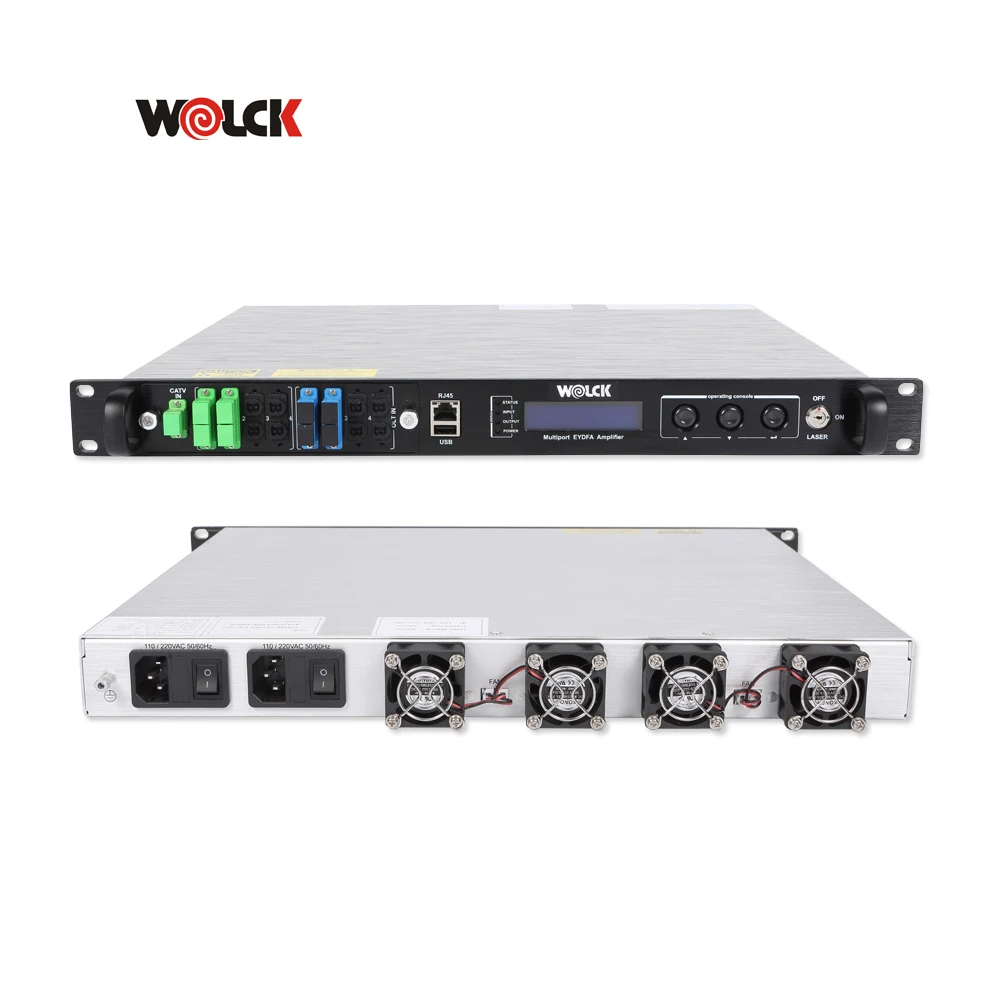

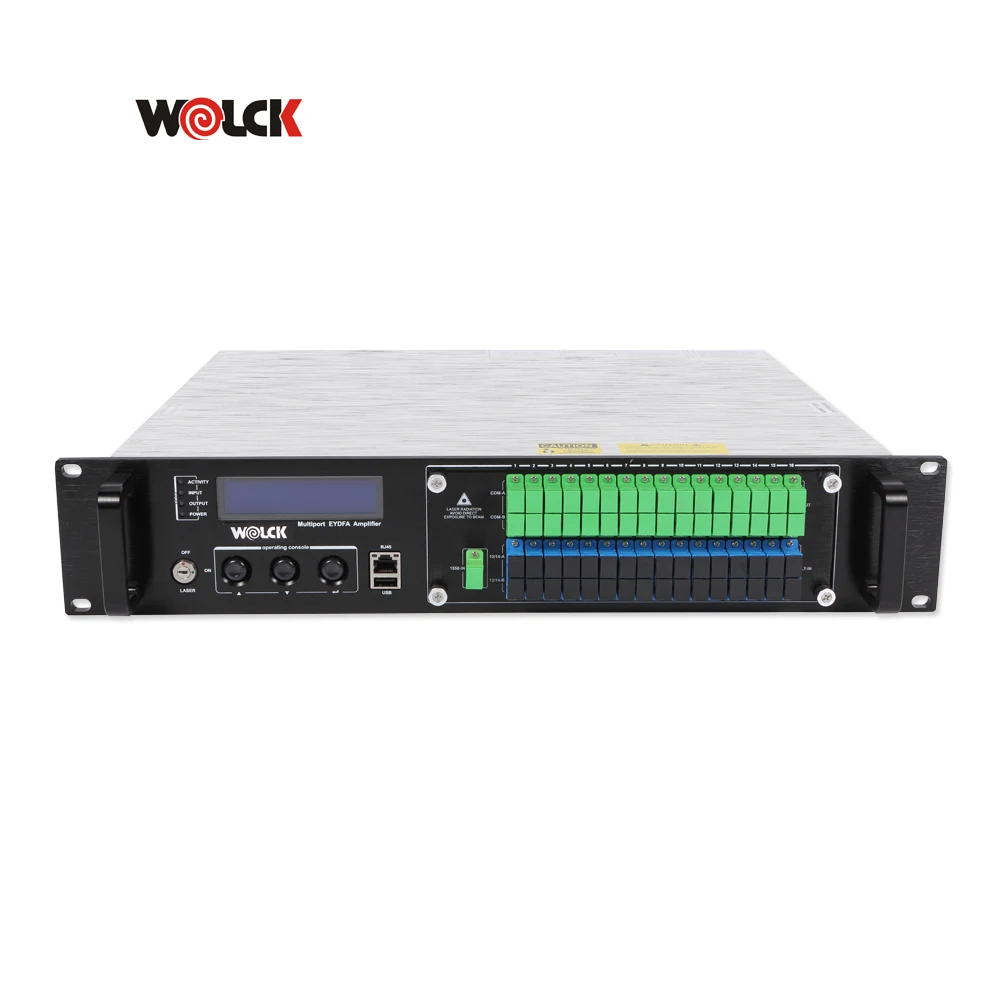

RF Fiber Optical Amplifier EDFA

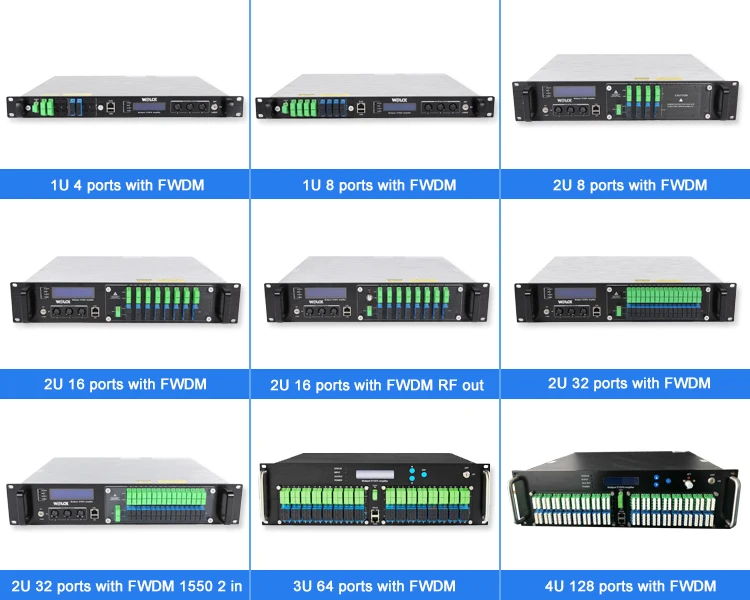

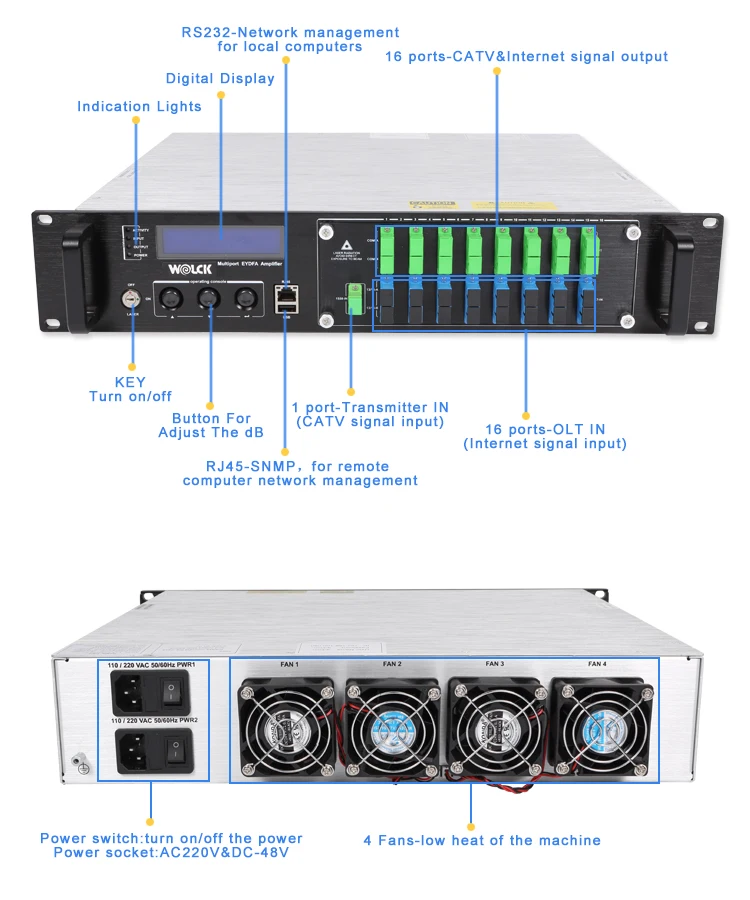

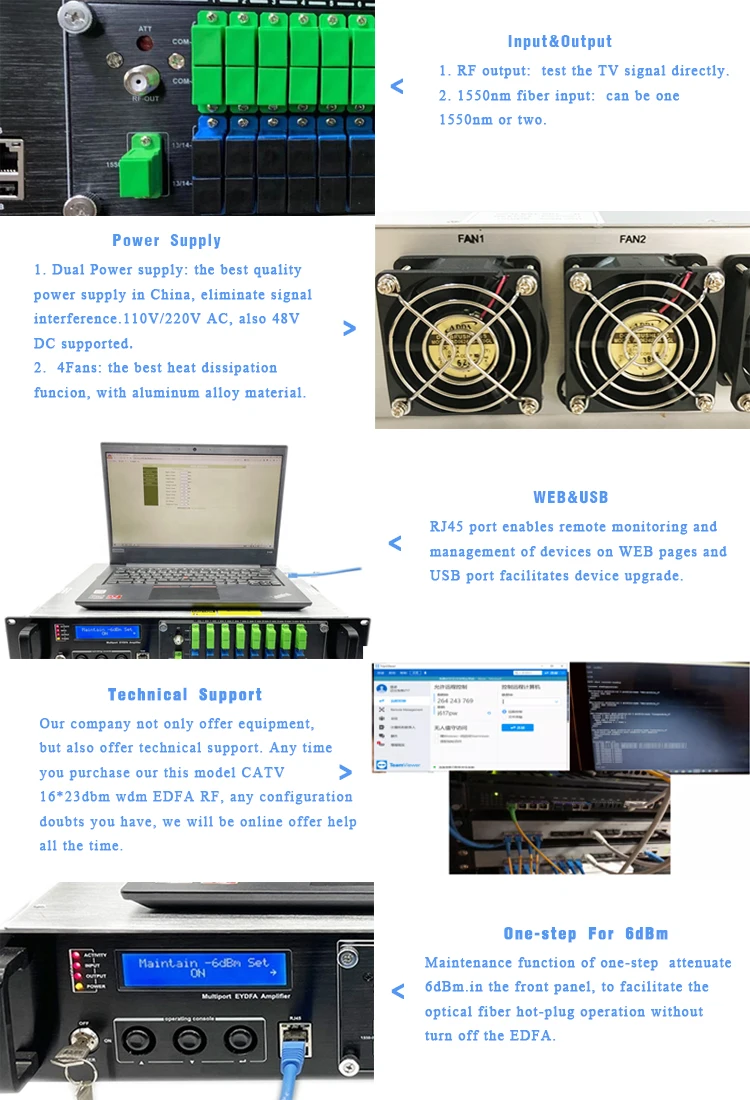

Multi-ports output, can built in 1270/1310/1490/1550/1577nm WDM.Designed for the PON+CATV Solution, combine the internet and 1550nm TV signal, amplify the 1550nm TV signal in the same time. Maintenance function of one-step attenuate 6dBm. in the front panel, to facilitate the optical fiber hot-plug operation without turn off the EDFA.










Items
Parameter
Output (dBm)
31
32
33
34
35
36
37
38
39
Output (mW)
1250
1600
2000
2500
3200
4000
5000
6400
8000
Input (dBm)
-8 ~ +10
Range or output adjustment (dBm)
5
Wavelength (nm)
1540 ~ 1560
Output stability (dB)
<±0.3
Optical return loss (dB)
≧45
Fiber connector
FC/APC, SC/APC, SC/IUPC, LC/APC, LC/UPC
Noise figure (dB)
<6.0 (input 0dBm)
Connector type
RJ45, USB
Power consumption (W)
≤80
Voltage (V)
110VAC, 220VAC
Working temp (℃)
0 ~ 55
Size (mm)
425(L)x482(W)x88(H)

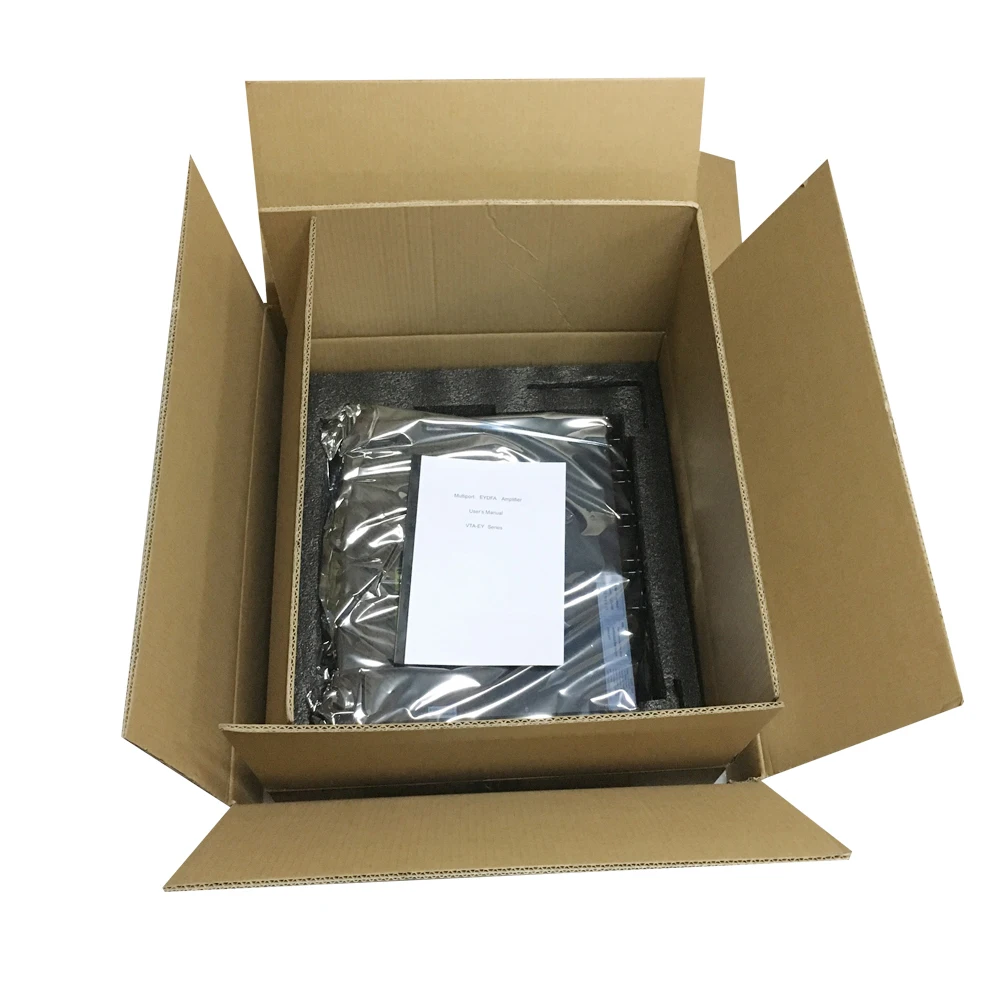

Product packaging
package with 1 carton or 2 carton is optional.
1pcs pacaked in single cartoncarton size: 61*53*22cm
GW: 12kgs
1pcs packed with two cartons.
carton size: 68*61*30cm
GW: 13kgs
















Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
