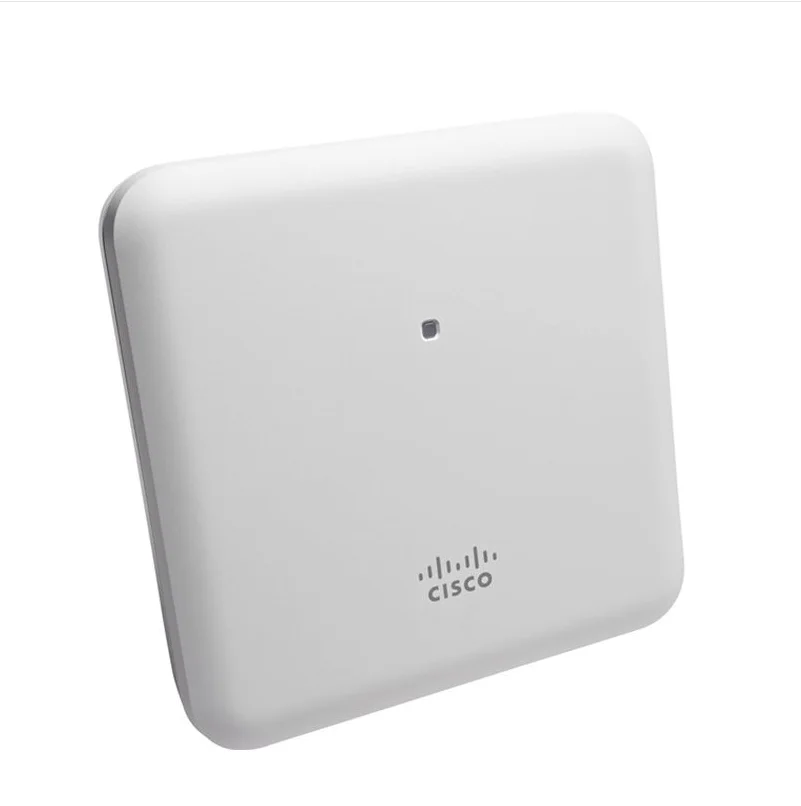

Оригинальный AIR-AP1852I-H-K9 Aironet 802.11ac Wave 2 точка доступа,

Model Number

AIR-AP1852I-H-K9

Description

802.11ac Wave 2 Access Point, 4x4:4, Internal-Ant, H Regulatory Domain

Features

- 4x4 MIMO with four spatial streams, single-user MIMO
- 4x4 MIMO with three spatial streams, multiuser MIMO
- MRC
- 802.11ac beamforming (transmit beamforming)
- 20-, 40-, and 80-MHz channels
- PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- 802.11 DFS
- CSD support

Regulatory Domain

H (H regulatory domain):
- 2.412 to 2.472 GHz; 3 channels
- 5.150 to 5.350 GHz; 8 channels
- 5.745 to 5.825 GHz; 5 channels

Antenna

Internal Antenna

Interfaces

- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
- 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)
- Management console port (RJ-45)
- USB 2.0 (enabled via future software)

Dimensions (W x L x H)

8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

3.12 lb (1.41 kg)
