Product Overview
Description
Product Description

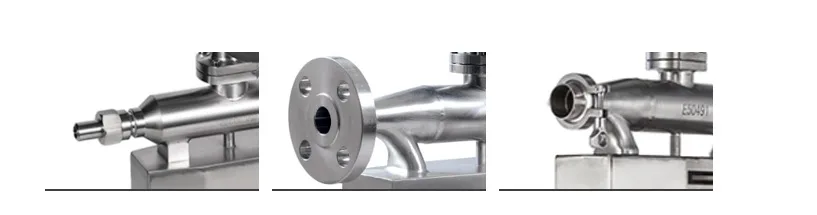

Coriolis mass flowmeter KCF200
KCF200 series mass flowmeter is based on the (Coriolis Force) principle,Realize direct precision measurement of fluid mass flow
without any conversion or correction of pressure, temperature, viscosity, density, etc. Its structure is composed of the sensor
unit and the transmitter unit. The Coriolis mass flowmeter is capable of directly measuring the mass of the fluid, having0.1%~0.2% with high accuracy.
without any conversion or correction of pressure, temperature, viscosity, density, etc. Its structure is composed of the sensor
unit and the transmitter unit. The Coriolis mass flowmeter is capable of directly measuring the mass of the fluid, having0.1%~0.2% with high accuracy.
Productcharacteristics:
* Low installation requirements (the requirements for the instrument front and rear straight pipe section are not high);
* Reliable, stable operation, and low maintenance rate;
* High accuracy and good reliability;
* Many applicable media;
* The instrument display data is complete and easy to use.
* Reliable, stable operation, and low maintenance rate;
* High accuracy and good reliability;
* Many applicable media;
* The instrument display data is complete and easy to use.
Performance parameters:
1. Scope of application: Measurement of mass or volume flow of liquid, gas, liquid solid and gas solid
2. Measurement pipe material: 316L stainless steel or Harbin C alloy
3. Medium temperature: Standard configuration-50℃ ~ + 150℃ (-200℃~+ 350℃ Customizable)
4. Ambient temperature: sensor: -41℃ ~ + 150℃ transmitter: -41℃ ~+80℃
5. Flow measurement accuracy: ± 0.5%, ± 0.2%, ± 0.1% flow ± [(zero stability / flow value) 0000000000000000000 × 100]% flow
6. Densiity measurement accuracy: ± 0.002g/cm³, ±0.001g/cm
7. Repeatability: ± 0.10%, ± 0.05% Flow ± [(zero-point stability / flow value) × 100]% Flow
8. Pressure grade: See the following table in the standard configuration. Other high pressure can be ordered specially
9. Output signal: 4~20mA load resistance <500 Ω (instantaneous flow or density optional) 0~10kHz instantaneous flow pulse
signal; 485 communication signal HART(needs to be customized)
10. Exploproof grade: EXdib II C T6 Gb
11. Protection level: IP67
12. electrical interface: M20 × 1.5
13. 13.Power supply: 24V DC (current not less than 500mA) or 220V AC
14. 14.Language: Chinese / English
2. Measurement pipe material: 316L stainless steel or Harbin C alloy
3. Medium temperature: Standard configuration-50℃ ~ + 150℃ (-200℃~+ 350℃ Customizable)
4. Ambient temperature: sensor: -41℃ ~ + 150℃ transmitter: -41℃ ~+80℃
5. Flow measurement accuracy: ± 0.5%, ± 0.2%, ± 0.1% flow ± [(zero stability / flow value) 0000000000000000000 × 100]% flow
6. Densiity measurement accuracy: ± 0.002g/cm³, ±0.001g/cm
7. Repeatability: ± 0.10%, ± 0.05% Flow ± [(zero-point stability / flow value) × 100]% Flow
8. Pressure grade: See the following table in the standard configuration. Other high pressure can be ordered specially
9. Output signal: 4~20mA load resistance <500 Ω (instantaneous flow or density optional) 0~10kHz instantaneous flow pulse
signal; 485 communication signal HART(needs to be customized)
10. Exploproof grade: EXdib II C T6 Gb
11. Protection level: IP67
12. electrical interface: M20 × 1.5
13. 13.Power supply: 24V DC (current not less than 500mA) or 220V AC
14. 14.Language: Chinese / English
Specification
item | value |
Warranty | 1year |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | kyue |
Model Number | KCF200 |
Type | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters |
Range | 0-100kg/h |
Accuracy | +-0.5%+-0.2%+-0.1% |
Medium temperature | -50-150℃ |
output | 4-20mA |
communication | RS485/HART |
power | 24VDC&220VAC |
IP code | IP67 |
Explosion Proof | EXdibIIC T6 Gb |
Packing & Delivery
BOX
Company Profile
Kyue Measurement & Control (Tianjin) Co. , Ltd. is a technology company which focuses on the development, manufacture and sales of non-standard and non-standard intelligent equipment, such as air-tightness detection, liquid pressure and flow Measurement Control, automatic detection, test equipment, instrumentation, wireless intelligent Control, process Control, and non-standard intelligent equipment.
The company advocates the concept of "One-stop process automation control solution", providing scientific automation instrumentation solutions and timely and high-quality pre-sales consulting and after-sales service. Products are widely used in petrochemical, environmental engineering, sewage treatment, metallurgy, automobile, medical, scientific research institutions, nuclear power and other fields.
The company advocates the concept of "One-stop process automation control solution", providing scientific automation instrumentation solutions and timely and high-quality pre-sales consulting and after-sales service. Products are widely used in petrochemical, environmental engineering, sewage treatment, metallurgy, automobile, medical, scientific research institutions, nuclear power and other fields.
FAQ
1. who are we?
We are based in Tianjin, China, start from 2018,sell to North America(50.00%),Western Europe(50.00%),Oceania(20.00%),South America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pressure Transmitter,Temperature Transmitter,Control Module,PACE5000,PACE6000
4. why should you buy from us not from other suppliers?
Intelligent equipment research and development, manufacturing, provide one-stop process automation control solutions
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese,Japanese
We are based in Tianjin, China, start from 2018,sell to North America(50.00%),Western Europe(50.00%),Oceania(20.00%),South America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pressure Transmitter,Temperature Transmitter,Control Module,PACE5000,PACE6000
4. why should you buy from us not from other suppliers?
Intelligent equipment research and development, manufacturing, provide one-stop process automation control solutions
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese,Japanese
