Venturi Scrubber Slurry Pump Mining Mud Mixing Pump Throatbush
- Category: >>>
- Supplier: Hebei Tobee Pump Co. Ltd.
Share on (1600509232256):
Product Overview
Description
Product Description

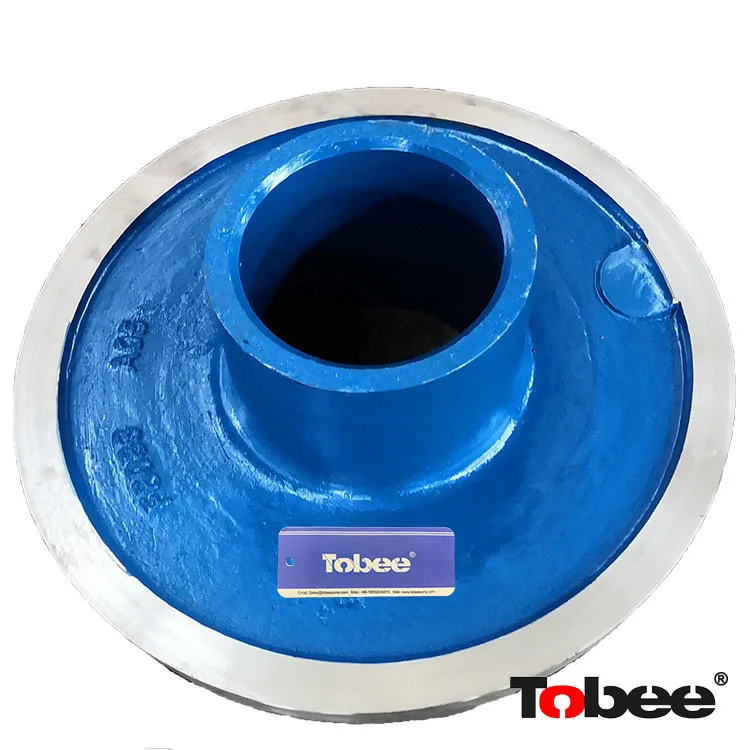

Tobee® Slurry Pump Throatbush is interchangeable with TH/HH/L/M slurry pump troatbush, It links plate liner and forms a Pump chamber to work with impeller, as one of wetted parts for the slurry pump, Its wear-resistance is very important to pump worklife.Tobee pump offers Cr27Mo high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Tobee® 8/6 Slurry Pump Performance Parameters:
Model | Max. Power (kw) | Materials | Clear Water Performance | Impeller Vane No. | ||||||||||
Liner | Impeller | Capacity Q | Head H (m) | Speed n (rpm) | Eff.η (%) | NPSH (M) | ||||||||
TH8x6E | 120 | M | M | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 | |||||
No. | Parts Name | Materials | No. | Parts Name | Materials |
1 | Frame Plate | QT500-7 | 6 | Frame Plate Liner | Rubber Coated High Tensile Steel |
2 | Expeller Ring | 27% High Chrome Alloy | 7 | Impeller | Rubber Coated High Tensile Steel |
3 | Gland Assembly | HT200 | 8 | Cover Plate Liner | Rubber Coated High Tensile Steel |
4 | Shaft Sleeve | 420 Stainless Steel | 9 | Cover Plate | QT500-7 |
5 | Expeller | 27% High Chrome Alloy |
APPLICATIONS
Mining & Mineral Processing
The slow running speeds of the Tobee heavy duty rubber lined slurry pump, together with the comprehensive choice of abrasion resistant alloys and rubber, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
Chemical Process
The interchangeability of alloy and rubber components in the same pump casing, together with a wide range of mechanical seals, make the Tobee heavy duty rubber lined slurry pump the most flexible choice for the chemical plant environment.
Sand & Gravel
Designed for easy and simple strip down and re-assembly, the Tobee heavy duty rubber lined slurry pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.
Sugar Processing
The premium reliability and service life of the Tobee heavy duty rubber lined slurry pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.
The slow running speeds of the Tobee heavy duty rubber lined slurry pump, together with the comprehensive choice of abrasion resistant alloys and rubber, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.
Chemical Process
The interchangeability of alloy and rubber components in the same pump casing, together with a wide range of mechanical seals, make the Tobee heavy duty rubber lined slurry pump the most flexible choice for the chemical plant environment.
Sand & Gravel
Designed for easy and simple strip down and re-assembly, the Tobee heavy duty rubber lined slurry pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.
Sugar Processing
The premium reliability and service life of the Tobee heavy duty rubber lined slurry pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.
Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion resistant alloys, together with the very latest rubber technology, positions Tobee Pumps firmly as a major supplier of pumps to the FGD industry.
Oil & Gas Exploration
Over a number of years we have developed the proven design of the Tobee heavy duty rubber lined slurry pump ranges to suit the specific demands of offshore applications. We can now offer the most reliable top side solution to erosive wear.
The new generation of specially formulated abrasion and corrosion resistant alloys, together with the very latest rubber technology, positions Tobee Pumps firmly as a major supplier of pumps to the FGD industry.
Oil & Gas Exploration
Over a number of years we have developed the proven design of the Tobee heavy duty rubber lined slurry pump ranges to suit the specific demands of offshore applications. We can now offer the most reliable top side solution to erosive wear.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hebei Tobee Pump Co.,Ltd, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredge pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Hydraulic Dredge Pumps, Deep well pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
Capacity
Tobee Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Tobee Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 30 years. The annual production capacity of pumps in our factory surpasses 10,000 easily. Tobee Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.
Production Capability
Tobee Pump has over 80 sophisticated equipment such as CNC, Director reading Spectrometer, CMM (Coordinate Measuring Machine), Rapid typing Machine and etc. Based on these facilities, Tobee Pump has the abilities of material inspection, casting, welding, machining, assembling and the performance test of pump unit. The maximum weight of the casting by Tobee Pump is about 12 tons, the maximum diameter of the casting can be machined by Tobee pump is over 5 meters and the maximum flow rate of Tobee's Pump product is more than 80,000 cubic meters per hour. With an annual production of 1000~120,000 pumps, Presently,Tobee Pump is the top 10 pump manufacturer with high comprehensive capacity of design and producing.
Technical Capability
As a High & New Tech enterprise, Tobee Pump owns a municipal research center with strong R&D research capability and a team of more than 280 technicians along with 45 senior engineers and 26 experts etc. There are material laboratory, physical lab, chemical lab, 3D scanning equipment, MAXUM, 3D coordinate measure machine, metallographic analysis software, casting simulation software, CFD computer aided design, PLM (product lifecycle management), CAPP and etc. hardware and software in Tobee factory. In addition to these, Tobee Pump continually introduce new technology technologies to improve the products comprehensive performance, like Lost Foam Casting and Vacuum Casting technology.
Market Standing
Tobee pump's humongous market share and its unrelenting competitiveness in the pump market have made us rank Top 10 in China for many years and were also selected as the Pacesetter Enterprise in the Chinese Industrial Pump Industry. This warrants enough proof of our distinctive position in the pump market today.
R&D Capabilities
Since ours is a high tech enterprise of the Hebei Province, Tobee Pump has a municipal level research centre and has strong abilities in product research and development because of our powerful research team. We also like to profess that we have a long standing technical cooperative relationship with many renowned research institutions which only shows the strength of Tobee's R&D capabilities.
Customer Evaluation
All the products manufactured by Tobee Pump are well received by our customers and have gained high appraisal from the society noting certain qualities of our products like energy saving, overall efficiency, stable operation and long service life. Some of our customers refer to Tobee Pumps simply as "Permanent Pumps" because of our quality and defect-free manufacturing ability.
Capacity
Tobee Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Tobee Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 30 years. The annual production capacity of pumps in our factory surpasses 10,000 easily. Tobee Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.
Production Capability
Tobee Pump has over 80 sophisticated equipment such as CNC, Director reading Spectrometer, CMM (Coordinate Measuring Machine), Rapid typing Machine and etc. Based on these facilities, Tobee Pump has the abilities of material inspection, casting, welding, machining, assembling and the performance test of pump unit. The maximum weight of the casting by Tobee Pump is about 12 tons, the maximum diameter of the casting can be machined by Tobee pump is over 5 meters and the maximum flow rate of Tobee's Pump product is more than 80,000 cubic meters per hour. With an annual production of 1000~120,000 pumps, Presently,Tobee Pump is the top 10 pump manufacturer with high comprehensive capacity of design and producing.
Technical Capability
As a High & New Tech enterprise, Tobee Pump owns a municipal research center with strong R&D research capability and a team of more than 280 technicians along with 45 senior engineers and 26 experts etc. There are material laboratory, physical lab, chemical lab, 3D scanning equipment, MAXUM, 3D coordinate measure machine, metallographic analysis software, casting simulation software, CFD computer aided design, PLM (product lifecycle management), CAPP and etc. hardware and software in Tobee factory. In addition to these, Tobee Pump continually introduce new technology technologies to improve the products comprehensive performance, like Lost Foam Casting and Vacuum Casting technology.
Market Standing
Tobee pump's humongous market share and its unrelenting competitiveness in the pump market have made us rank Top 10 in China for many years and were also selected as the Pacesetter Enterprise in the Chinese Industrial Pump Industry. This warrants enough proof of our distinctive position in the pump market today.
R&D Capabilities
Since ours is a high tech enterprise of the Hebei Province, Tobee Pump has a municipal level research centre and has strong abilities in product research and development because of our powerful research team. We also like to profess that we have a long standing technical cooperative relationship with many renowned research institutions which only shows the strength of Tobee's R&D capabilities.
Customer Evaluation
All the products manufactured by Tobee Pump are well received by our customers and have gained high appraisal from the society noting certain qualities of our products like energy saving, overall efficiency, stable operation and long service life. Some of our customers refer to Tobee Pumps simply as "Permanent Pumps" because of our quality and defect-free manufacturing ability.
FAQ
Q: Are you a factory or trading company?
A:We are a big manufacturing pump factory with 35 years experience.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China. You can fly to Shijiazhuang airport directly. All our
clients, from home or abroad, are warmly welcome to visit us!
Q: What is the material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber, Polyurethane, Cast iron, SS304, SS316, CD4MCu, Duplex SS, Bronze
etc. We can also choose material as customers' requirement.
Q: Can I get some technical support?
A: Yes, of course, we will continually provide full support by 7x24.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has 15~20QC.
