EP Pedestrian Type 1500kg Load Fork Length Customized Electric Battery Powered Scale Pallet Truck
- Category: >>>
- Supplier: Foshan Haoanda Machinery Co. Ltd.
Share on (1600509314078):
Product Overview
Description

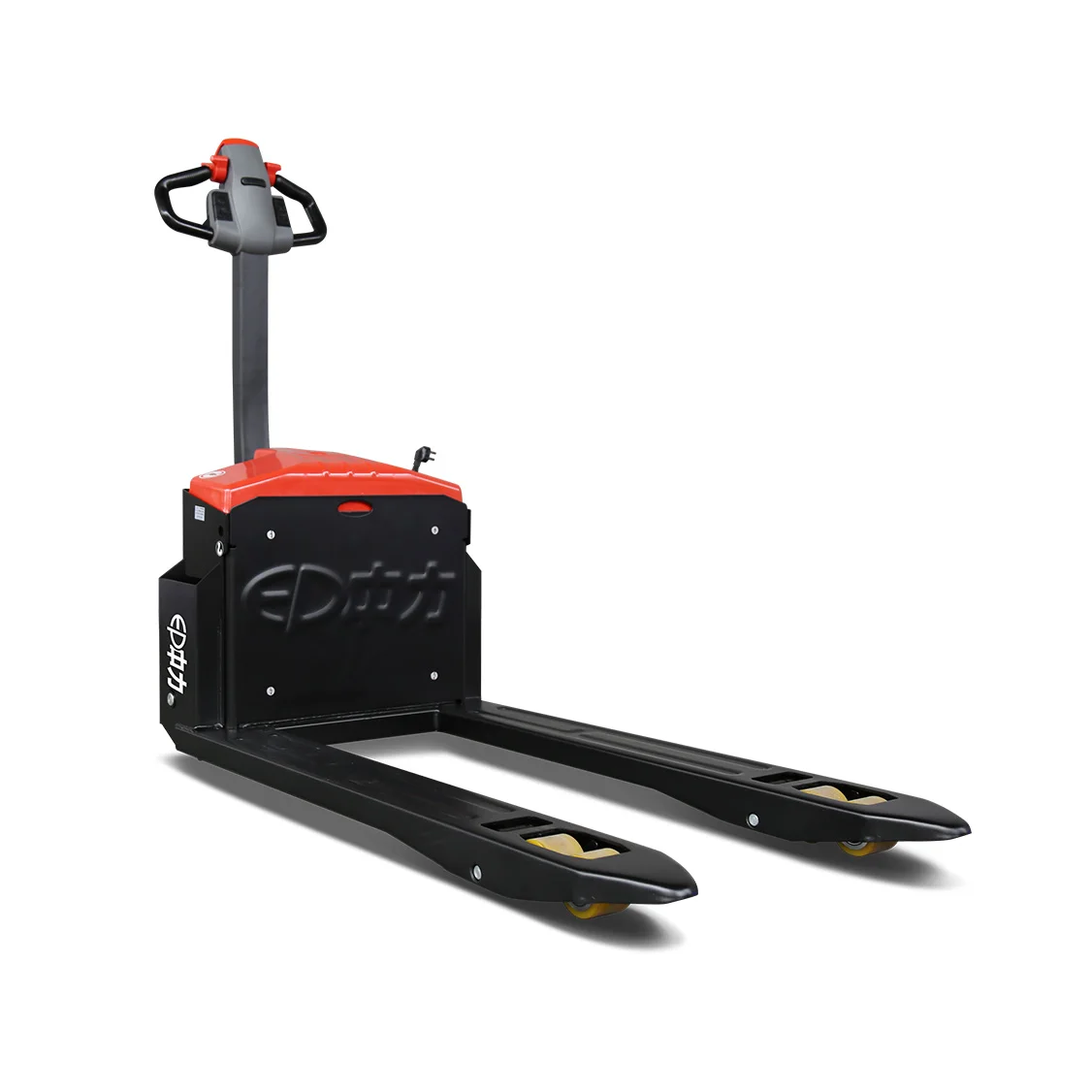

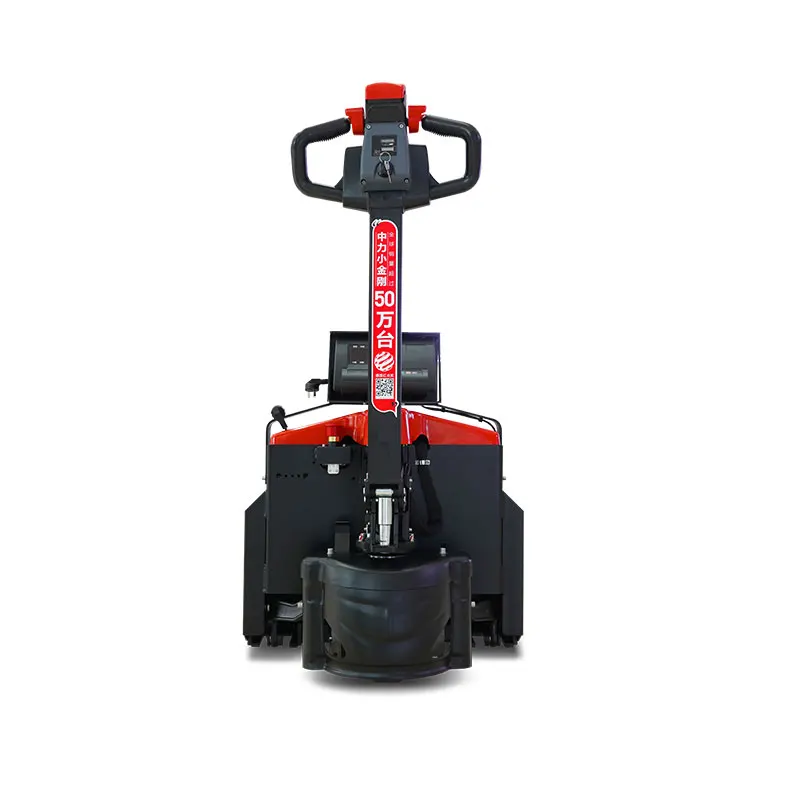

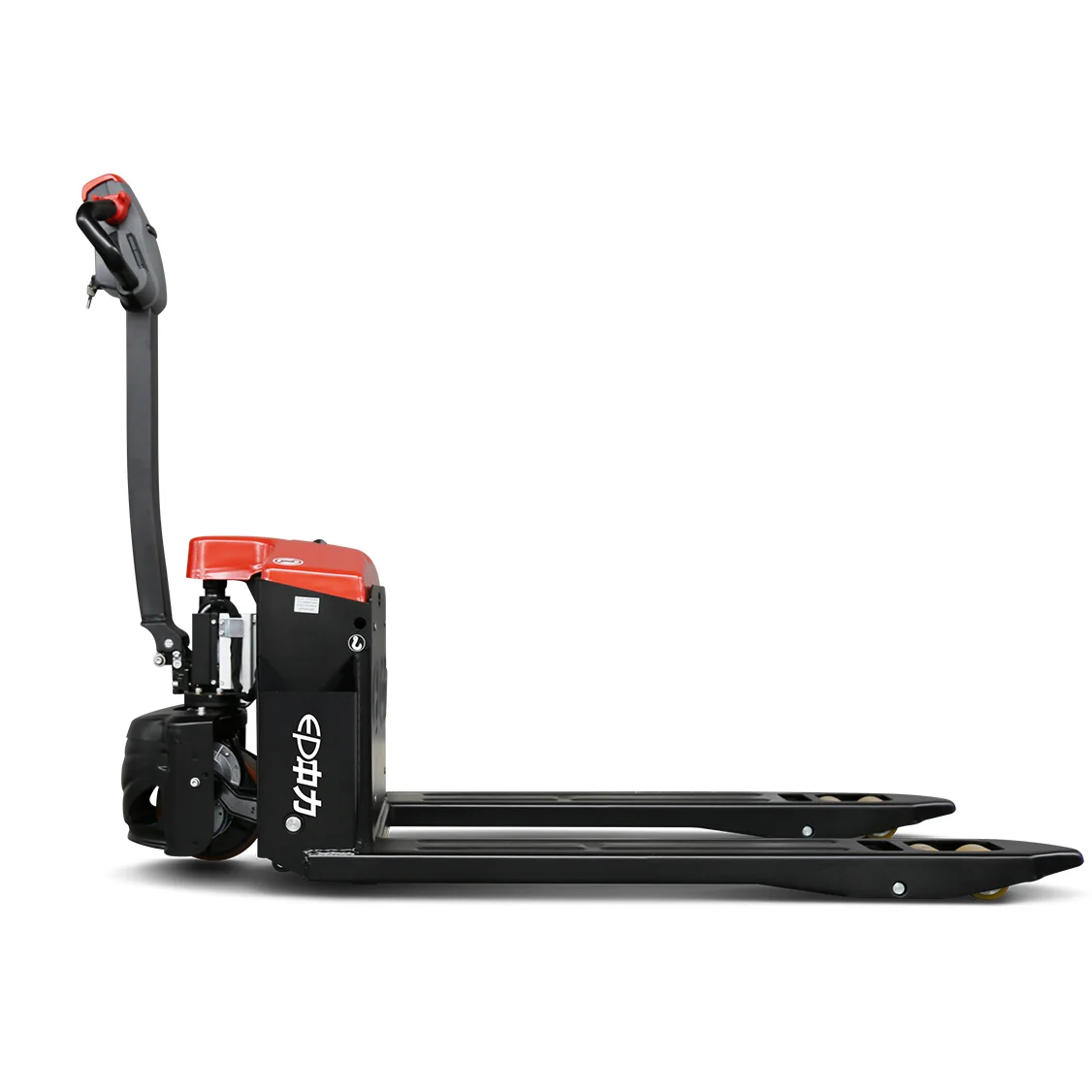

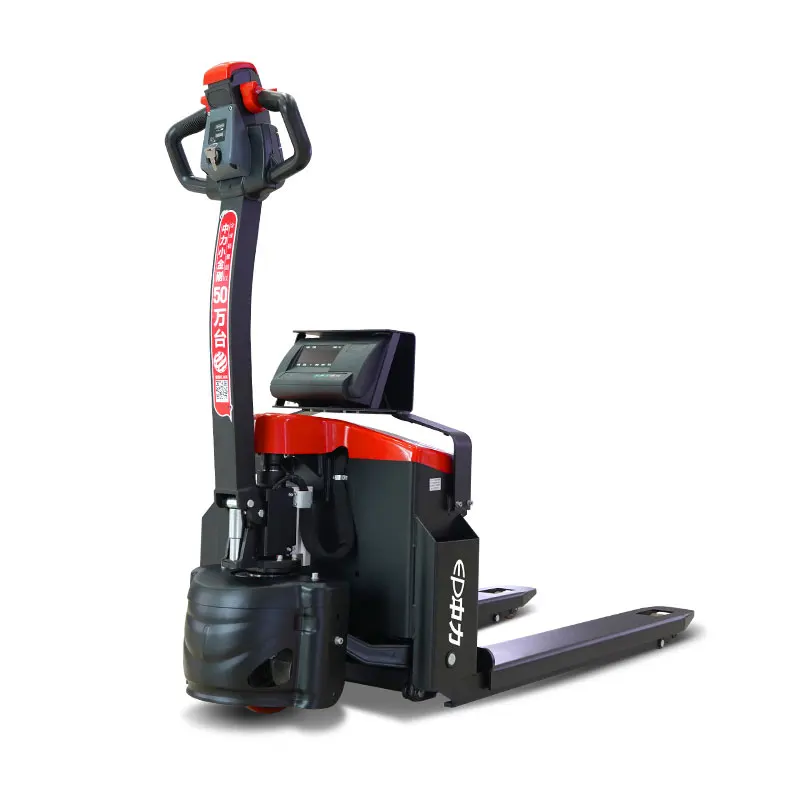

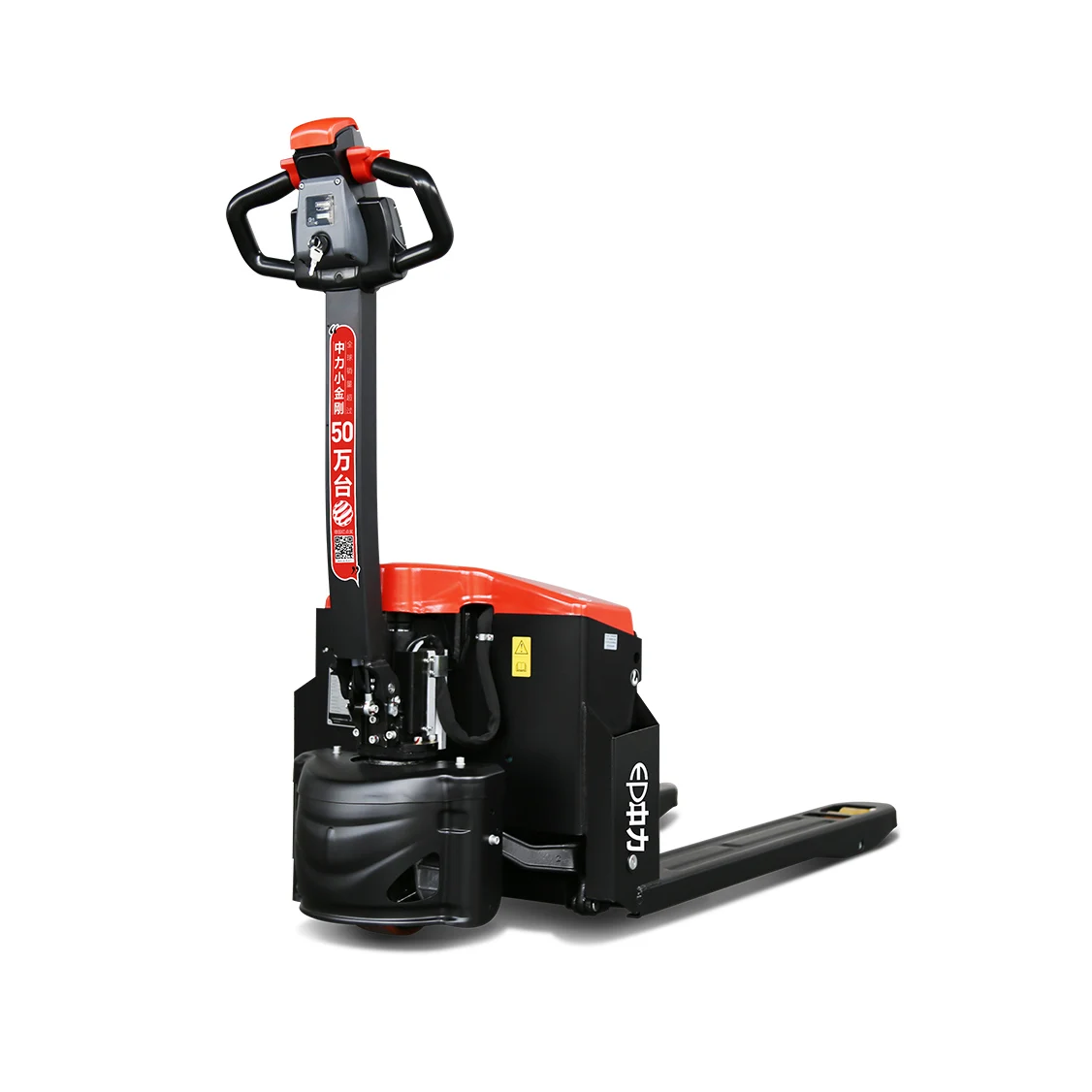

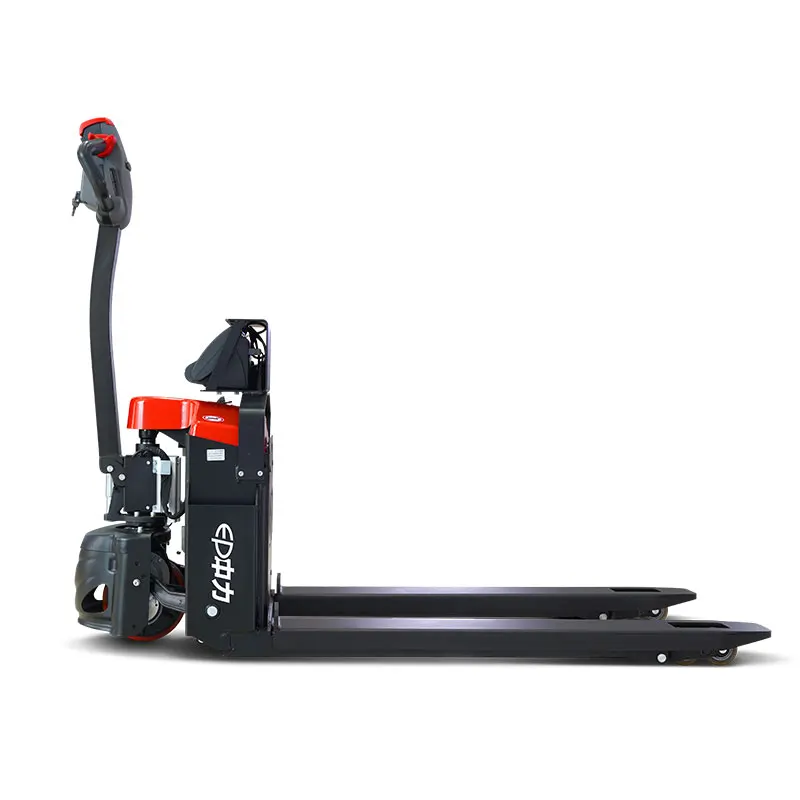

EP Pedestrian Type 1500kg Load Fork Length Customized Electric Battery Powered Scale Pallet Truck
Lead acid battery
-5-6 work hours
-Very stable quality
-Low maintenance cost
Attached internal charger for convenient using.
Power Motor
DC power motor, high power output, high efficiency
Battery Display
Clear LED battery display
Multi-function Handle
With upright mode and turtle mode, horn and anti-impact button
1.1 | Brand | EP | EP | |
1.2 | Model No. | EPT20-15ET2 | EPT20-15ET2-P | |
1.3 | Power Type | Battery | Battery | |
1.4 | Operate Type | Walkie | Walkie | |
1.5 | Load Capacity | Q (kg) | 1500 | 1500 |
1.6 | Load Center | c (mm) | 600 | 600 |
1.8 | Load Length | x (mm) | 885/946 | 885/946 |
1.9 | Wheelbase | y (mm) | 1200/1269 | 1202/1261 |
2.1 | Weight(with battery) | kg | 180 | 195 |
3.1 | Tyre Type | PU | PU | |
3.2 | Drive Wheel Size | Ф210x70 | Ф210x70 | |
3.3 | Load Wheel Size | 2x Ф80x61(Ф78x88) | 2x Ф80x61 | |
3.4 | Balance Wheel Size | Ф74x30 | Ф74x30 | |
4.4. | Lifting Height | h3 (mm) | 115 | 115 |
4.9 | Handle Height | h14 (mm) | 810/1200 | 810/1200 |
4.15 | Fork Lowered Height | h13(mm) | 80 | 80 |
4.19 | Overall Height | l1 (mm) | 1623 | 1670 |
4.20. | Length to Fork | l2 (mm) | 473 | 473 |
4.21 | Overall Width | b1/ b2 (mm) | 645（685） | 645（685） |
4.22 | Fork Size | s/ e/ l (mm) | 50/150/1150 | 50/150/1150 |
4.25 | Fork Outer Width | b5 (mm) | 560（685） | 568（690） |
4.34.1 | Aisle Width for 1000x1200mm pallet | Ast (mm) | 2280 | 2280 |
4.34.2 | Aisle Width for 800x1200mm pallet | Ast (mm) | 2150 | 2150 |
4.35 | Turning Radius | Wa (mm) | 1475 | 1475 |
5.1 | Travel Speed | km/ h | 4.5/5 | 4.5/5 |
5.2 | Lifting Speed | m/ s | 0.024/0.03 | 0.024/0.03 |
5.3 | Lower Speed | m/ s | 0.059/0.05 | 0.059/0.05 |
5.8 | Gradeability | % | 5/16 | 5/16 |
5.10. | Brake Type | electricmagnet | electricmagnet | |
6.1 | Drive Motor Power S2 60min | kW | 0.75 | 0.75 |
6.2 | Lift Motor Power S3 15% | kW | 0.8 | 0.8 |
6.4 | Battery Voltage/ Storage | V/ Ah | 2x12/65Ah | 2x12/65Ah |
8.1 | Controller Type | DC | DC |
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
