Inspur NF5688M6 new generation of NVLink AI server up to 12 PCIe expansion gpu 6u rack server
- Category: Servers >>>
- Supplier: Beijing,Xinqidian,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

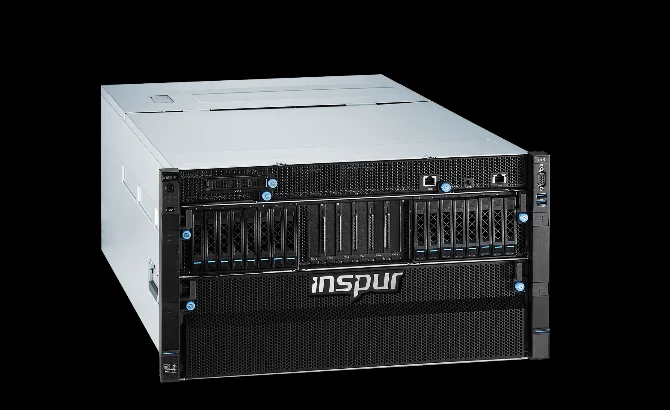

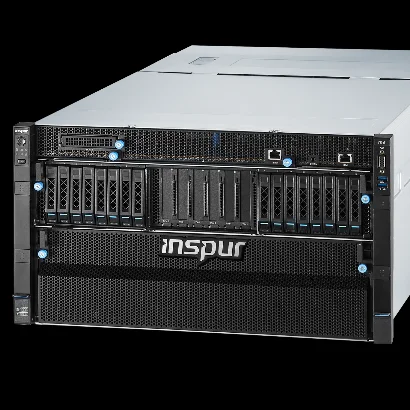

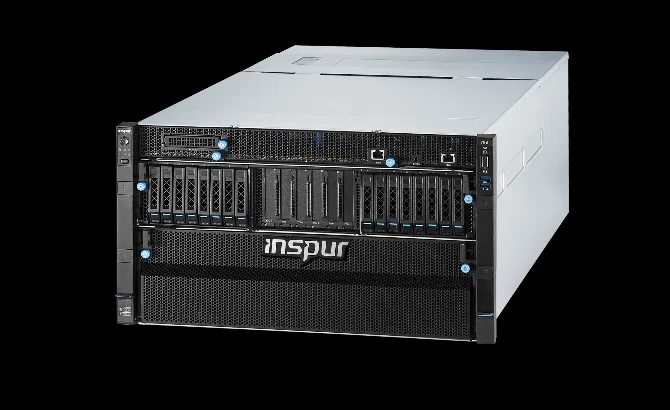

Inspur NF5688M6
NF5688M6 is a new generation of NVLink AI server developed by Inspur for ultra-large-scale data centers with high performance, high compatibility and strong expansion. It is the first to support 2 Intel latest Ice Lake CPUs and 8 N VIDIA latest NVSwitch fully interconnected in 6U space. 500W A100 GPU. NF5688M6 is the industry's first air-cooled product that supports 500W A100 GPU,and can provide up to 12 PCIe expansion products, and supports self-developed dual-wide N20X, NV DPU and other smart networkcards. Combined with the leading AI computing resource sched -uleing platform AIStation, it fully releases the powerful AI
computing performance of up to 5 pe-taFLOPS.
computing performance of up to 5 pe-taFLOPS.
Leading Technology
* 2 Ice Lake processors, using 10nm process
* 8 NVIDIA A100 GPUs, 600GB/s bandwidth NVSwitch fully interconnected
* Support multi-instance GPU (MIG), greatly improving GPU resource utilization
* Up to 10 200G HDR InfiniBand, high-speed interconnection expansion
* 8 NVIDIA A100 GPUs, 600GB/s bandwidth NVSwitch fully interconnected
* Support multi-instance GPU (MIG), greatly improving GPU resource utilization
* Up to 10 200G HDR InfiniBand, high-speed interconnection expansion
Optimal Qesign
* The industry's only air-cooled support 500W A100 GPU
* High performance ratio, GPU: computing IB: storage IB=8:8:2
* Modular design, flexible operation, easy operation and maintenance
* Leading support for Inspur N20X, NV-DPU, A/T customer smart network card
* High performance ratio, GPU: computing IB: storage IB=8:8:2
* Modular design, flexible operation, easy operation and maintenance
* Leading support for Inspur N20X, NV-DPU, A/T customer smart network card
Product Specification
Height | 6U |
GPU | 1* HGX A100 8GPU |
CPU | 2* 3rd Xeon® IceLake scalable processors, TDP 270W, support 3 UPI interconnections |
Memory | 32* DDR4 RDIMM/LRDIMM, up to 3200MT/s |
Storage | 8* 2.5’’ NVMe SSD or 16* 2.5’’ SATA/SAS SSD |
M.2 | On-board 2* NVMe/SATA M.2 |
PCIe | 10* PCIe 4.0 x16 slots，2* PCIe 4.0 x16 slots (PCIe 4.0 x8 rate) or 6*PCIe 4.0 x16 |
RAID | Optional support RAID0/1/10/5/50/6/60, etc., support Cache super capacitor protection, provide RAID state migration, RAID configuration memory |
NIC | Optional 1 PCIe 4.0 x16 OCP 3.0 network card, rate support 10G/25G/100G |
Front I/O | 1* USB 3.0，1* USB 2.0，1* VGA，1* RJ45 management port |
Rear I/O | 1* USB 3.0，1* VGA |
Cooling | N+1 redundant hot-swappable fans |
Power | 6* 3000W 80Plus platinum power supply, support 3+3 redundancy |
Size (W*H*D) | 447mm * 263.9mm * 850mm |
