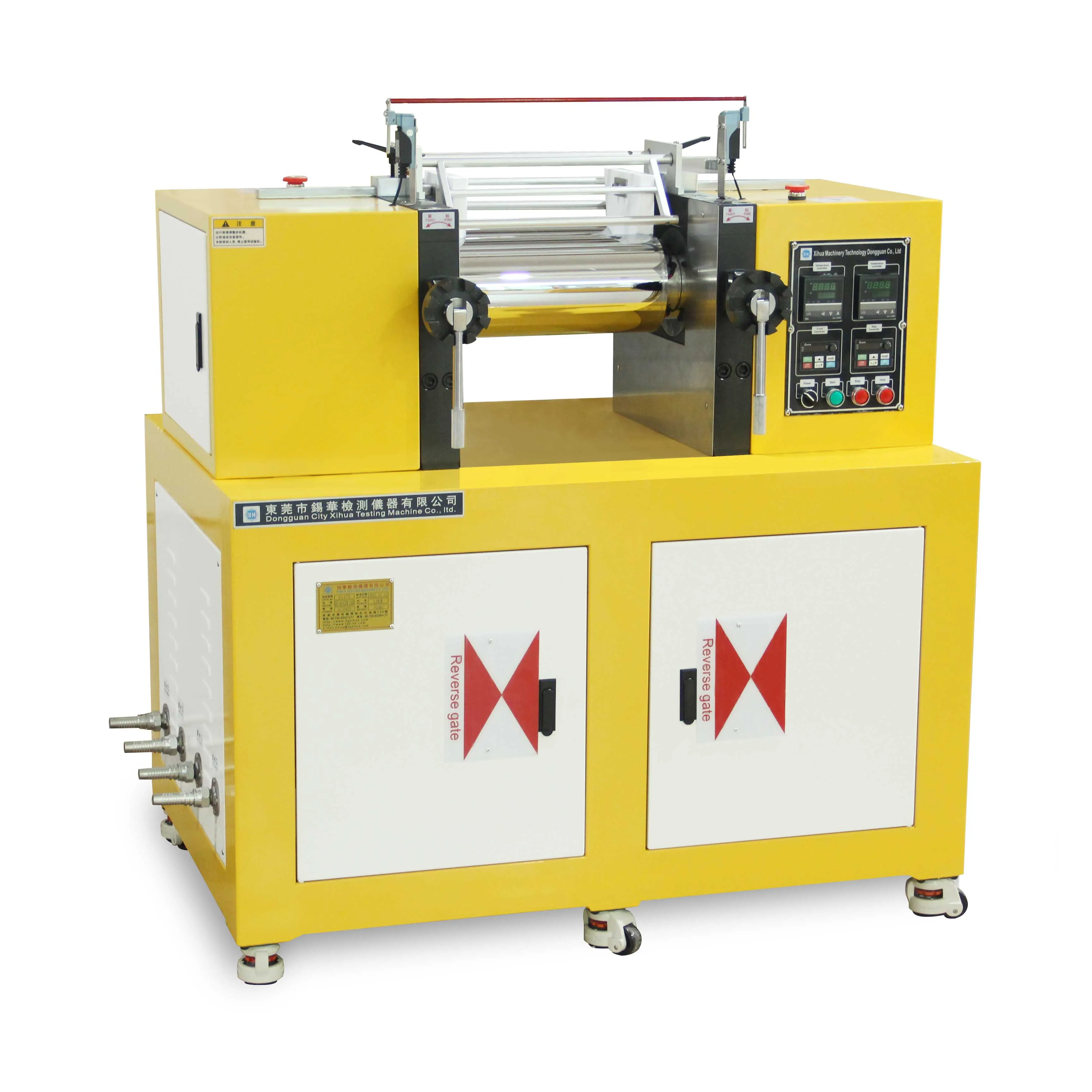

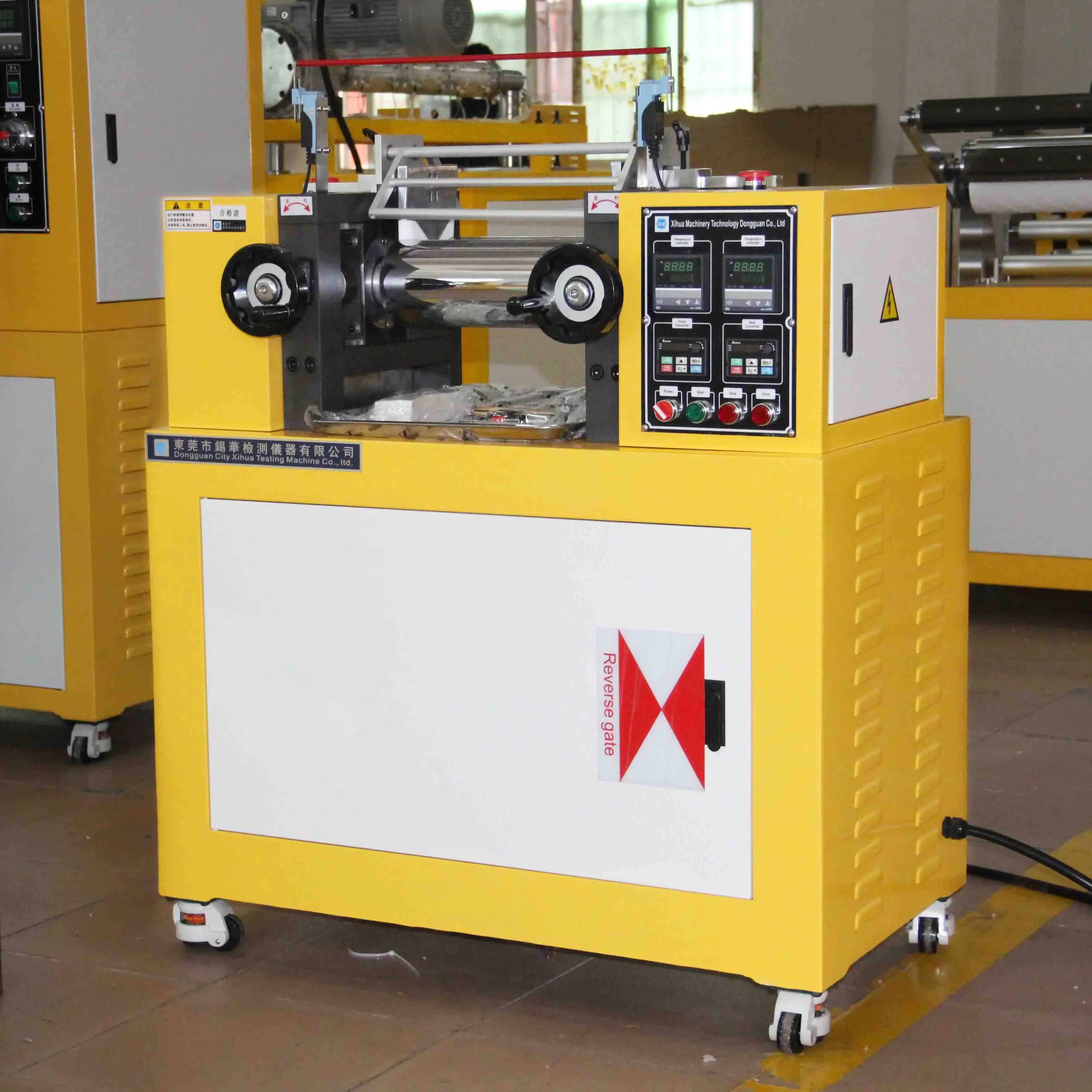

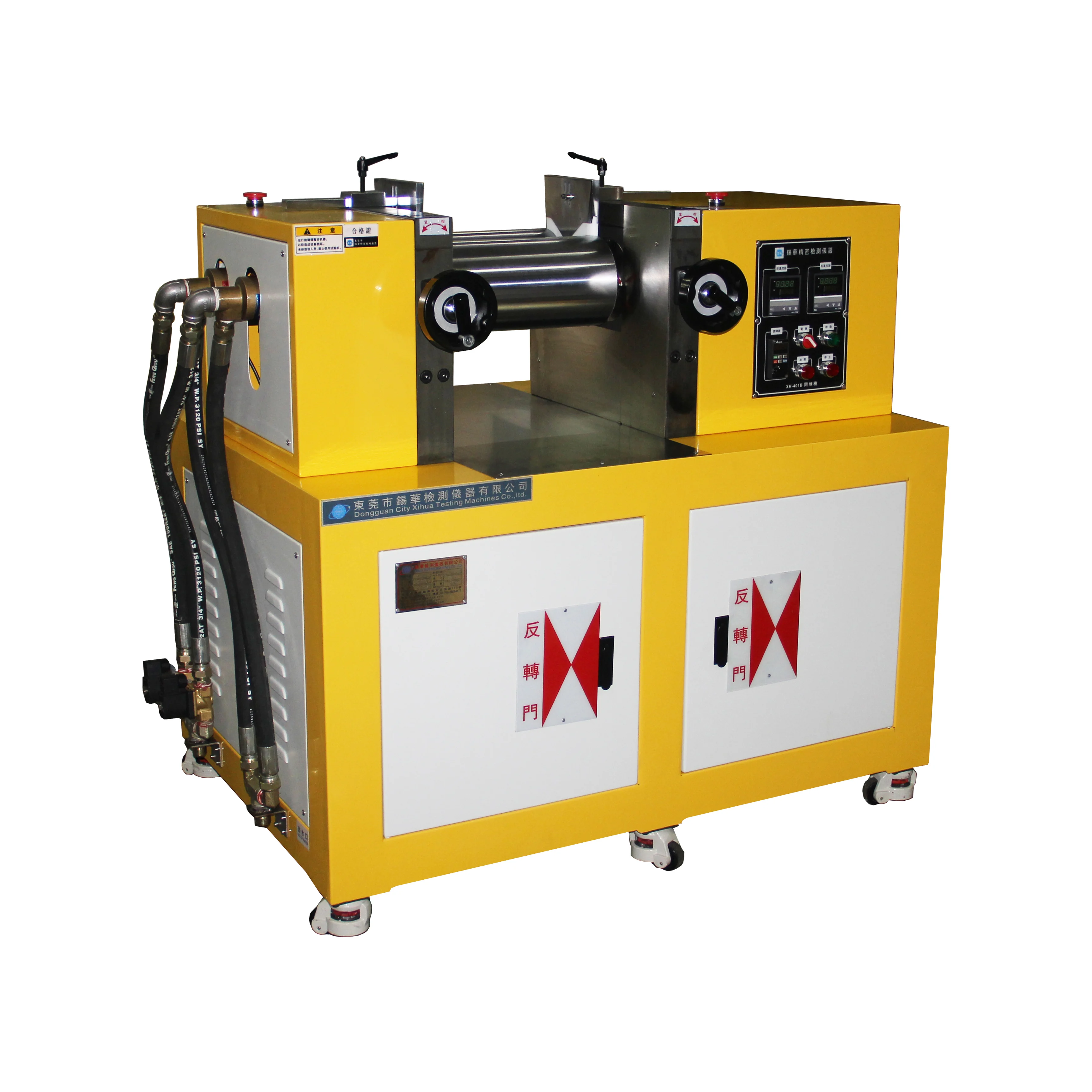

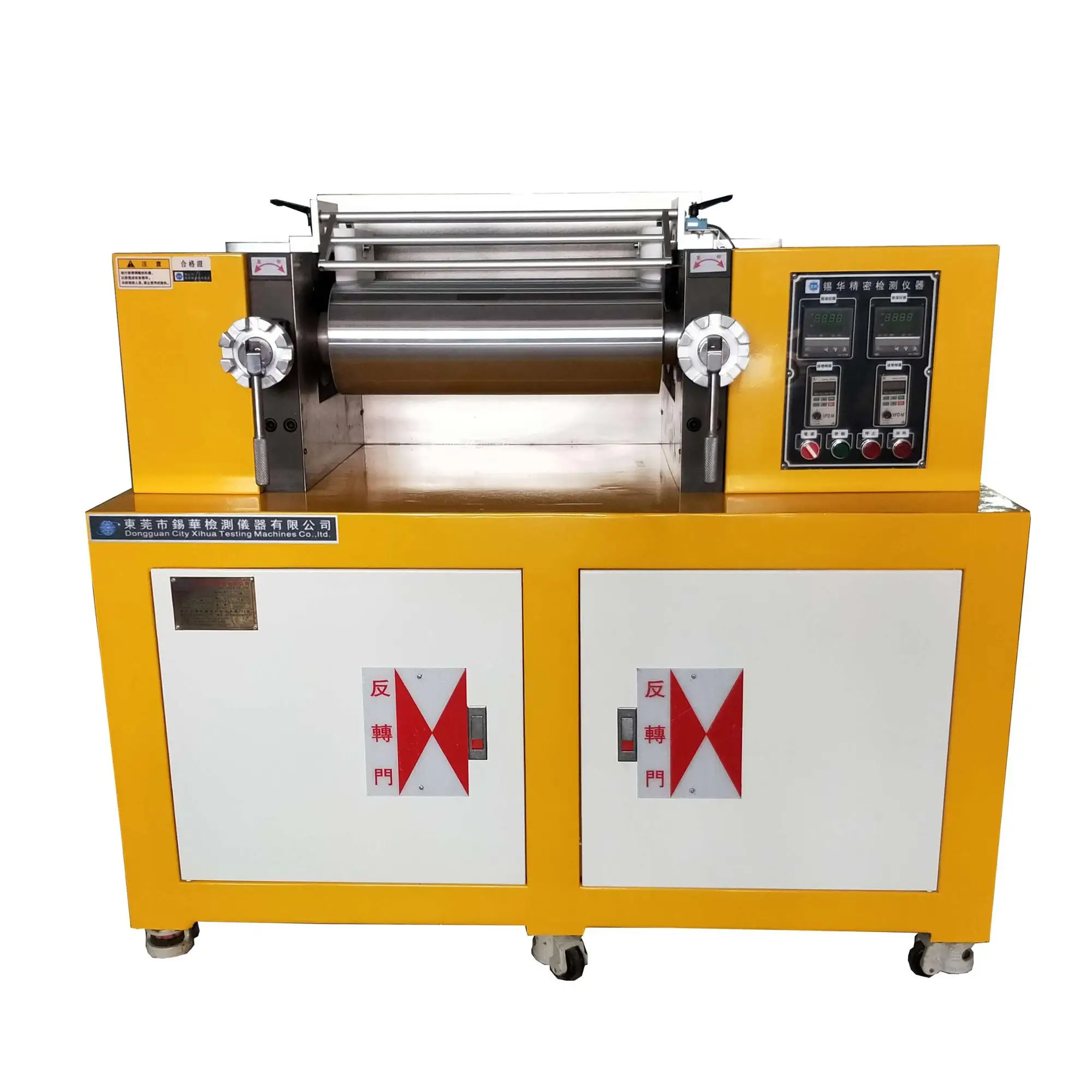

Lab rubber two roll mixing mill plastic rubber machinery

Share on (1600509986643):


Price:$12,500.00 - $14,500.00

Quantity:


Product Overview

Description



Product Description


Product Application

The machine is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.



XH-401CE Technical Parameter
Applicable materials
PP, PE, PVC, rubber, etc.
Mixing capacity
0.5-1kgs or designated
Roller diameter
120mm or designed
Roller width
350mm or designed
Roller gap
0.1 - 5mm (adjustable)
Speed of roller
18r/min
Temperature range of the roller
±2°C
Heating mode
electrical heating
 Safety device
protective cover, safety lever, reverse door, emergency stop button
Motor
1HP (2 Sets)
Power supply
380V/50Hz/3 phases or Customerized






Main Features

1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.



Detailed Images


Machine Parts

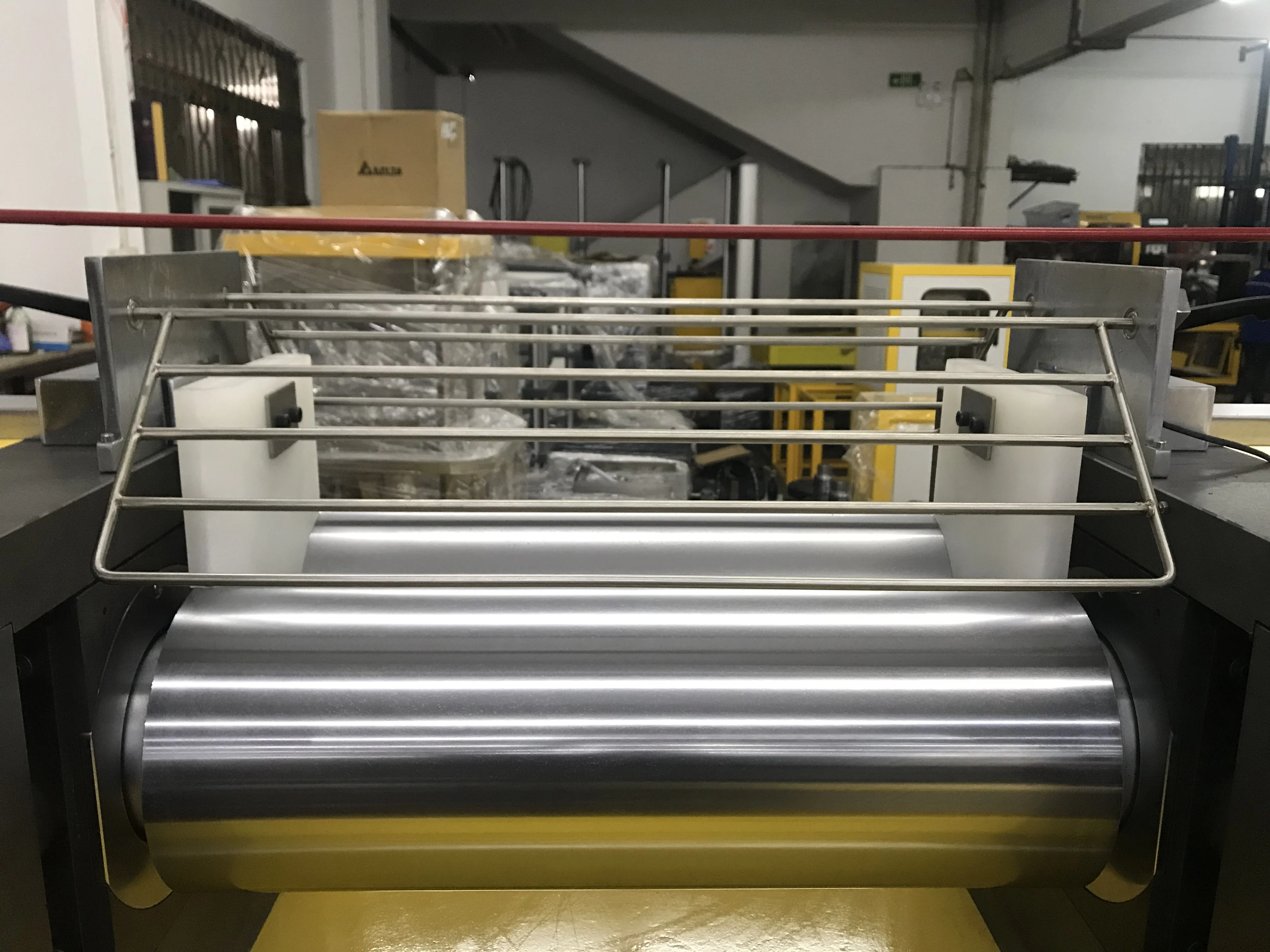

Name: Roll

Brand: XIHUA

Original: China

Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.


Rubber and plastic is different.
We will suggest the roller to you according to your material



Main Features

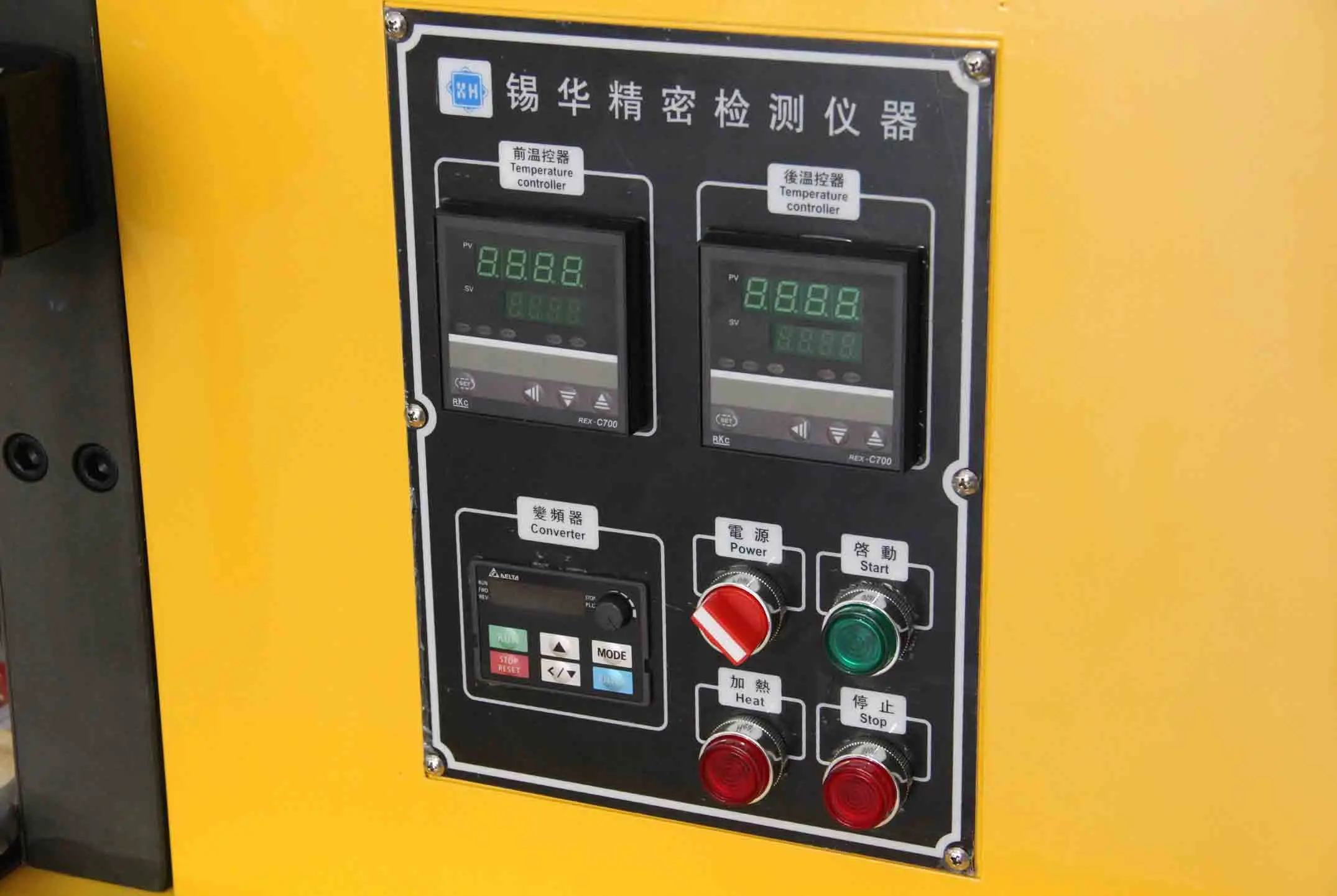

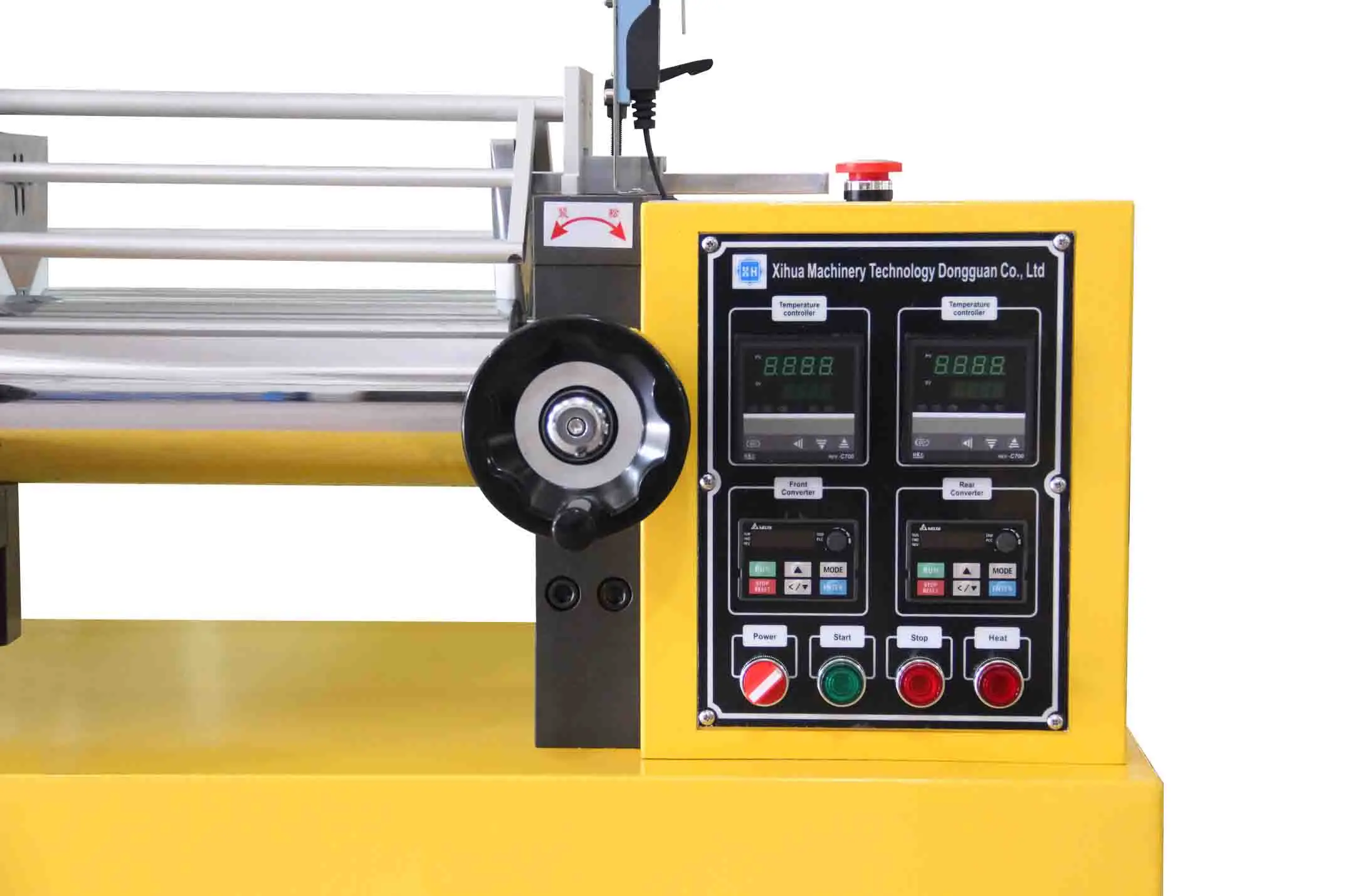

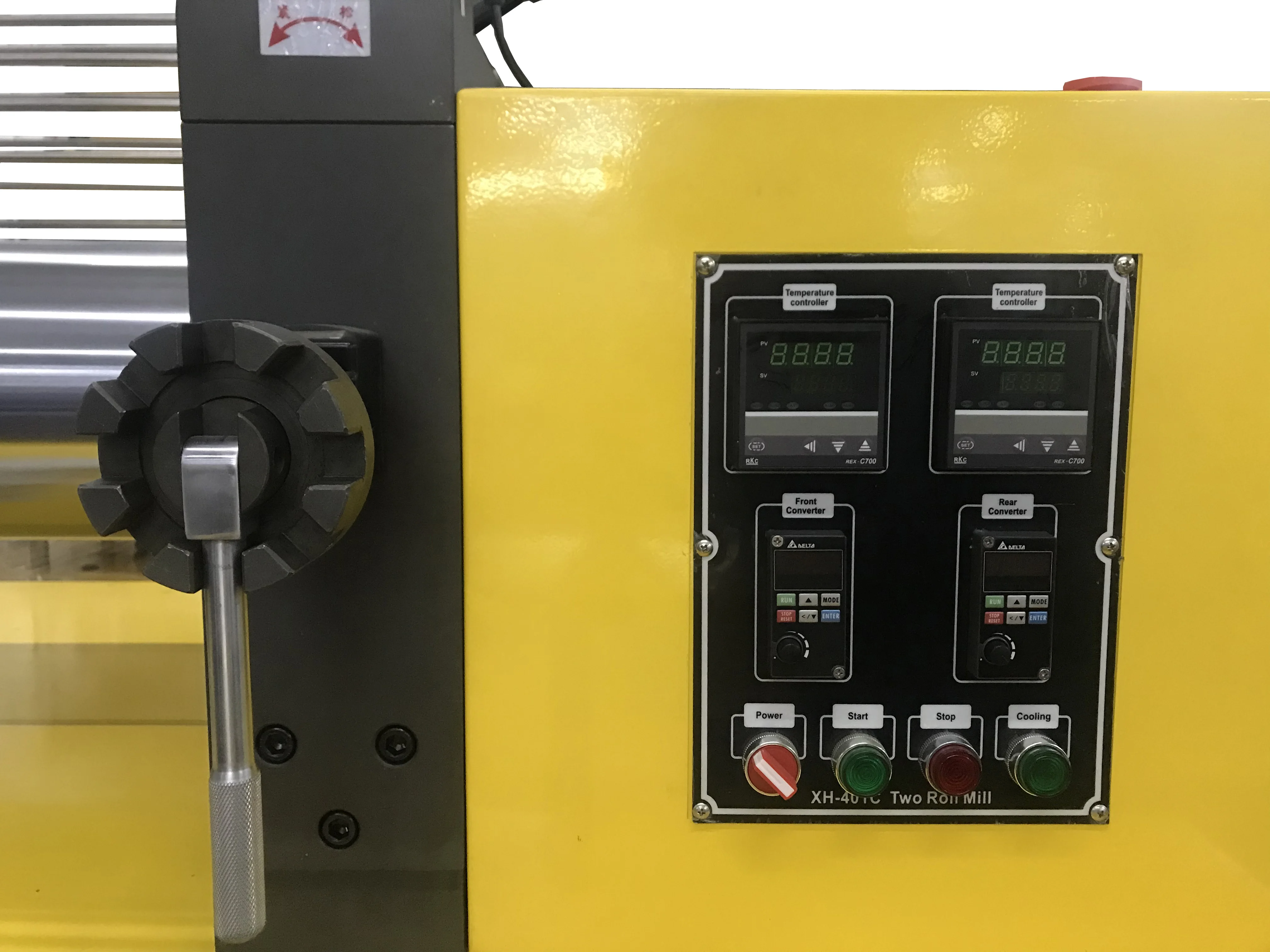

Name: Control Board
Brand: XIHUA
Original: China
LED temperature display, the speed easy control by two frequency converter.



Machine Parts

Name: Safety Device
Brand: XIHUA
Original: China
Protective cover and Safety Lever and Emergency button.



Main Features

Name: Testing sample sheet

Brand: XH
Some testing samples for matching colors



Certifications




Our Service


Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.



Contact Information


Dongguan Xihua Testing Machine Co.,Ltd


WhatsApp: +86 15625539168


Wechat: +86 15625539168


Website: www.lab-xh.com






Our Exhibition






Packing & Delivery


Packaging
Size
1350(L) * 850(W) * 1400 (D)
Weight
750kgs



Packaging Details



The normal package is wooden case, we will use PE film roll the equipment first.
