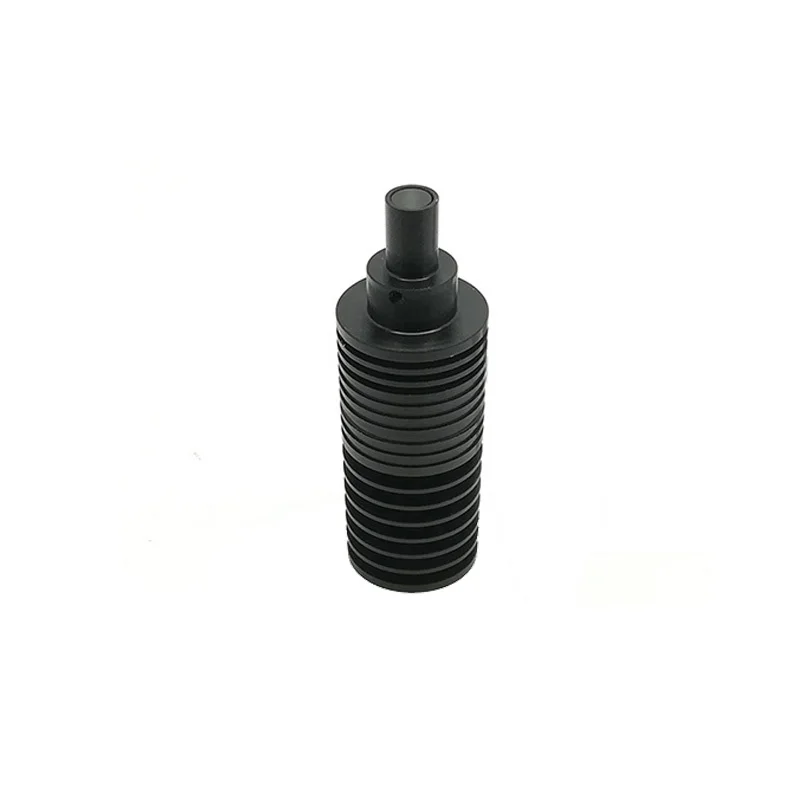

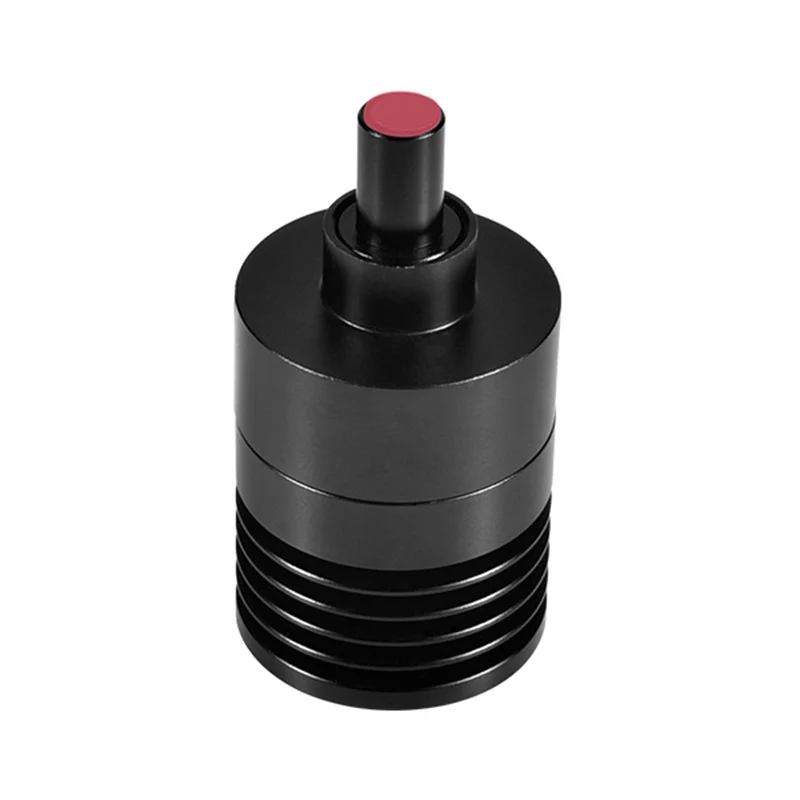

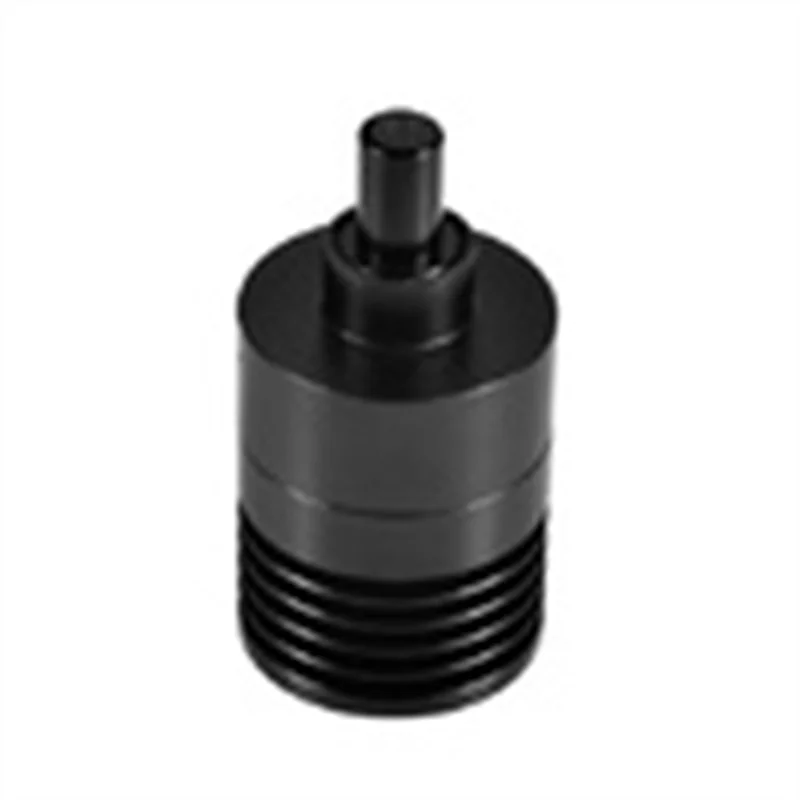

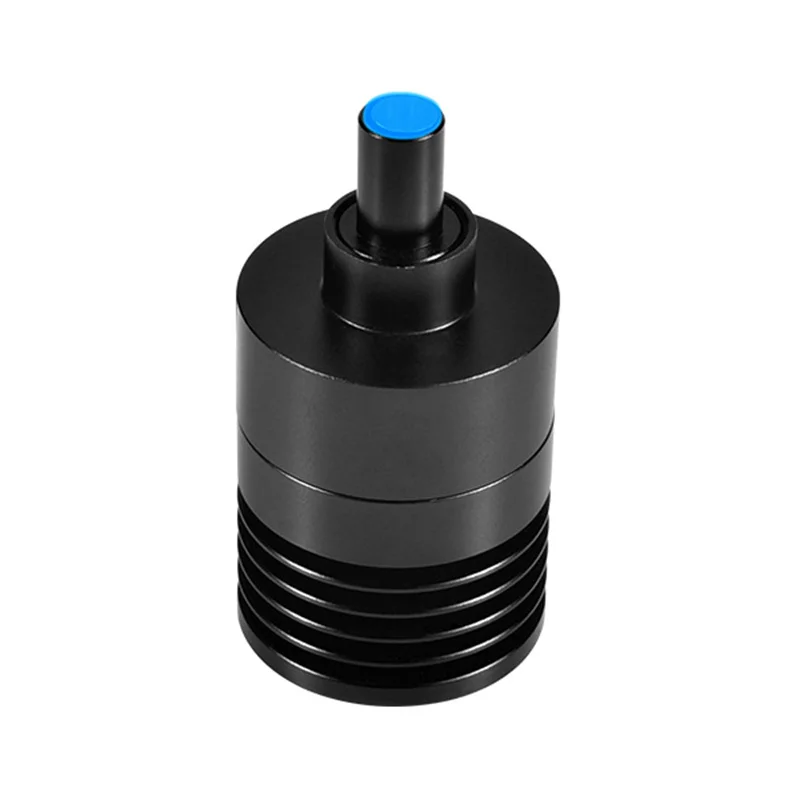

2022 Concentrated LED Machine Vision Point Light Source for Concave Convex Point Detection
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600510022783):
Product Overview
Description
Product Features
Special lens combination to achieve high brightness and uniform spot lighting
Products Description
The top diameter of the point light source is 8mm or 9mm, and the diameter of the light-emitting surface is 6mm. It has the advantages of high brightness and small light-emitting area. It can be used alone in the machine vision system, or it can be used with a microscope head or a telecentric lens with coaxial function.
Scope of application
1. Capacitor appearance inspection
2. Screw surface defect, concave and convex point detection
3. Electronic component solder joint inspection
2. Screw surface defect, concave and convex point detection
3. Electronic component solder joint inspection

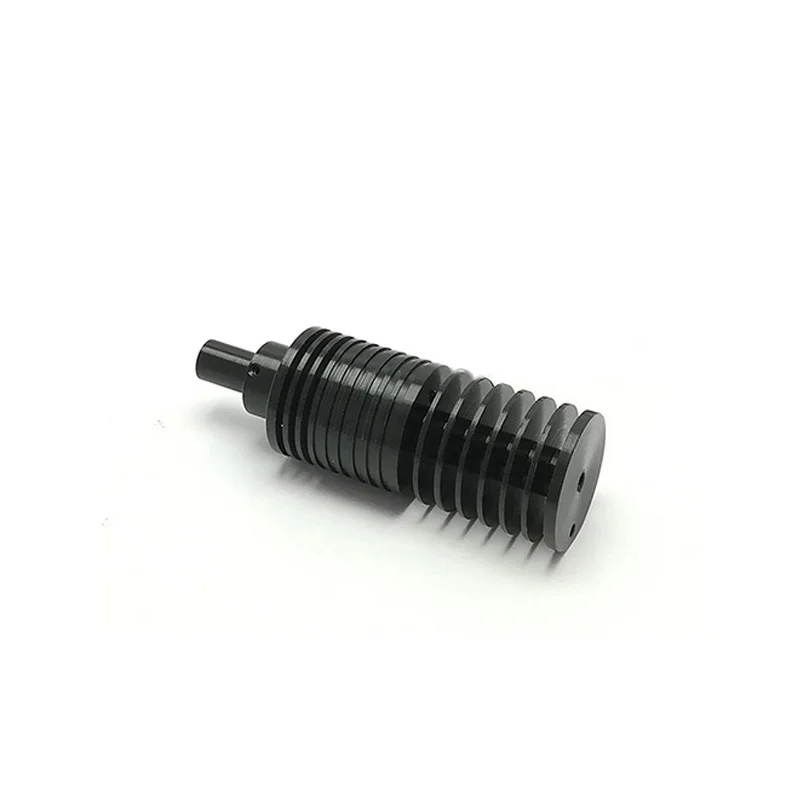

Details Images
Parameters Table
Parameters Table | Red: 620-630nm; Green: 525nm; Blue: 470nm; White: 5000K-8000K (color temperature) | ||||||
Use environment | The ambient temperature is about 25 degrees, and the operating temperature is within 35 degrees | ||||||
Expected service life | The red, white, blue and green light sources can be continuously lit for 20,000 hours, and the light decay is 60% (the light decay of conventional lighting is 1-20% for one year) | ||||||
Product advantages | All products are delivered with one-year standard free technical support, and can be customized according to customer requirements for the characteristics of the measured object, working distance, irradiation angle and field of view | ||||||
Specifications
Serial Number | Model | Size(mm) | Power |
1 | ZX-PL83P | Front Port Diameter 8 | 4.5(W/R/B) |
2 | ZX-PL83P-IR | Front Port Diameter 8 | 4.5(IR) |
3 | ZX-PL85P | Front Port Diameter 8 | 4.5(W/R/B) |
