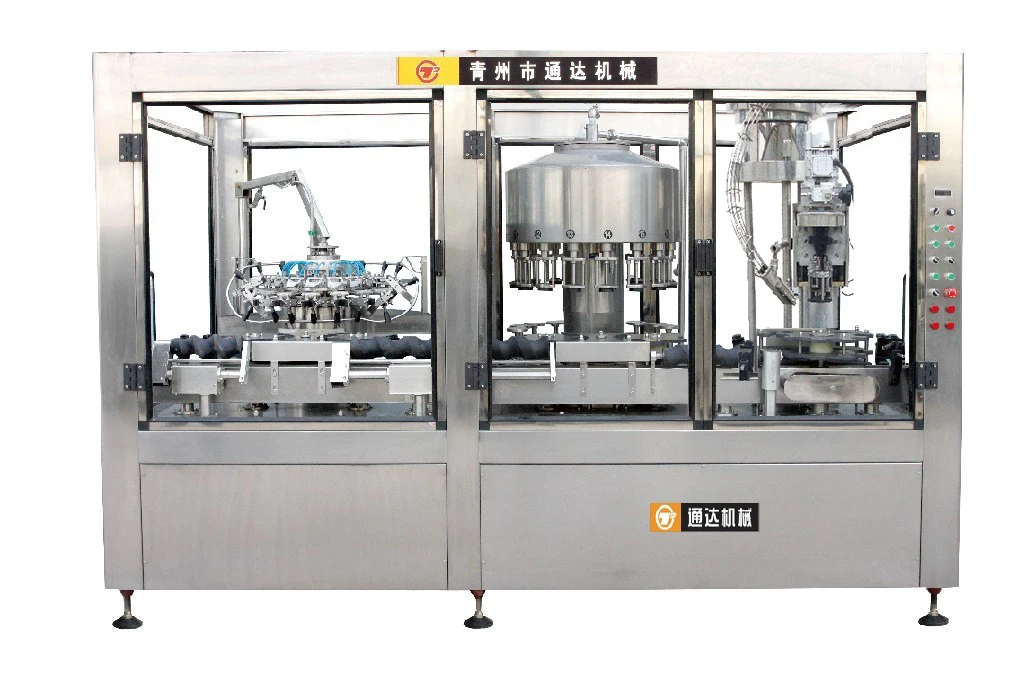

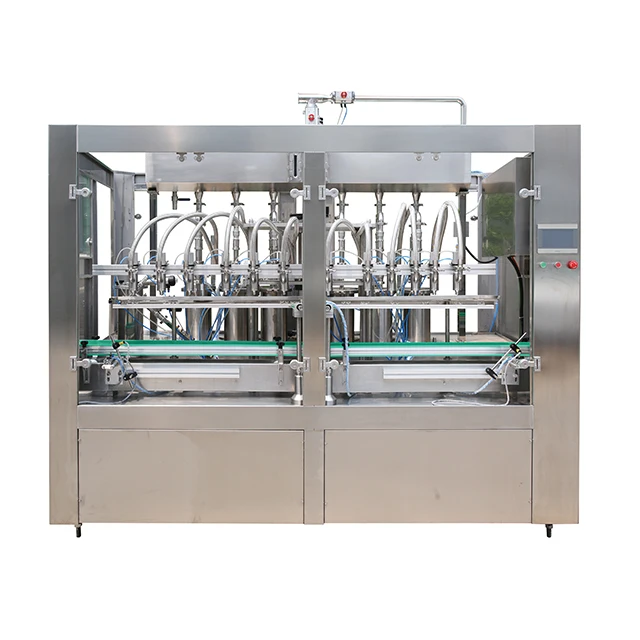

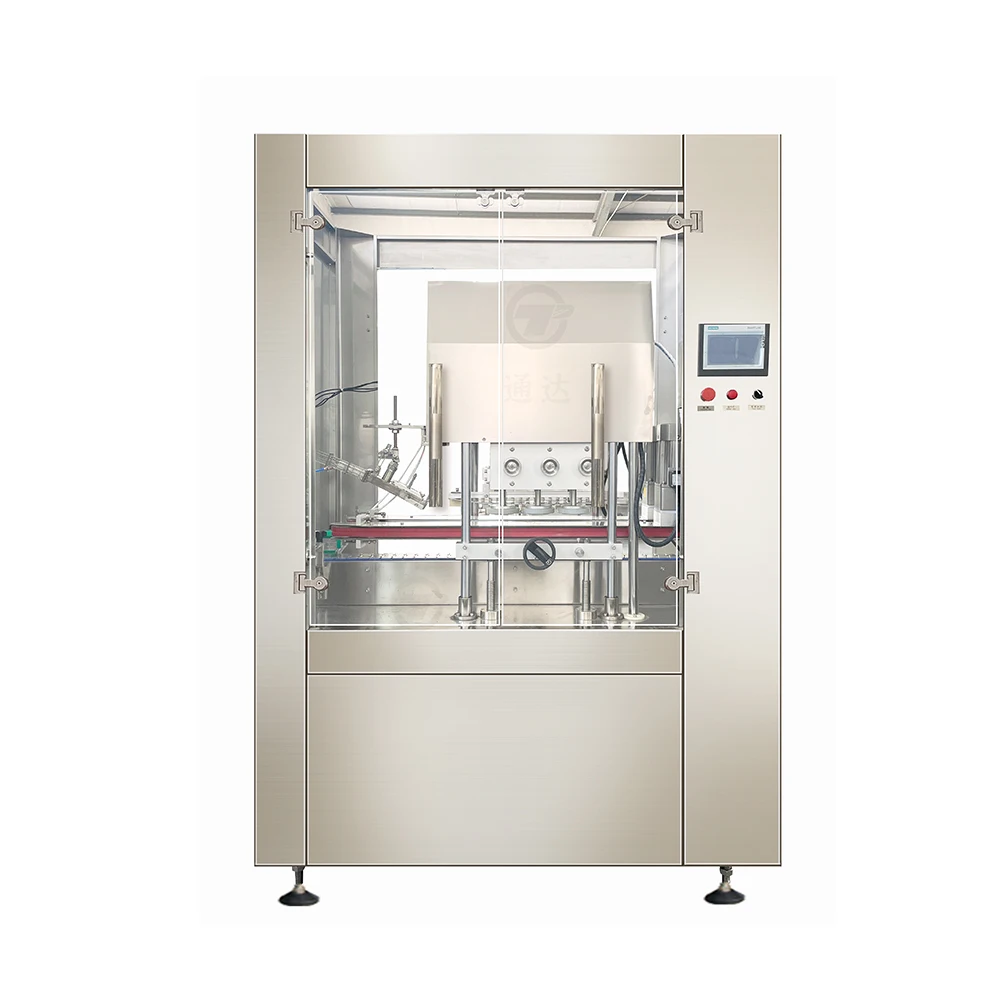

Automatic Servo Piston Liquid Pet Glass Bottle Monobloc Salad Olive Soybean Sunflower Edible Oil filling and packing machine
- Category: >>>
- Supplier: Qingzhou Tongda Packaging Machinery Co. Ltd.
Share on (1600510026559):
Product Overview
Description
Overview
Tel/wechat/whatsapp:008615621625363
email:liquidfiller@tongda-jixie.com
Grace liu

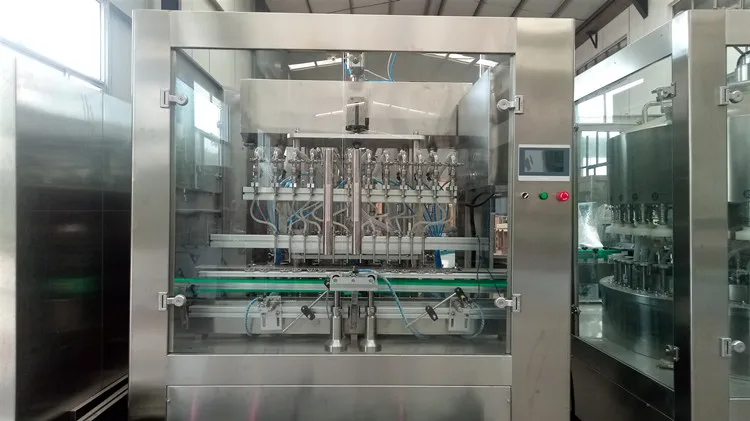

this machine design as piston pushing principle,taking servo motor,touch scree sensor,PLC control
Product Description
this machine design as piston pushing principle,taking servo motor,touch scree sensor,PLC control
this machine is designed according to the principle of plunger pushing,adopts servo motor,touch screen display,PLC computer programmable control, and integrates light, mechanical, electricity, sensor and pneumatic execution.touch screen can choose Siemens,electrical accessories can choose Schneider. The piston cylinder can take automatic off-cylinder washing.the filling volume range from 50ml to 5L,10L,20L,25L.
Performance
this machine design as piston pushing principle,taking servo motor,touch scree sensor,PLC control
1.Large filling range,high precision 2.Structure close
3.The filling time adjustment is controlled by digital display.
4.automatic off-cylinder washing design
5.photoelectric sesor,auto position control system
6.Ball screw made filling valve diving
7.Bottle mouth positioning device ensures no deviation of filling head.
8.Automatic fluid replenishment and liquid return without manual intervention.
3.The filling time adjustment is controlled by digital display.
4.automatic off-cylinder washing design
5.photoelectric sesor,auto position control system
6.Ball screw made filling valve diving
7.Bottle mouth positioning device ensures no deviation of filling head.
8.Automatic fluid replenishment and liquid return without manual intervention.
Technical parameter
model | HSP-4 | HSP-6 | HSP-8 | HSP-10 | HSP-12 | HSP-16 | |||||
output | 800-1200BPH | 1200-1600BPH | 1600-2000BPH | 2000-2500BPH | 2400-3000BPH | 3200-4000BPH | |||||
filling range | 50-25000ml | ||||||||||
filling tolerance | <0.3% | ||||||||||
bottle diameter | OEM | ||||||||||
bottle height | OEM | ||||||||||
air pressure | 0.5-0.7MPa | ||||||||||
voltage | 220V/380V,thress phases four wires | ||||||||||
power | 2.3kw | ||||||||||
dimension | L1950*W1500*H2200mm | ||||||||||
Details Images

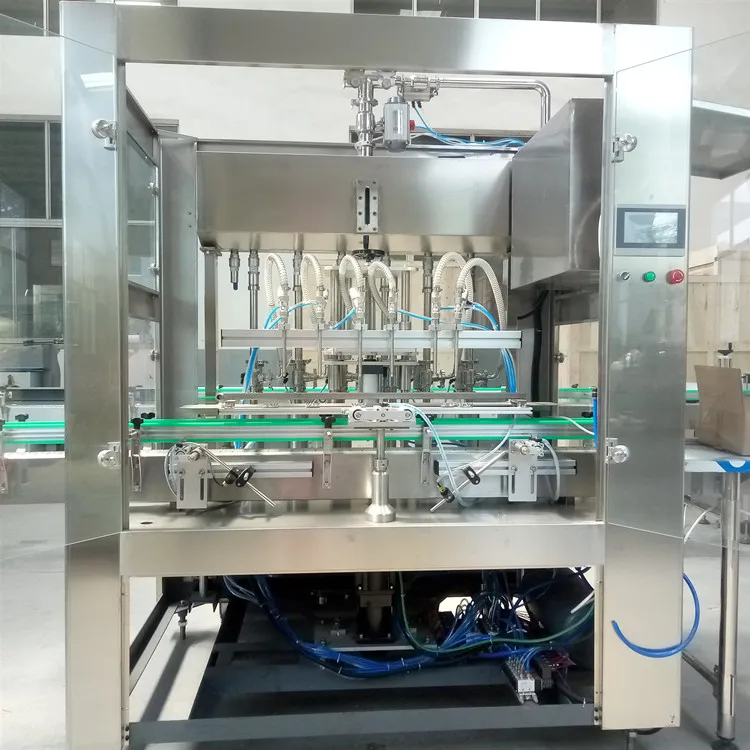

6HEADS FACTORY BOTTLED HIGH VISCOUS KETCHUP FILLING CAPPING MACHINE
this machine design as piston pushing principle,taking servo motor,touch scree sensor,PLC control

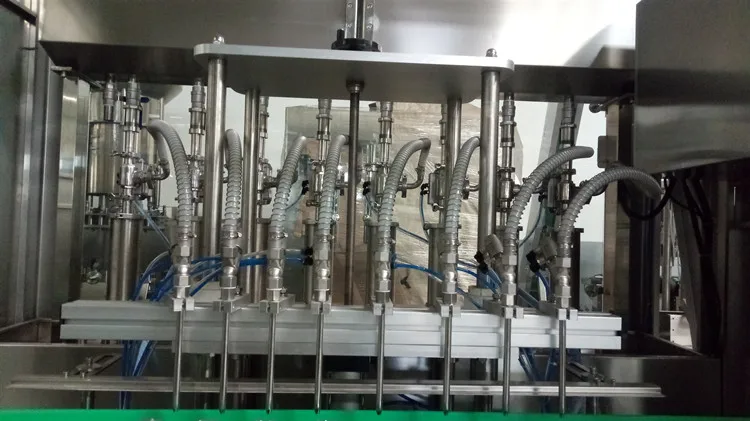

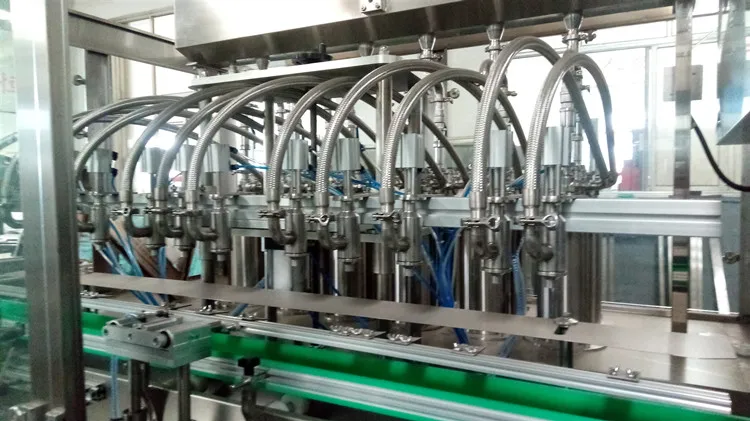

filling valves
the filling valves have different kinds,
according to different viscousity of liquid,
the thick or thin,long or short,diving matter
is different.
the filling valve height can be adjusted by hand wheel or PLC control

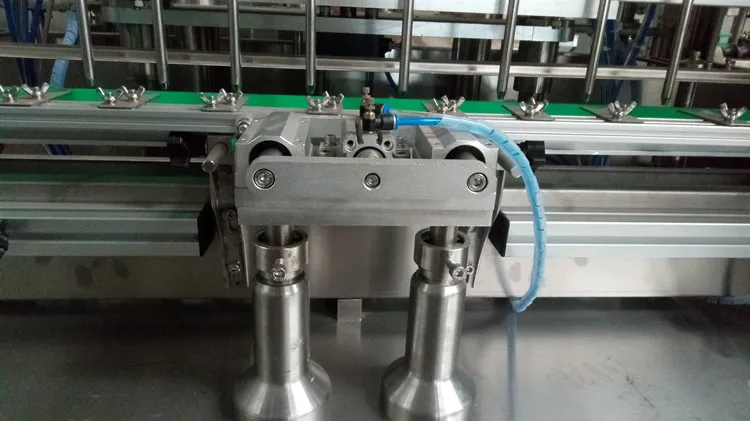

the device according electriceyes probe
to automatic fix the bottles,and make filling valves with bottles align up and down.

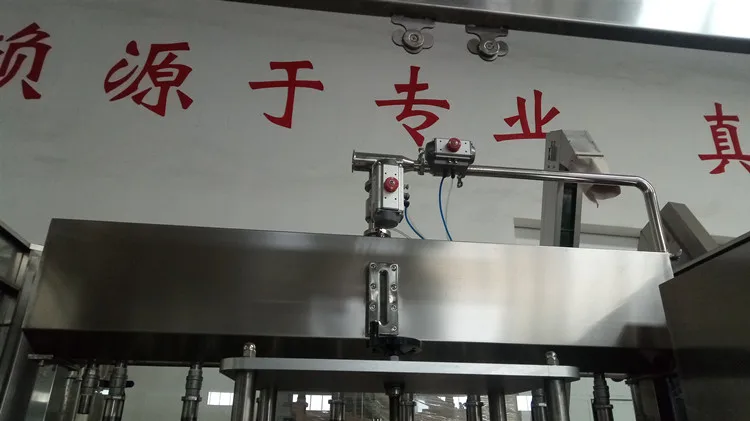

the material tank connect with the storage tank by Rehydration pump.there are buoyancy ball in the tank,equiped with automatic sterilizing device,it can be control by PLC.

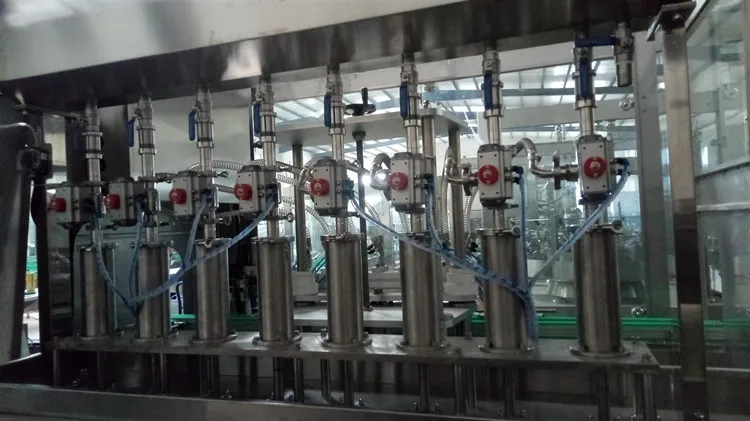

the piston cylinder have two different kinds ,one is traditional,other is auto off-cylinder washing.according to differnt filling volume
cylinder volume have 60mm,80mm,120mm,..

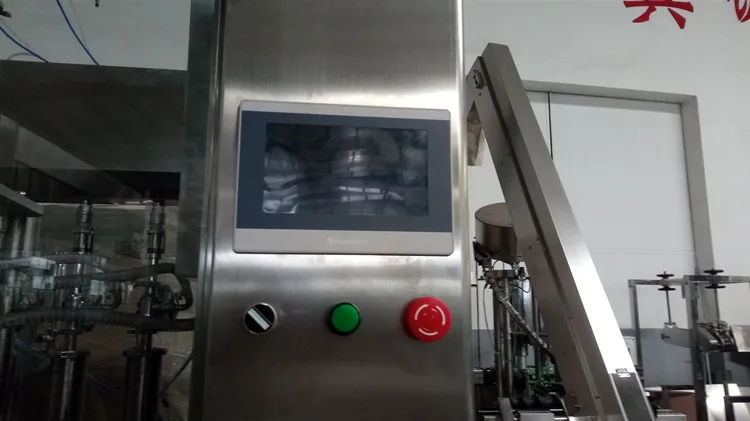

the machine is operated by touch screen,
PLC control panel.the touch screen can
take Siemens,the pnumatic components
can choose Schneider
filling material sample
The piston filling machine adapt for various viscousity liquid,like honey,edible oil,olive oil,jam,sauce,hand wash,hand sanitizer,detergent,floor washer,cosmetic liquid,syrup...it can connect with different type capping machine,labeling machine to composit the whole filling line.

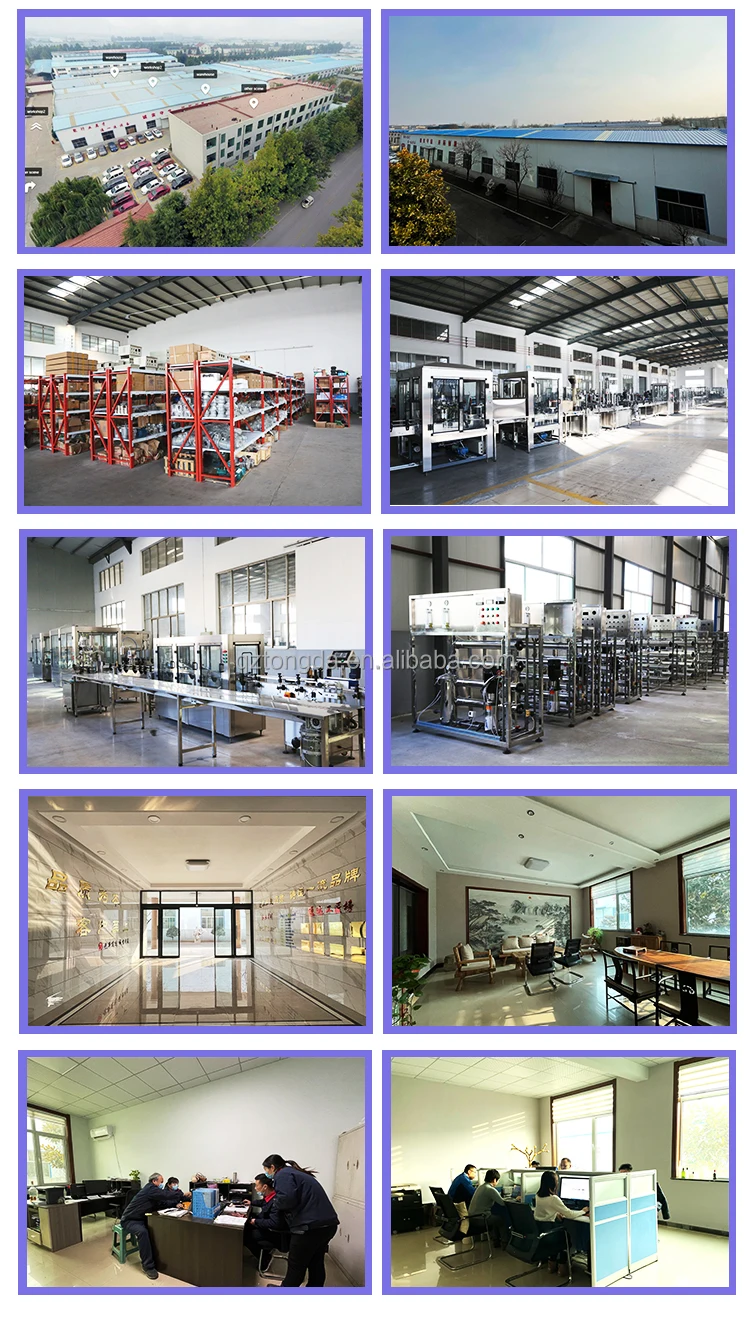

About us
CE,SGS certificate
