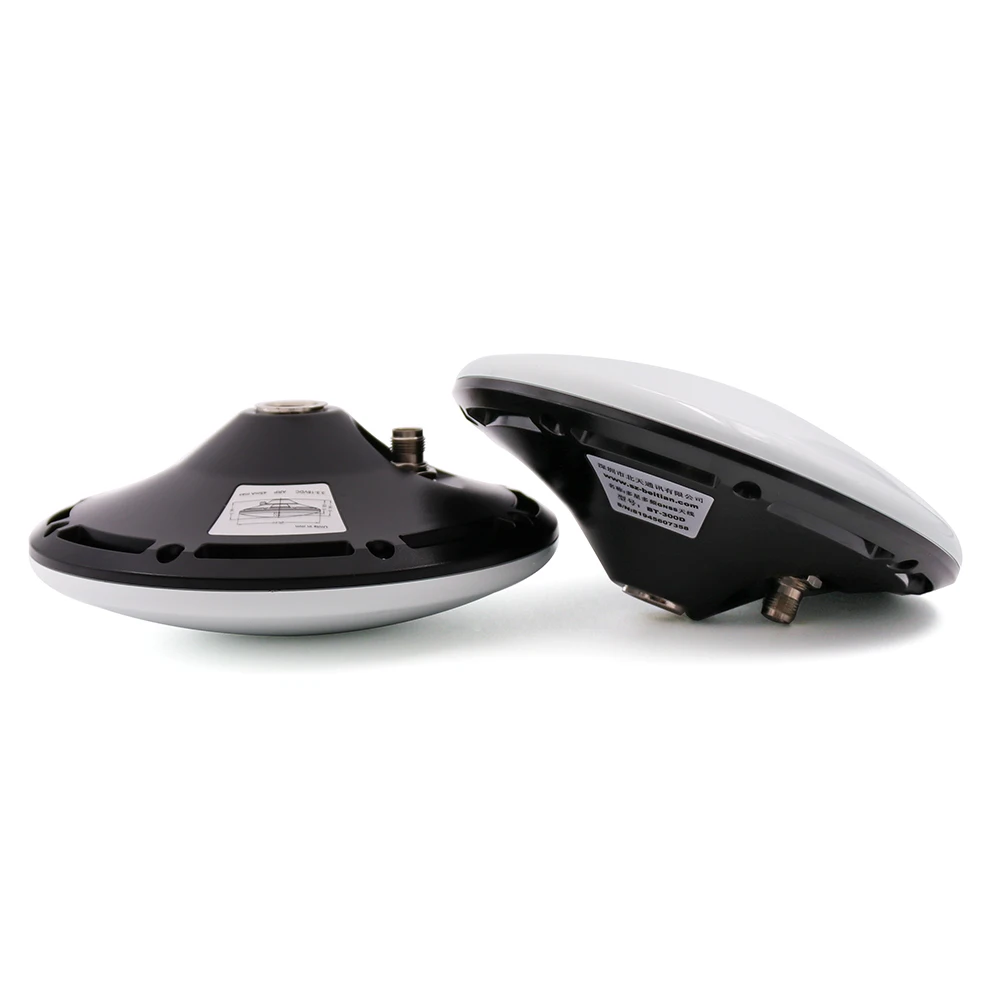

Beitian GNSS antenna support GPS Glonass Galileo Beidou QZSS SBAS strong anti interference ability IP67 Survey Antenna BT 300D
- Category: >>>
- Supplier: Shenzhen Beitian Communication Co. Ltd.
Share on (1600510032710):
Product Overview
Description

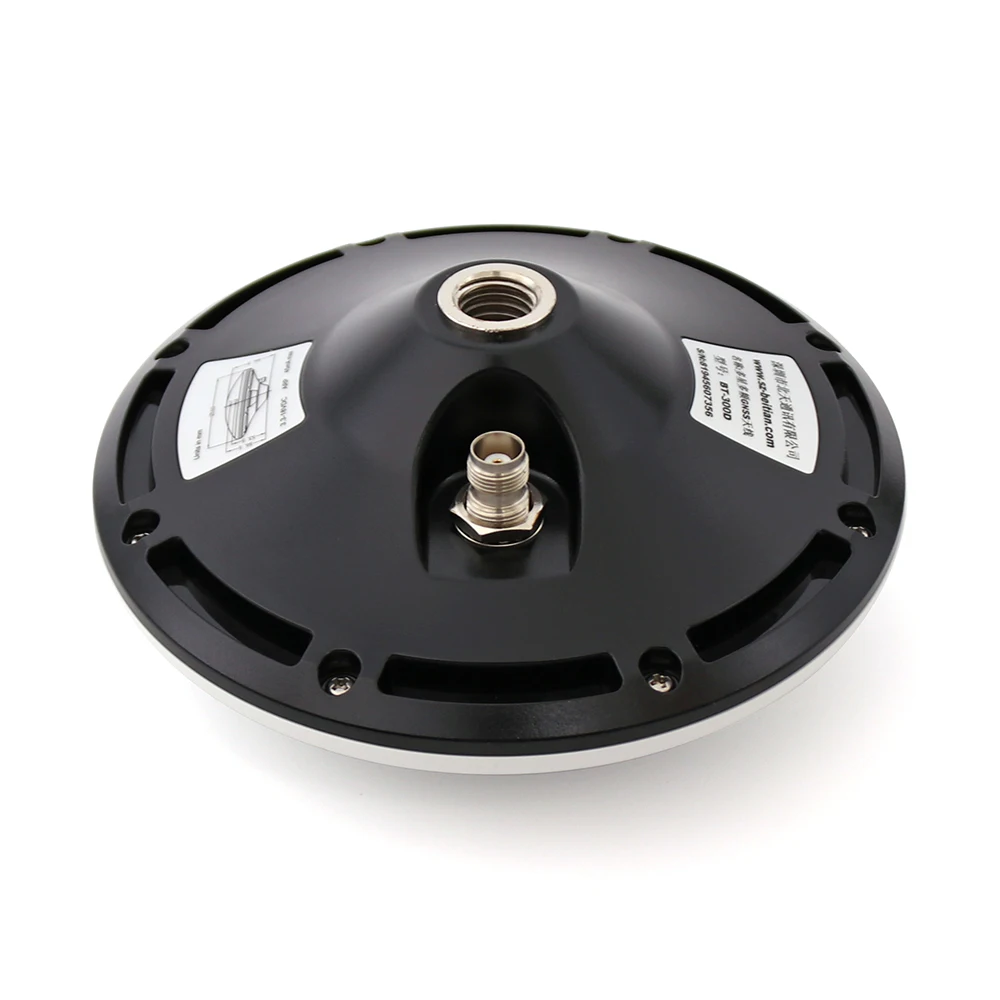

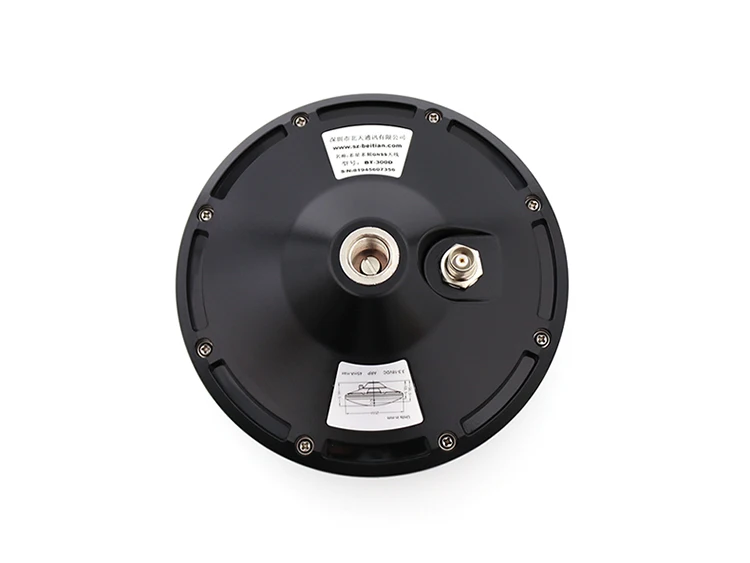

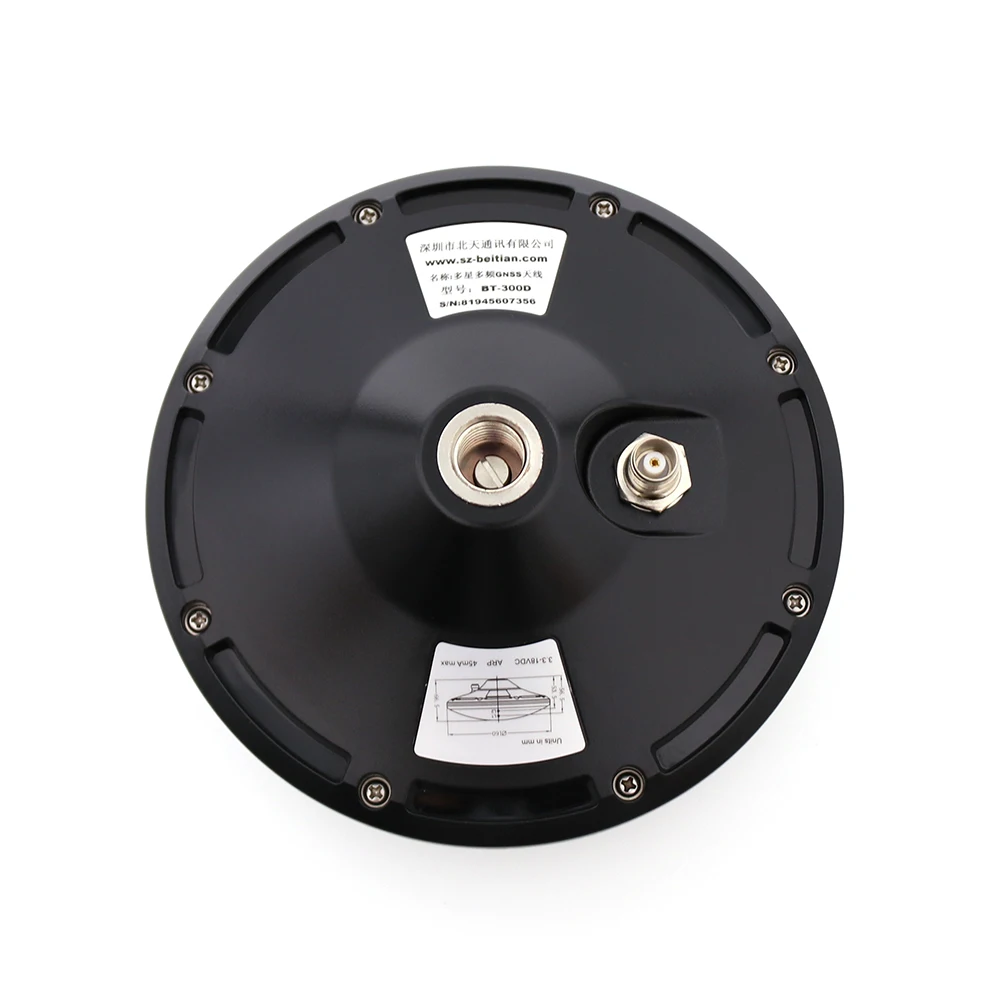

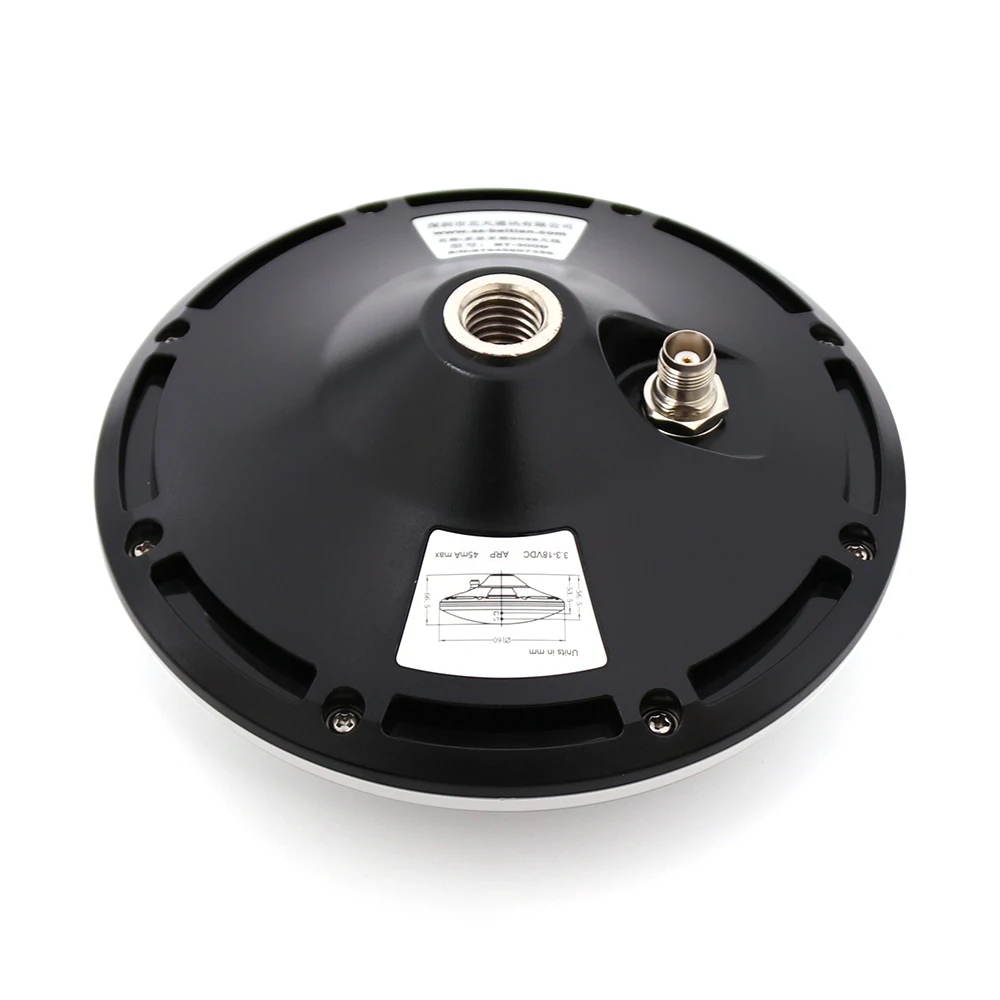

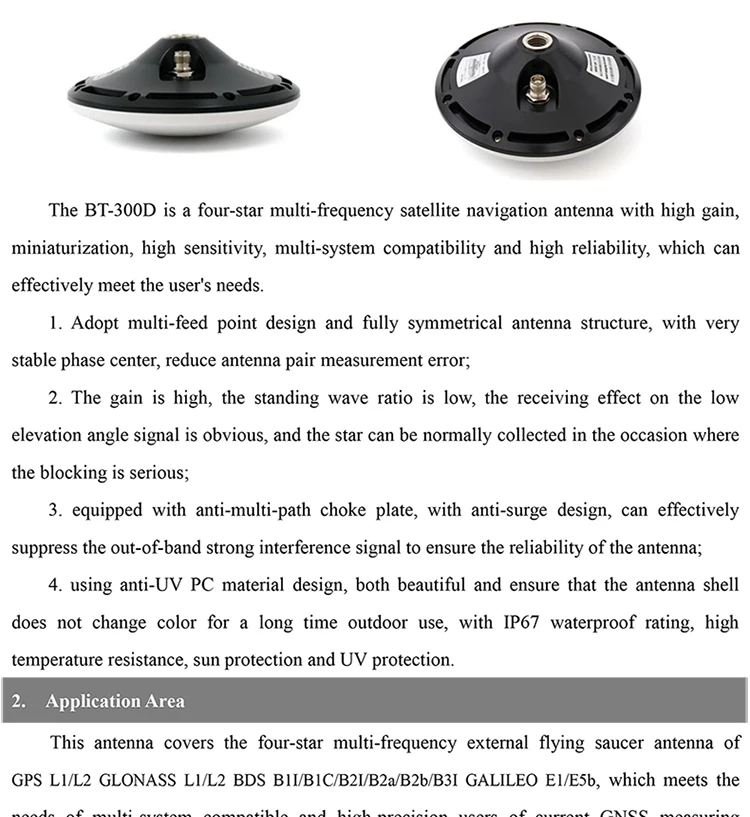

The BT-300D is a four-star multi-frequency satellite navigation antenna with high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the user's needs.
1. Adopt multi-feed point design and fully symmetrical antenna structure, with very stable phase center, reduce antenna pair measurement error;
2. The gain is high, the standing wave ratio is low, the receiving effect on the low elevation angle signal is obvious, and the star can be normally collected in the occasion where the blocking is serious;
3. equipped with anti-multi-path choke plate, with anti-surge design, can effectively suppress the out-of-band strong interference signal to ensure the reliability of the antenna;

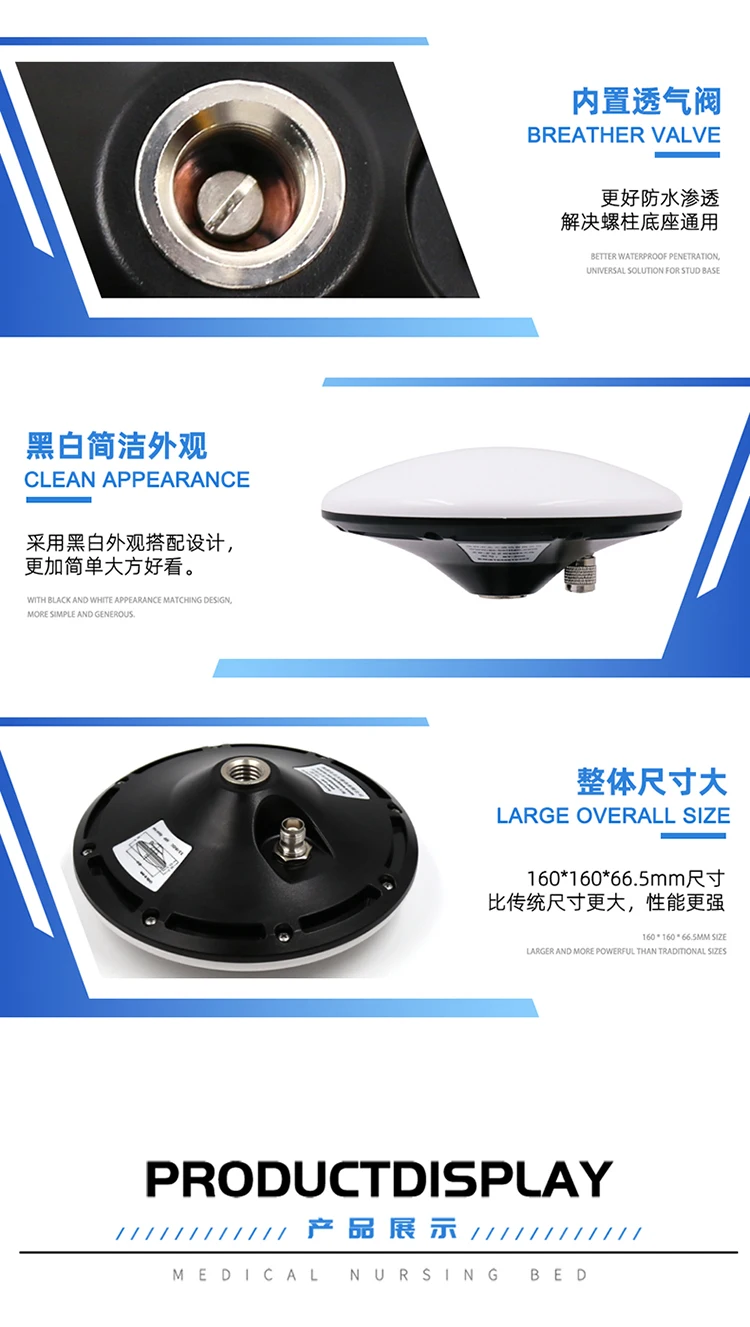

4. using anti-UV PC material design, both beautiful and ensure that the antenna shell does not change color for a long time outdoor use, with IP67 waterproof rating, high temperature resistance, sun protection and UV protection.

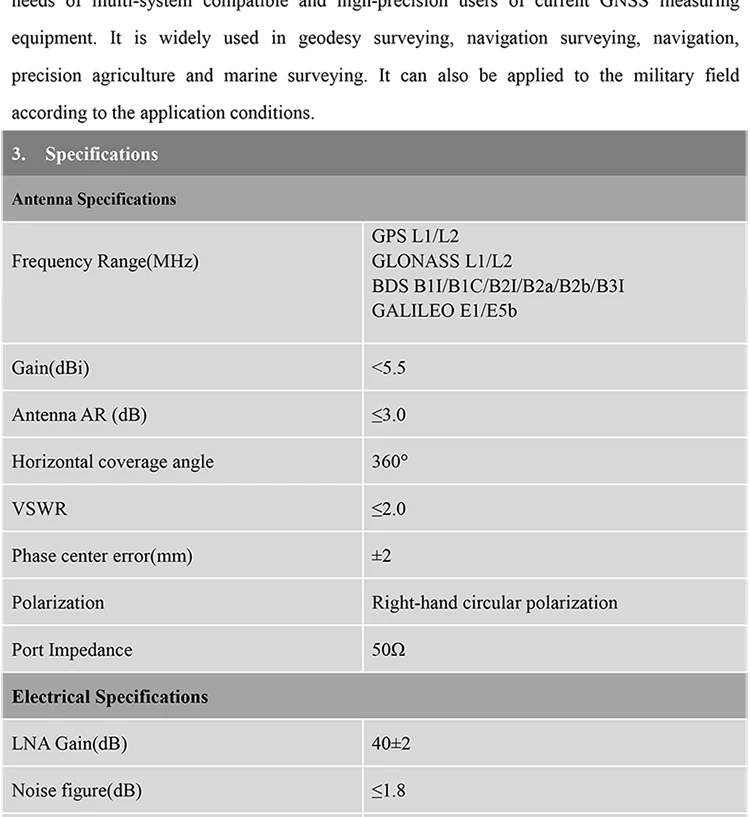

1. Specifications | |
Antenna Specifications | |
Frequency Range(MHz) | GPS L1/L2 GLONASS L1/L2 BDS B1I/B1C/B2I/B2a/B2b/B3I GALILEO E1/E5b |
Gain(dBi) | <5.5 |
Antenna AR (dB) | ≤3.0 |
Horizontal coverage angle | 360° |
VSWR | ≤2.0 |
Phase center error(mm) | ±2 |
Polarization | Right-hand circular polarization |
Port Impedance | 50Ω |

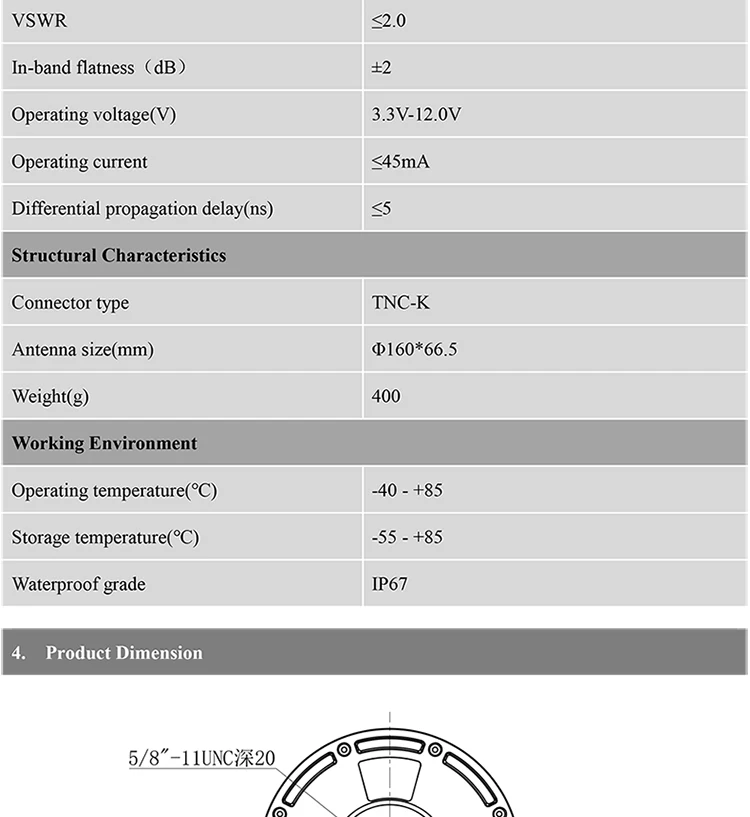

Electrical Specifications | |
LNA Gain(dB) | 40±2 |
Noise figure(dB) | ≤1.8 |
VSWR | ≤2.0 |
In-band flatness(dB) | ±2 |
Operating voltage(V) | 3.3V-12.0V |
Operating current | ≤45mA |
Differential propagation delay(ns) | ≤5 |
Structural Characteristics | |

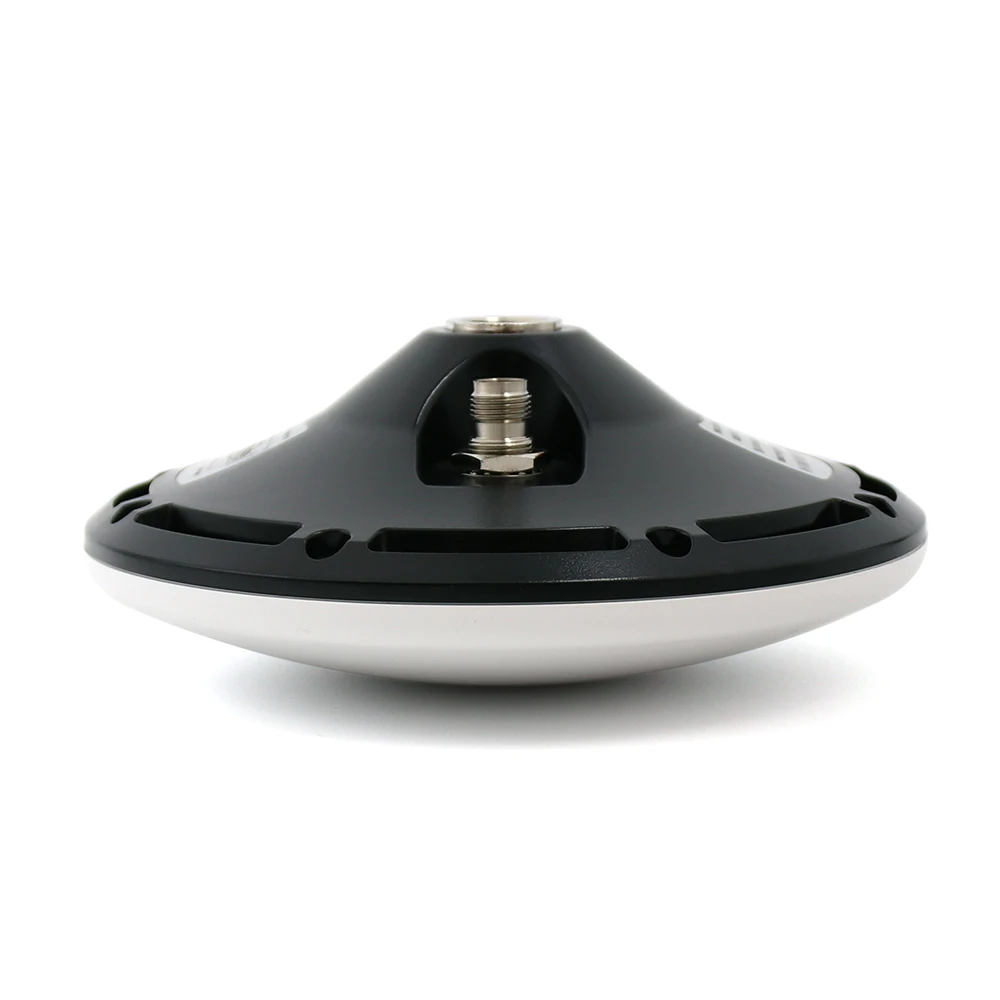

Connector type | TNC-K |

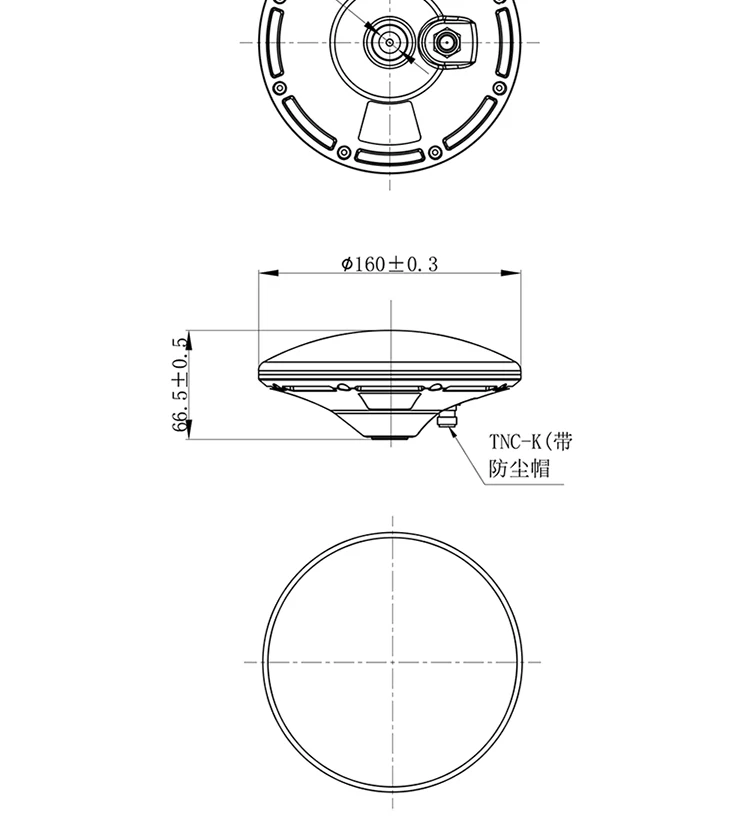

Antenna size(mm) | Φ160*66.5 |
Weight(g) | 400 |
Working Environment | |
Operating temperature(℃) | -40 - +85 |
Storage temperature(℃) | -55 - +85 |
Waterproof grade | IP67 |

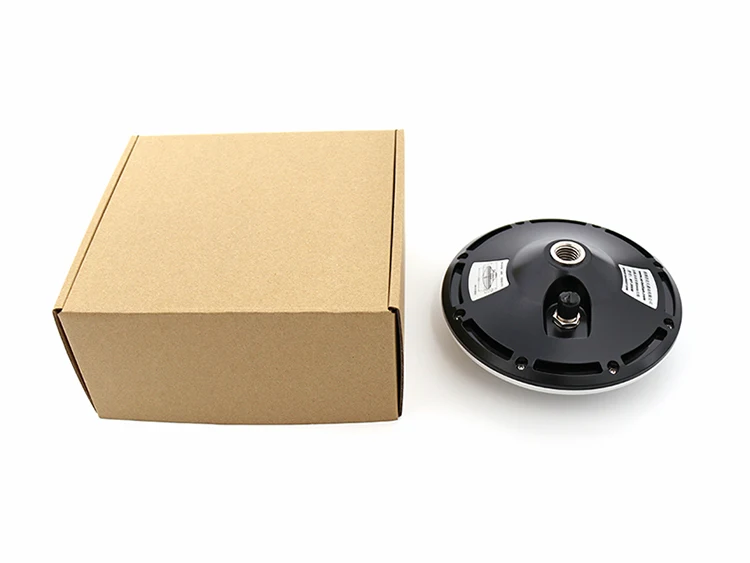

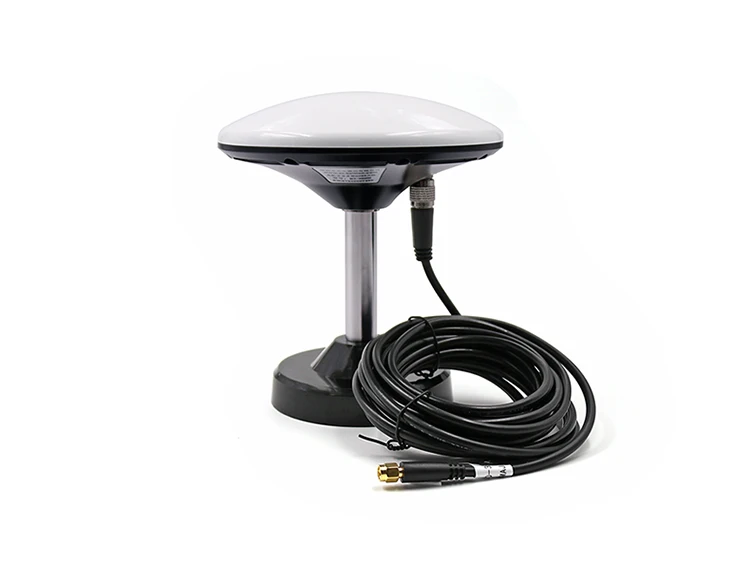

Antenna:BT-300D*1PC

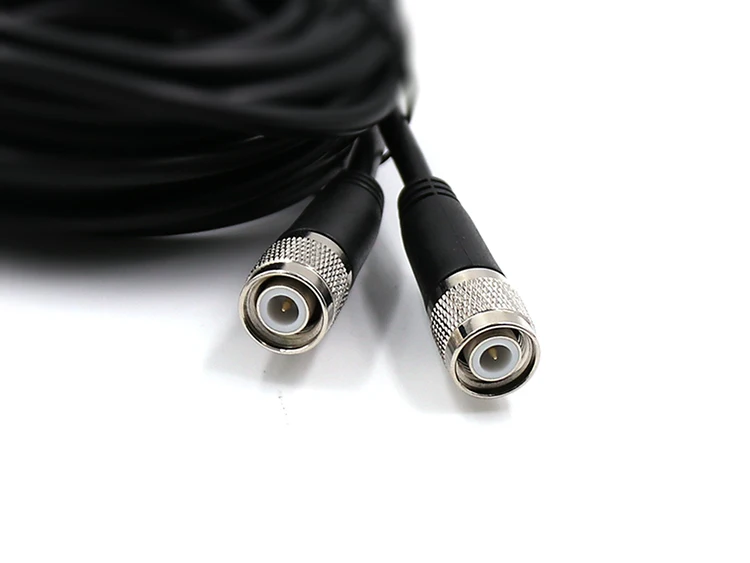

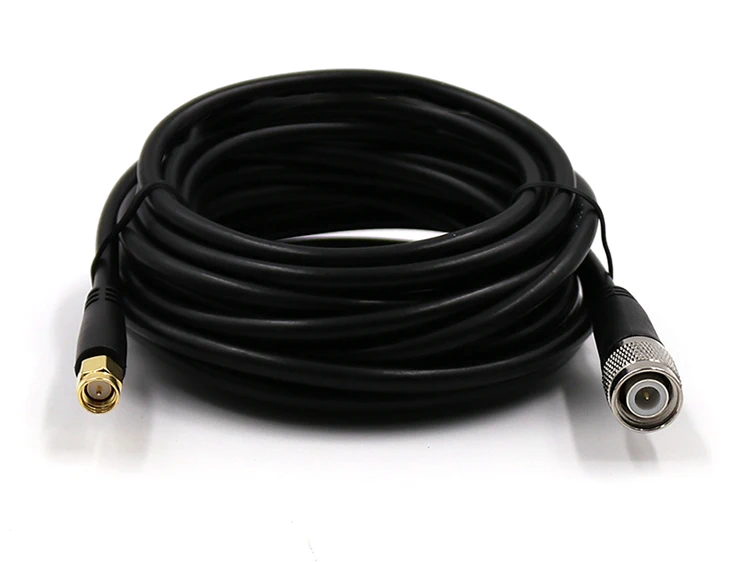

Accessories
