Product Overview
Description

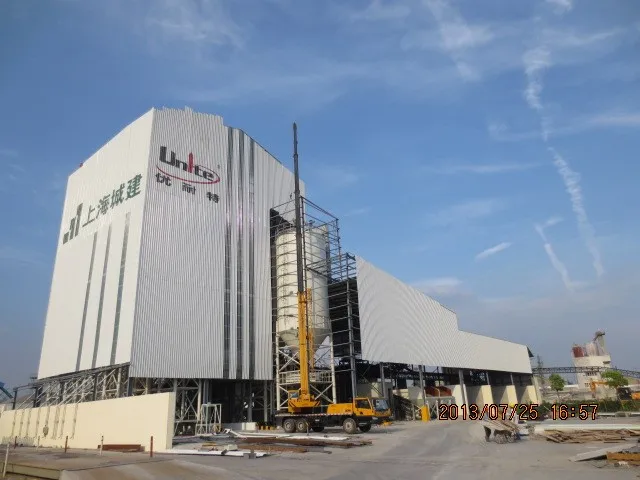

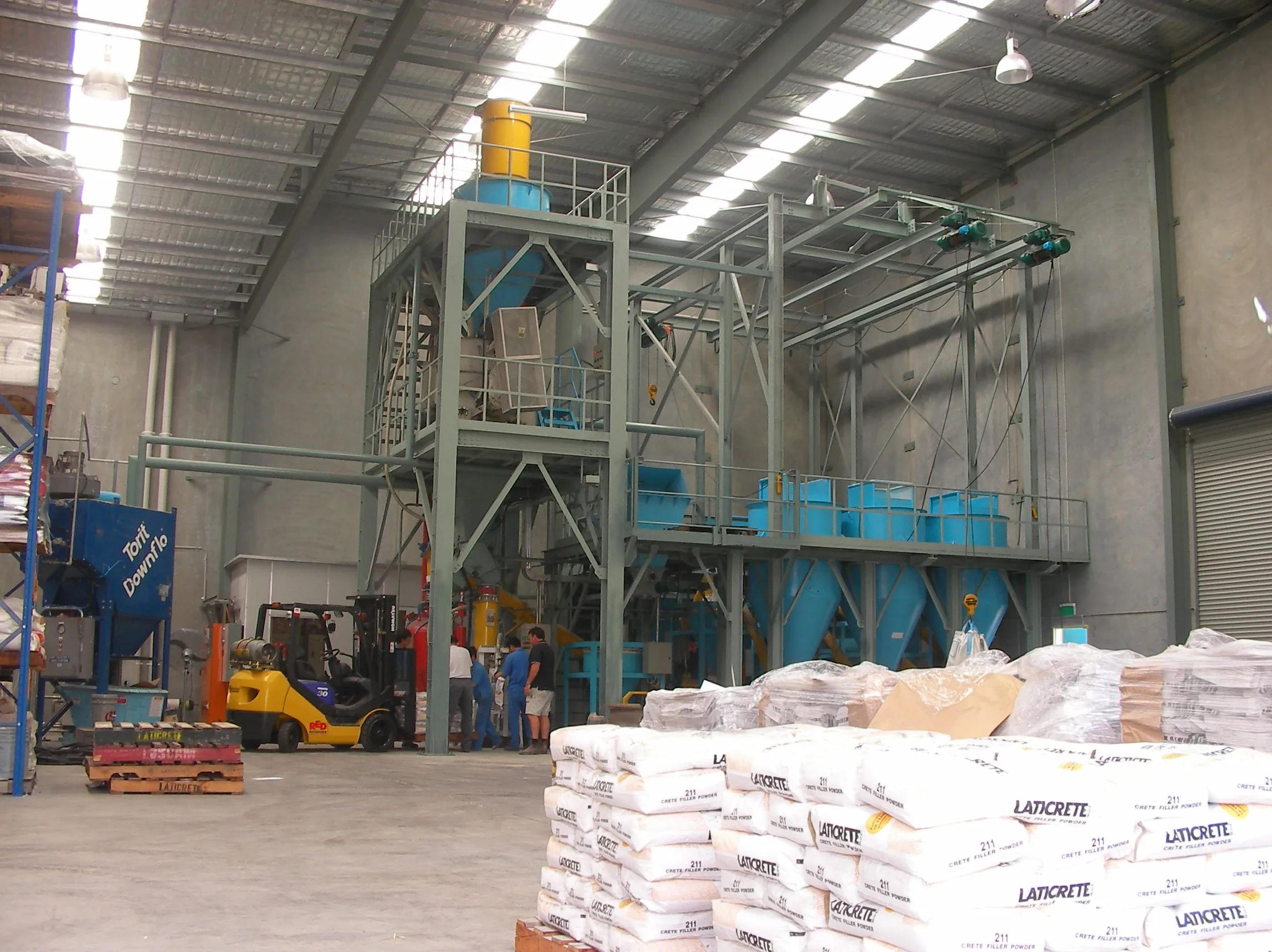

Dry powder/mortar Mixing plant
Introdction

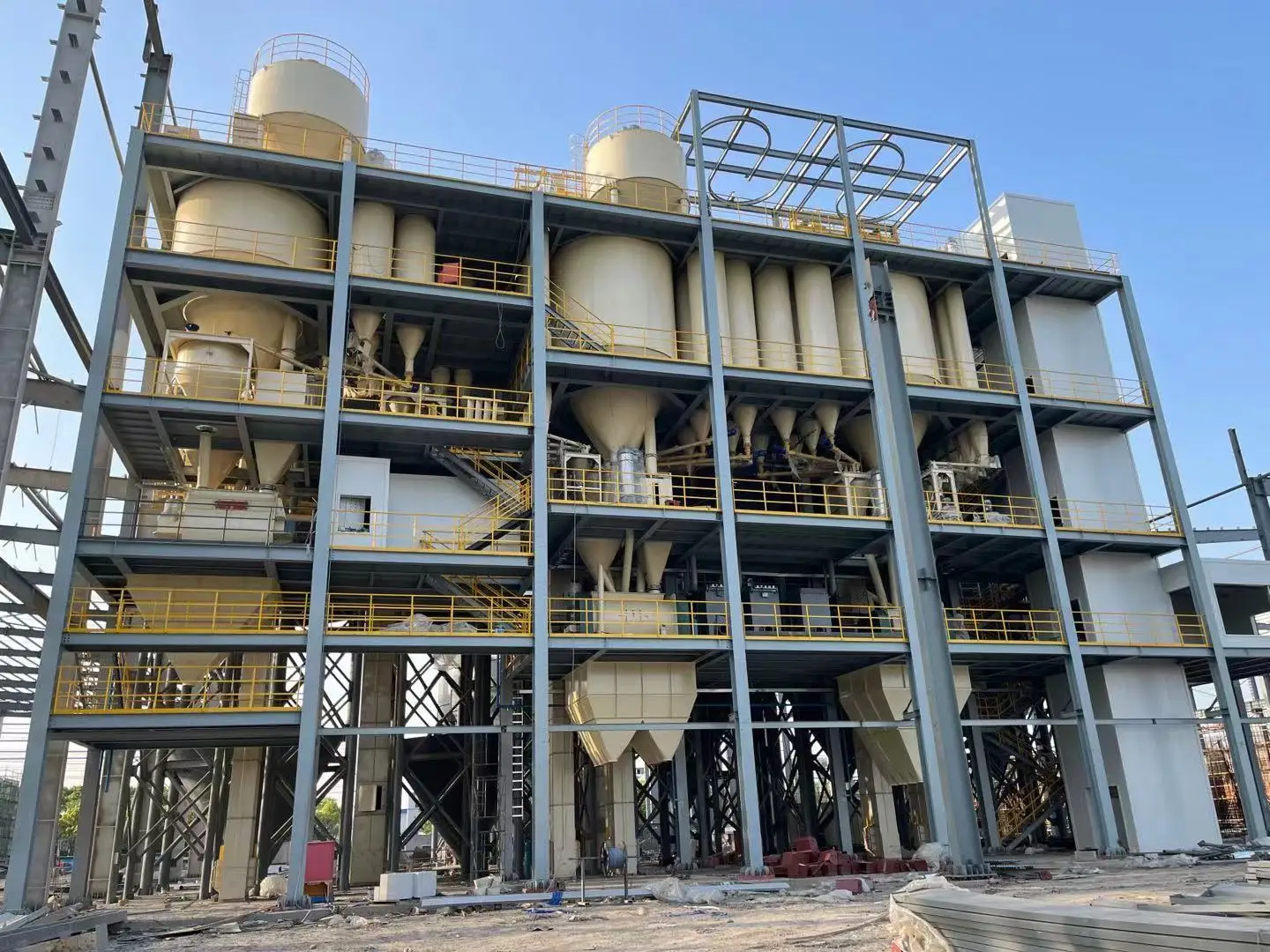

The mortar mixing plant is mainly composed of mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.
The mixing plant has the advantages of environmental protection, energy saving, high efficiency, stability and safety.
Product parameters
| Production line type | DX-PT20-2 | Dry sand storage silo(s) | 40m³*4 |
| Product type | Speacial powder product | Powder storage silo(s) | 40m³*4 |
| Yearly output(one shift) | 60,000 MT | Small material silo(s) | 30m³*8 |
| Additive silo(s) | 0.5m³*12 | ||
| Yearly output(one mixer) | 30-40 Thousand MT | Finished product hooper(s) | 5m³*2 |
| Powder product output | 2*12t/h | Valve bag packing line(s) | 3-mouth impeller packer*2 |
| Mixer*2 | WAM 2m³ Plough type | dust exhauster(s) | 28 sets |
| Weighing system | 8 sets | Blow tank(s) | 6 sets |
| WAM manual butterfly valves | 24 sets | WAM pneumatic butterfly valve(s) | 18 sets |
| WAM screw feeders | 23 sets | Small and micro material dosing screw feeder(s) | 12 sets |
