Metallurgical Slag Iron Separation Cladding Belt Permanent Suspension Magnetic Separator

Share on (1600510059506):


Price:$25,000.00

Quantity:


Product Overview

Description



Products Description


Suspended Permanent Magnetic Separators
Suspended permanent magnetic separators are widely used for the sites with the conveyed bulk materials. The magnets magnetize the iron when the iron comes closely, thus the magnets and iron tramp attract each other and the iron was caught by the magnets and deliver to the discharging point by the conveyor belt. Longi is the first one to employ the rare earth material as the magnet assembly of the Suspended Permanent Magnetic Separators in the industry.


Products features


Features for suspended permanent magnetic separators:
-Compact Structure
-Less Maintenance, and power consumption
-High Gradient Magnetic Field
-Rare Earth Magnets Available
-Light duty available for the recycling industry as well.
- Wide range of magnetic force are optional for different materials




Product Paramenters


Model
Suitable belt width
Rated suspension height
Magnetic intensity at SHR
Belt speed
LJG-Y65
650mm
200mm
≥70mT
≤4.5m/s
LJG-Y80
800mm
250mm
≥70mT
≤4.5m/s
LJG-Y100
1000mm
300mm
≥70mT
≤4.5m/s
LJG-Y120
1200mm
350mm
≥70mT
≤4.5m/s
LJG-Y140
1400mm
400mm
≥70mT
≤4.5m/s


Applications

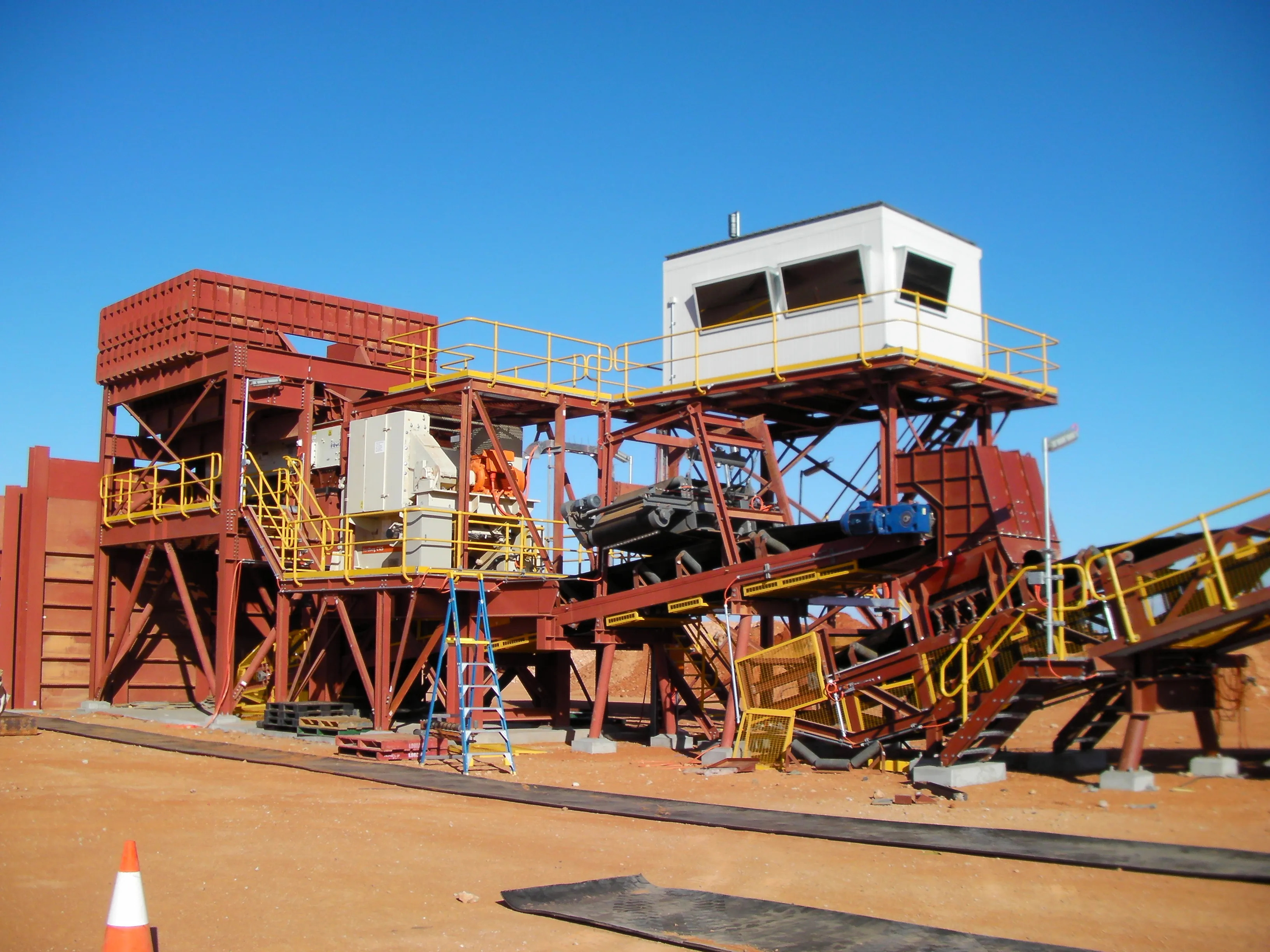

Suspended permanent magnetic separators are applied in wide industries like thermal power plants, coal preparation plants, cement plants, steel mills, chemical plants, mineral processing plants, ports and recycling, etc. They are used to remove the tramp iron on the conveyor belt to protect the downstream equipments and the conveyor belts itself .

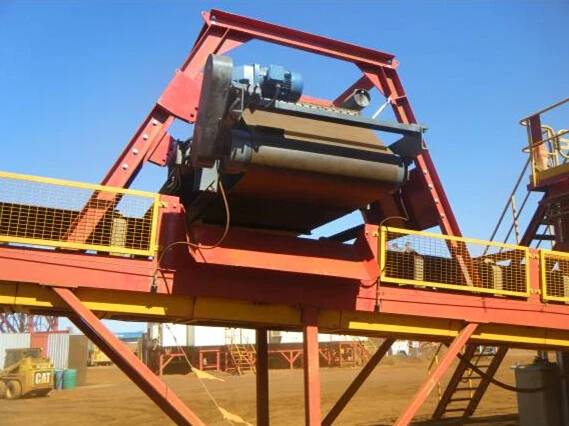

Suspended permanent magnetic separators are suspended above the cover belt through the slings or chains. They have the self-cleaning type with is usually fixed in position; manual type which is movable and needs the manual/electro hoist to move the separator when discharging the tramp iron.
