Programmable Dry Type Distribution Transformer Foil Winding Machine
- Category: >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (1600510069988):
Product Overview
Description
Product Description

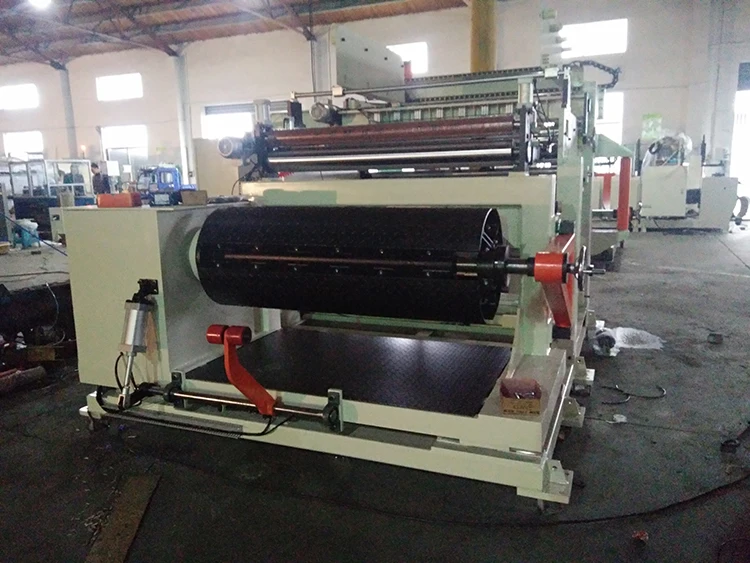

Programmable TIG Welding PLC Control Strip Winder Dry Type Distribution Transformer Foil Winding Machine
Introduction
Programmable TIG Welding PLC Control Strip Winder Dry Type Distribution Transformer Foil Winding Machine BRJ1600-2 is used to wind coils made of copper or aluminum foil. This winding machine can handle one or two layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth when winding. Programming of this machine is done by means of a touch screen user interface.
Main Components
1.Main frame
2.Winding unit

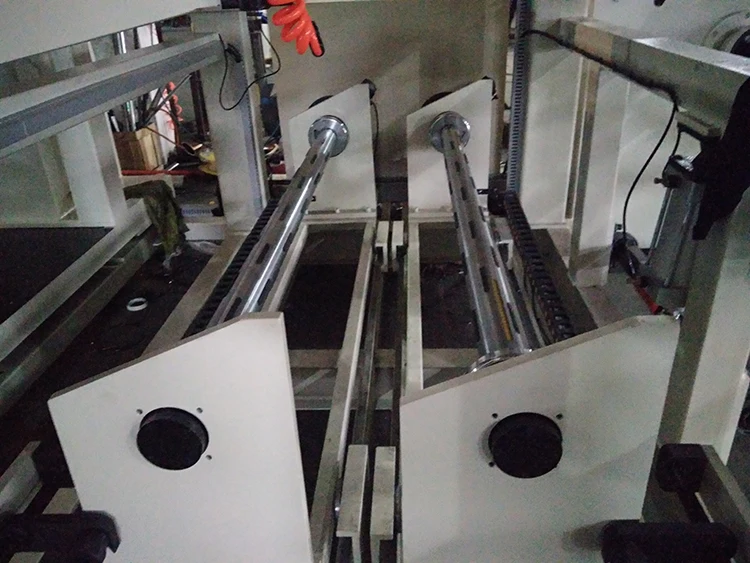

3.Foil decoiler
4.Insulation decoiler
5.End-fill strip feeder
6.Cleaning system
7.Cutting system
8.Foil deburring system
9.Edge alignment system
10.Automatic welding unit
11.Electronic control system
12.Pneumatic system
Technical Parameters
Typical standard specifications of parts of models are shown below, these can be easily modified as requested.
| Item | BRJ1200-2 | BRJ1400-2 | BRJ1600-2 |
| Foil Width: | 300-1,200 | 350-1,400mm | 350-1,600mm |
| Finished Coil OD.: | ≤1,000mm | ≤1,000mm | ≤1,000mm |
| AL Foil Thickness: | 0.3 - 3.0 mm | 0.3 - 3.0 mm | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm | 0.2 - 2.0 mm | 0.2 - 2.0 mm |
| Conductor Material OD.: | ≤1,000mm | ≤1,000mm | ≤1,000mm |
| Conductor Material ID.: | 500mm | 500mm | 500mm |
| Foil Decoiler Number: | 2 pcs | 2 pcs | 2 pcs |
Insulation Decoiler Number: | 2 pcs | 2 pcs | 2 pcs |
| Winding Power: | 15kw | 22KW | 30kw |
| Max. Winding Speed: | 18rpm | 18 rpm | 16rpm |
| Welding Mode: | TIG | TIG | TIG |
| Cutting Mode: | Electric disc shear | Electric disc shear | Electric disc shear |
| Foil deburring System: | Pneumatic control | Pneumatic control | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control | Pneumatic control | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing | Photoelectric sensing | Photoelectric sensing |
| Counting Turns Range: | 0 - 9999.9 | 0 - 9999.9 | 0 - 9999.9 |

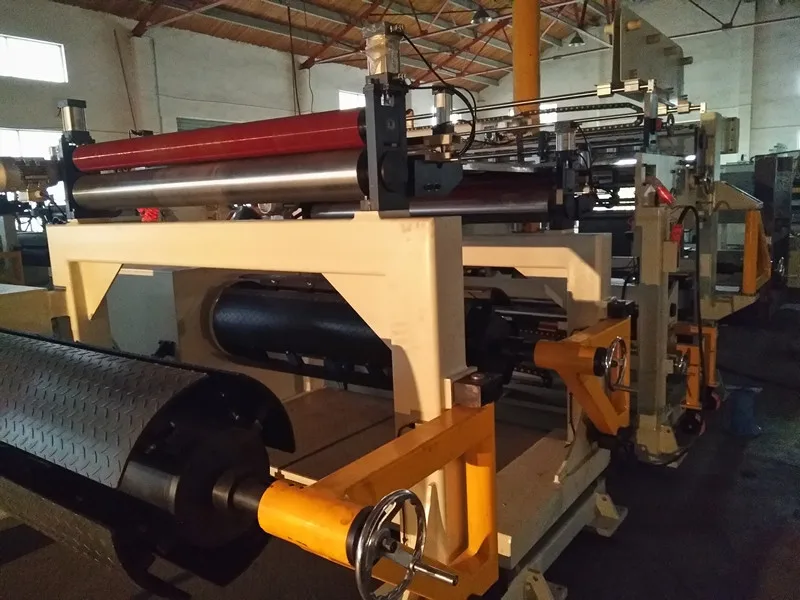

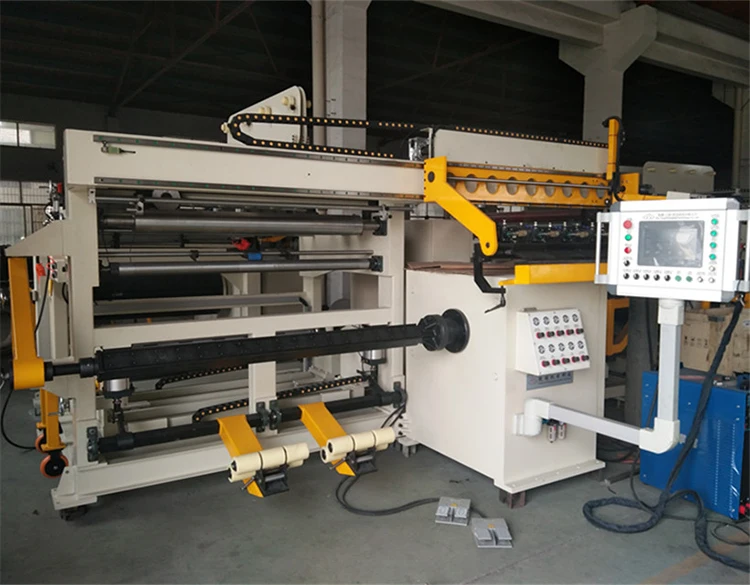

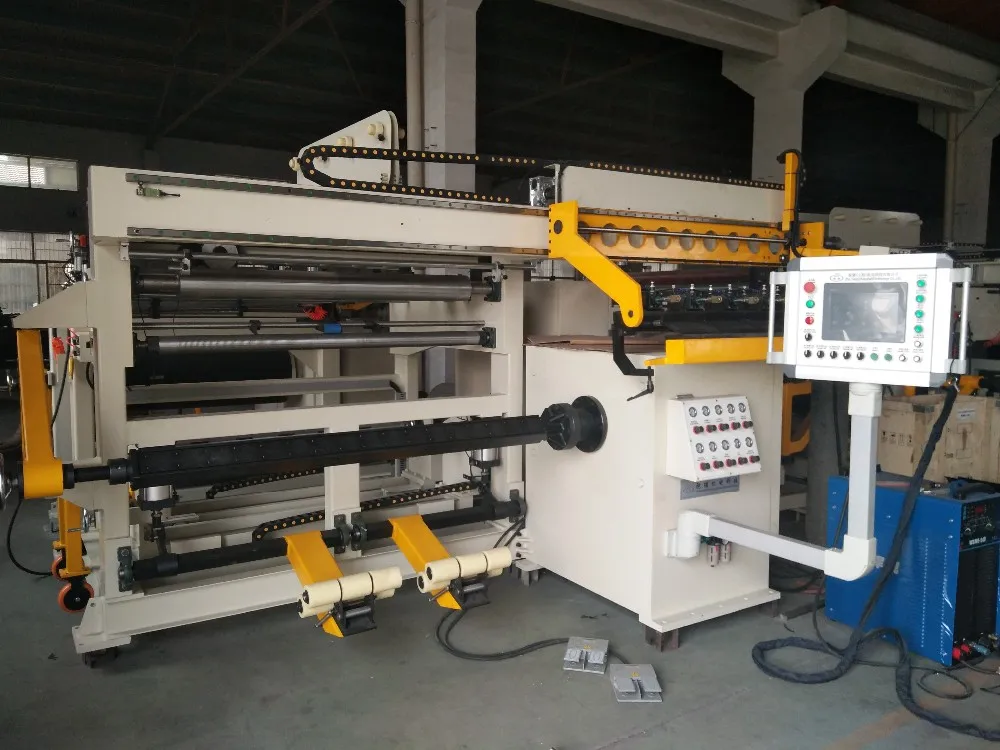

Figure 1: Automatic Transformer Coil Winding Machine BRJ1600-2's front view

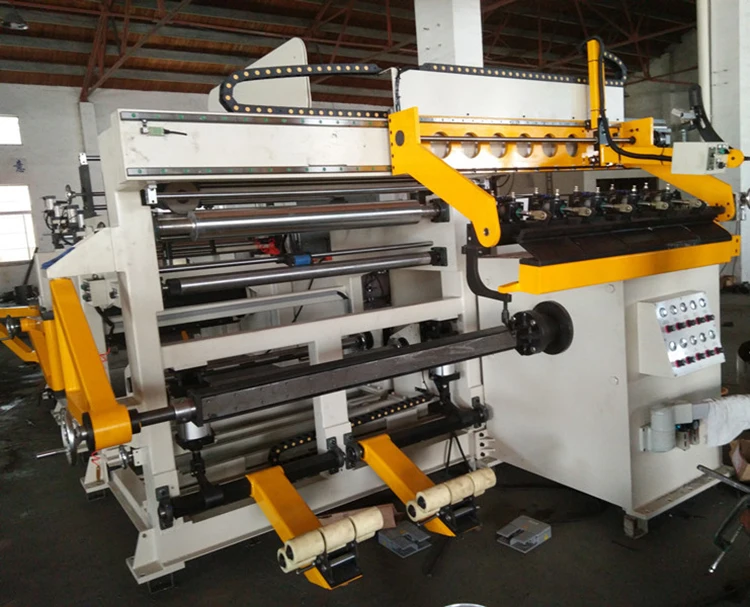

Figure 2: Automatic Transformer Coil Winding Machine BRJ1600-2's back view
