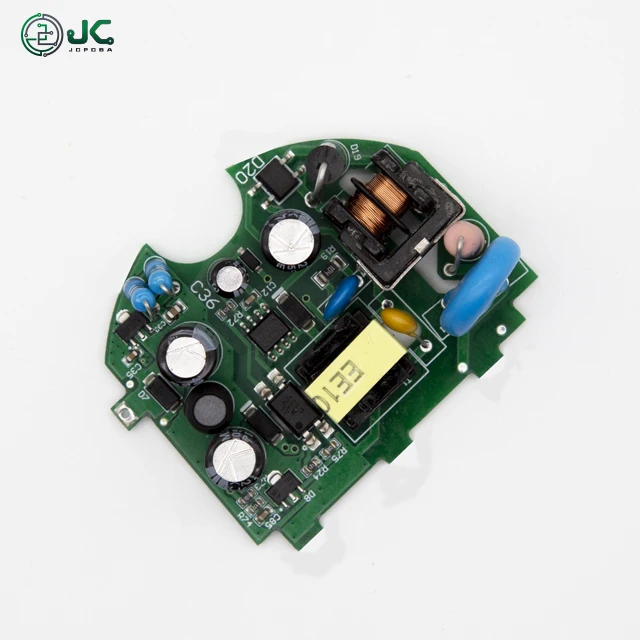

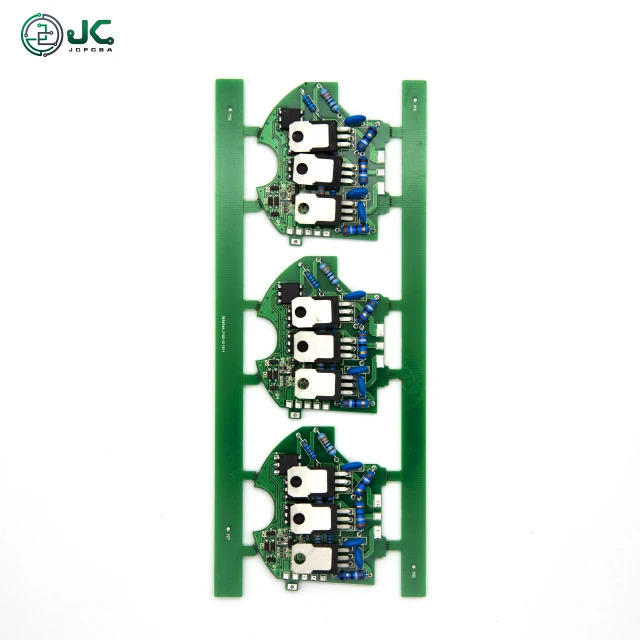

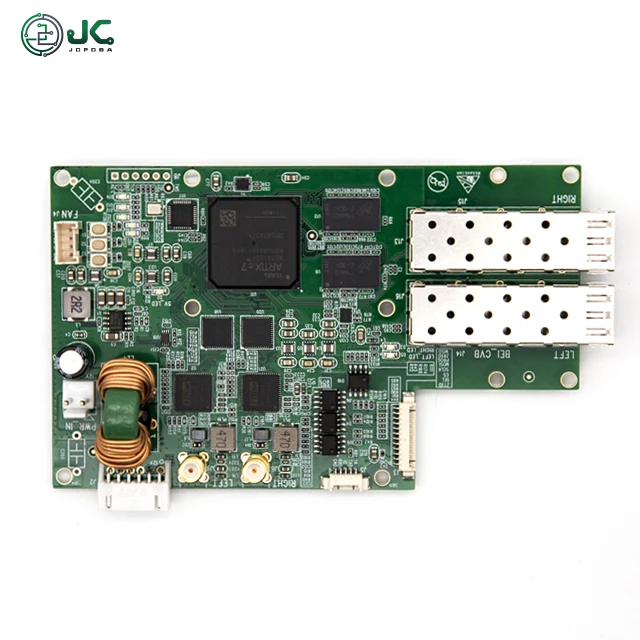

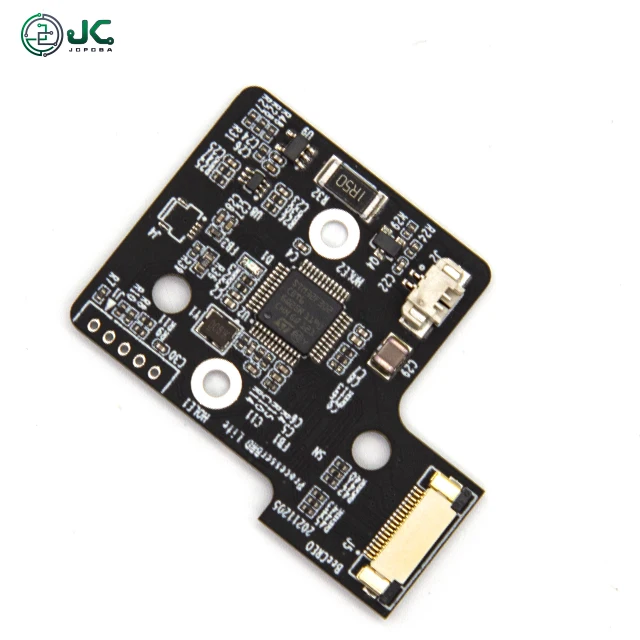

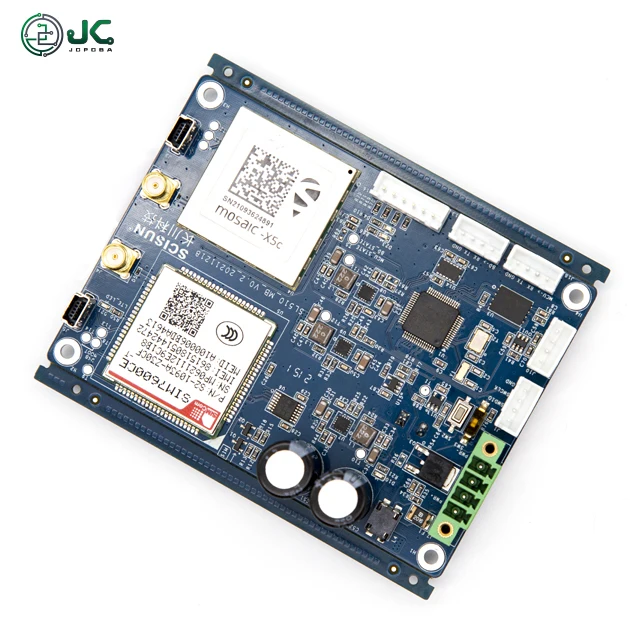

Oem Pcb Assembly Manufacturer Main Controller Pcb Assembly Shenzhen Customized Pcb Assembly
- Category: >>>
- Supplier: Shenzhen Jiechuang Electronic Technology Co. Ltd.
Share on (1600510176144):
Product Overview
Description
Product Description
Item | Manufacturer Capability |
Product Name | JCPCBA JC |
Base Material | FR4,High-TG,Halogen Free,Rogers,Aluminum Base |
Layers | 1-30Layers |
Max.Panel Dimension | 646*1200mm |
Outline Tolerance | ±0.1mm |
Board Thickness | 0.6mm-6mm |
Board Thickness Tolerance | ±10% |
Dielectric Thickness | 0.75mm-2mm |
Min.Track Width | 0.075mm |
Min.Track Space | 0.075mm |
External Cu Thickness | 18um-210um(HOZ-6OZ) |
Internal Cu Thickness | 18um-210um(HOZ-6OZ) |
Drilling Bit Size | 0.15-6.5mm |
Finished Hole Dimension | 0.1-6mm |
Hole Tolerance | ±0.05mm |
Hole Position Tolerance | ±0.05mm |
Laser Drilling Hole Size | 0.075mm |
Aspect Ration | 10:01 |
Solder Mask | Green,Blue,White,Black,Red,Yellow,Purple,Ect |
Min.Solder Mask Bridge | 0.050mm |
Plugged Hole Diameter | 0.2mm-0.5mm |
Impedance Control | ±10% |
Surface Fishing | Hasl,Hasl(lead free),Immersion Gold/Tin/Silver,OSP,Hard Gold |
Company Introduction
JCPCBA JC Serving 200+ countries and 300,000+ customers all of the world; shipping more than 200 models per day, fast 24-hour delivery. Qualification certification: ISO9001, ISO13485, China National High-tech Enterprise,etc. Our products are widely used in communication, medical apparatus and instruments, industrial control products aviation, test instrument, automobile, computers and other peripheral products, consumer electronics, and other technical areas.
Packing&Shipping
FAQ
Q1. What is needed for PCB PCBA quotation?
A: PCB: quantity, Gerber file and technical requirements (material, surface treatment,copper thickness, board thickness, color...) PCBA: PCB information, BOM, (test file...)
Q2. What file formats are accepted for PCBA production?
A: Gerber file: CAM350 PCB files: Protel 99SE, PADS Altium Designer Bill of Materials: Excel.csv
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.
process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small batches and mass production.
Q5. Shipping cost? A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
