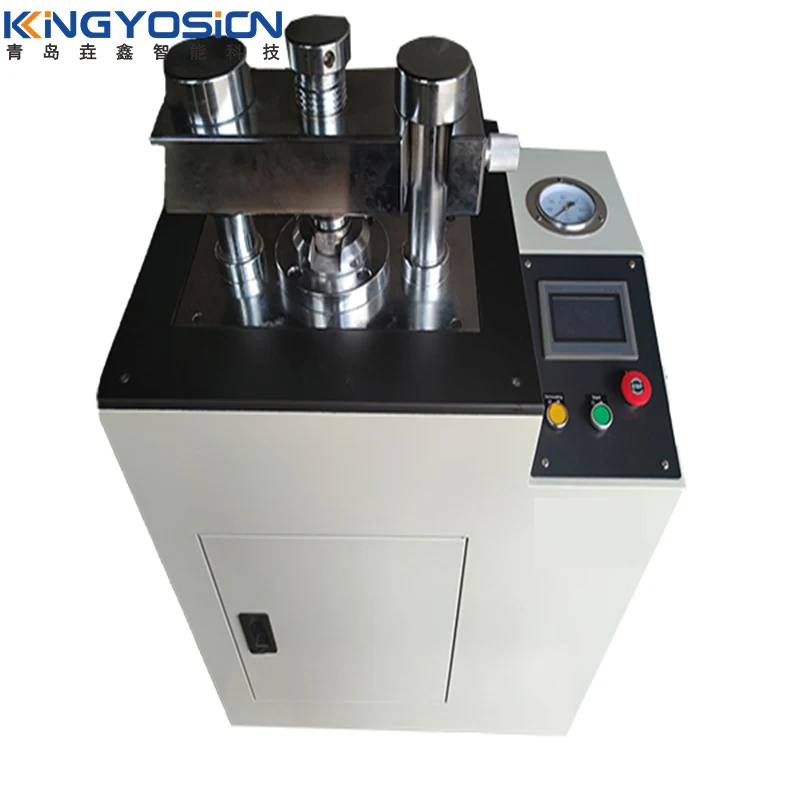

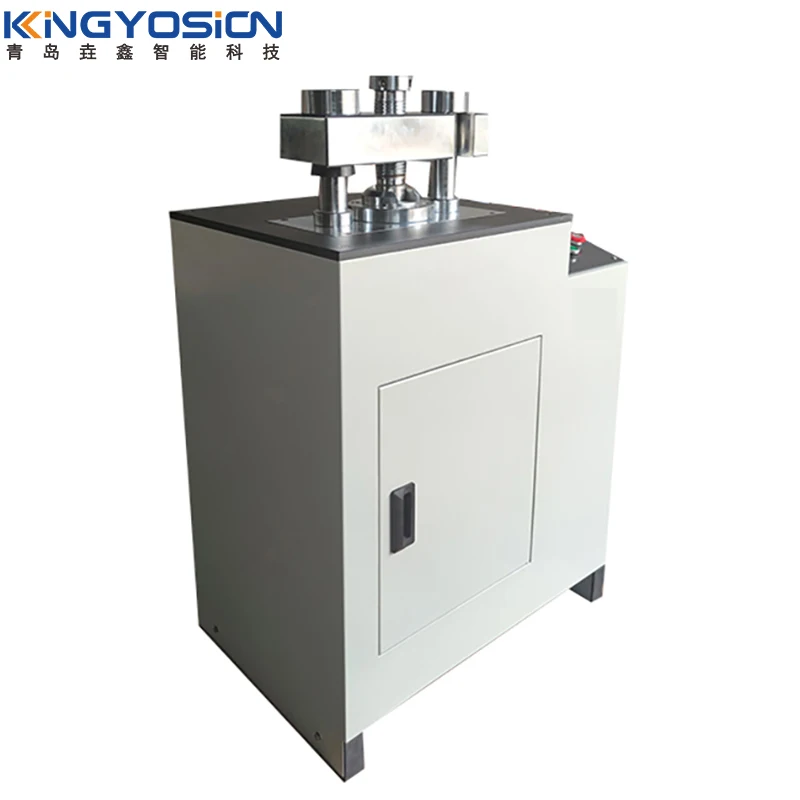

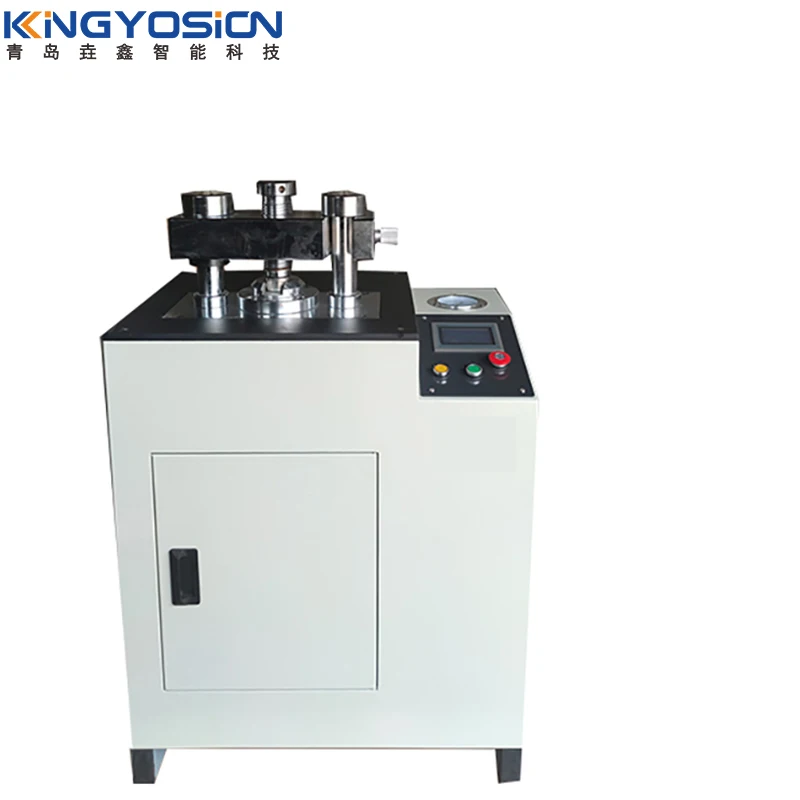

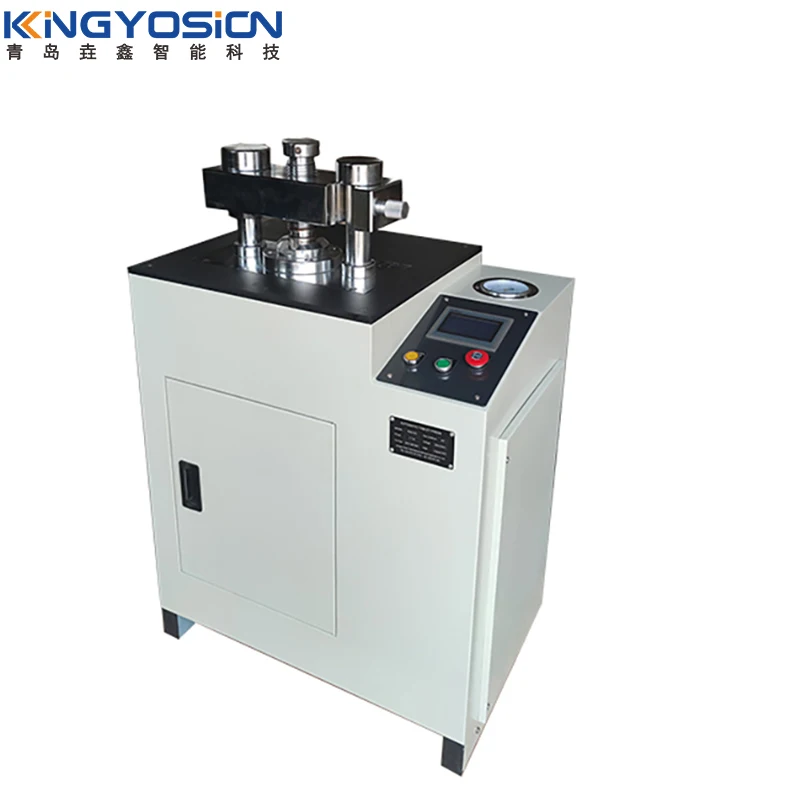

60T XRF automatic powder pellet press machine /XRF Pellet Press
- Category: >>>
- Supplier: Qingdao Yosion Intelligent Technology Co. Ltd.
Share on (1600510192467):
Product Overview
Description
Product Description
Product Description
The press machine is mainly used in the preparation of solid samples on the fluorescence spectrometer and the pressing of various small powders. It is widely used in powder metallurgy, cement, catalysis, silicic acid, battery, ceramics, colleges and universities and other fields for component analysis.
Features
1. The sample can be used for various pressing methods such as boric acid, steel ring, aluminum cup, and plastic ring.
2. Touch screen operation, PLC program control, pressure gauge setting pressure value, adjustable pressure holding time.
3. One-button operation, automatically complete sample pressing, demoulding, automatic reset, and good tablet pressing effect.
4. Its own hydraulic system can be used continuously and efficiently for a long time.
5. Easy to operate, more stable and reliable performance, compact structure and small footprint.
2. Touch screen operation, PLC program control, pressure gauge setting pressure value, adjustable pressure holding time.
3. One-button operation, automatically complete sample pressing, demoulding, automatic reset, and good tablet pressing effect.
4. Its own hydraulic system can be used continuously and efficiently for a long time.
5. Easy to operate, more stable and reliable performance, compact structure and small footprint.
Specification
Model | YX-YP40T | YX-YP60T | |||
Control Type | Touch screen operation, PLC program control | ||||
Mold type | Boric acid/steel ring/aluminum cup/plastic ring/low pressure polyethylene | ||||
Mould size (outer diameter/inner diameter) | Steel ring 40mm/35mm | ||||
Boric acid 40mm/34mm | |||||
Plastic ring 40mm/34mm (common size) Other optional sizes: 38mm/32mm, 32mm/28mm, 29.2mm/24mm, 25.2mm/20mm, 19.2mm/14mm | |||||
Maximum pressure | 40T（400kN） | 60T（600kN） | |||
Other optional pressure: 30T/40T/60T/80T/100T/120T/200T (can be customized according to demand) | |||||
Compress time | 0～999s adjustable | ||||
Power consumption | 2W≤5VA | ||||
Maximum stroke | 100（mm） | ||||
Voltage | AC 380V±5%, 50Hz, three-phase five-wire system | ||||
Power | 1.1kw | ||||
Use environment | Recommended state of use: ambient temperature 1～40℃; if the ambient temperature is below zero or plateau, please inform the manufacturer in advance. | ||||
Project References
Packing & Delivery
Company Profile
Committed to the development of intelligent mineral laboratory.
YOSION is a comprehensive laboratory service provider integrating research &development, production, sales and service. Yosion specialize in automated sampling & preparation system, sample preparation equipment, containerized laboratory, fire assay equipment & consumables,chemical analysis instrument etc.
YOSION is a comprehensive laboratory service provider integrating research &development, production, sales and service. Yosion specialize in automated sampling & preparation system, sample preparation equipment, containerized laboratory, fire assay equipment & consumables,chemical analysis instrument etc.
Yosion team step by step, focusing on customer needs, participate in the construction of global mineral laboratories, and have customers in Southeast Asia, Africa, Mid East, North America,South
America,Europe etc.
FAQ
Q1. Trader or Manufacture?
A:Manufacturer cercified by Alibaba ,SGS and ISO9001:2015.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team.
Q3:Can you customize LOGO?
A:Accept.
Q4. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when
we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q6. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by
the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the
product.
Q7. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia;Sample preparation and fire assay equipment in Saudi Arabia ,Russia etc.You can communicate with us for more details.
A:Manufacturer cercified by Alibaba ,SGS and ISO9001:2015.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team.
Q3:Can you customize LOGO?
A:Accept.
Q4. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when
we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q6. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by
the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the
product.
Q7. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia;Sample preparation and fire assay equipment in Saudi Arabia ,Russia etc.You can communicate with us for more details.
