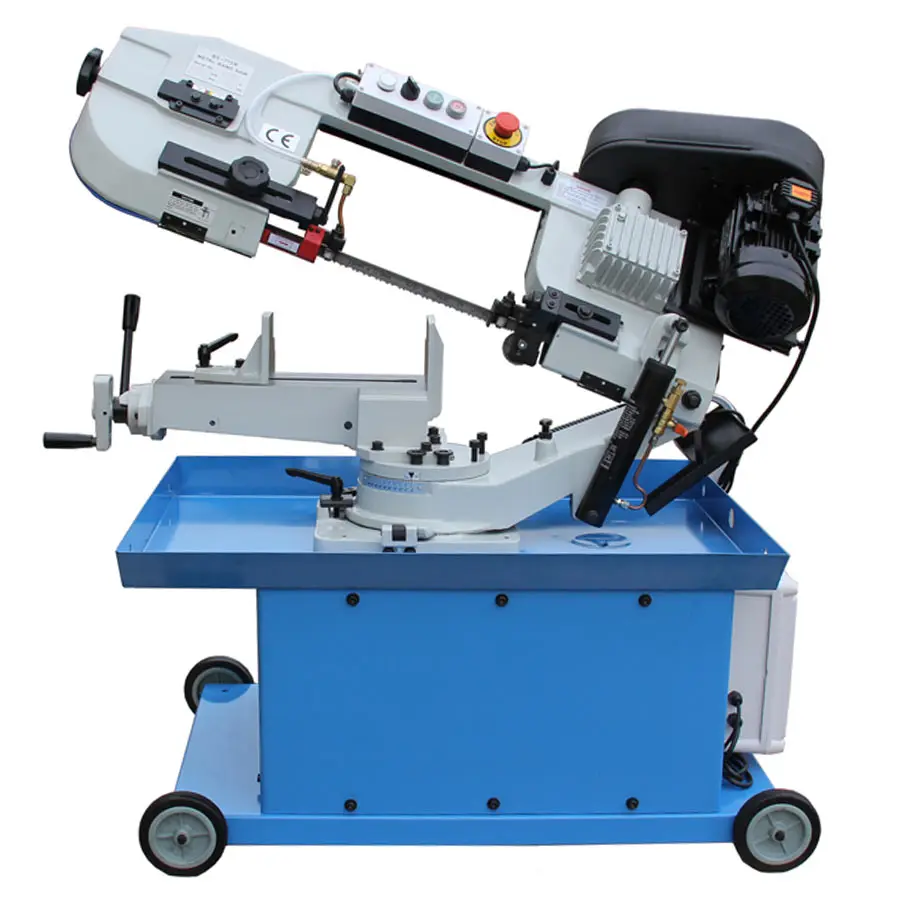

BS 712R Electric Meatal cutting band saw Auto band sawing machine
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (1600510246401):
Product Overview
Description
Product Description
Features
● The maximum processing capability of BAND SAW BS-712 series is 7" (178 mm)\t\t
● The quick clamps can be swiveled from 0° to 45°\t\t
● Vertical force controlled through hydraulic cylinder.\t\t
● Belt driven, with four cutting speed\t\t
● Can be used both vertically and horizontally\t\t
● High-capacity due to controlled by motor\t\t
● Has the advantage of quickly clamping\t\t
● The falling speed of saw bow is controlled by hydraulic cylinder\t\t
● With a sizing device, machine will stop automatically after sawing materials\t\t
● Electric coolant system for extending the life of blade and improve the precision of work piece
Specifications for BS-712R | ||||
Capacity | Circular @90° | 178mm(7″) | ||
Rectangular @90° | 178×210mm(7″×8.25″) | |||
Circular @45° | 127mm(5″) | |||
Rectangular @45° | 85×140mm(3.33″×5.5″) | |||
Blade speed | @60HZ | 27,41,59,78MPM | ||
@50HZ | 22,34,49,64MPM | |||
Blade size | 19x0.9x2362mm | |||
Motor power | 750W 1HP(3PH),1.1Kw 1.5HP（1PH) | |||
Drive | belt | |||
Packing size | 129×73×115cm | |||
N.W./G.W. | 170/192kg | |||
